*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

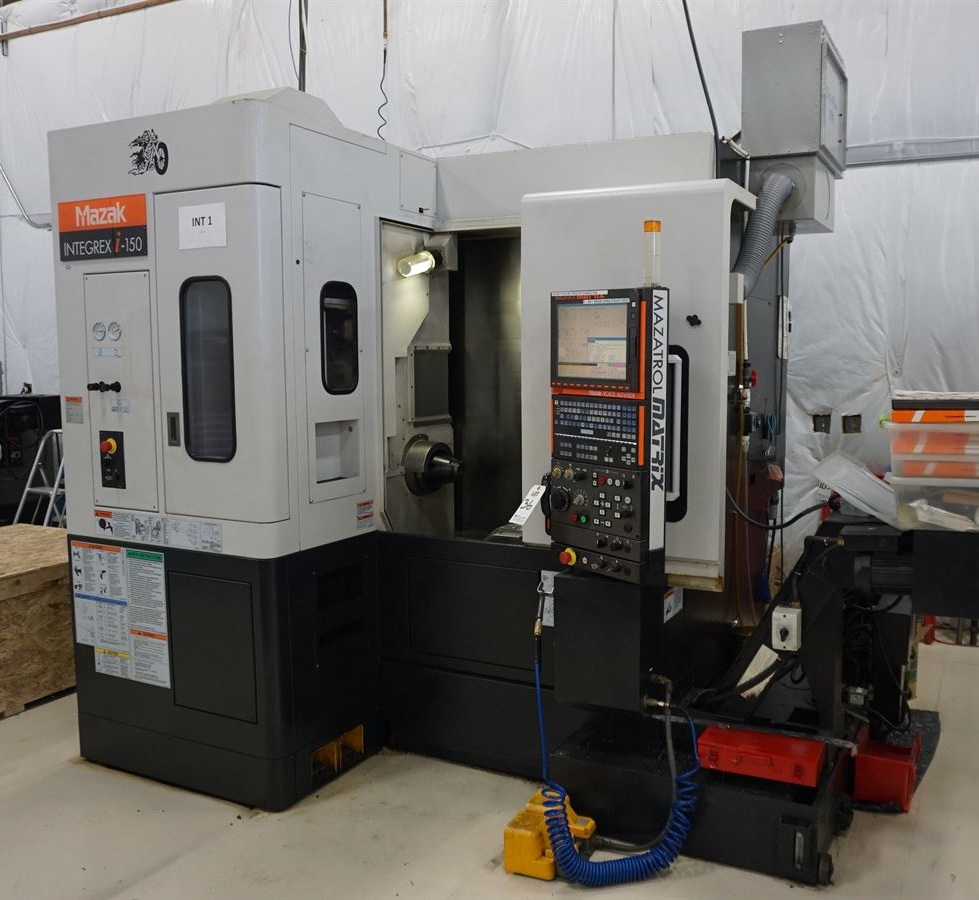

| Make: | Mazak |
| Model: | INTEGREX i-150 |
| Year: | 2008 |
| Features: |
|---|
| Mazatrol Matrix CNC Control |
| B-Axis Milling Head |
| 36+1 Position Automatic Tool Changer |
| Capto Tooling System |
| Royal 3J Collet Chuck |
| 6″ Kitagawa Hydraulic Chuck |
| Workholding Vise Arm |
| Mayfran MT-10 Chip Conveyor |
| Tri-Mist 850 Mist Collector |
| Automatic Lubrication System |
| Fully Enclosed Splash Guard |
| Capacity: |
|---|
| Chuck Size: 6″ |
| Maximum Diameter: 13.39″ |
| Maximum Length: 15.16″ |
| Maximum Bar Capacity: 2.56″ |
| Travels: |
|---|
| X-Axis Travel: 14.57″ |
| Y-Axis Travel: 7.87″ |
| Z-Axis Travel: 17.13″ |
| W-Axis Travel: 11.81″ |
| B-Axis Travel: -10° to 190° |
| Main Spindle: |
|---|
| Chuck Size: 6″ |
| Spindle Nose: A2-6 |
| Maximum Chuck Speed: 5,000 RPM |
| Royal 3J Collet Chuck |
| Milling Spindle: |
|---|
| B-Axis Milling Head |
| Tool Interface: Capto |
| B-Axis Positioning Increment: 0.0001° |
| Automatic Tool Changer: |
|---|
| ATC Capacity: 36 + 1 Tools |
| Tool System: Capto |
| General: |
|---|

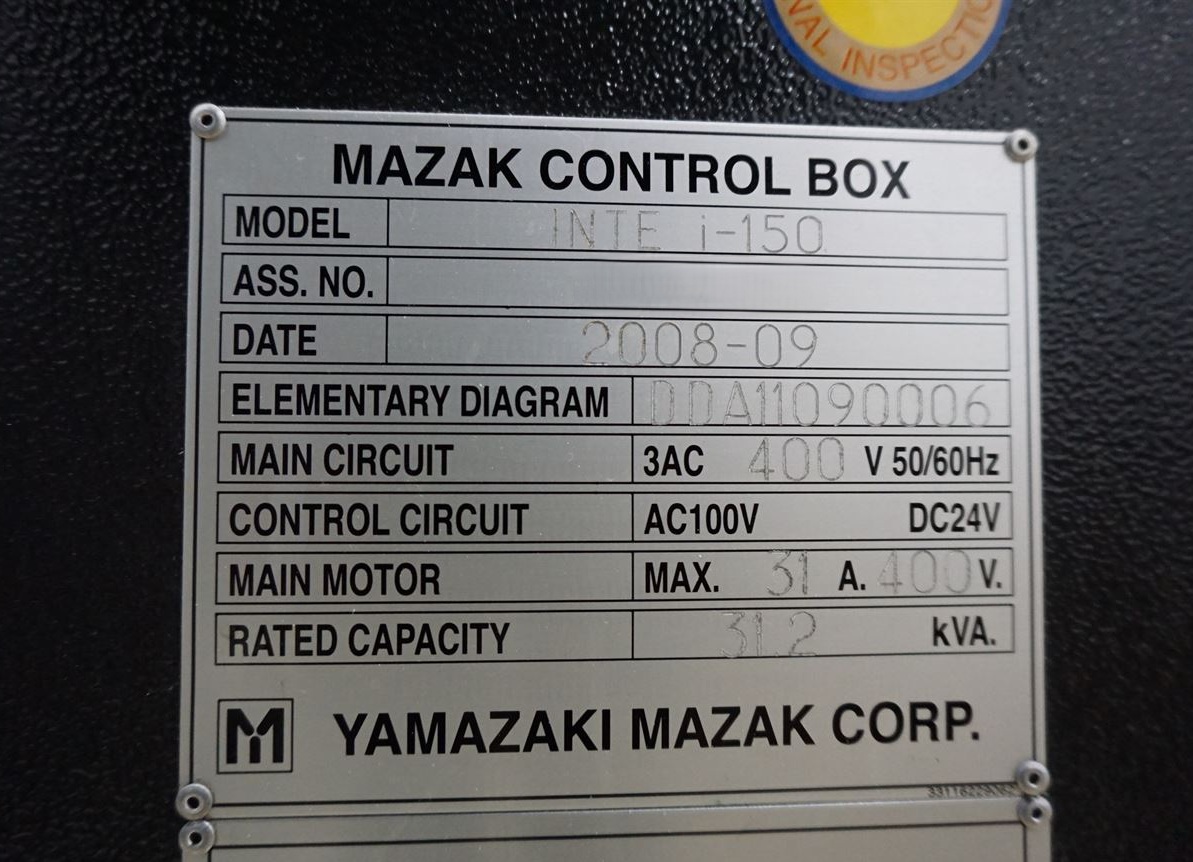

| Power Source: 220/200 V / 3 Phase / 50/60 Hz |
| Cutting Time: 30,186 Hours |
| Machine Dimensions (Approx.): 122″ × 95″ × 98″ |
| Machine Weight: 16,060 lbs |
