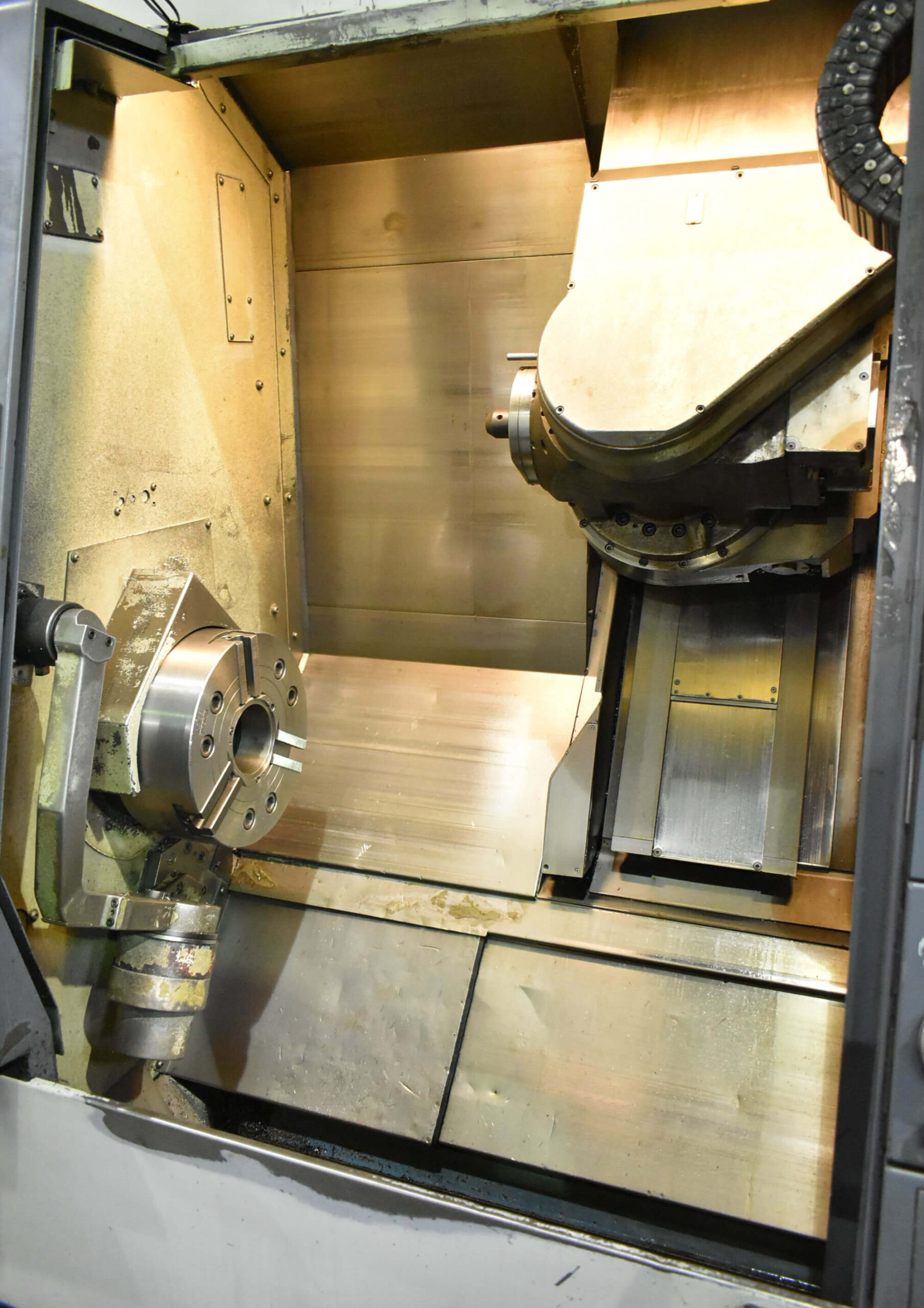

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Mazak |
| Model: | INTEGREX 300-2Y |
| Year: | 2001 |
| Machine Type: | CNC Multitasking Live Milling & Turning Center |
| CNC Control: | MAZATROL PC FUSION 640 |
| Equipped With: |
|---|
| MAZATROL PC FUSION 640 CNC Control |
| 5-Axis Multitasking Capability |
| Live Milling Spindle |
| C-Axis Interpolation |
| B-Axis Positioning |
| KITAGAWA 12″ 3-Jaw Chuck |
| 40-Station Automatic Tool Changer |
| CNC Programmable Tailstock |
| Automatic Tool Checker Arm |
| High Pressure Coolant |
| Chip Conveyor |
| Enclosed Work Area |
| Capacity: |
|---|
| Maximum Swing: 24.01″ |
| Maximum Machining Length: 41.20″ |
| Chuck Size: 12″ |
| Chuck Type: KITAGAWA 3-Jaw Hydraulic Chuck |
| Travels: |
|---|
| X-Axis Travel: 22.83″ |
| Y-Axis Travel: 4.13″ |
| Z-Axis Travel: 43.30″ |
| C-Axis: 360° in 0.0001° |
| B-Axis: 225° |
| Turning Spindle: |
|---|
| Spindle Motor: 30 HP |
| Maximum Spindle Speed: 3,500 RPM |
| Live Milling Spindle: |
|---|
| Maximum Spindle Speed: 4,500 RPM |
| Live Milling Capability: Yes |
| Automatic Tool Changer: |
|---|
| Tool Changer: Automatic |
| Capacity: 40 Stations |
| Tailstock: |
|---|
| Type: CNC Programmable Tailstock |
| Electrical: |
|---|
| Voltage: 400V |
| Phase: 3-Phase |
| Frequency: 60 Hz |
