*All specifications are approximations and are subject to verification. Comes as shown in the images. Please call us if you have any questions before making a purchase. All sales are final.*

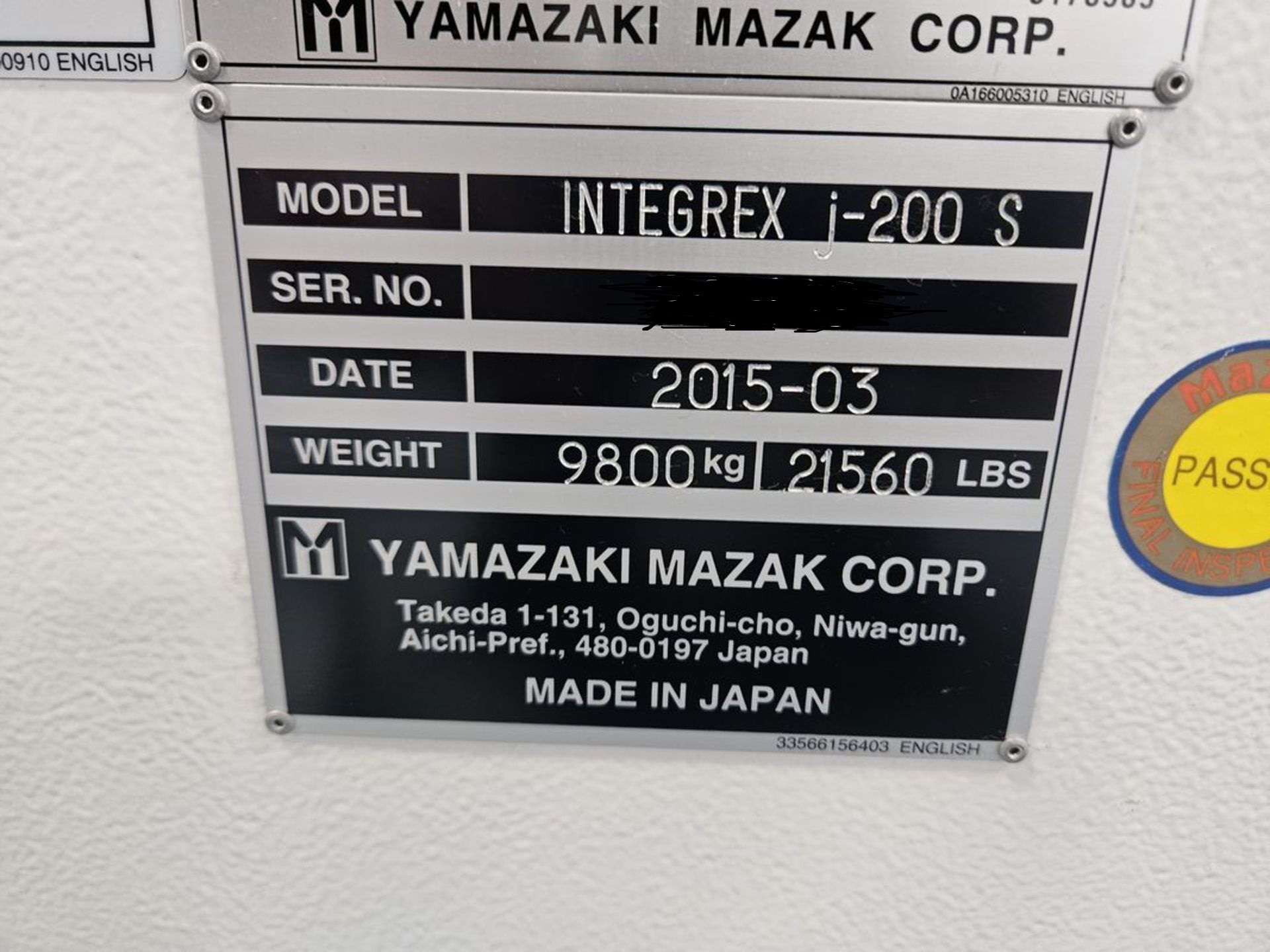

| Make: |
Mazak |
| Model: |
INTEGREX J-200S |
| Condition: |
Used |
| Equipped With: |

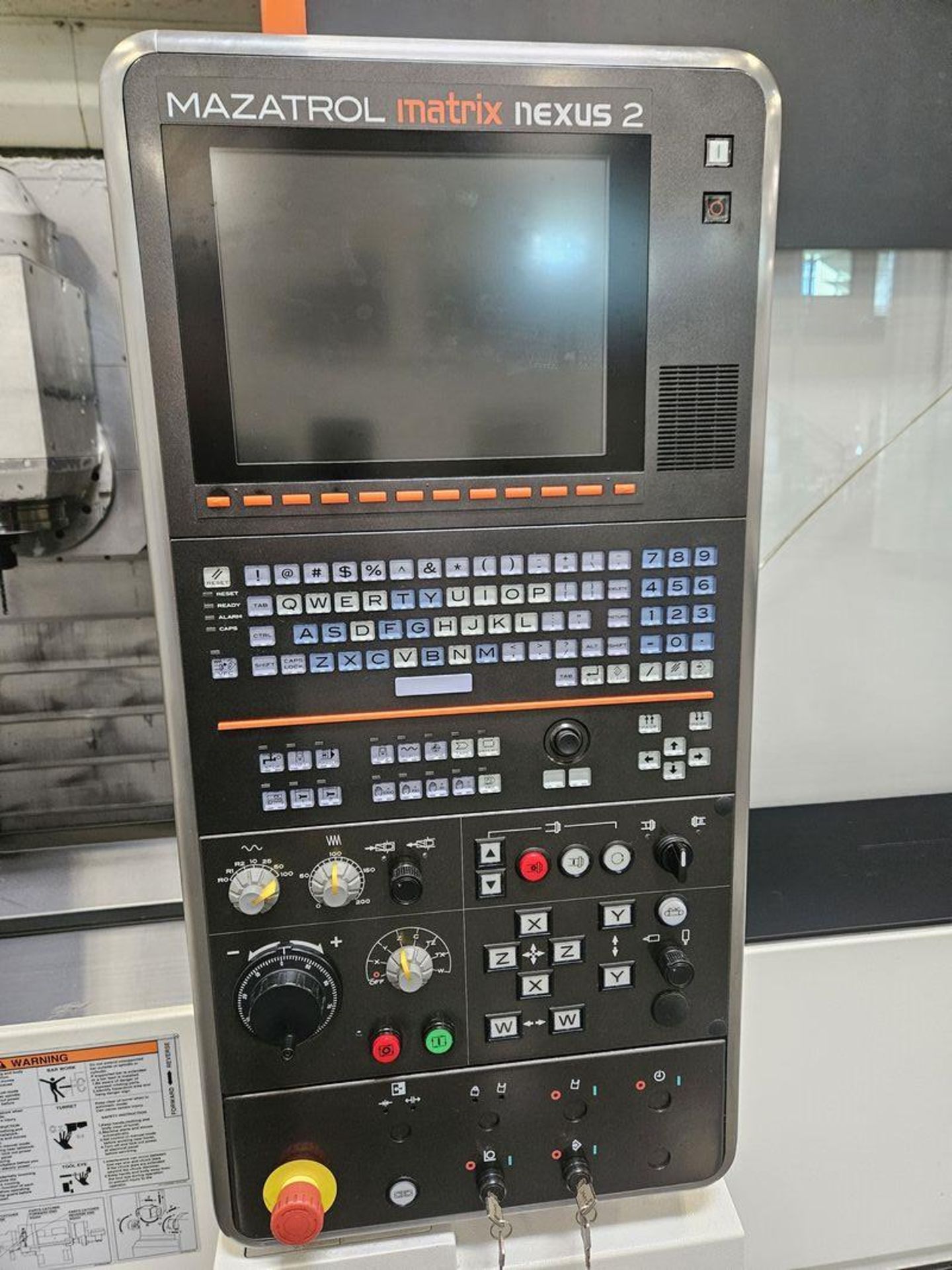

- MAZATROL SmoothG CNC Control
- Simultaneous 4-Axis Control
- Second Spindle (S-Model)
- Y-Axis Machining Capability
- B-Axis Milling Spindle (-30° to +190°)
- Integral Motor Main & Sub Spindles
- Automatic Tool Changer (20-Tool Standard)
- Full Enclosure
- Coolant System
- Chip Pan
|
| Capacity: |
- Max Swing Over Cross Slide: 20.9″
- Max Machining Diameter: 19.7″
- Max Machining Length: 39.9″
- Max Bar Capacity: 2.56″
|
| Travels: |
- X-Axis Travel: 17.7″
- Y-Axis Travel: ±3.94″ (7.87″ total)
- Z-Axis Travel: 41.97″ (without ATC)
- B-Axis Travel: −30° to +190° (5° indexing)
- C-Axis Rotation: 360°
|
| Main Spindle: |
- Spindle Nose: A2-6
- Spindle Speed: 5,000 RPM
- Spindle Motor: 20 HP (40% ED) / 15 HP (Continuous)
- Spindle Bore: 2.99″
- C-Axis Indexing: 0.0001°
|
| Second Spindle: |
- Spindle Speed: 5,000 RPM
- Spindle Motor: 15 HP (40% ED) / 10 HP (Continuous)
- Spindle Nose: A2-5
- Spindle Bore: 2.40″
|
| Milling Spindle: |
- Milling Spindle Speed: 12,000 RPM
- Milling Motor Power: 10 HP (40% ED) / 7.5 HP (Continuous)
- Tool Interface: HSK-A63
- Max Milling Torque: 20.3 ft-lbs
|
| Tool Magazine: |
- Tool Capacity: 20 Tools (36 / 72 Optional)
- Max Tool Diameter: 4.92″
- Max Tool Length: 15.75″
- Max Tool Weight: 22 lbs
|
| General: |
- Power Requirement: 46.8 kVA (Continuous)
- Air Requirement: 72 PSI, 7.1 CFM
- Coolant Tank Capacity: 71 gal
- Machine Height: 107″
- Floor Space Required: 190″ × 107″
- Machine Weight: 31,300 lbs
|
