*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: |
Mazak |
| Model No.: |
INTEGREX J-400 |
| Year of Manufacture: |
2014 |
| Condition: |
Used |
| Machine Type: |
CNC Multi-Tasking Turning & Milling Center (5-Axis) |
| CNC Control: |
Mazatrol Matrix Nexus 2 |
| Country of Origin: |
Japan |
| Equipped With: |
| 12″ Hydraulic Chuck |

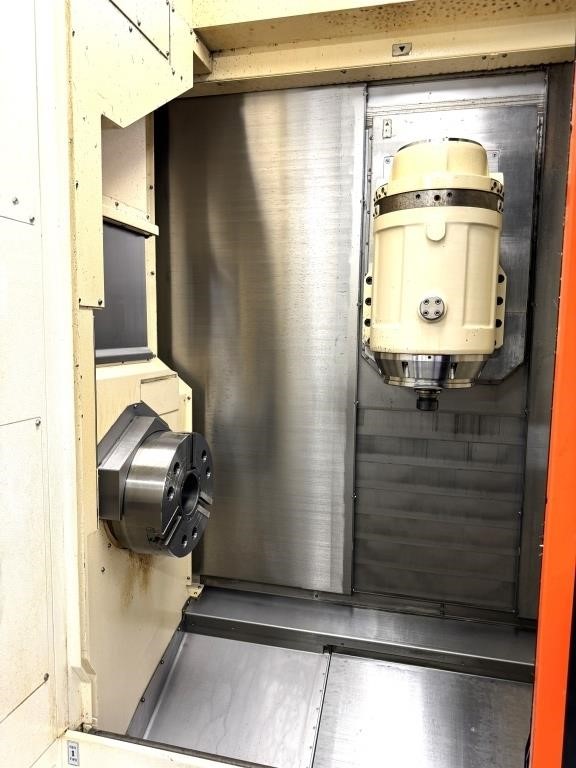

| Milling Spindle with B-Axis |
| Full 5-Axis Machining Capability |
| C-Axis Main Spindle |
| Automatic Tool Changer |
| Chip Conveyor |
| Coolant System |
| Probe / Tool Setter (optional) |
| Thermal Compensation System |
| Hybrid Roller Guideways |
| Fully Enclosed Guarding |
| Capacity: |
| Chuck Size: 12″ |
| Max Machining Diameter: 19.7″ (500 mm) |
| Max Machining Length: 24.7″ (629 mm) / up to 45.8″ (long bed) |
| Max Swing: ~25.2″ (640 mm) |
| Bar Capacity: 4.0″ (102 mm) |
| Main Spindle: |
| Spindle Speed: Up to 3,300 RPM |
| Spindle Motor: 22 kW (30 HP) |
| Spindle Type: Integral Motor |
| C-Axis: Full Contouring |
| Milling Spindle (B-Axis): |
| Max Speed: 12,000 RPM |
| Motor Power: 22 kW (30 HP) |
| B-Axis Rotation: -30° to +190° |
| Function: Full 5-Axis Simultaneous Machining |
| Travels: |
| X-Axis Travel: 24.2″ (615 mm) |
| Y-Axis Travel: 10.2″ (260 mm) |
| Z-Axis Travel: 27.3″ (695 mm) / up to 48.4″ (long bed) |
| W-Axis Travel: Up to 1190 mm |
| Rapid Traverse (X/Y/Z): ~50 / 40 / 50 m/min |
| Tooling System: |
| Tool Capacity: 20 Tools (36 / 72 optional) |
| Tool Taper: HSK-A63 |
| Max Tool Diameter: ~5″ |
| Max Tool Length: ~16″ |
| Construction: |
| High Rigidity Machine Structure |
| Hybrid Roller Guideways |
| True Y-Axis Design |
| Thermal Stability System |
| Compact Footprint with Large Envelope |
| Electrical: |
| Power Requirement: 220V / 3 Phase |
| General: |
| Machine Weight: ~27,700 – 31,000 lbs (12,500 – 14,000 kg) |
| Floor Space: ~167″ × 107″ |
| Axis Configuration: X, Y, Z, B, C |
