*All specifications are approximations and are subject to verification. Comes as shown in the images. Please call us if you have any questions before making a purchase. All sales are final.*
| Make: |
Mazak |
| Model: |
Nexus 6000-II |
| Condition: |
Used |
| Equipped With: |

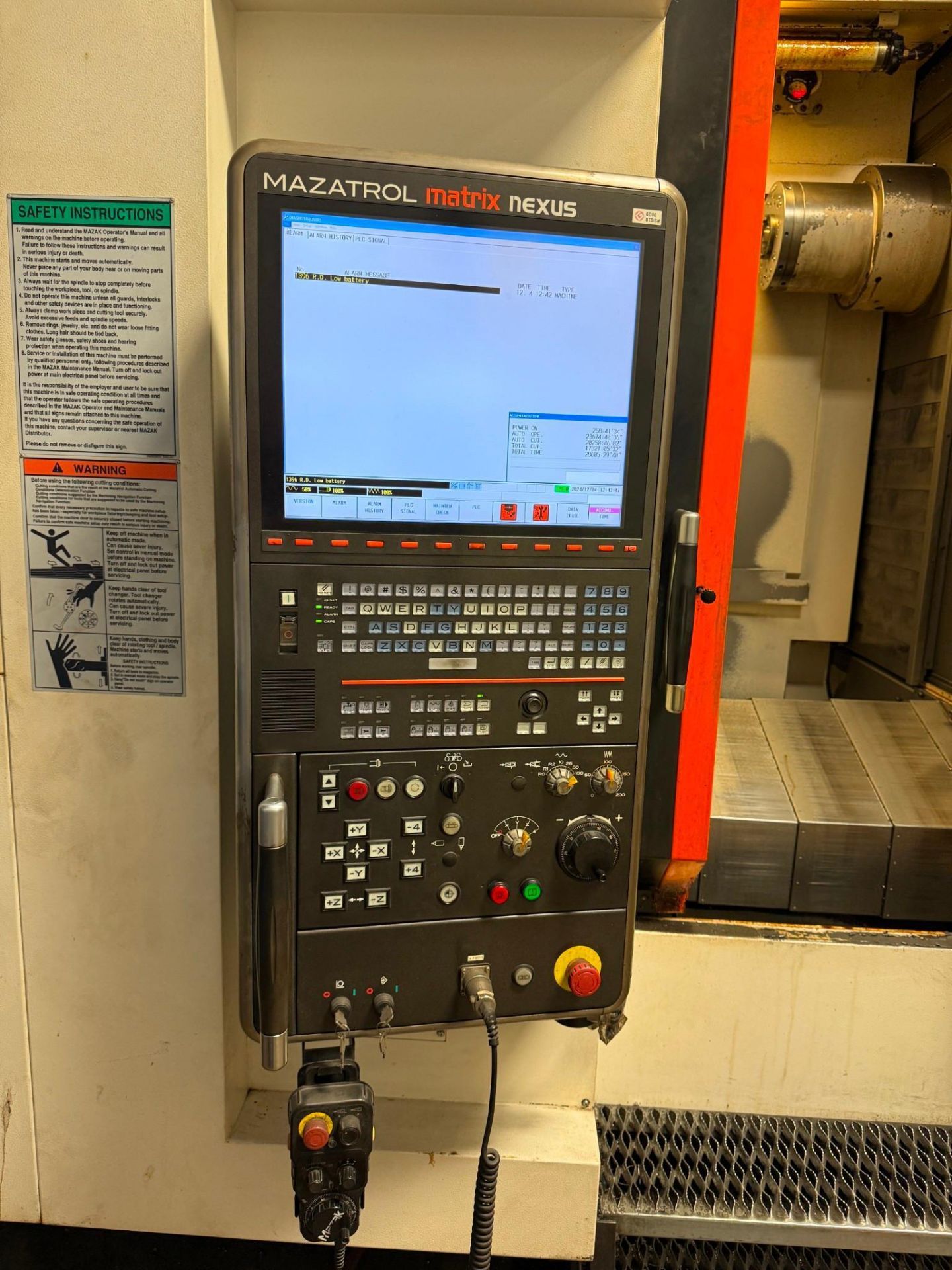

- Mazatrol CNC Control
- Automatic Pallet Changer
- Full 4-Axis Machining Capability
- CAT-50 Spindle Taper
- High-Torque Gear-Driven Spindle
- Automatic Tool Changer
- Coolant System
- Chip Conveyor
- Full Enclosure
|
| Capacity: |
- Pallet Size: 24.8″ × 24.8″
- Max Workpiece Diameter: 39.4″
- Max Workpiece Height: 39.4″
- Max Table Load: 2,200 lbs
|
| Travels: |
- X-Axis Travel: 39.4″
- Y-Axis Travel: 35.4″
- Z-Axis Travel: 35.4″
- B-Axis Indexing: 1° (Optional Continuous)
|
| Spindle: |
- Spindle Taper: CAT-50
- Spindle Speed: 6,000 RPM
- Spindle Motor: 40 HP
- Spindle Type: Gear Driven
|
| Feedrates: |
- Rapid Traverse X/Y/Z: 1,575 IPM
- Cutting Feedrate: 0 – 787 IPM
|
| Automatic Tool Changer: |
- Tool Capacity: 40 Tools
- Max Tool Diameter: 6.3″
- Max Tool Length: 19.7″
- Max Tool Weight: 33 lbs
|
| General: |
- Power Requirement: 220V / 3-Phase
- Machine Weight (Approx.): 33,000 lbs
- Machine Dimensions (Approx.): 220″ × 120″ × 120″
|
