*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: |
Mazak |
| Model No.: |
QTN-300 |
| Year of Manufacture: |
2005 |
| Condition: |
Used – Good |
| Machine Type: |
CNC Turning Center (Lathe) |
| CNC Control: |

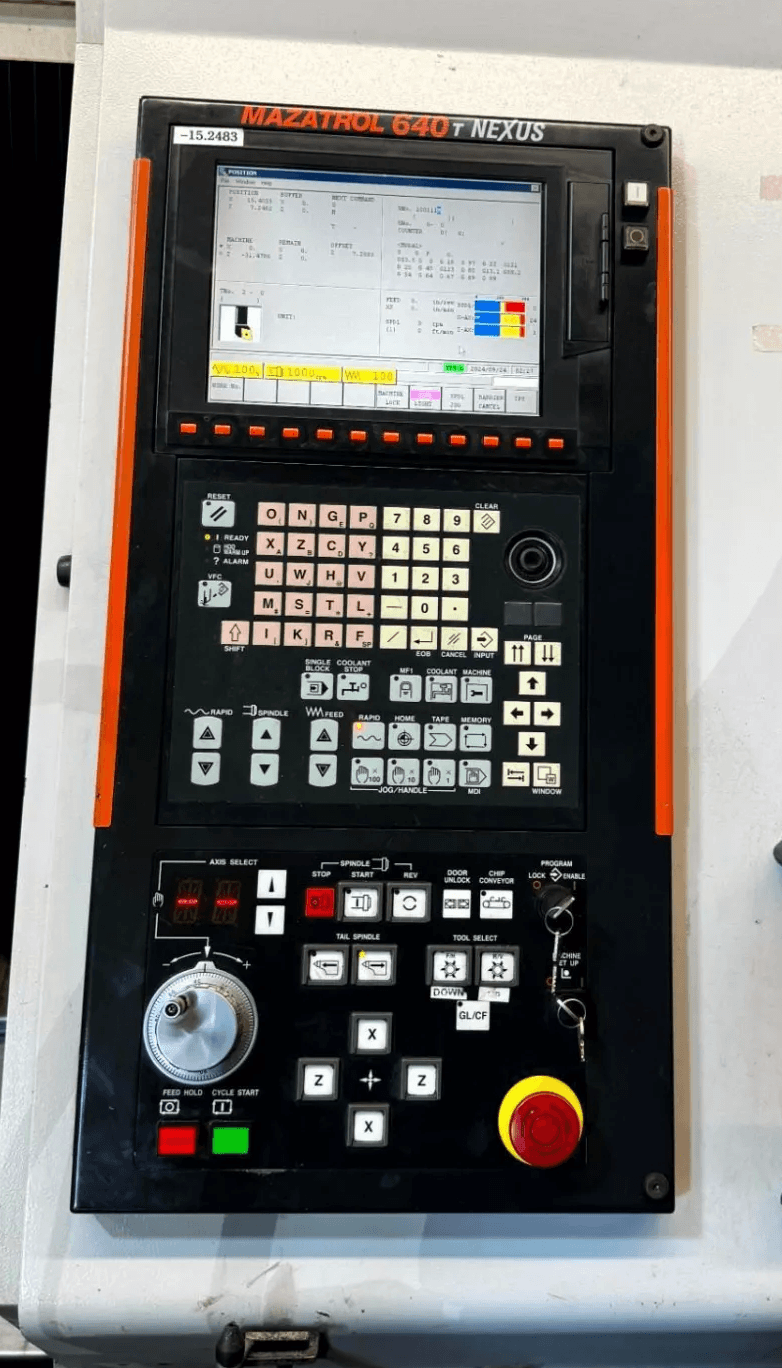

Mazatrol 640T Nexus |
| Country of Origin: |
Japan |
| Equipped With: |
| Mazatrol 640T Nexus CNC Control |

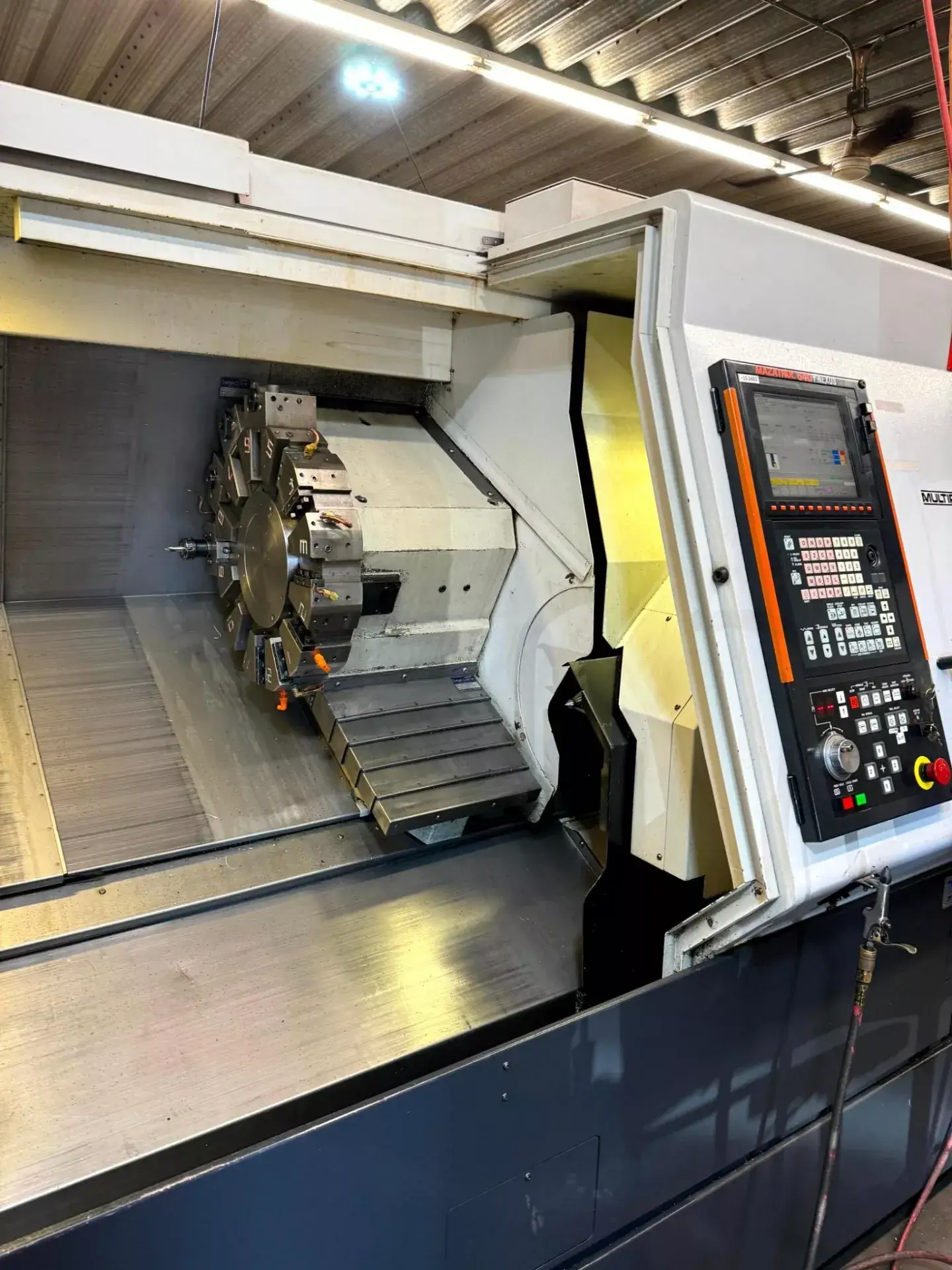

| 12-Station Turret |
| Hydraulic Programmable Tailstock |
| Chip Conveyor |
| Coolant System |
| Foot Pedal |
| Full Enclosure |
| Work Light |
| Capacity: |
| Max Turning Diameter: ~14.8″ |
| Max Turning Length: ~50″ |
| Bar Capacity: ~3.0″ |
| Chuck Size: 10″ – 12″ (Typical) |
| Spindle: |
| Spindle Speed: Up to 4,000 RPM |
| Spindle Motor: Approx. 30 HP |
| Spindle Nose: A2-8 |
| Turret: |
| Number of Stations: 12 |
| Tooling Type: VDI / Bolt-On (Varies) |
| Tailstock: |
| Type: Hydraulic Programmable Tailstock |
| Quill Diameter: ~3.15″ |
| Quill Stroke: ~3.9″ |
| Taper: MT #5 |
| Positioning: Programmable (CNC Controlled) |
| Clamping: Hydraulic |
| Travels: |
| X-Axis Travel: ~9.1″ |
| Z-Axis Travel: ~50″ |
| General: |

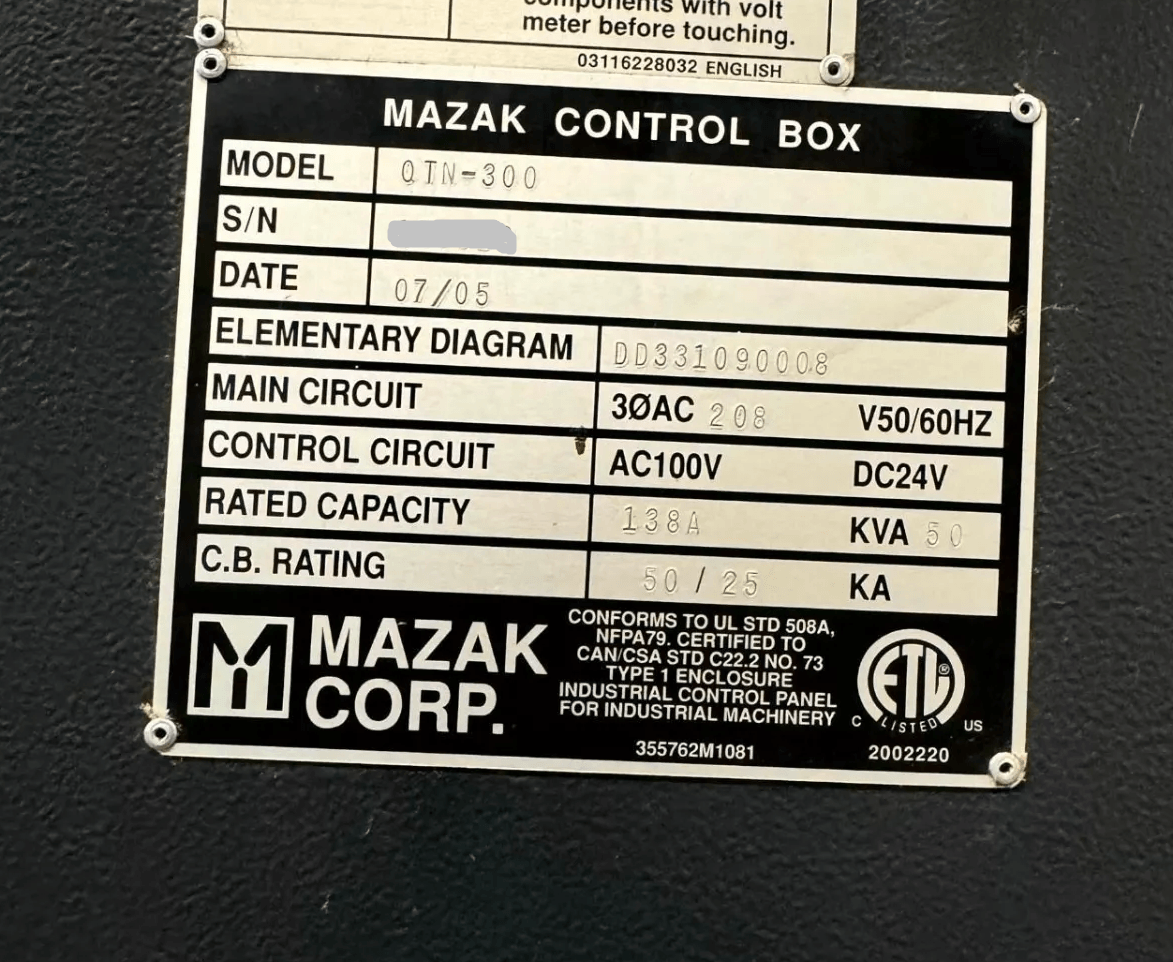

| Power Requirement: 208V / 3 Phase |
| Machine Weight: Approx. 12,000 lbs |
