*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: |
Mazak |
| Model No.: |
Quick Turn 250MY |
| Year of Manufacture: |
2019 |
| Condition: |
Used – Excellent |
| Machine Type: |
CNC Turning Center with Milling (Mill-Turn) |
| CNC Control: |

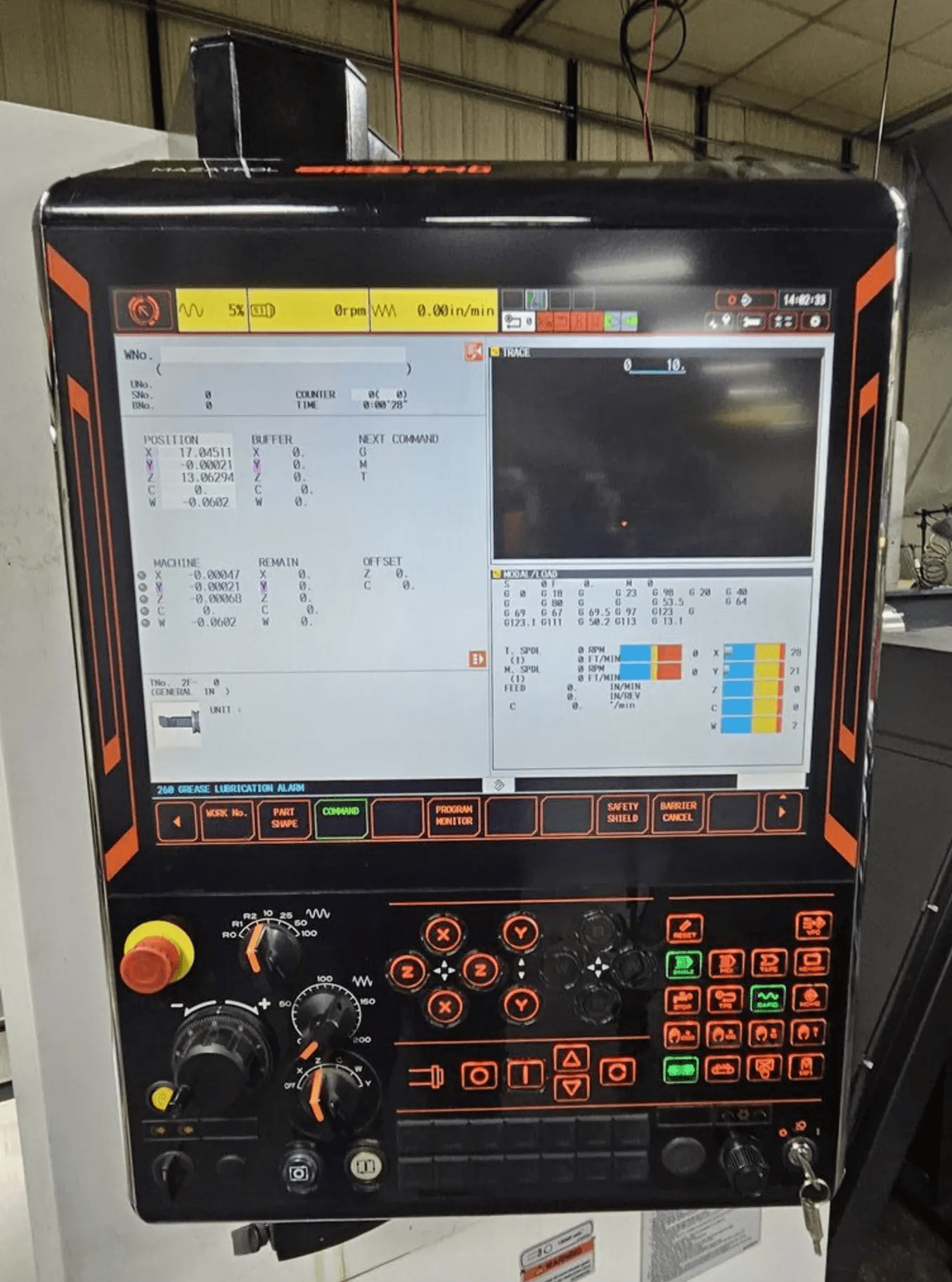

Mazatrol Smooth CNC Control |
| Country of Origin: |
USA / Japan |
| Equipped With: |
| Mazatrol Smooth CNC Control |
| Y-Axis Capability |
| C-Axis Spindle Indexing |
| Live Tooling Turret |
| Tailstock |

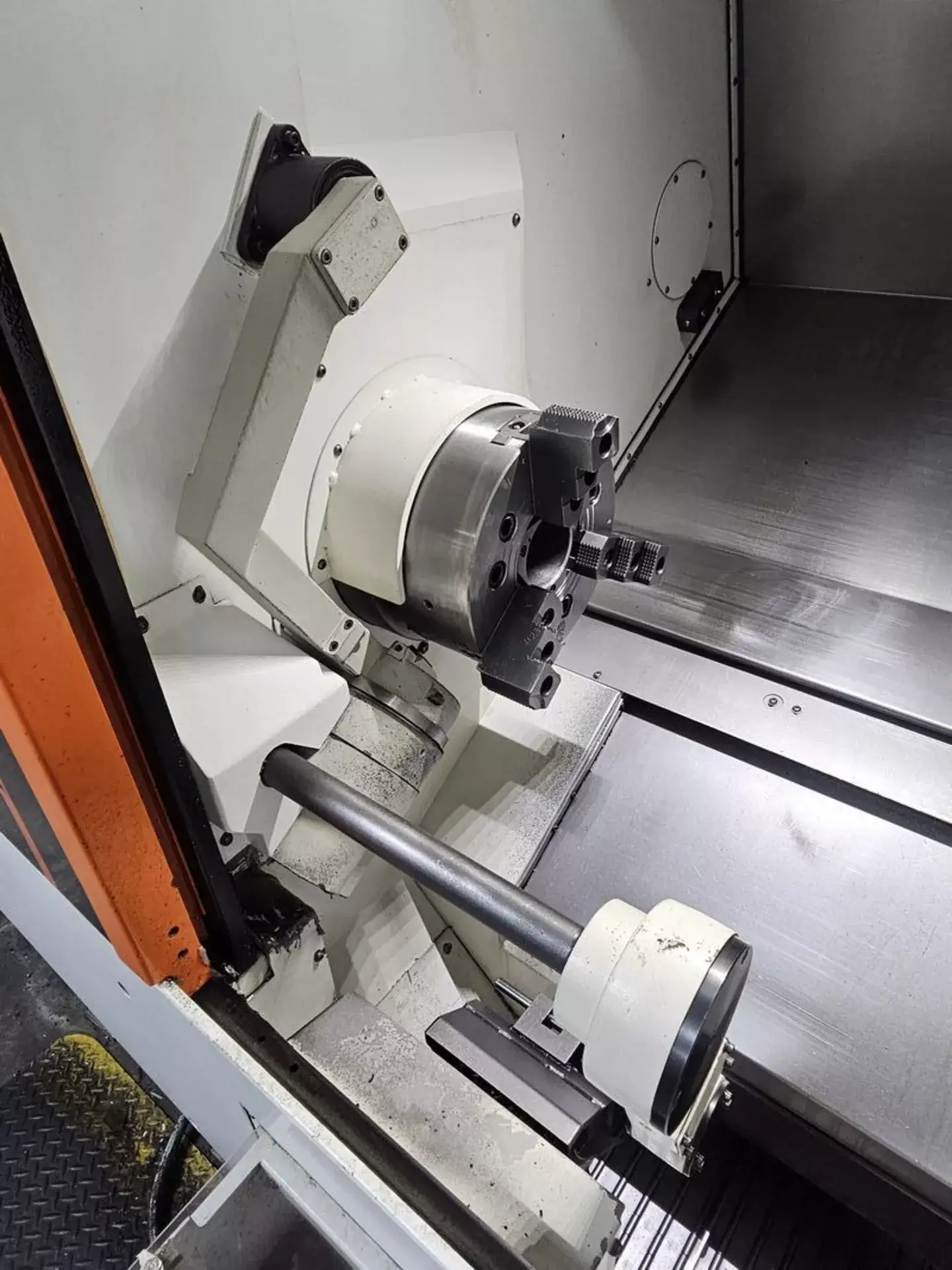

| Hydraulic 3-Jaw Chuck |
| Chip Conveyor |
| Coolant System |
| Automatic Tool Changer (Turret) |
| Full Enclosure |
| Capacity: |
| Max Turning Diameter: ~14.8″ (375 mm) |
| Max Turning Length: ~20″ (500 mm) |
| Swing Over Bed: ~26″ |
| Chuck Size: 10″ |
| Bar Capacity: ~3″ |
| Travels: |
| X-Axis Travel: ~9″ |
| Y-Axis Travel: ±2″ |
| Z-Axis Travel: ~22″ |
| Spindle: |
| Main Spindle Speed: 4,000 RPM |
| Spindle Bore: ~3″ |
| Spindle Motor: ~30 HP |
| C-Axis: Full Positioning |
| Turret: |
| Tool Stations: 12 Position |
| Live Tooling: Yes |
| Tool Type: VDI / Bolt-On (Verify) |

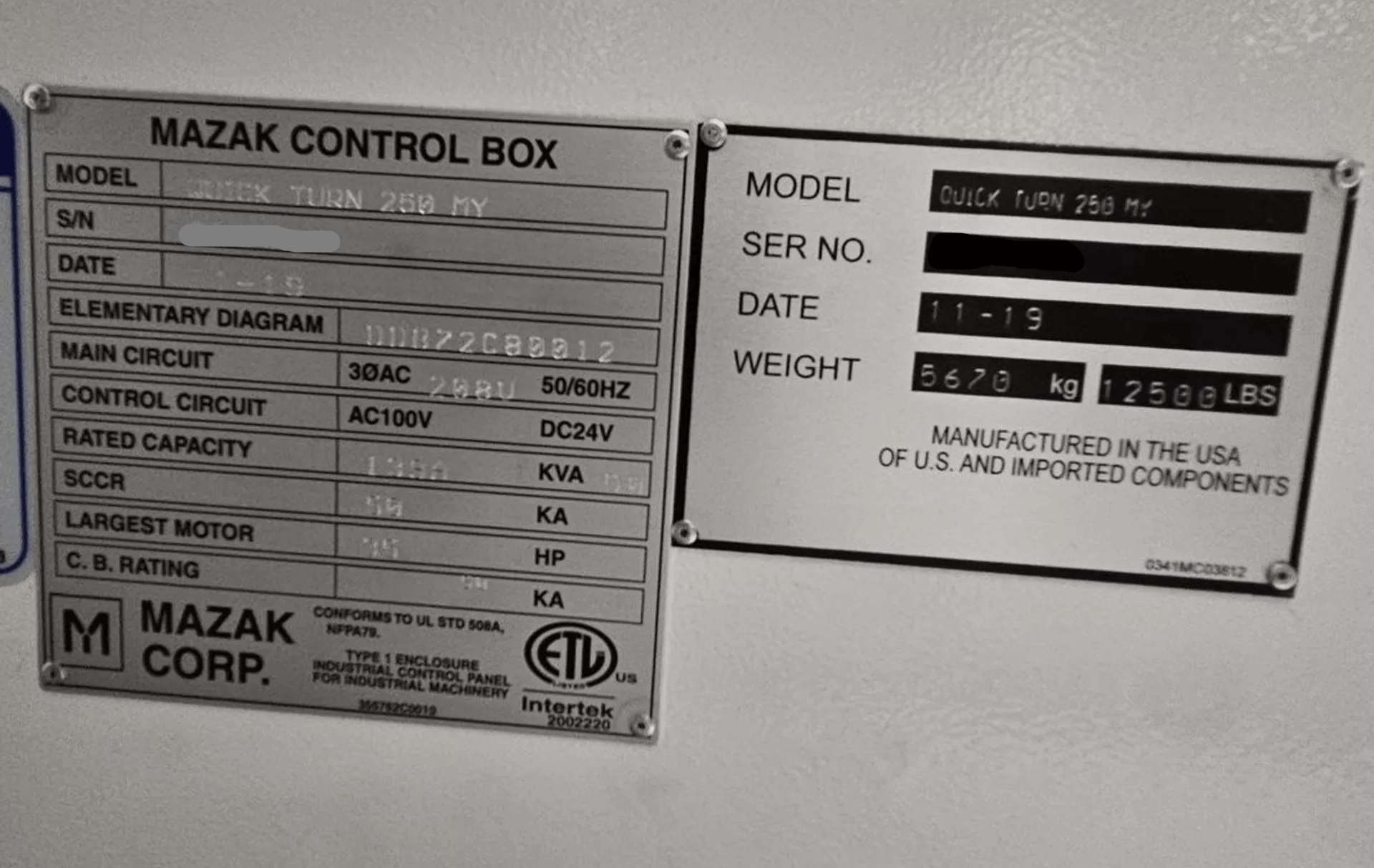

| Electrical: |
| Voltage: 220V |
| Phase: 3 Phase |
| Frequency: 50/60 Hz |
| Approx. Weight: 12,500 lbs |
| Dimensions: |
| Floor Space: Approx. 110″ x 75″ x 80″ H |
