*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: |
Mazak |
| Model: |
Quick Turn 450 |
| Year of Manufacture: |
2020 |
| Condition: |
Used |
| Machine Type: |
CNC Turning Center |
| CNC Control: |

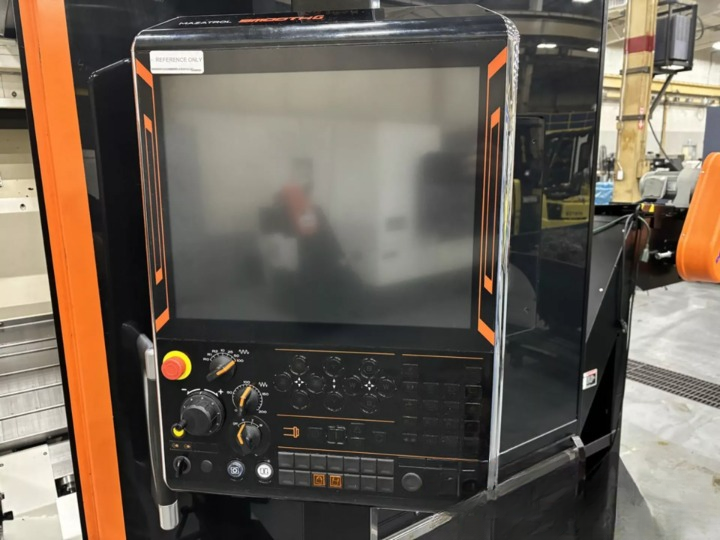

Mazatrol SmoothG |
| Country of Origin: |
Japan |
| Equipped With: |
| Mazatrol SmoothG CNC Control |
| 12-Station Turret |
| 15″ Hydraulic Chuck |
| Programmable Hydraulic Tailstock |
| Chip Conveyor |
| Coolant System |
| Work Light |
| Fully Enclosed Guarding |
| Heavy Duty Slant Bed Construction |
| Capacity: |
| Max Swing Over Bed: 36.6″ |
| Max Turning Diameter: 22.0″ |
| Max Turning Length: 80″ |
| Distance Between Centers: ~80″ |
| Spindle: |
| Spindle Nose: A2-11 |
| Spindle Speed: 3,000 RPM |
| Spindle Bore: 4.5″ |
| Bar Capacity: 4.0″ |
| Spindle Motor: 50 HP |
| Turret / Tooling: |
| Turret Capacity: 12 Tools |
| Tool Size (OD): 1.25″ |
| Boring Bar Capacity: 2.5″ |
| Turret Type: VDI / Bolt-on |
| Travels: |
| X-Axis Travel: 12.2″ |
| Z-Axis Travel: 82.7″ |
| Rapid Traverse (X/Z): 1,181 / 1,181 IPM |
| Tailstock: |
| Type: Programmable Hydraulic Tailstock |
| Quill Taper: MT#5 |
| Accuracy: |
| Positioning Accuracy: ±0.0002″ |
| Repeatability: ±0.00008″ |

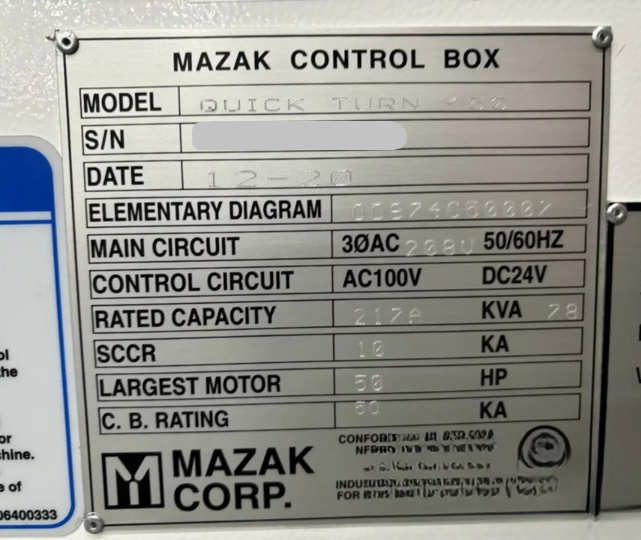

| Electrical: |
| Main Circuit: 3 Phase AC, 200V, 50/60 Hz |
| Control Circuit: AC100V / DC24V |
| Rated Capacity: ~27 kVA |
| Largest Motor: 50 HP |
| General: |
| Machine Dimensions: 200″ × 85″ × 90″ |
| Machine Weight: 22,000 lbs |
