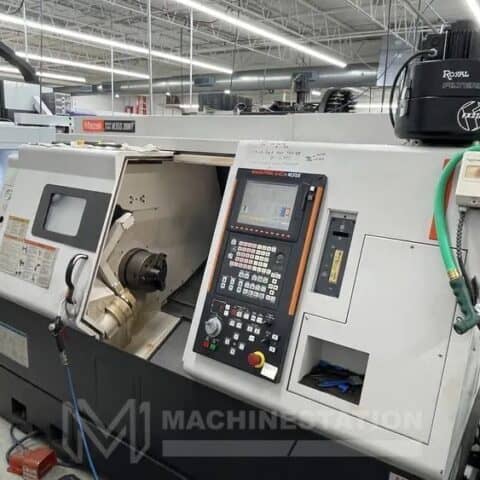

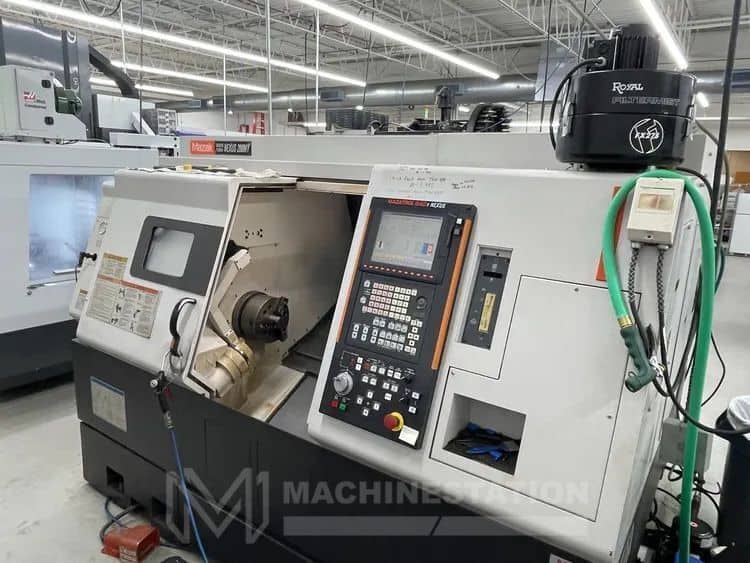

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Mazak |
| Model: | QTN-200MY |
| Year: | 2004 |
| Condition: | Used – Good |
| Equipped With: |
|---|

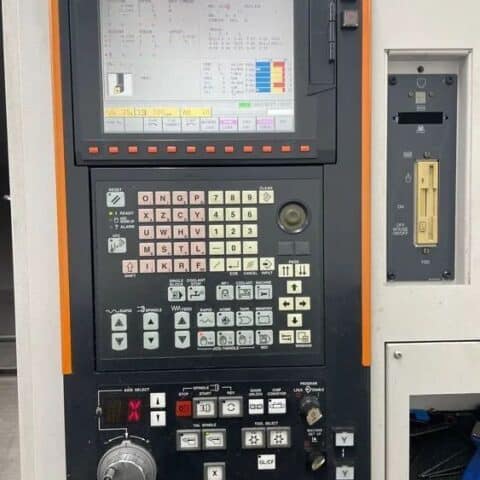

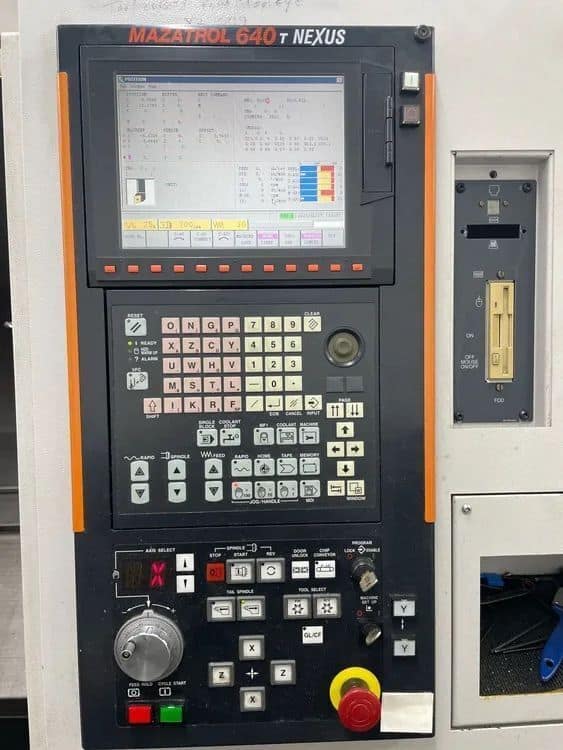

| Mazatrol 640T CNC Control |
| 8″ 3- Jaw Kitagawa B208 Chuck |
| Servo Controlled Full C-Axis on Spindle |

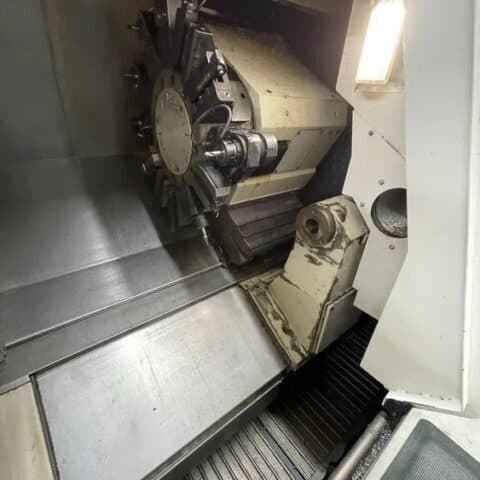

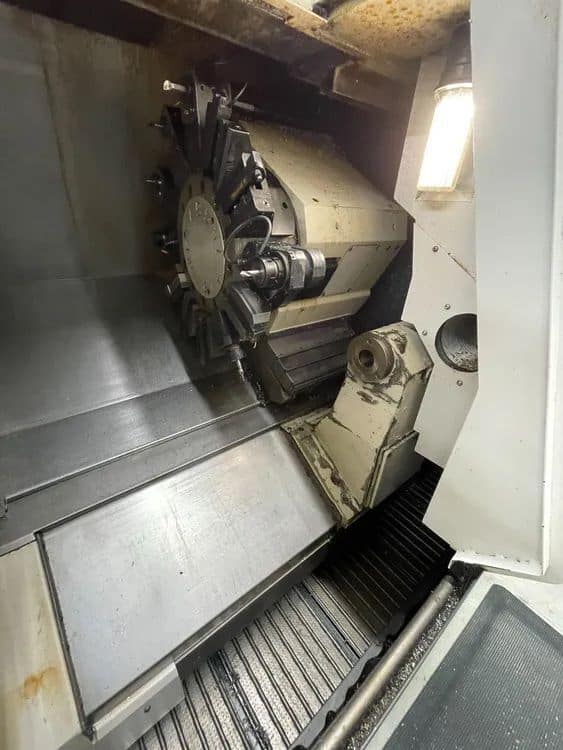

| 12 stations Live Tool Turret |
| Y Axis On Turret |
| Automatic Tool Presetter |
| Tailstock |
| Rigid Tapping |
| Foot Operated Control for Chuck |
| Coolant System |
| Automatic Lubrication System |

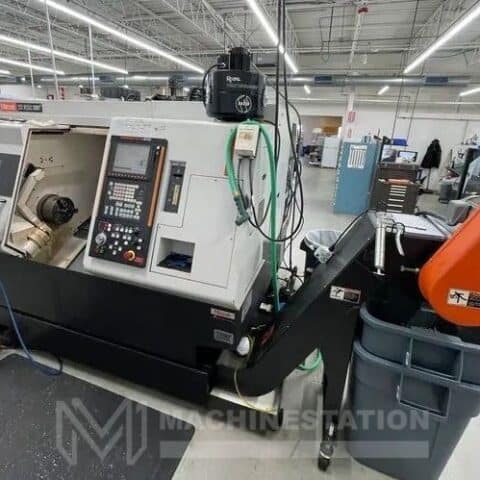

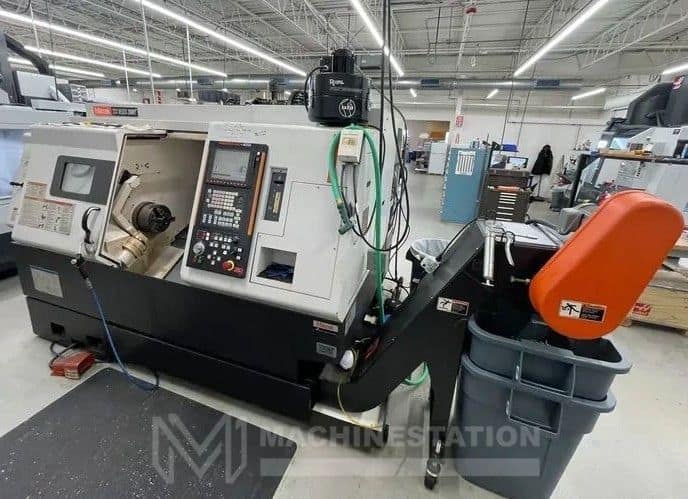

| Jorgensen Chip Conveyor |
| Misc. Tool Holders (Mounted on Turret as Shown in the images) |
| Capacity: |
|---|
| Max Turning Diameter : 11.81″ |
| Max Turning Length : 21.85″ |
| Max Swing Over Bed: 20.67″ |
| Max Bar Capacity : 2.01″ |
| Travels: |
|---|
| X Axis Travel : 7.09″ |
| Z Axis Travel : 22.64″ |
| Y Axis Travel: 4.00″ (+/- 2.0″) |
| C Axis: 360° (0.001°) |
| Feedrate: |
|---|
| Rapid Traverse X Axis: 1181 IPM |
| Rapid Traverse Z Axis: 1181 IPM |
| Rapid Traverse Y Axis: 472 IPM |
| Spindle: |
|---|
| Spindle Bore: 2.44″ |
| Spindle Speed: 35 – 5,000 RPM |
| Spindle Power: 25 HP |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Live Tool Speed: 4,500 RPM |
| Live Tools Motor: 7.5 HP |
| General: |
|---|
| Power Source: 35 kva / 208v / 50/60 Hz / 3-Phase |
| Overall Dimensions: 137″ X 80″ X 80″ High Approx. |
| Weight: 12,000 lbs. Approx. |
