Used Mazak Quick Turn Nexus 300-II CNC Turning Center 2011

Mazak Quick Turn Nexus 300-II CNC Turning Center (2011) – 10″ Chuck

SKU 11284

Make/Model Mazak Quick Turn Nexus 300-II

Year 2011

Video On Request

Out of stock

SKU:	11284
Make/Model:	Mazak Quick Turn Nexus 300-II
Year:	2011
Video:	On Request

SKU: 11284

*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	Mazak
Model No.:	Quick Turn Nexus 300-II
Year of Manufacture:	2011
Machine Type:	CNC Turning Center

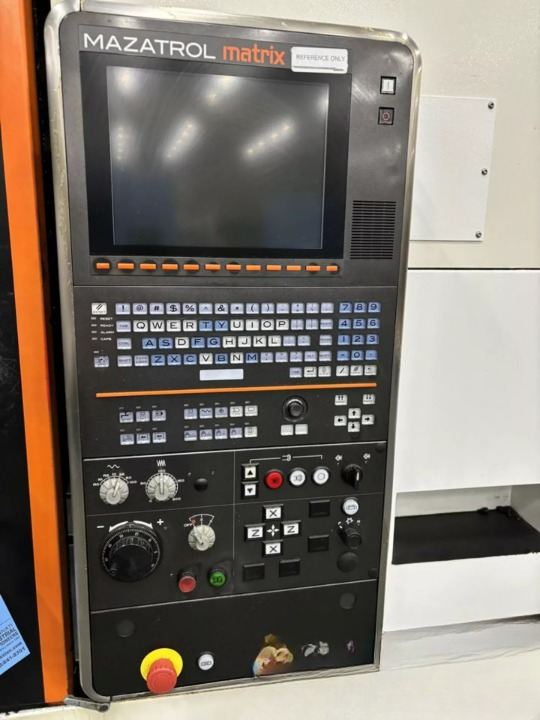

CNC Control:	Mazatrol Matrix
Country of Origin:	Japan

Equipped With:
Mazatrol Matrix CNC Control

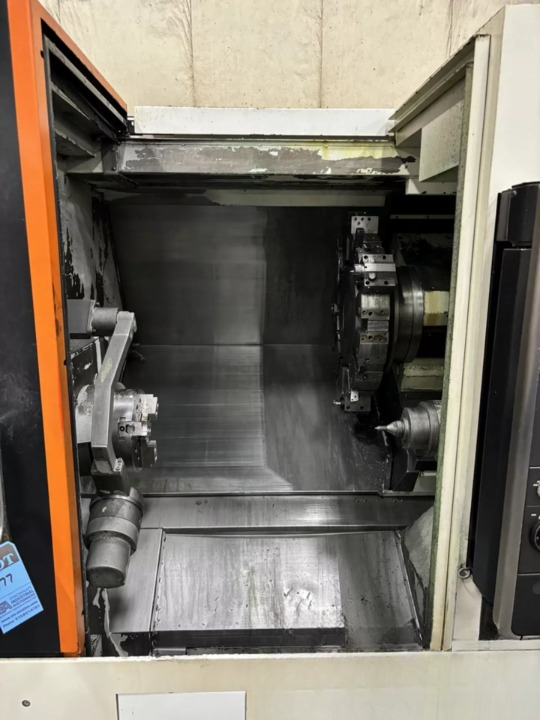

12-Station Turret
10″ Hydraulic Chuck
Programmable Hydraulic Tailstock
Chip Conveyor
Coolant System
Fully Enclosed Guarding
Heavy Duty Slant Bed Construction

Capacity:
Max Swing Over Bed: 26.0″
Max Turning Diameter: 16.5″
Max Turning Length: 40″
Distance Between Centers: ~40″

Spindle:
Spindle Nose: A2-8
Spindle Speed: 4,000 RPM
Spindle Bore: 3.15″
Bar Capacity: 3.0″
Spindle Motor: 35 HP

Turret / Tooling:
Turret Capacity: 12 Tools
Tool Size (OD): 1.0″
Boring Bar Capacity: 2.0″
Turret Type: Bolt-on / VDI

Travels:
X-Axis Travel: 9.1″
Z-Axis Travel: 41.3″
Rapid Traverse (X/Z): 1,181 / 1,181 IPM

Tailstock:
Type: Programmable Hydraulic Tailstock
Taper: MT#4

Accuracy:
Positioning Accuracy: ±0.0002″
Repeatability: ±0.00008″

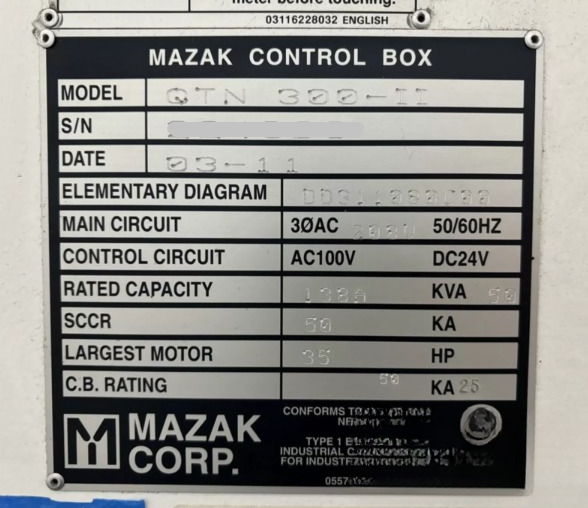

Electrical:
Main Circuit: 3 Phase AC, 200V, 50/60 Hz
Control Circuit: AC100V / DC24V
Rated Capacity: ~23 kVA
SCCR: 5 kA
Largest Motor: 35 HP

General:
Machine Dimensions: 130″ × 75″ × 70″
Machine Weight: 13,400 lbs

Equipped With:
Mazatrol Matrix CNC Control
12-Station Turret
254 mm Hydraulic Chuck
Programmable Hydraulic Tailstock
Chip Conveyor
Coolant System
Fully Enclosed Guarding
Heavy Duty Slant Bed Construction

Capacity:
Max Swing Over Bed: 660 mm
Max Turning Diameter: 419 mm
Max Turning Length: 1,016 mm
Distance Between Centers: ~1,016 mm

Spindle:
Spindle Nose: A2-8
Spindle Speed: 4,000 RPM
Spindle Bore: 80 mm
Bar Capacity: 76 mm
Spindle Motor: 35 HP

Turret / Tooling:
Turret Capacity: 12 Tools
Tool Size (OD): 25 mm
Boring Bar Capacity: 51 mm
Turret Type: Bolt-on / VDI

Travels:
X-Axis Travel: 231 mm
Z-Axis Travel: 1,049 mm
Rapid Traverse (X/Z): 1,181 / 1,181 IPM

Tailstock:
Type: Programmable Hydraulic Tailstock
Taper: MT#4

Accuracy:
Positioning Accuracy: ±0 mm
Repeatability: ±0 mm

Electrical:
Main Circuit: 3 Phase AC, 200V, 50/60 Hz
Control Circuit: AC100V / DC24V
Rated Capacity: ~23 kVA
SCCR: 5 kA
Largest Motor: 35 HP

General:
Machine Dimensions: 3,302 mm × 1,905 mm × 1,778 mm
Machine Weight: 13,400 lbs
