Mazak Quick Turn Nexus 400-II CNC Turning Center – 2013
Out of stock
| SKU: | 11277 |
| Make/Model: | Mazak Quick Turn Nexus 400-II |
| Year: | 2013 |
| Condition: | Used – Good |
| Video: | On Request |
Add to WishlistRemove from Wishlist
Add to Wishlist
*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Mazak |
| Model No.: | Quick Turn Nexus 400-II |
| Year of Manufacture: | 2013 |
| Condition: | Used |
| Machine Type: | CNC Turning Center |

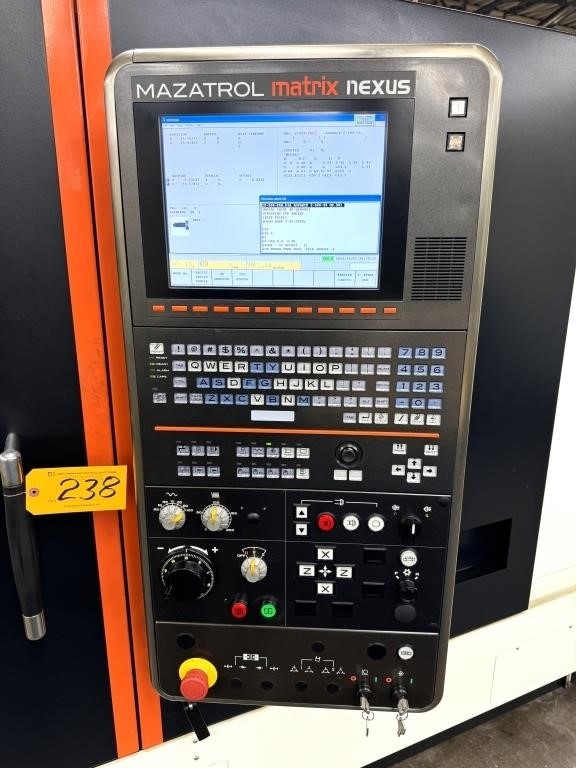

| CNC Control: | Mazatrol Matrix Nexus |
| Country of Origin: | Japan |
| Equipped With: |
|---|
| Mazatrol Matrix Nexus CNC Control |
| 12″ / 15″ Hydraulic Chuck |
| Programmable CNC Tailstock |
| Chip Conveyor |
| Coolant System |
| Tool Eye (Auto Tool Setter) |
| Work Light |
| USB / LAN Interface |
| Fully Enclosed Guarding |
| Heavy Duty Slant Bed Construction |
| Box Guideways for Rigidity |
| Capacity: |
|---|
| Chuck Size: 12″ – 15″ |
| Max Turning Diameter: 22.8″ (579 mm) |
| Max Turning Length: 40″ (1,016 mm) / up to 80″+ |
| Swing Over Bed: 33.27″ (845 mm) |
| Bar Capacity: 4.0″ (101 mm) |
| Spindle Bore: 5.2″ (132 mm) |
| Spindle: |
|---|
| Spindle Nose: A2-11 |
| Spindle Speed: 2,500 RPM |
| Spindle Motor: 50 HP (37 kW) |
| Spindle Type: Integral Motor |
| High Torque for Heavy Cutting |
| Travels: |
|---|
| X-Axis Travel: 12.2″ (310 mm) |
| Z-Axis Travel: 41.3″ (1,050 mm) / up to 83″+ |
| Rapid Traverse (X/Z): ~1,180 IPM (~30 m/min) |
| Turret / Tooling: |
|---|
| Turret Type: Drum / Servo |
| Stations: 12 (24 index optional) |
| Tool Size: 25 × 25 mm / up to 80 mm boring |
| Tooling Type: Bolt-on / VDI |
| Index Time: ~0.2 sec |
| Tailstock: |
|---|
| Type: Programmable CNC Tailstock |
| Quill Travel: Long Stroke (~40″) |
| Function: Supports Long Shaft Work |
| Construction: |
|---|
| Heavy Duty Box Guideways |
| One-piece Cast Iron Base |
| Slant Bed Design for Chip Evacuation |
| Thermal Compensation System |
| Designed for Continuous Production |
| Electrical: |
|---|
| Power Requirement: 220V / 3 Phase |
| General: |
|---|
| Machine Weight: ~14,000 – 21,000+ lbs |
| Floor Space: ~175″ × 95″ × 81″ |
| Axis Configuration: 2-Axis (X, Z) |
| Categories | CNC Lathes & Turning Centers |
|---|---|
| Make | |
| Model | Quick Turn Nexus 400-II |
