Mazak VARIAXIS 730-5X II CNC Vertical Machining Center (2008) 5-Axis, 12K RPM
Out of stock
| SKU: | 11279 |
| Make/Model: | Mazak VARIAXIS 730-5X II |
| Year: | 2008 |
| Condition: | Used – Good |
| Video: | On Request |
Add to WishlistRemove from Wishlist
Add to Wishlist
*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Mazak |
| Model No.: | VARIAXIS 730-5X II |
| Year of Manufacture: | 2008 |
| Condition: | Used |
| Machine Type: | 5-Axis CNC Vertical Machining Center |

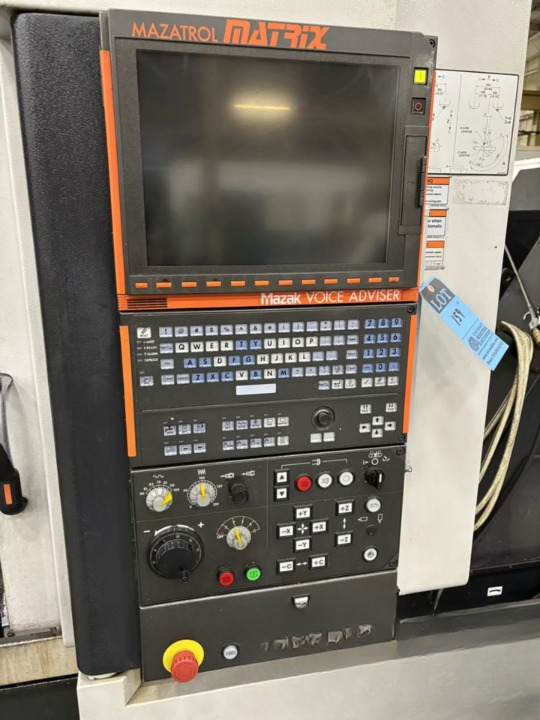

| CNC Control: | Mazatrol Matrix (Voice Advisor) |
| Country of Origin: | Japan |
| Equipped With: |
|---|
| Mazatrol Matrix CNC Control |
| 40-Tool Automatic Tool Changer |
| Trunnion 5-Axis Table |
| Simultaneous 5-Axis Machining Capability |
| Coolant System |
| Chip Conveyor |
| Work Light |
| USB / Data Interface |
| Probe / Tool Setter (optional) |
| Fully Enclosed Guarding |
| High Rigidity Double Column Structure |
| Capacity: |
|---|
| Table Size: 27.6″ × 23.6″ (700 × 600 mm) |
| Max Table Load: 1,102 lbs (500 kg) |
| Max Workpiece Diameter: ~28.7″ (730 mm) |
| Max Workpiece Height: ~17.7″ (450 mm) |
| Spindle: |
|---|
| Spindle Speed: 12,000 RPM |
| Spindle Motor: 30 HP (22 kW) |
| Spindle Taper: CAT 40 / BT40 |
| Spindle Type: High-Speed Integral Motor |
| Travels: |
|---|
| X-Axis Travel: 28.7″ (730 mm) |
| Y-Axis Travel: 33.5″ (850 mm) |
| Z-Axis Travel: 23.6″ (600 mm) |
| Rapid Traverse (X/Y/Z): ~1,890 IPM (~48 m/min) |
| Rotary Axes: |
|---|
| B-Axis Tilt: -120° to +30° |
| C-Axis Rotation: 360° Continuous |
| Simultaneous 5-Axis Contouring |

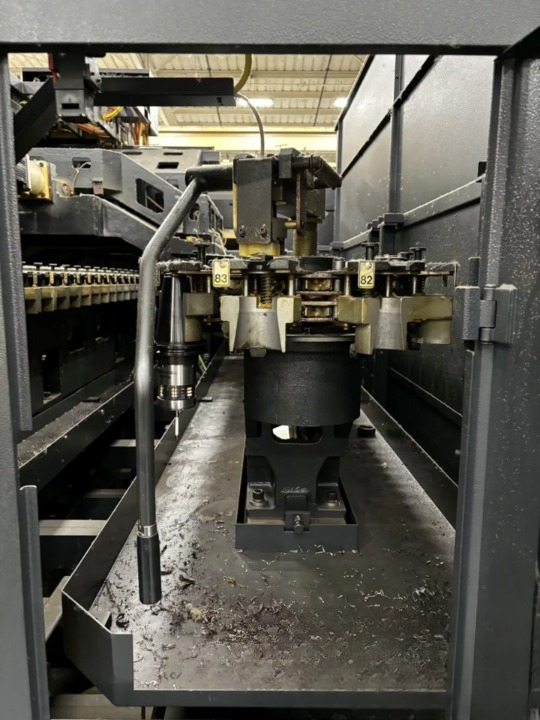

| Tooling System: |
|---|
| Tool Capacity: 40 Tools (60 / 80 optional) |
| Tool Holder Type: CAT40 / BT40 |
| Max Tool Diameter: ~3.1″ |
| Max Tool Length: ~11.8″ (300 mm) |
| Max Tool Weight: ~8 kg |

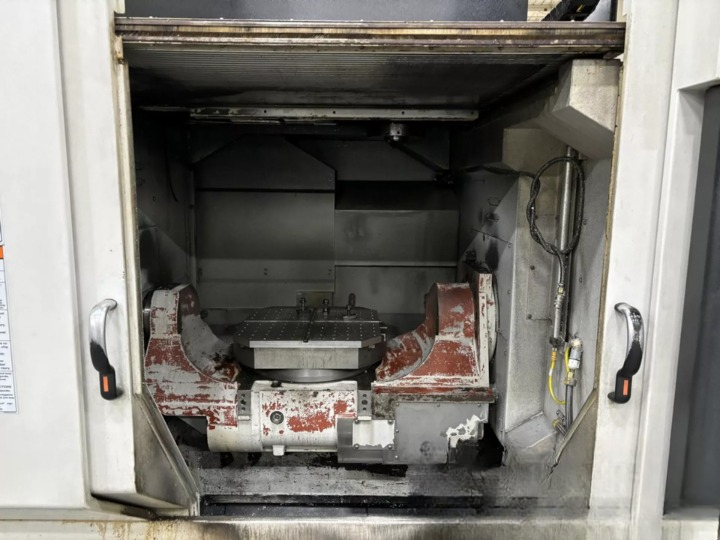

| Table / Trunnion: |
|---|
| Type: Tilting Rotary Trunnion Table |
| Drive System: Direct / Gear Driven Rotary Axes |
| Clamping: Hydraulic System |
| Designed for Complex 5-Axis Machining |
| Construction: |
|---|
| High Rigidity Double Column Structure |
| Thermally Stable Machine Design |
| Roller Guideways for High Speed & Accuracy |
| Compact Footprint with Large Work Envelope |
| Electrical: |
|---|
| Power Requirement: 220V / 3 Phase |
| General: |
|---|

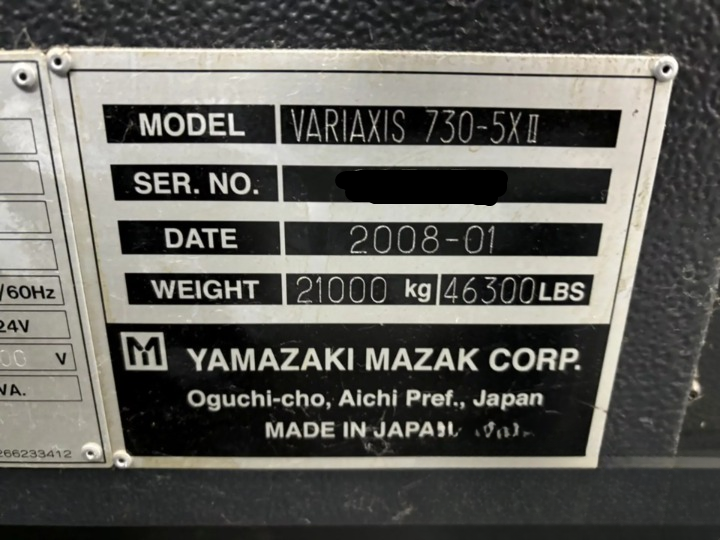

| Machine Weight: 46,300 lbs (21,000 kg) |
| Floor Space: ~4,000 × 3,000 mm |
| Axis Configuration: X, Y, Z + B, C (5-Axis) |
| Categories | CNC Vertical Machining Center |
|---|---|
| Make | |
| Model | VARIAXIS 730-5X II |
