*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 112845 |

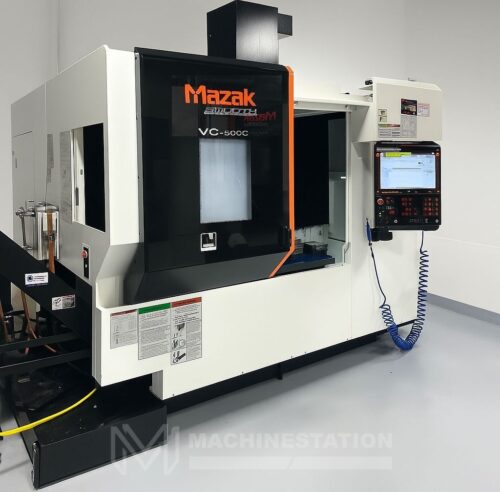

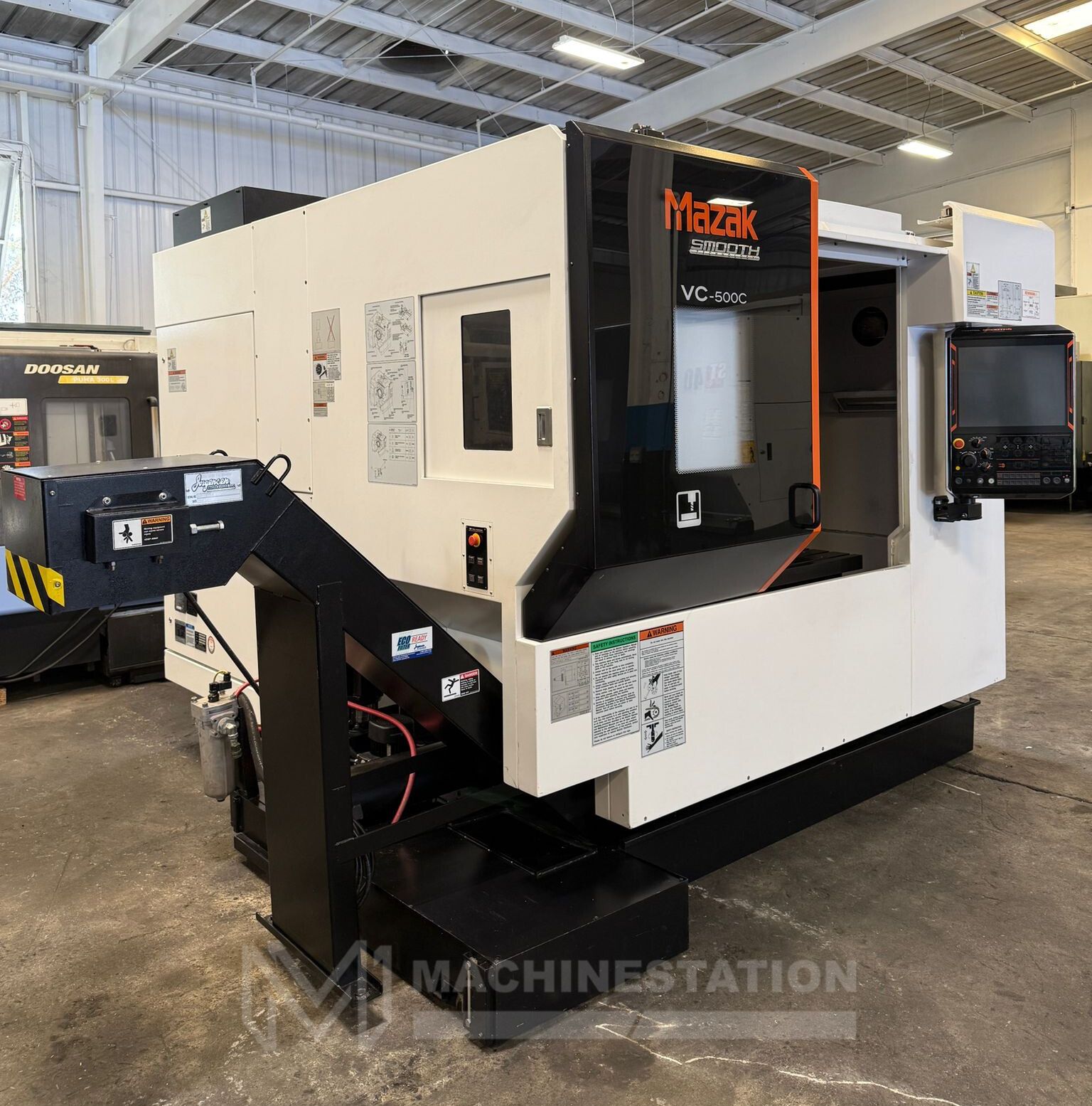

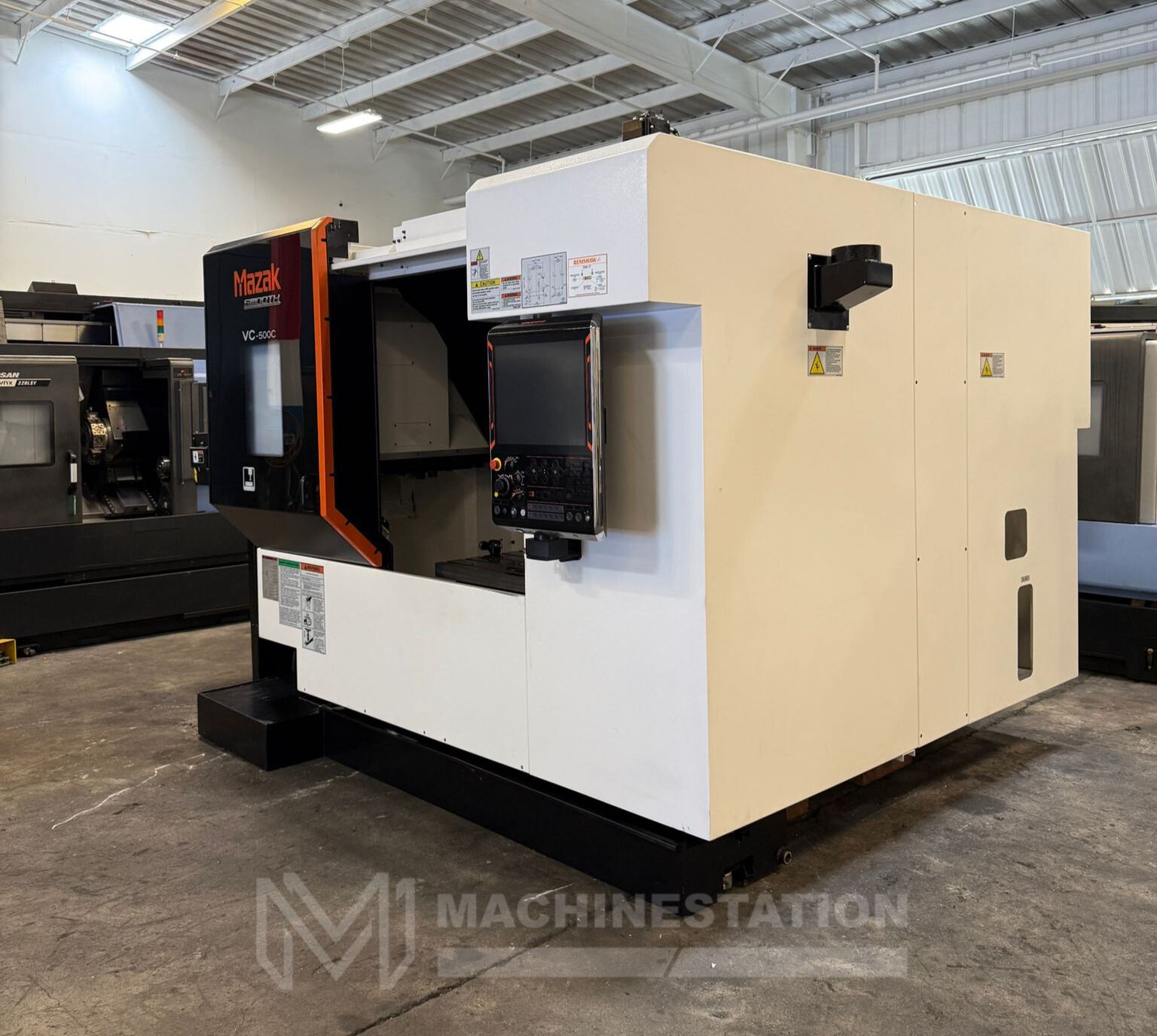

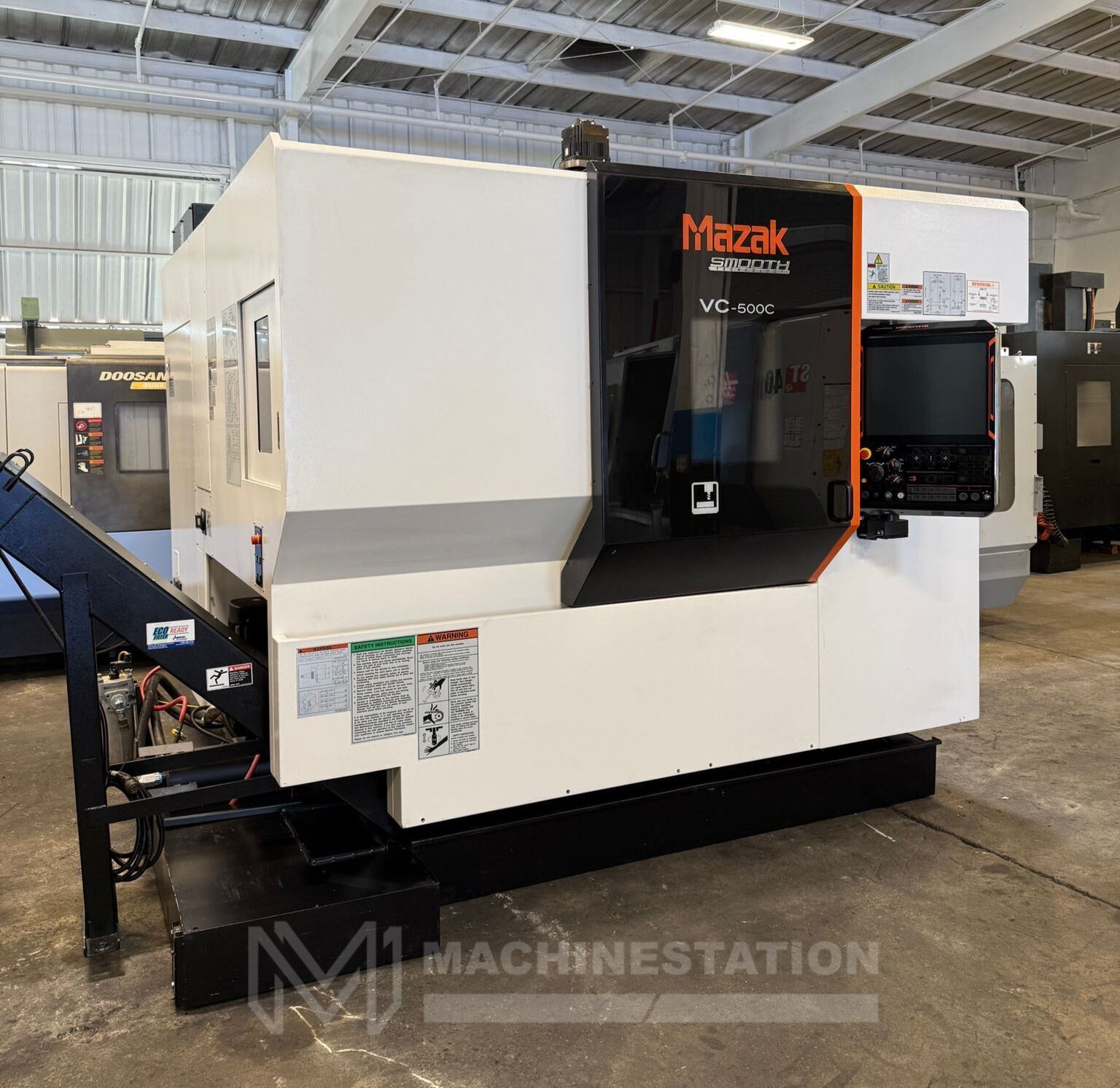

| Make: | Mazak |
| Model No.: | VC 500C |
| Year of Manufacture: | 2020 |
| Condition: | Used – Excellent |
| Equipped With: |
|---|

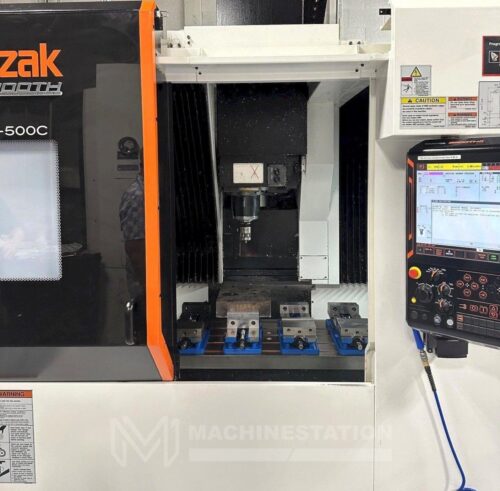

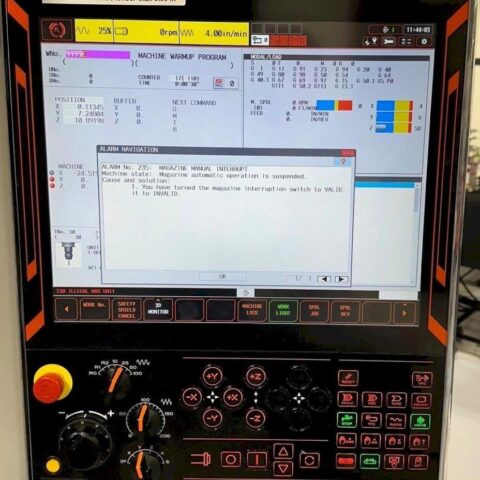

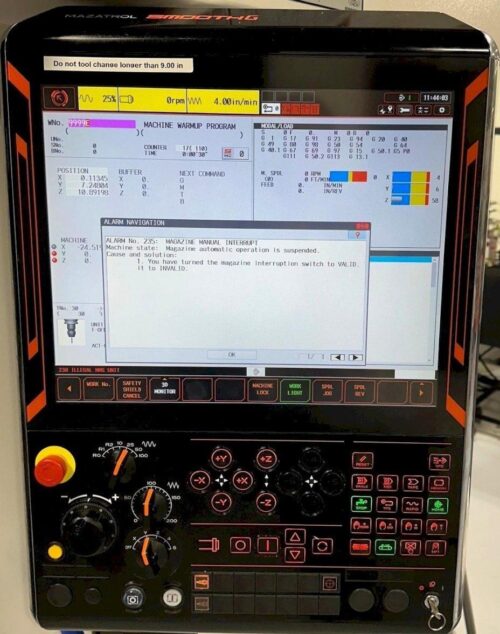

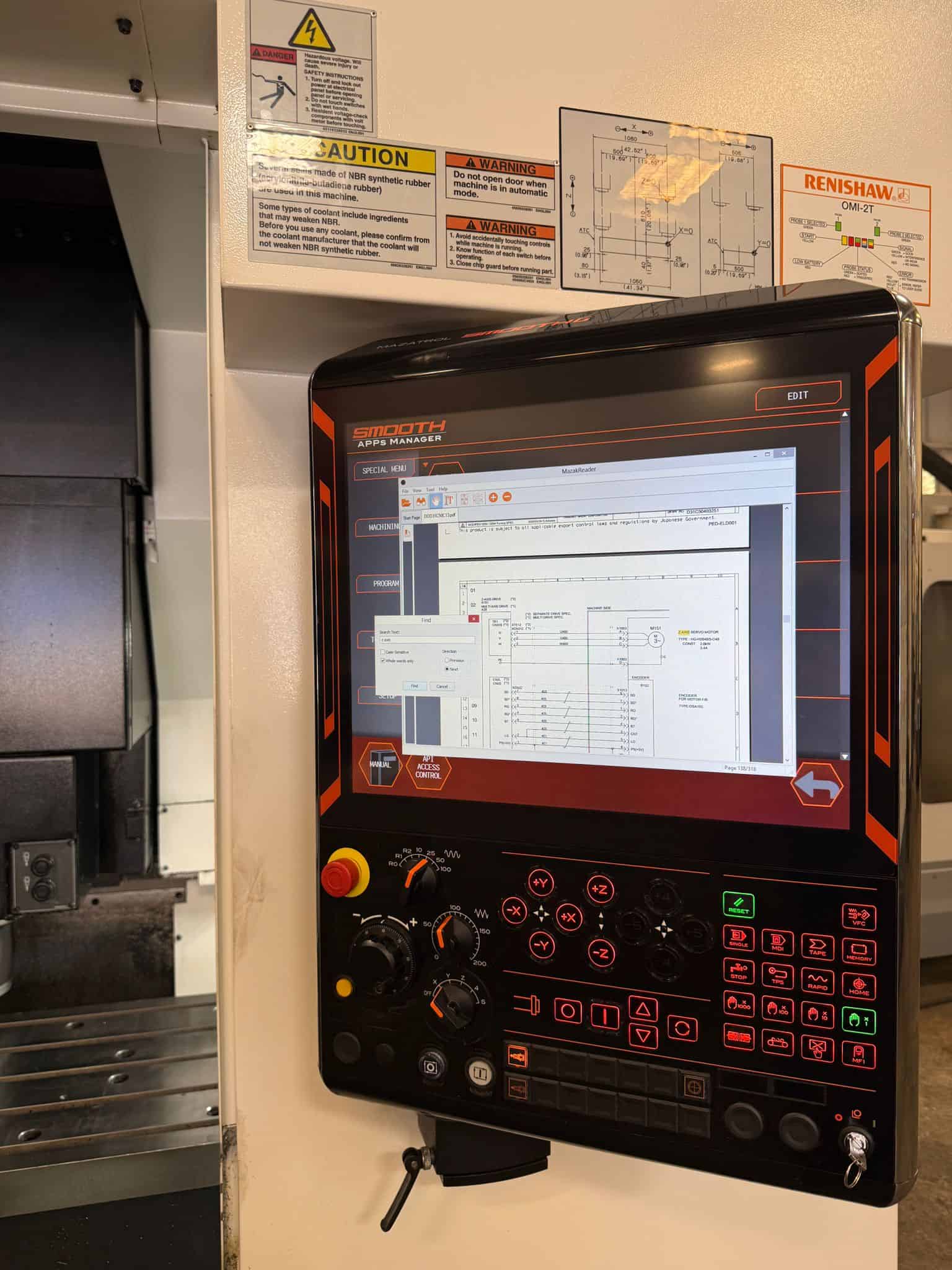

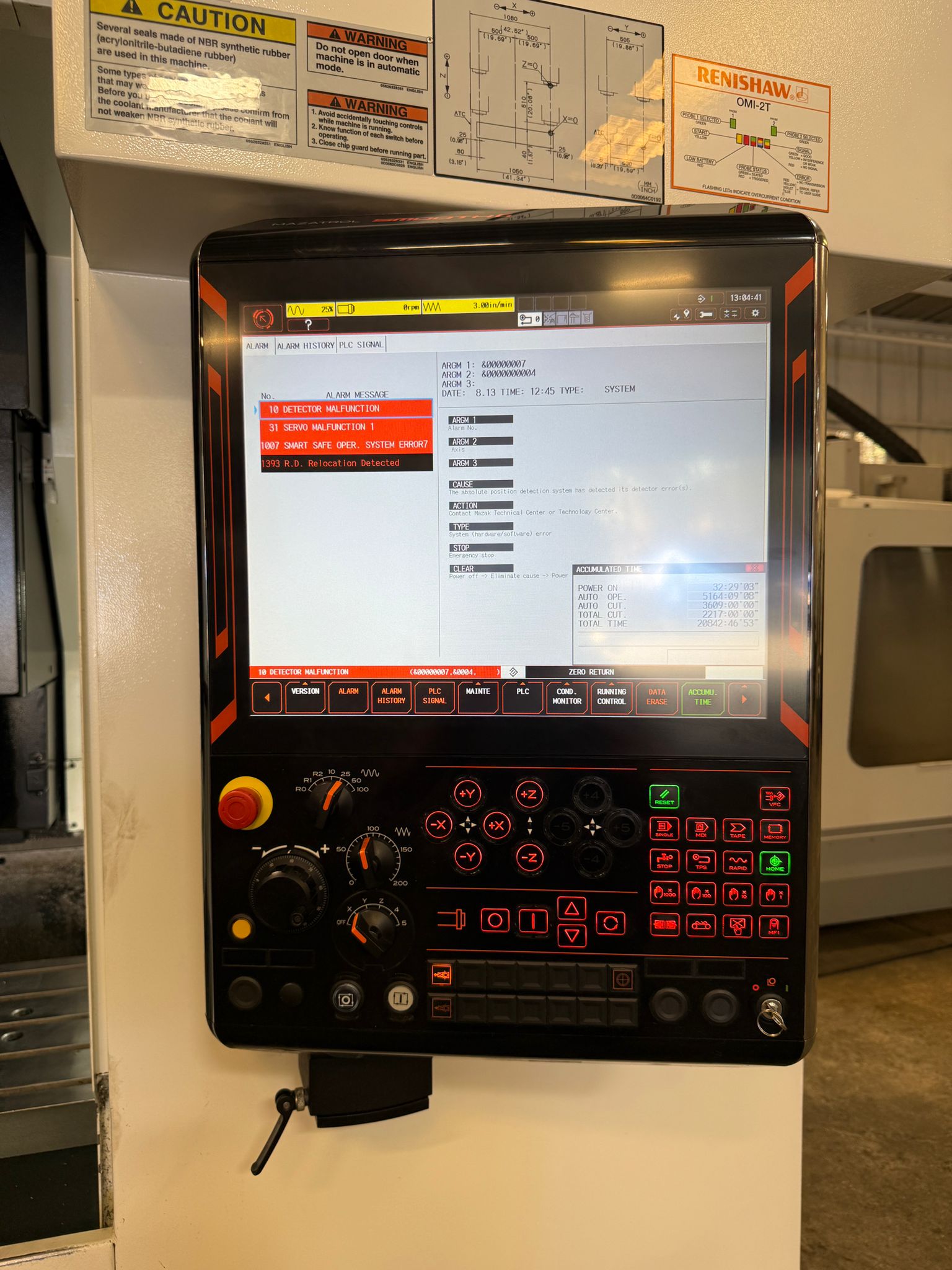

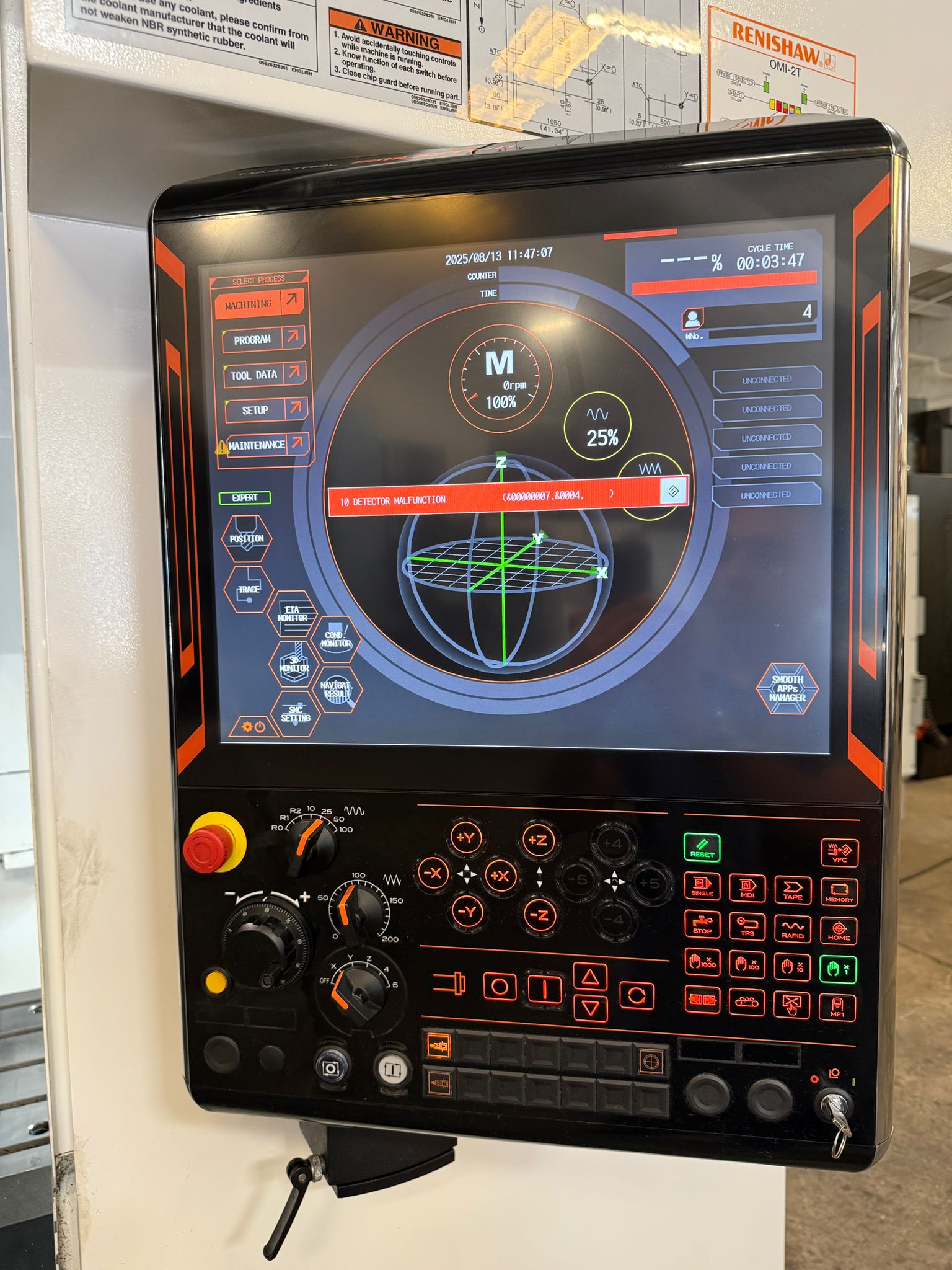

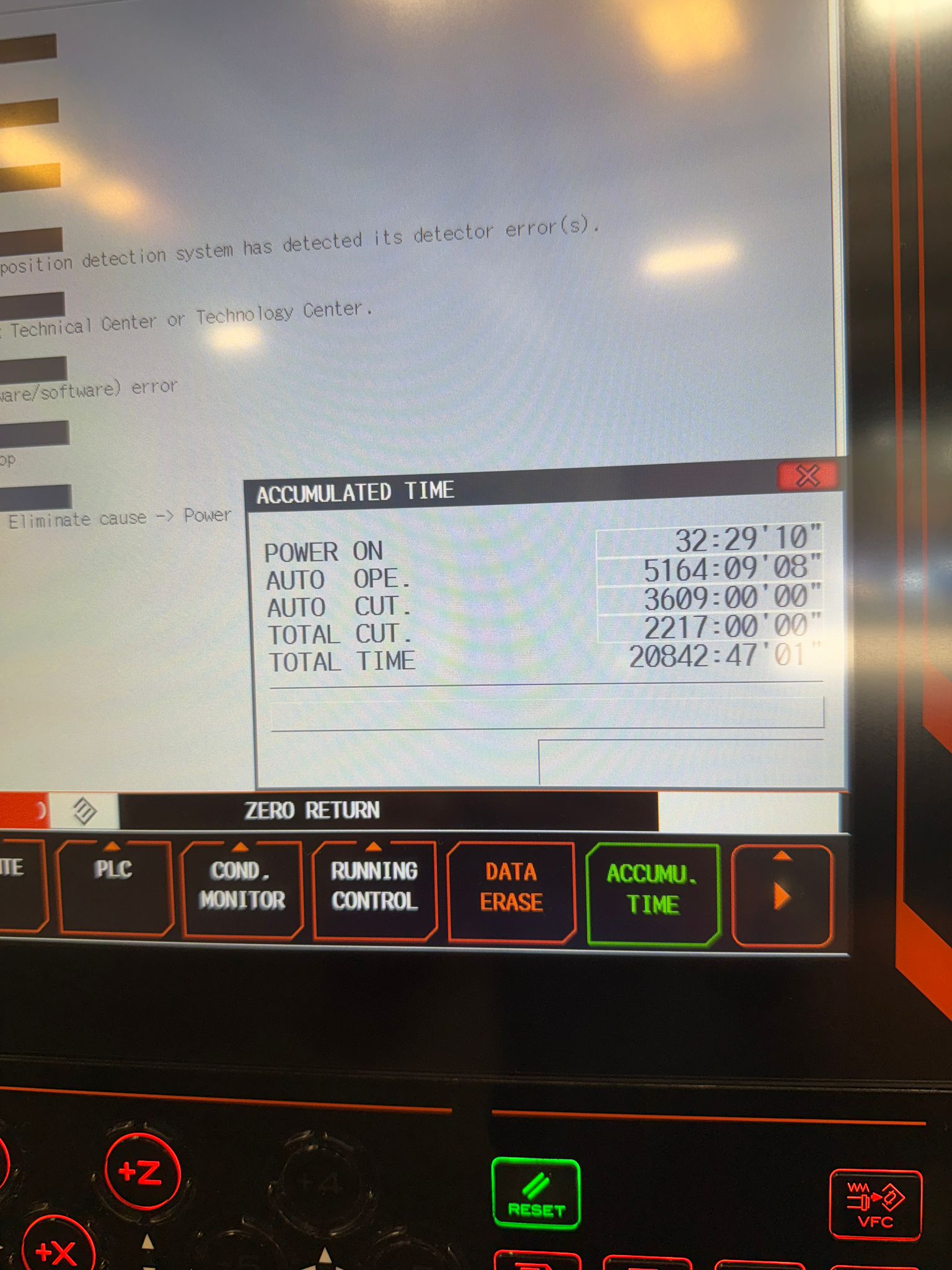

| Mazatrol SmoothG CNC Control |
| 12,000 RPM High Speed Spindle |

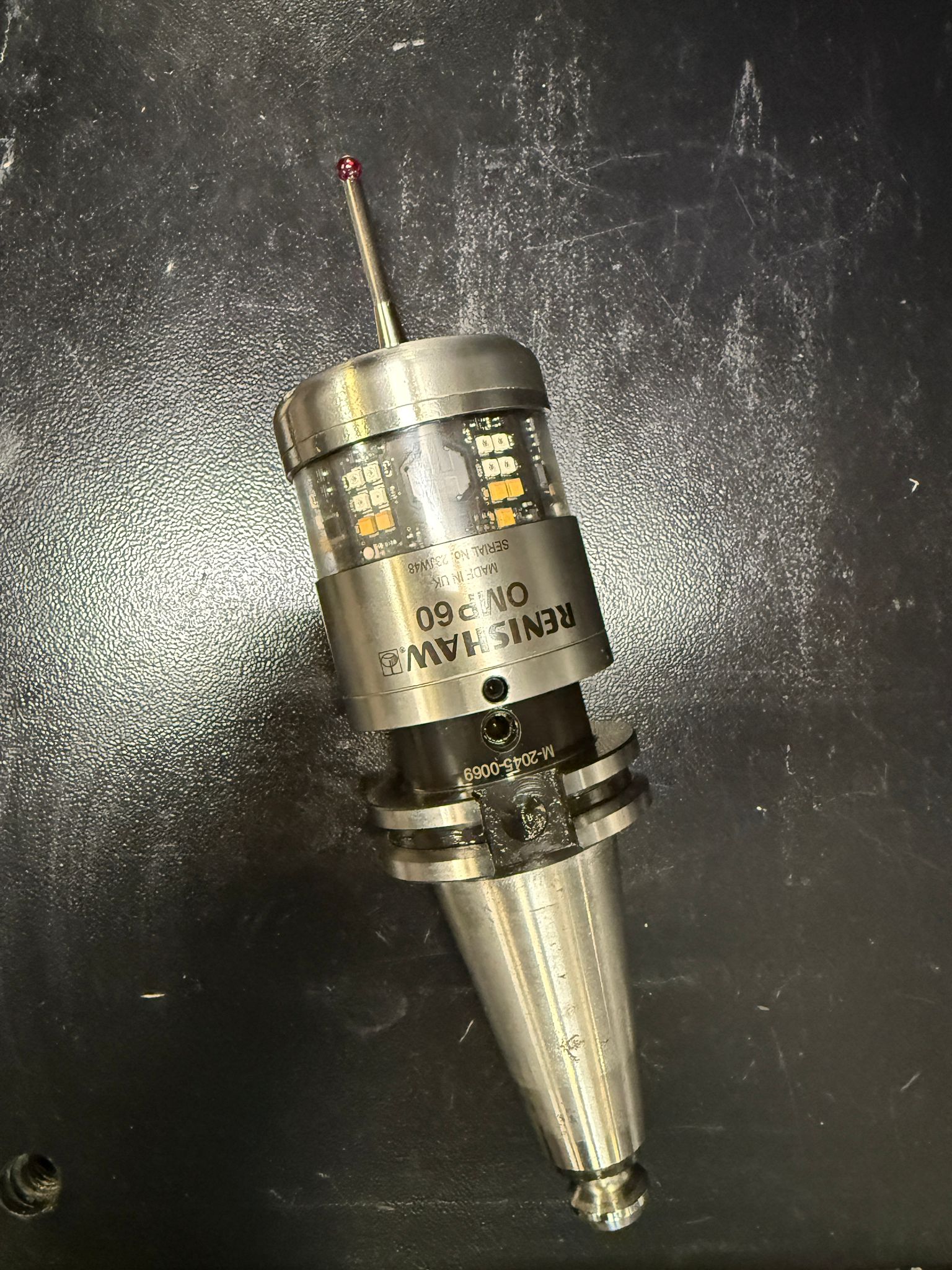

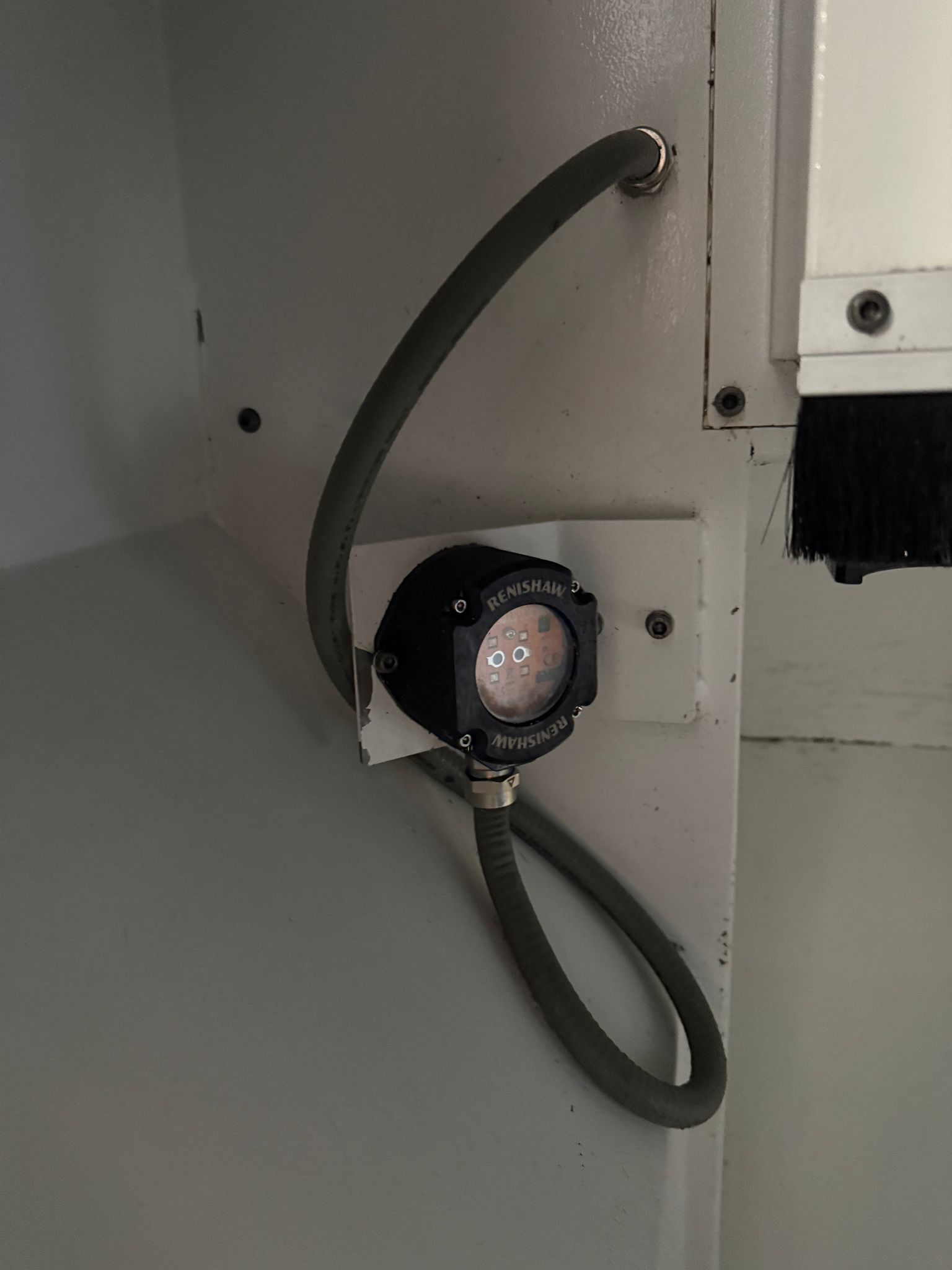

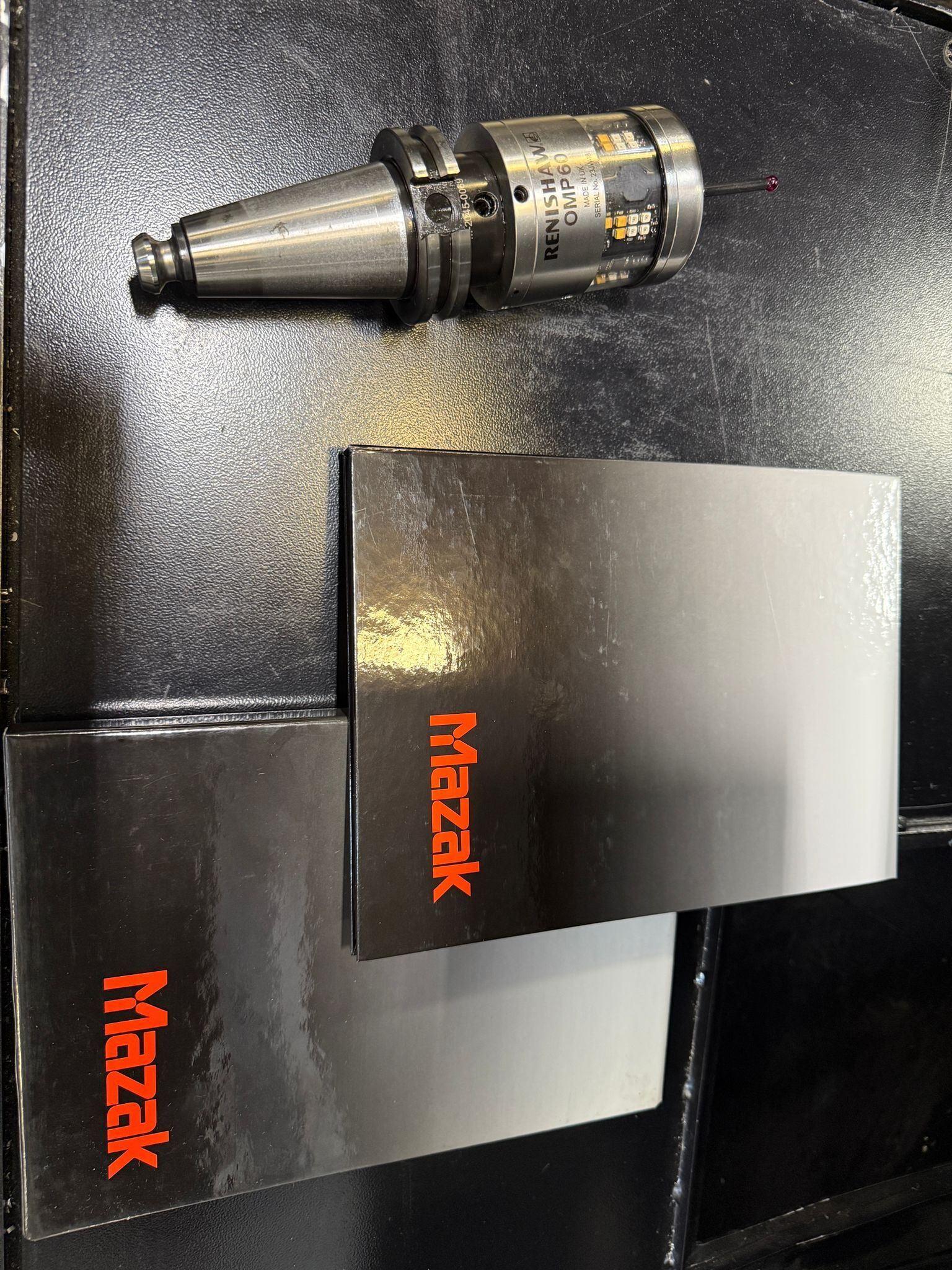

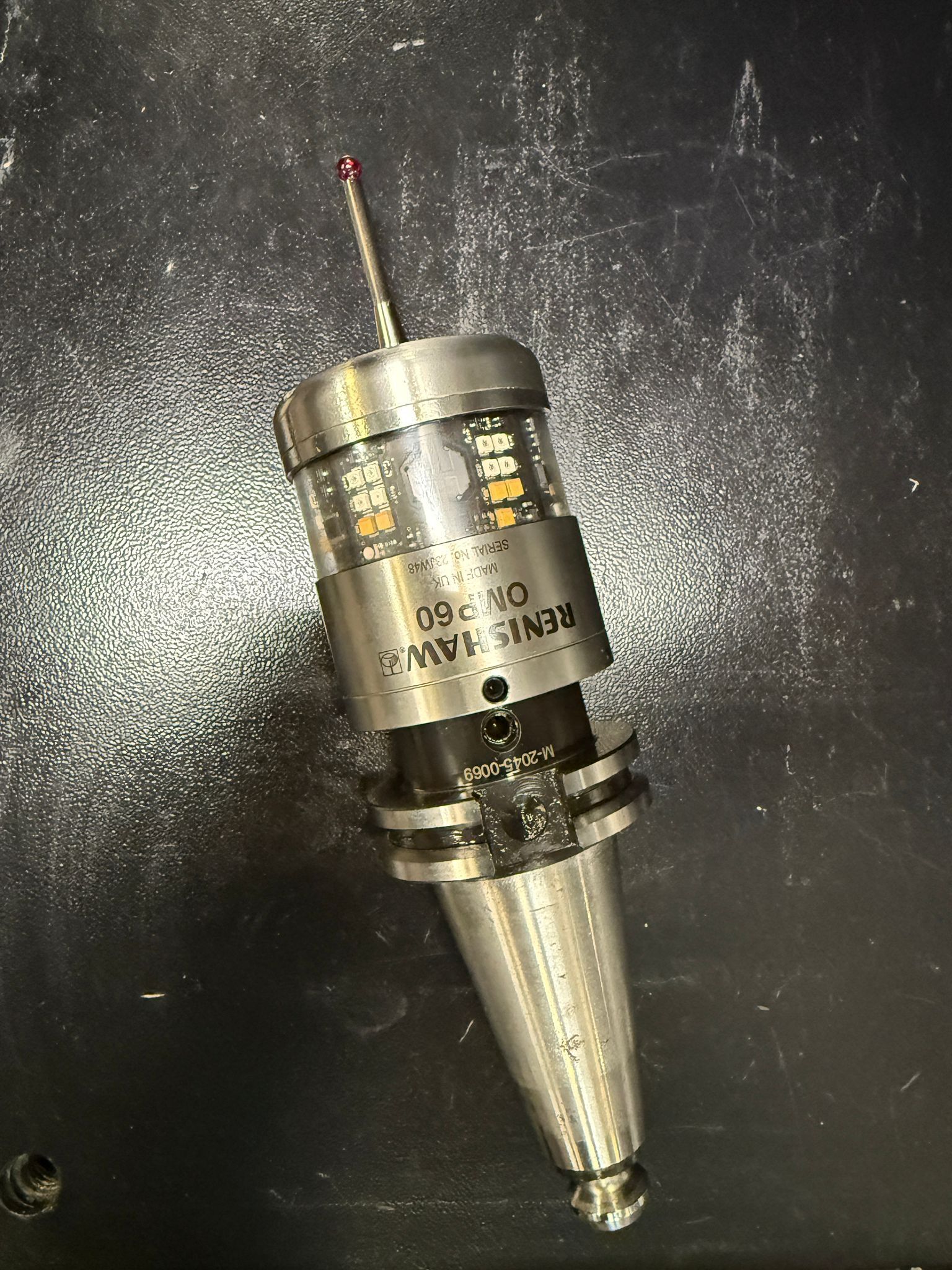

| Renishaw Probing System (Probe Included) |

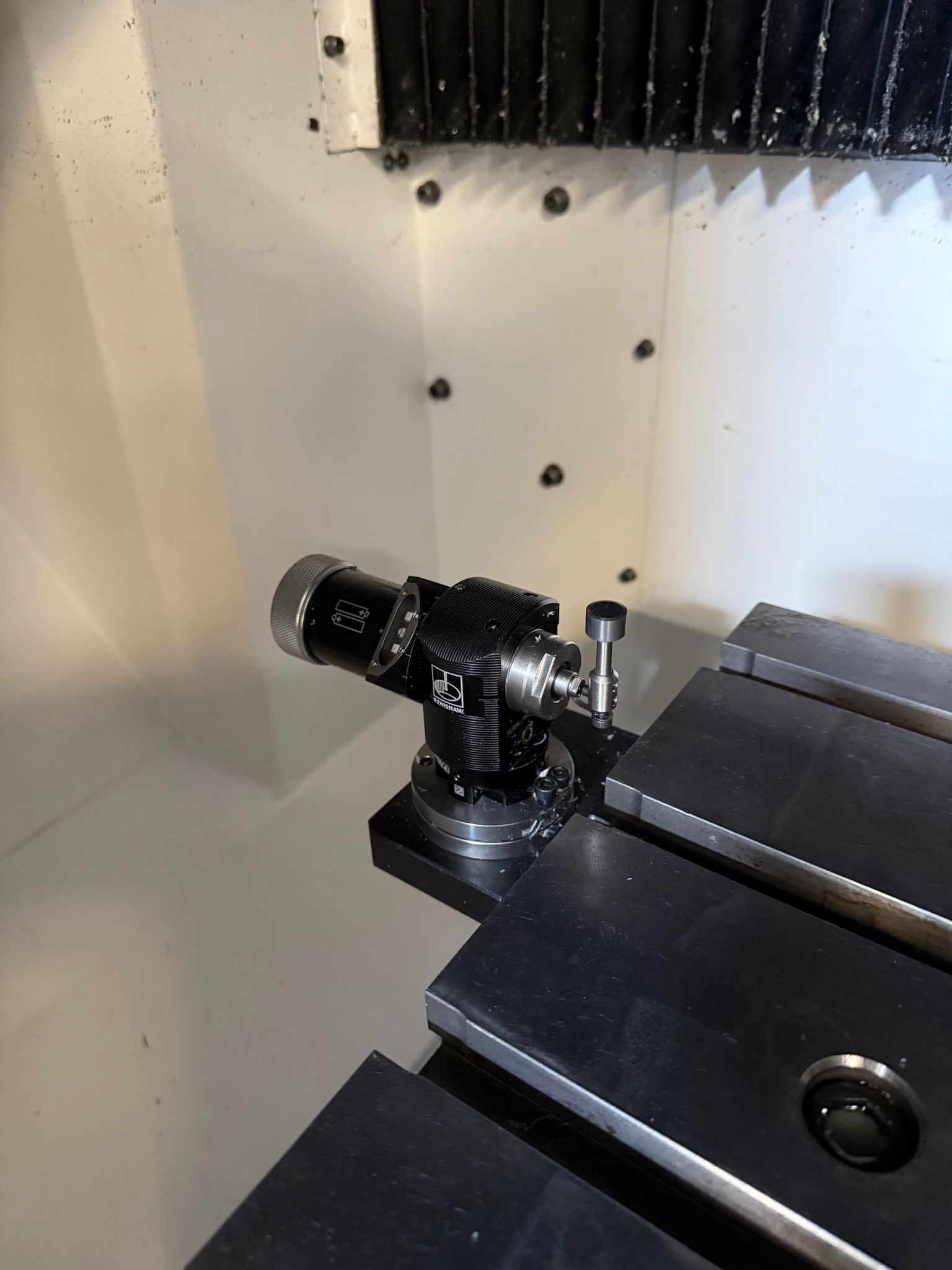

| Tool Presetter |
| Through Spindle Coolant |

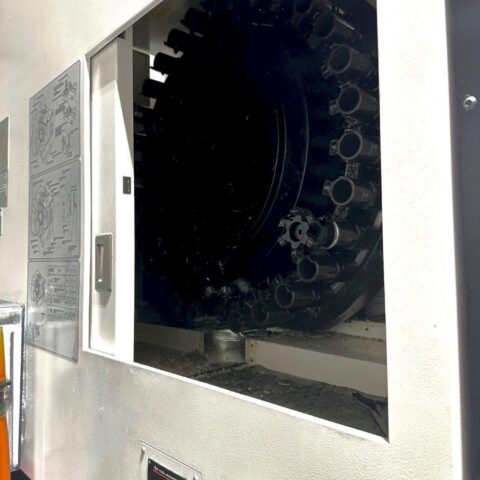

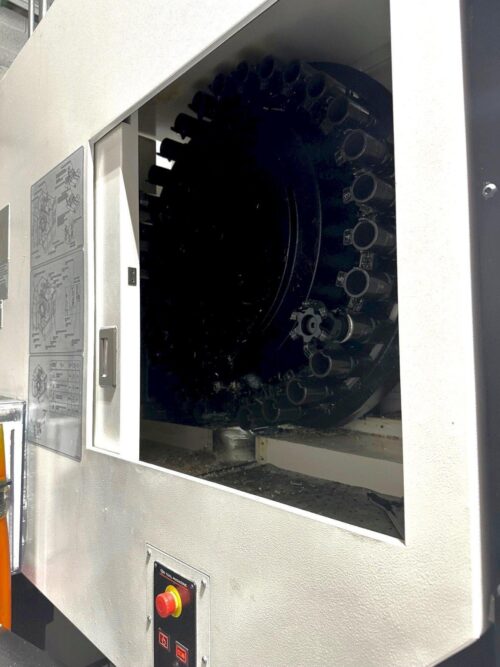

| 30 Station Automatic tool changer |
| 25 HP High Torque Spindle |
| CAT-40 Taper Spindle |
| Rigid Tapping |

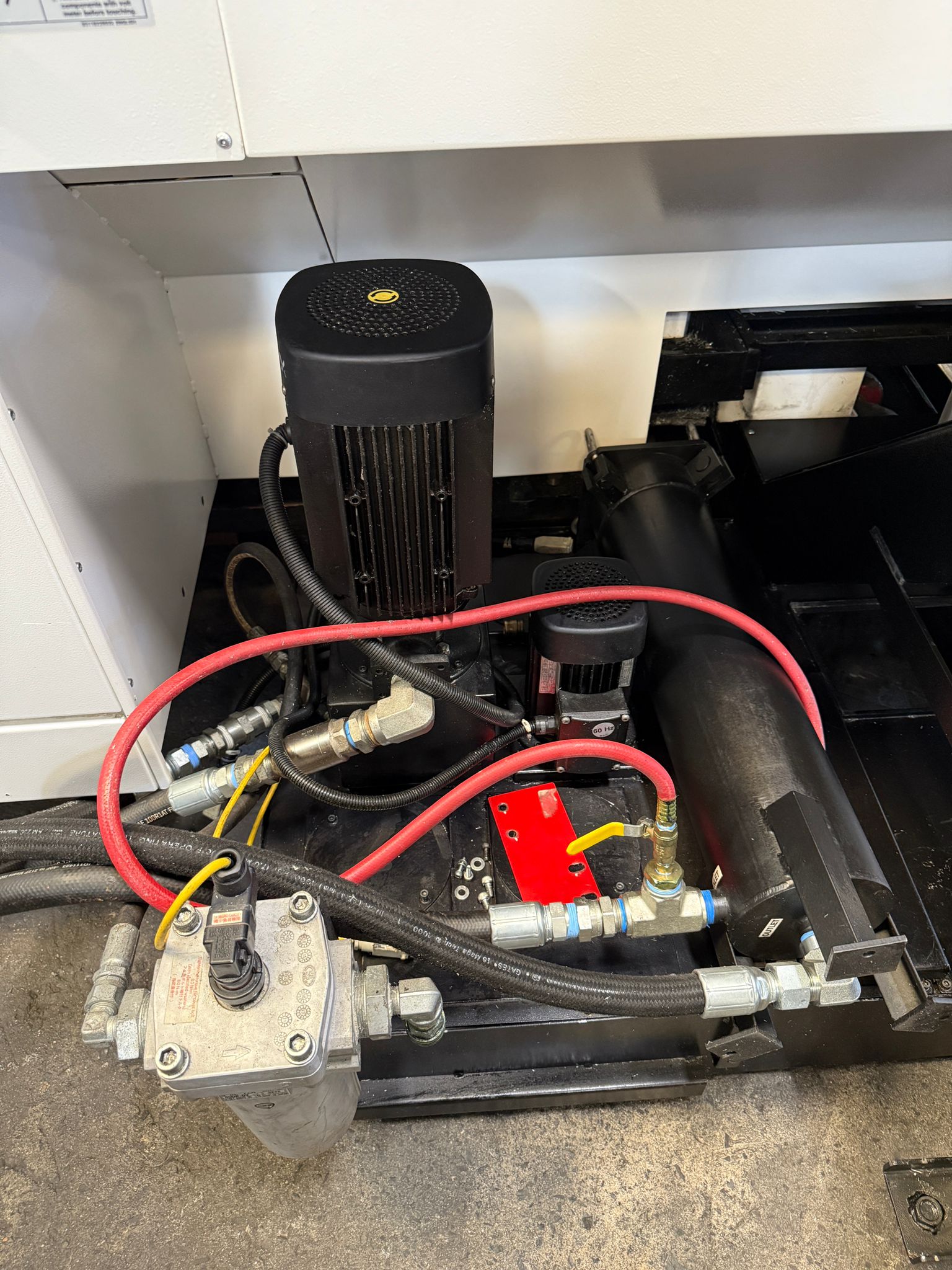

| Coolant System |

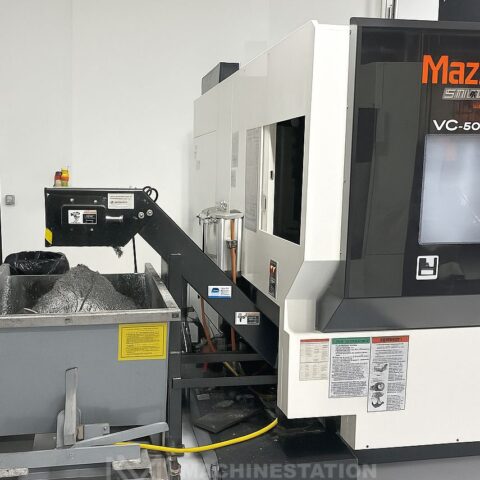

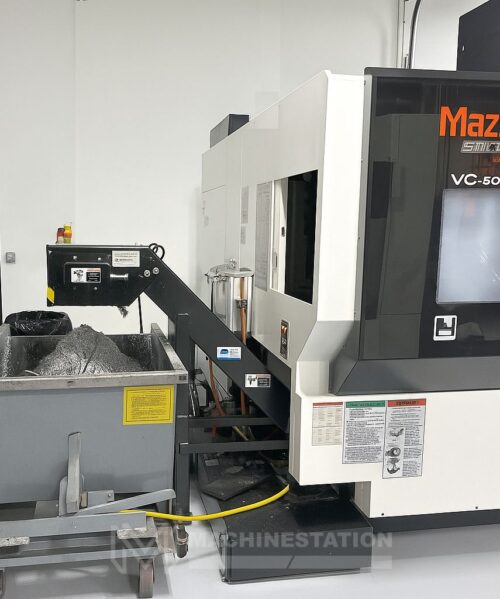

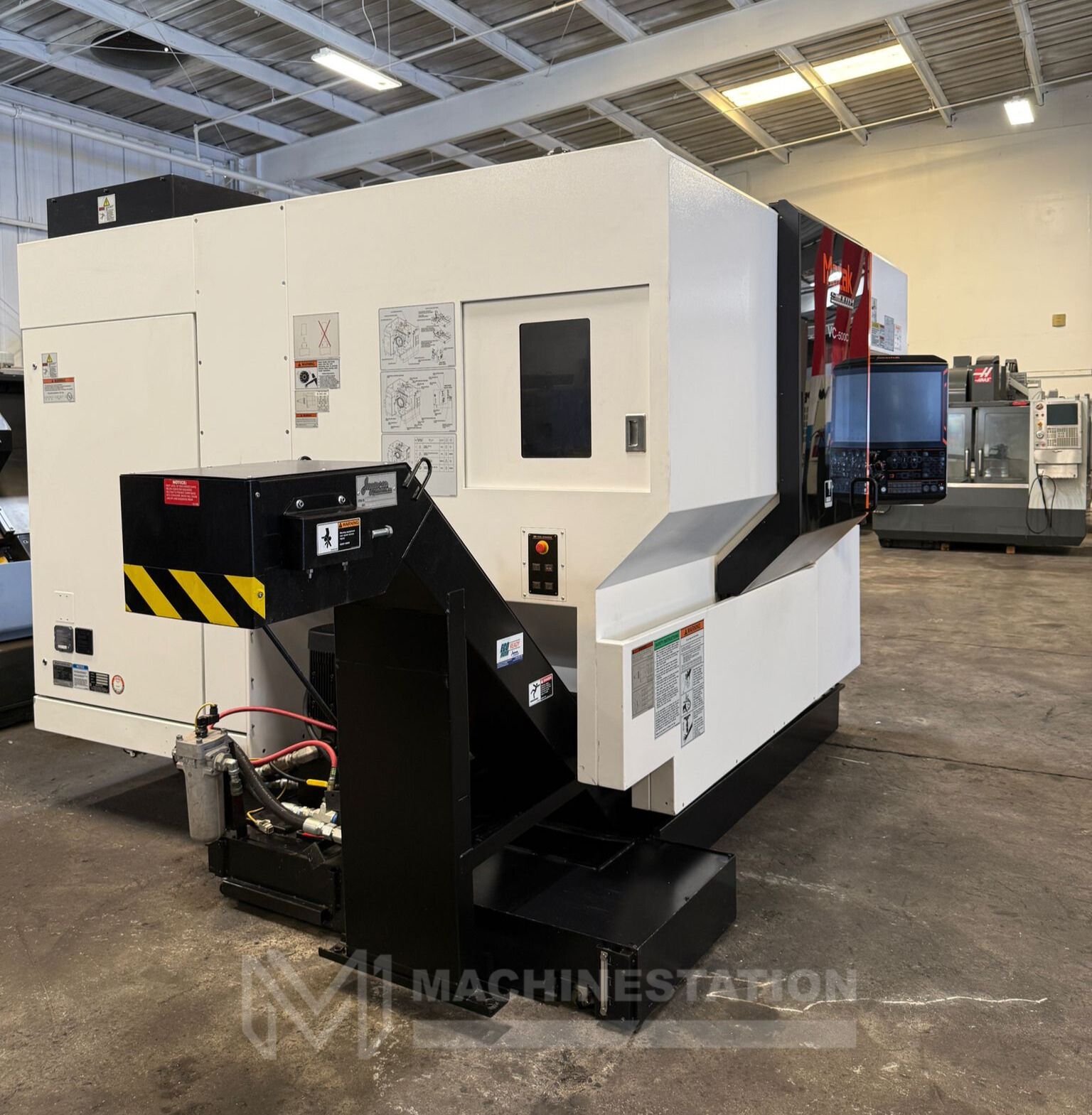

| Chip Conveyor |

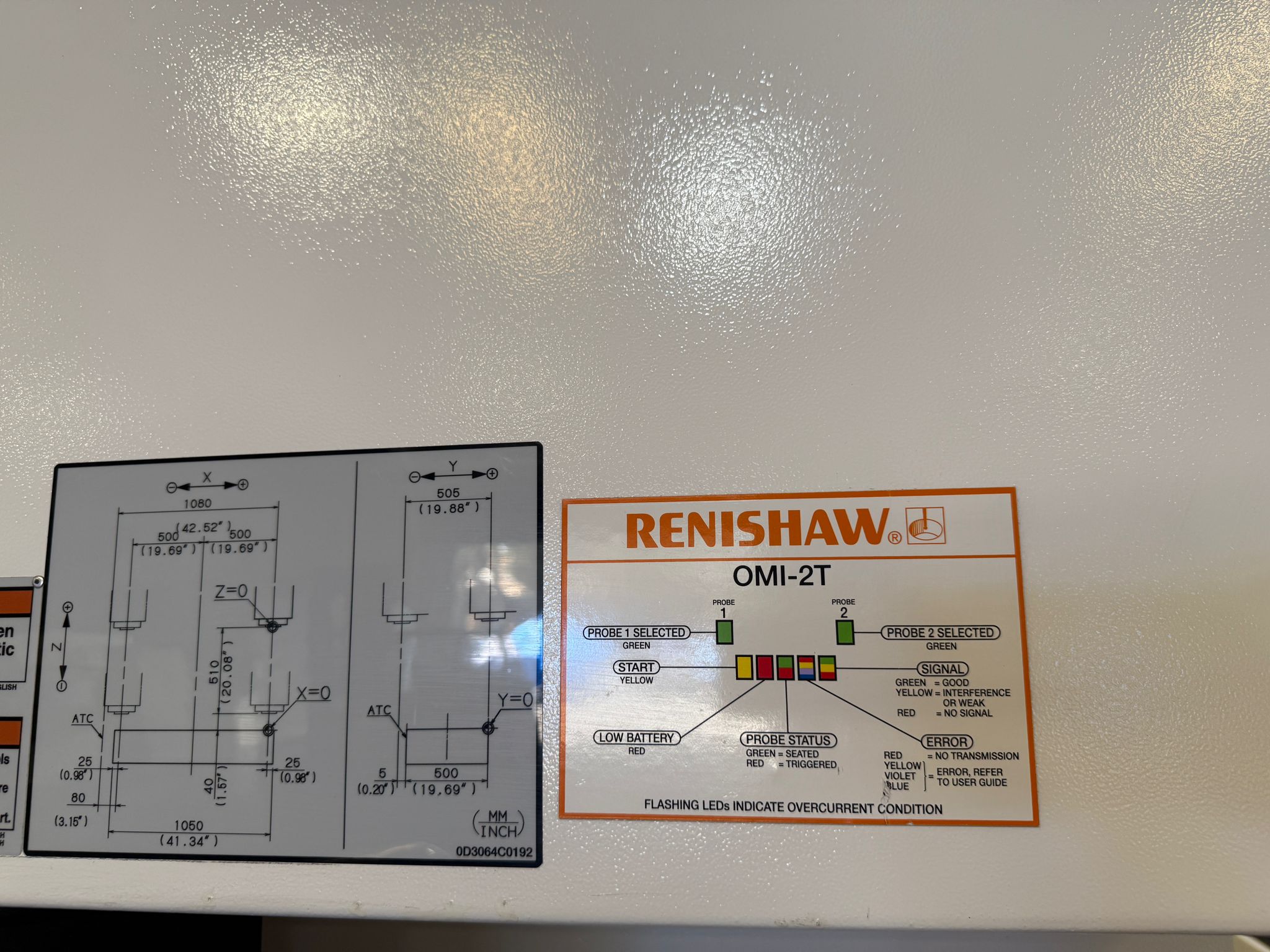

| Travels: |
|---|
| X-Axis: 39.37″ |
| Y-Axis: 19.88″ |
| Z-Axis: 20.07″ |
| Rapid Traverse Rates Axis: 1181 IPM |
| Spindle Nose to Table (Min.- Max.): 1.57″ – 21.65″ |

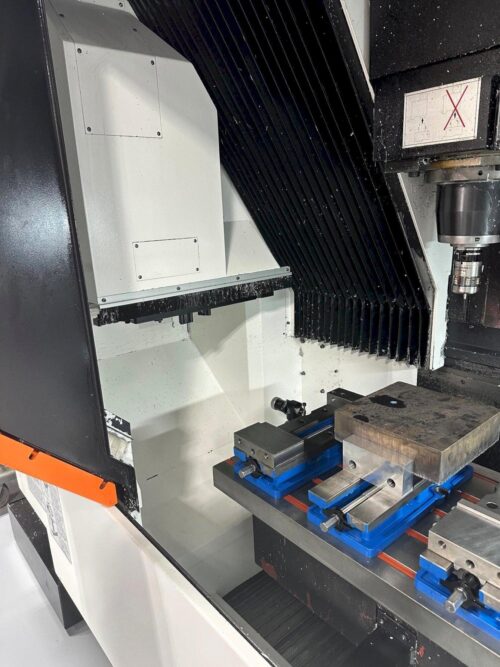

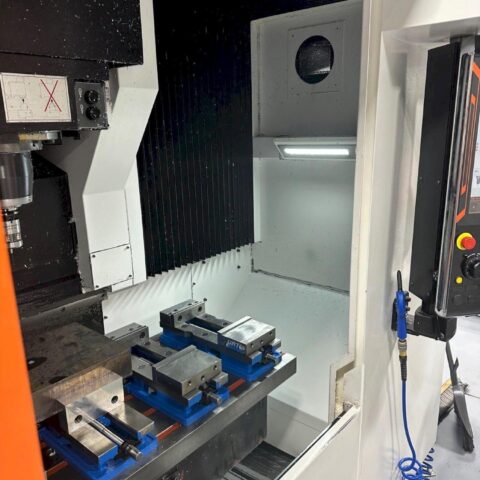

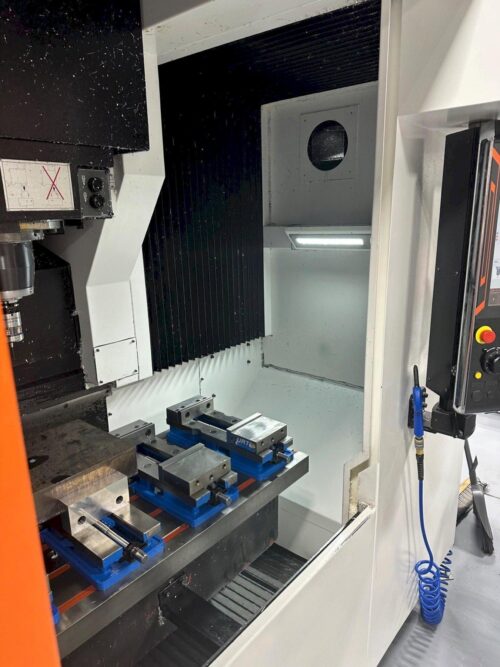

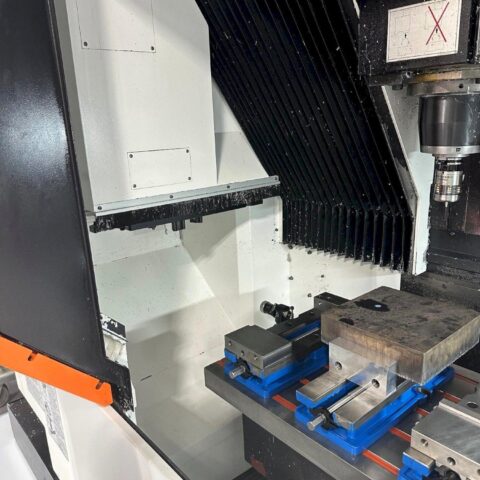

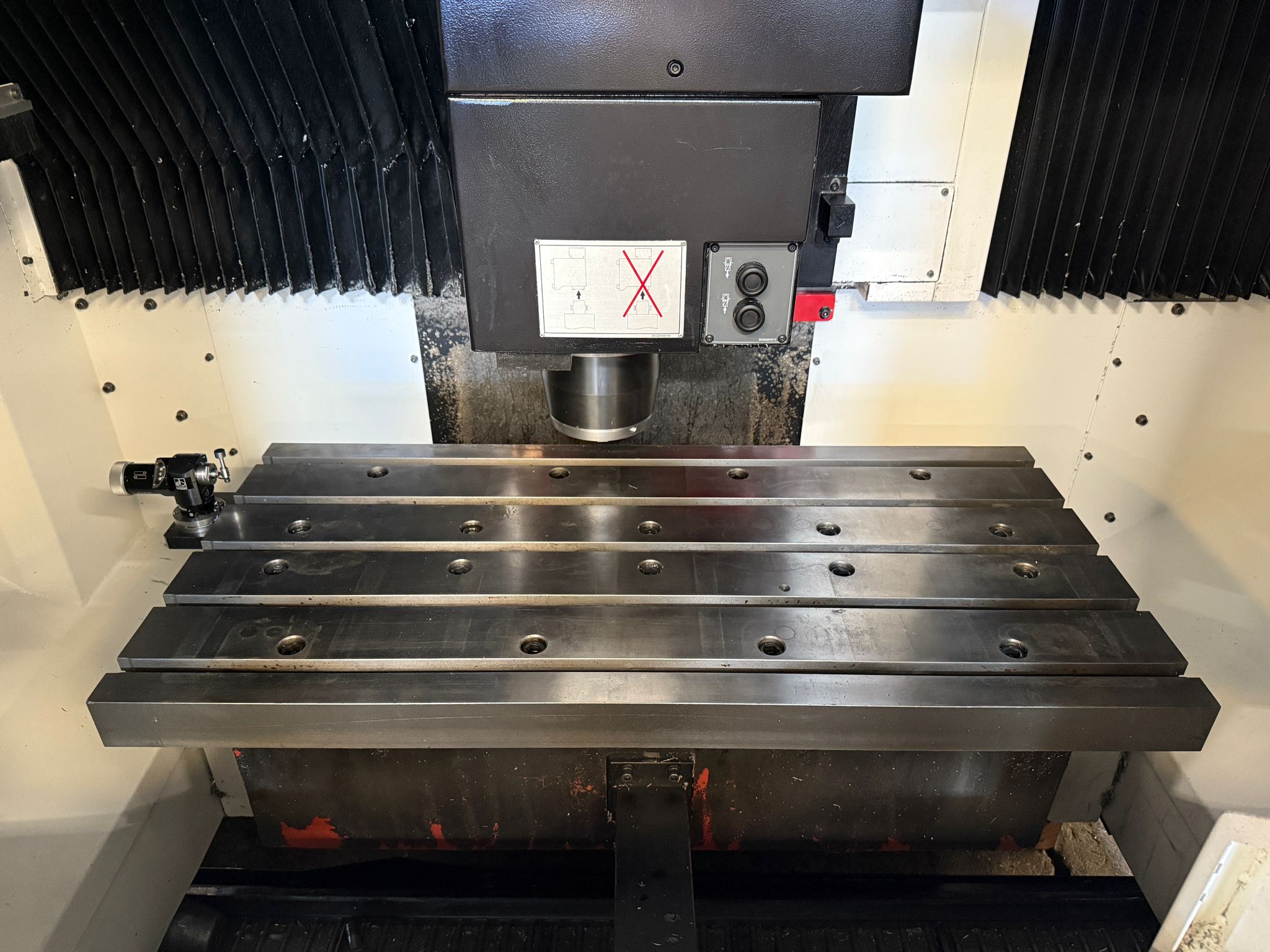

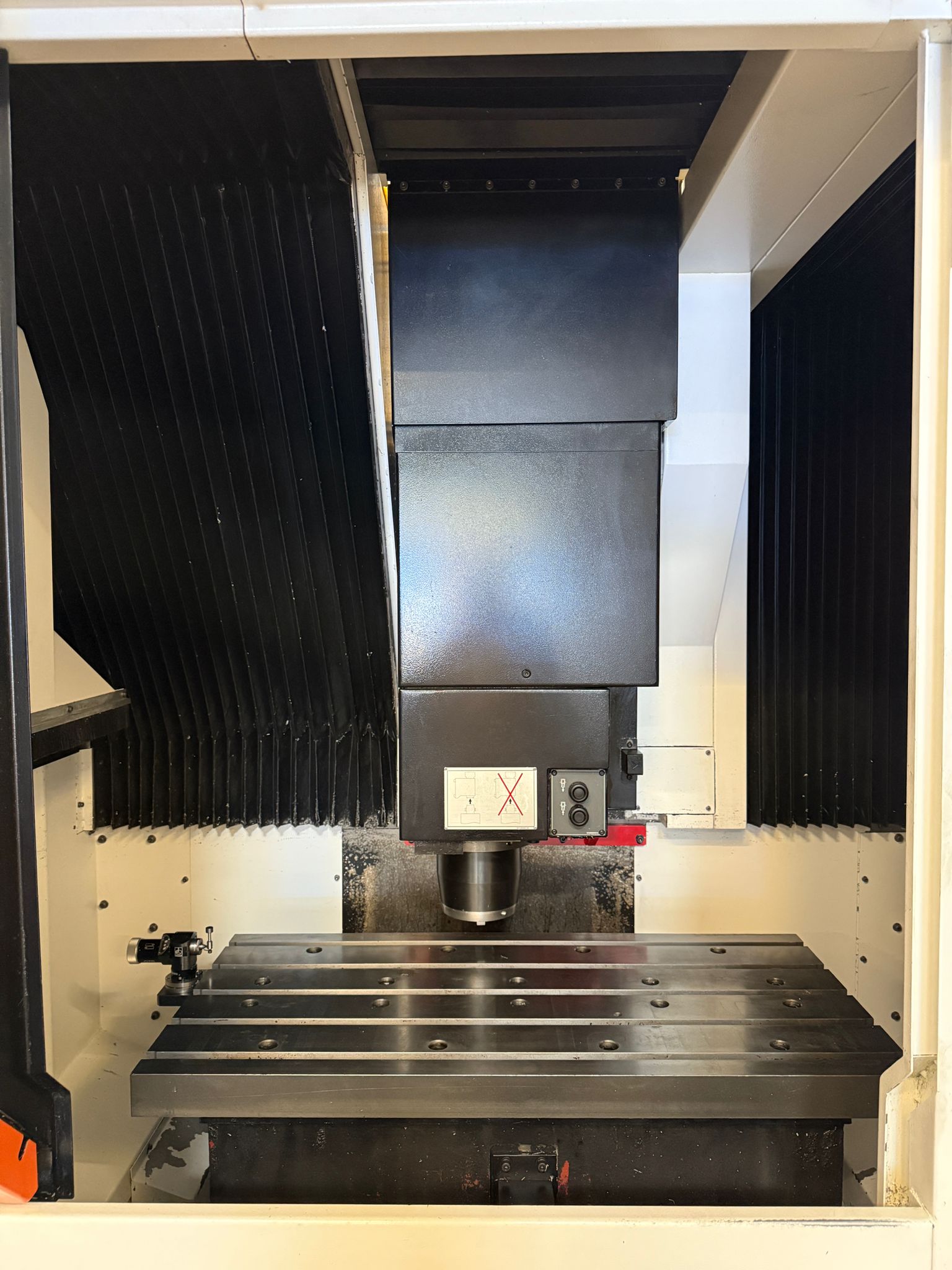

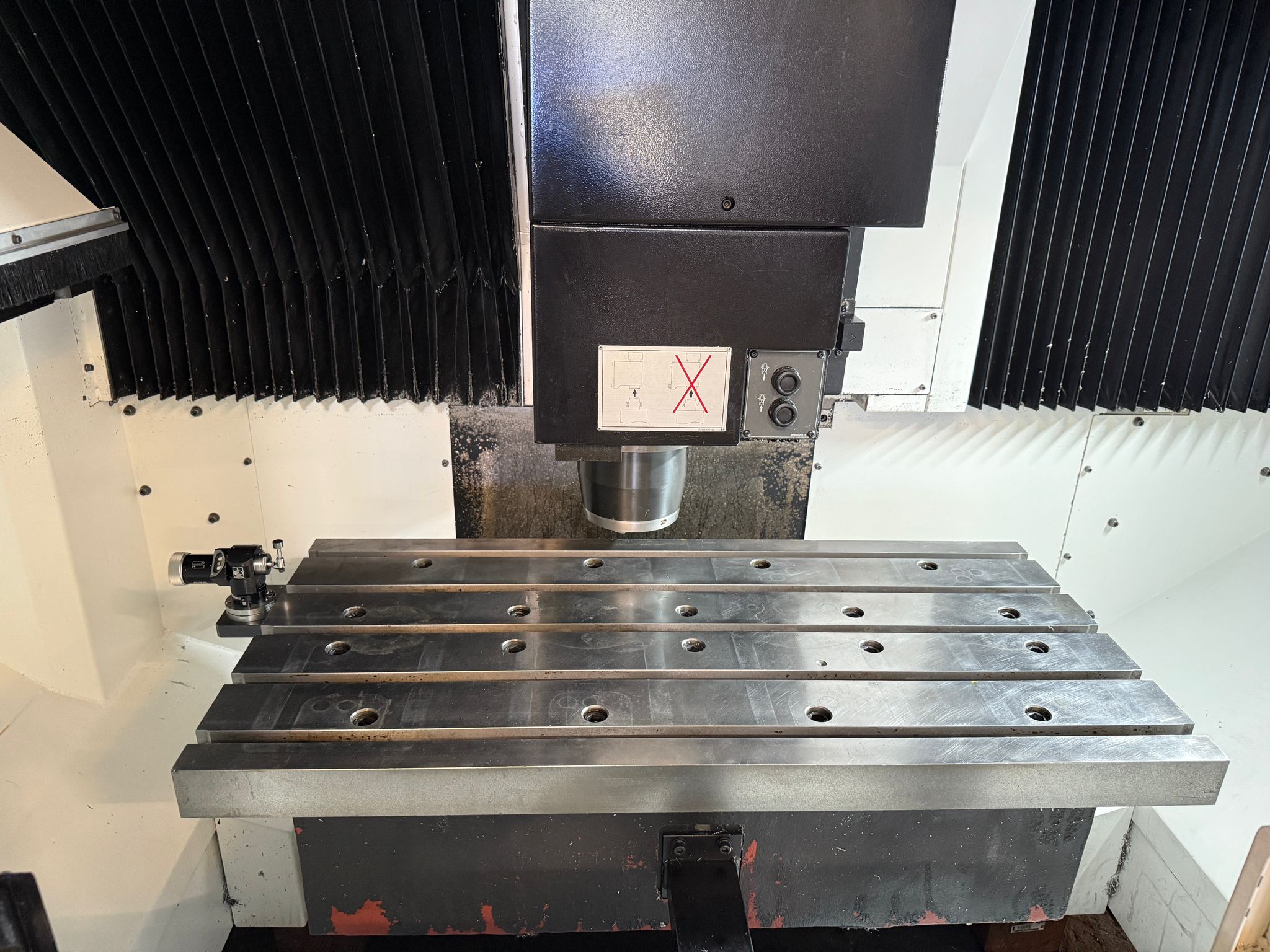

| Table: |
|---|
| Length: 41.33″ |
| Width: 19.69″ |
| Number of Std T-Slots: 5 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 1300 lbs |

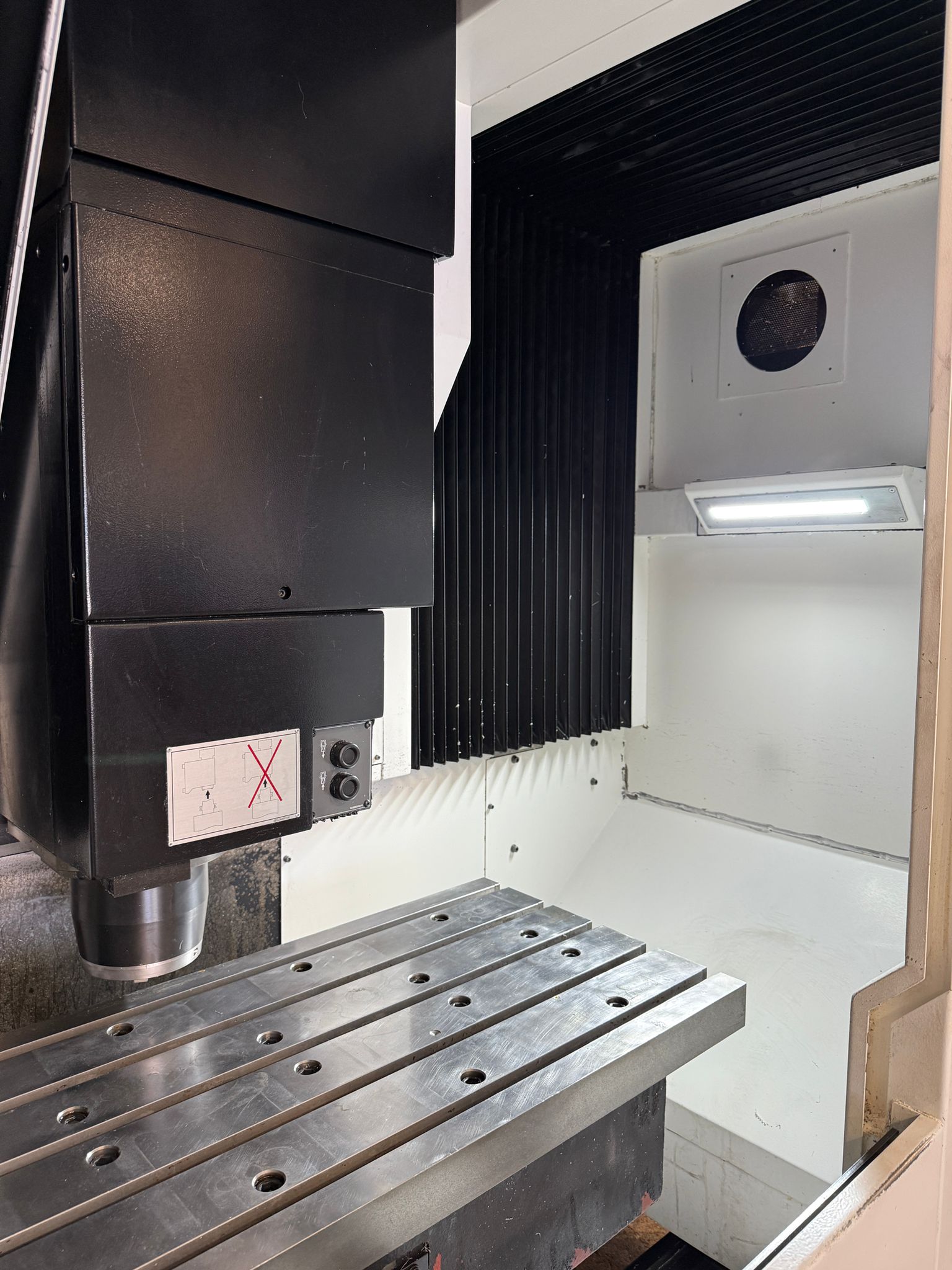

| Spindle: |
|---|
| Taper Size: CAT-40 |
| Speed Range: 12000 RPM |
| Spindle Power: 25 HP |

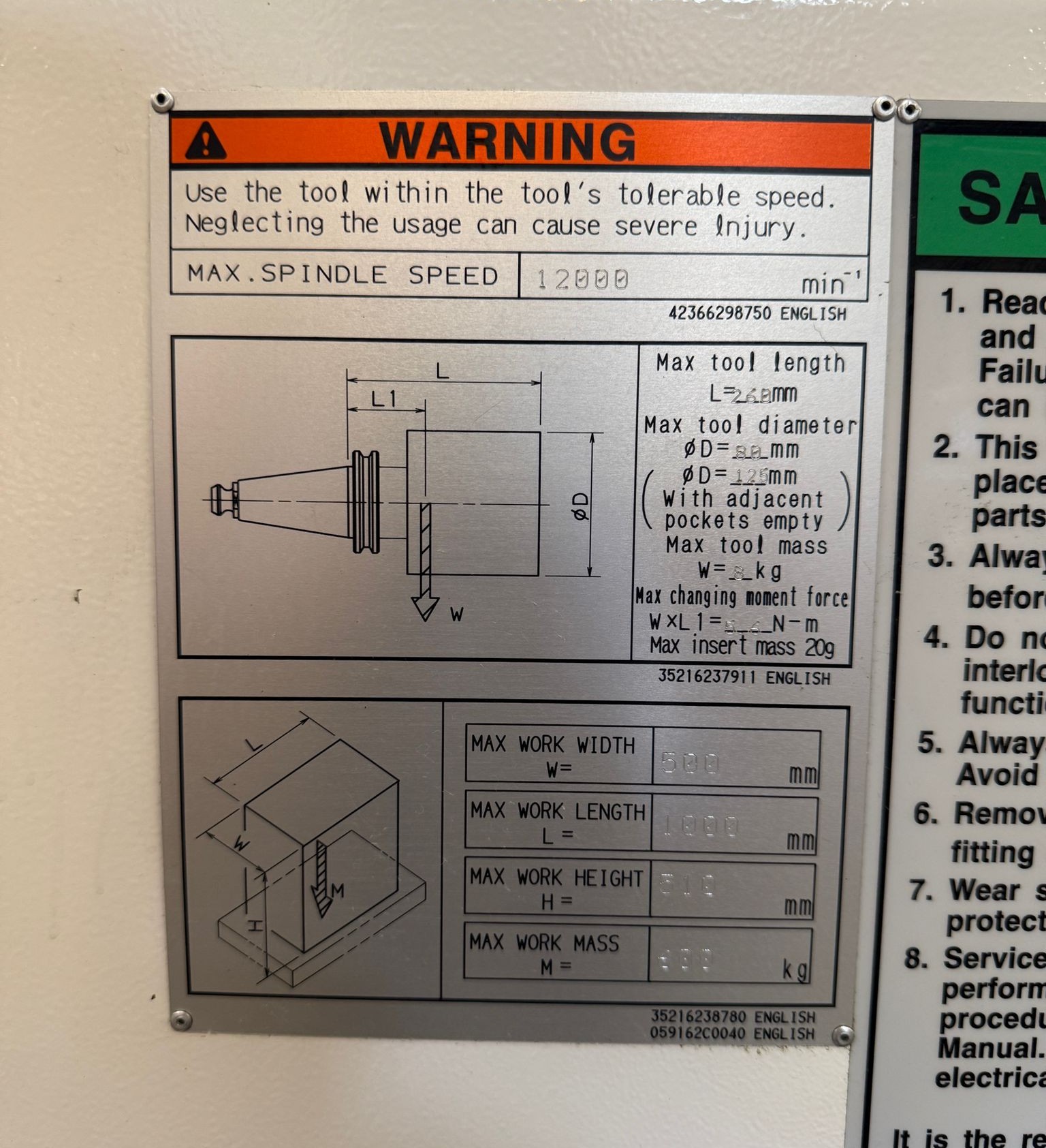

| Automatic Tool Changer: |
|---|
| Capacity: 30 Station Side Mounted |
| Max Tool Dia: 3.15″ – 4.92″ |
| Max Tool Length: 10.23″ |
| Max Tool Weight: 17.63″ lbs |
| General: |
|---|
| Air Required: 80 psi, 4 scfm |

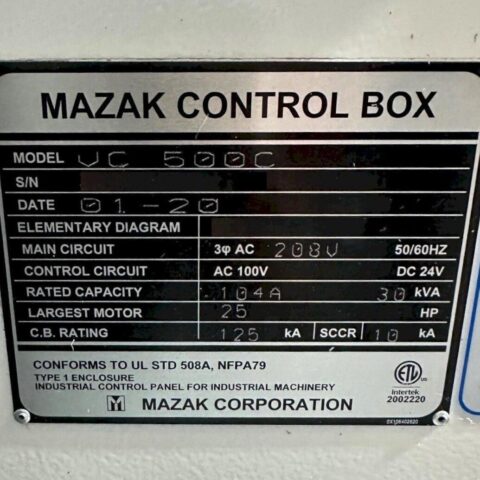

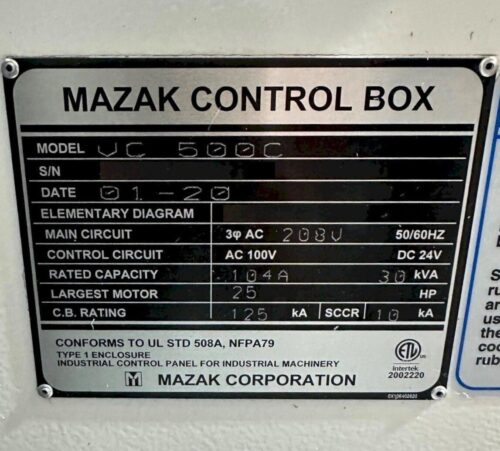

| Power: 208v / 30 kva / 3-Phase / 50/60 Htz |
| Overall Dimensions: 108.27″ x 125″ x 131.81″ High |
| Weight: 14,000 lbs Approx. |
