*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 112978 |

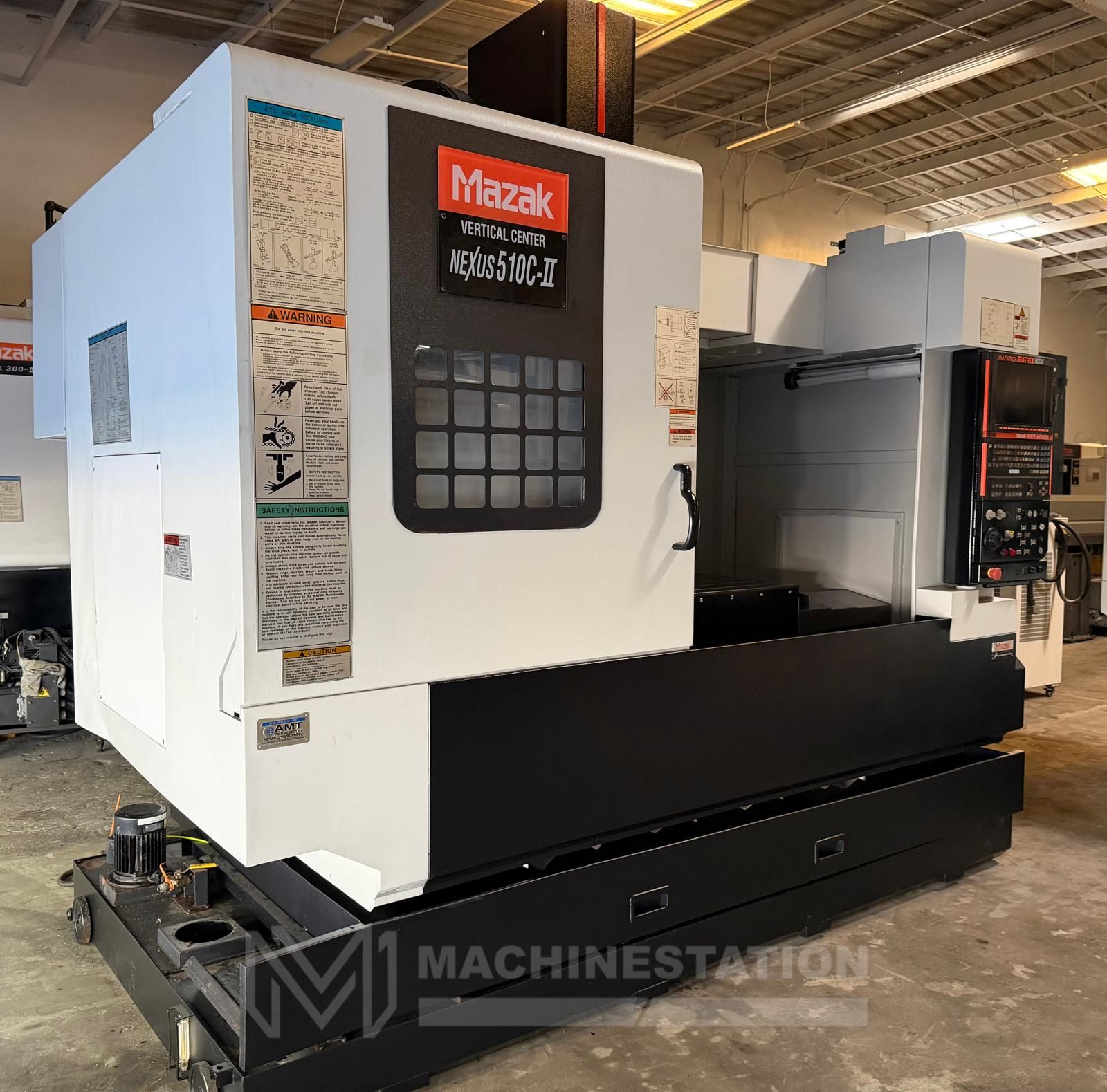

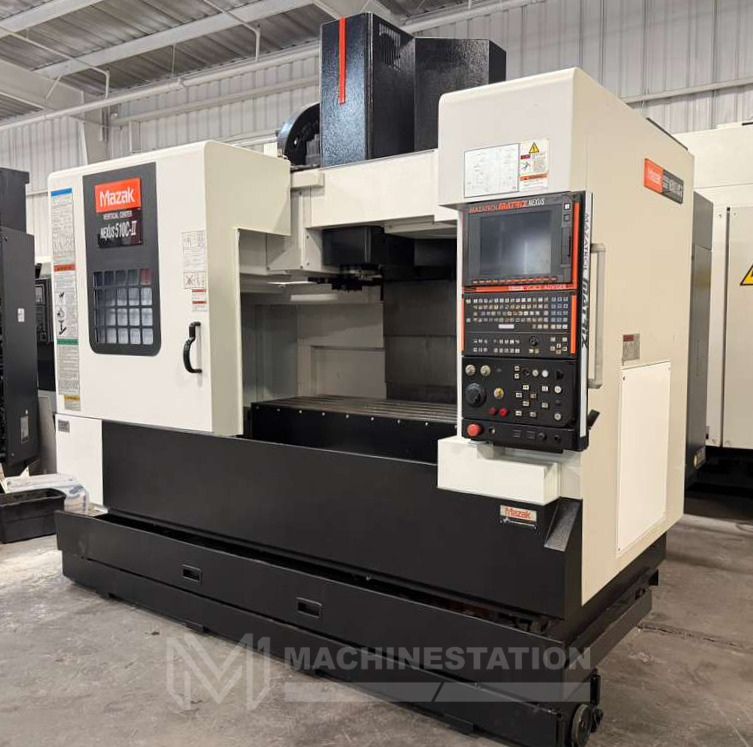

| Make: | Mazak |
| Model No.: | VCN 510C-II |
| Year of Manufacture: | 2006 |
| Condition: | Used – Good |
| Equipped With: |
|---|

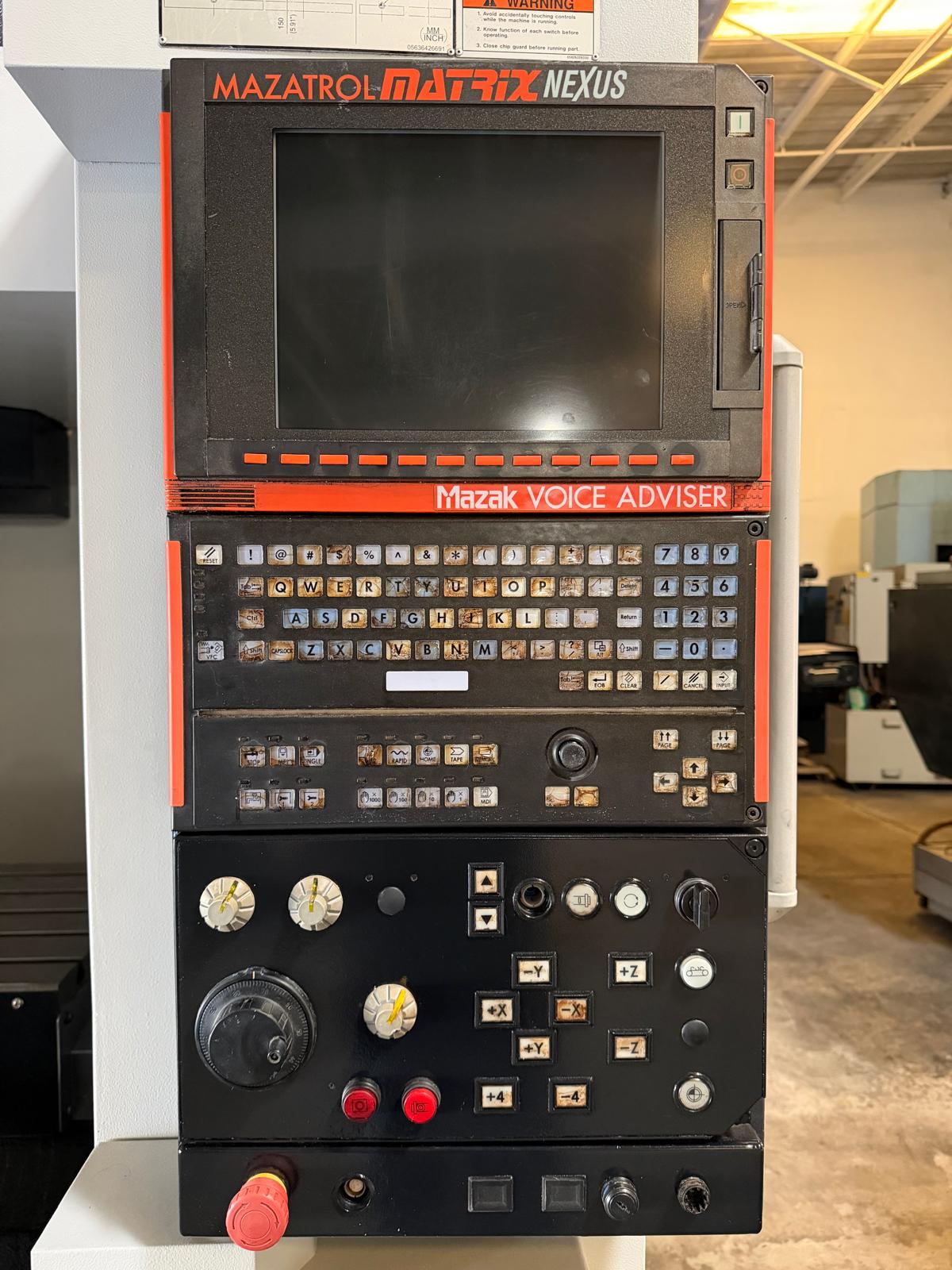

| Mazatrol Matrix Nexus CNC Control |
| 12,000 RPM High Speed Spindle |
| 30 Station Automatic tool changer |
| CAT-40 Taper Spindle |
| 25 HP High Torque Spindle |
| Automatic Lubrication System |
| Rigid Tapping |

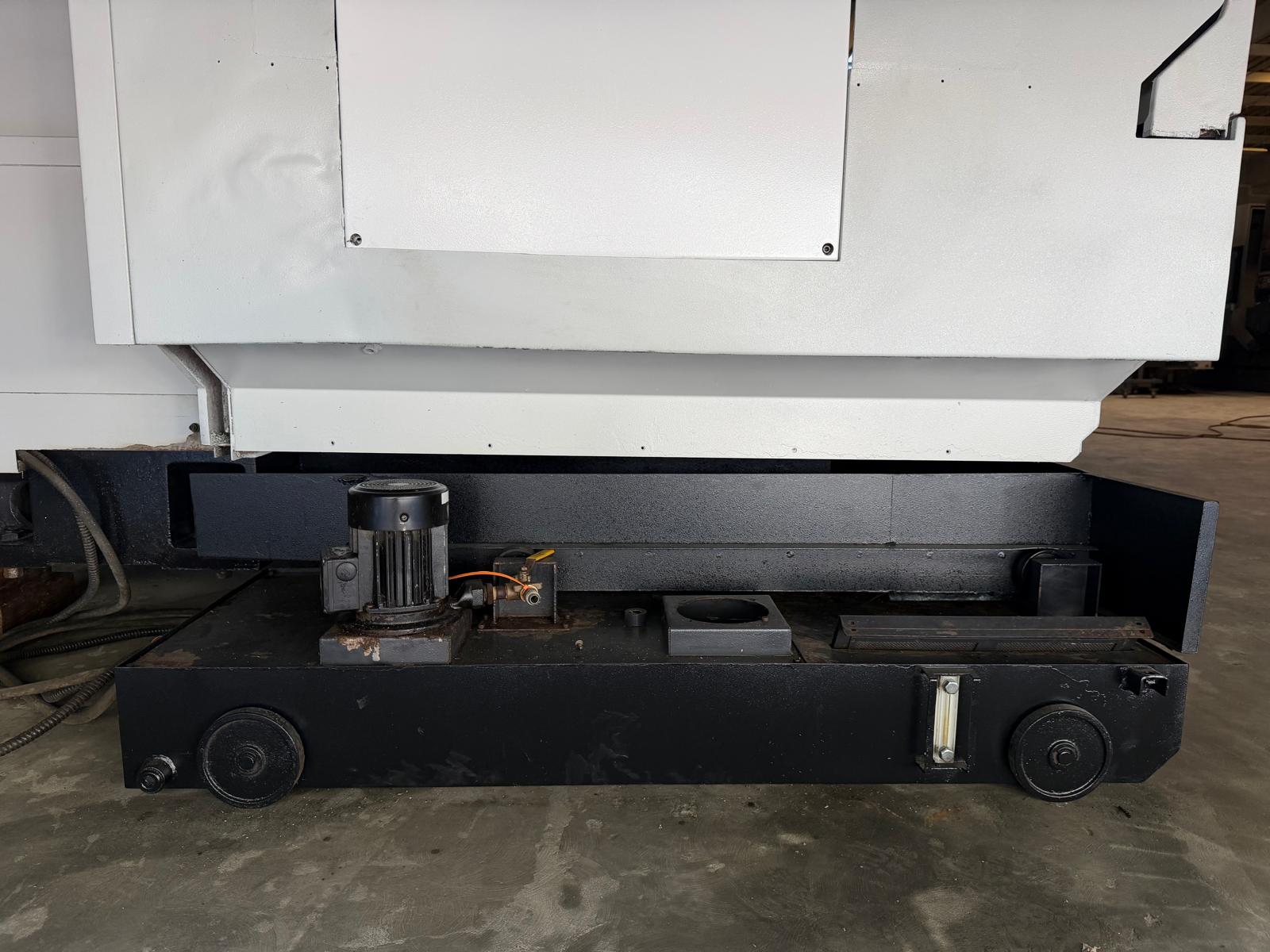

| Coolant System |
| Travels: |
|---|
| X-Axis: 41.3″ |
| Y-Axis: 20.8″ |
| Z-Axis: 20.8″ |
| Rapid Traverse Rates Axis: 1417 IPM |
| Cutting Feed Rates: 787 IPM |
| Spindle Nose to Table (Min.- Max.): 5.9″ – 26″ |

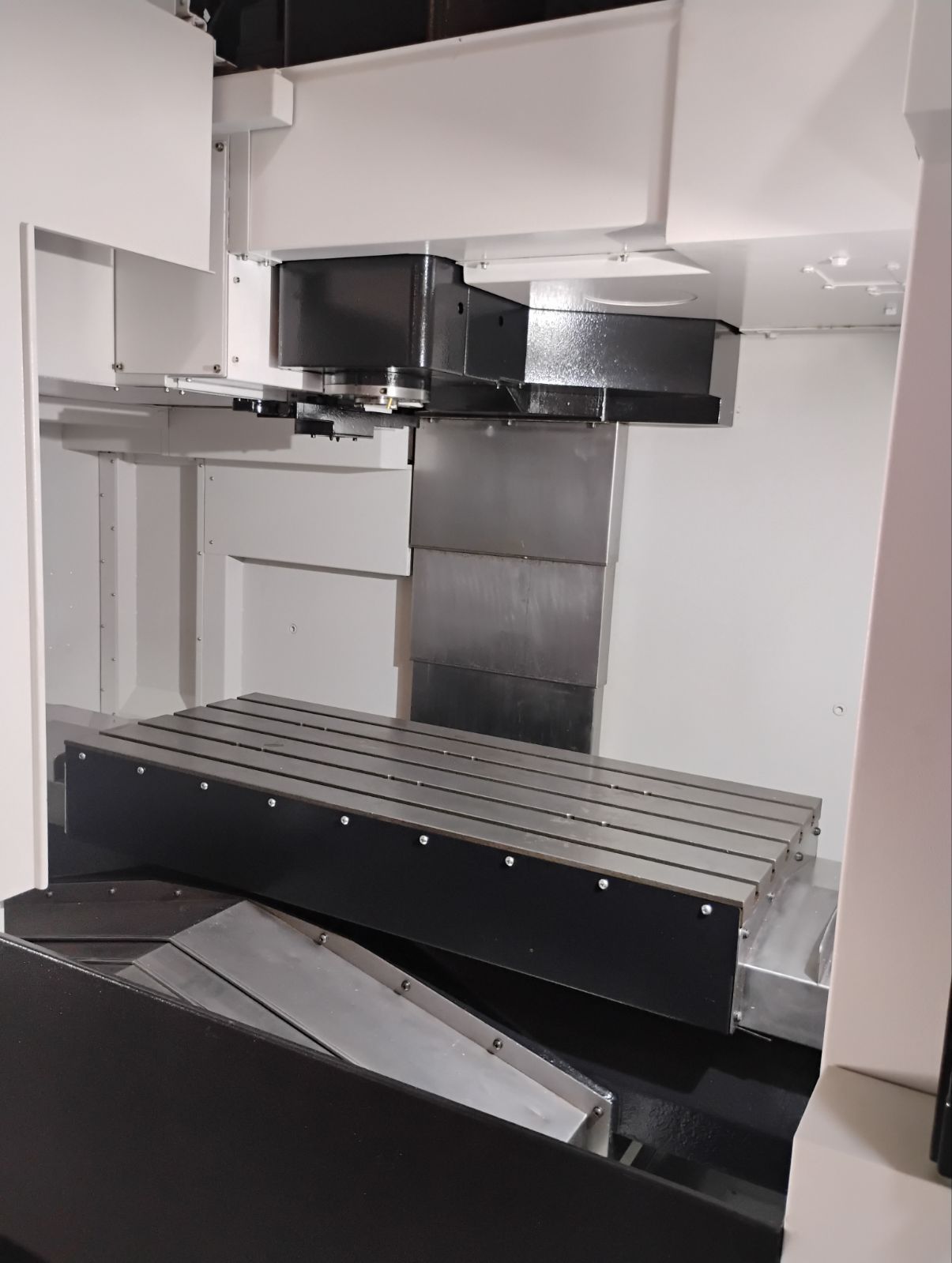

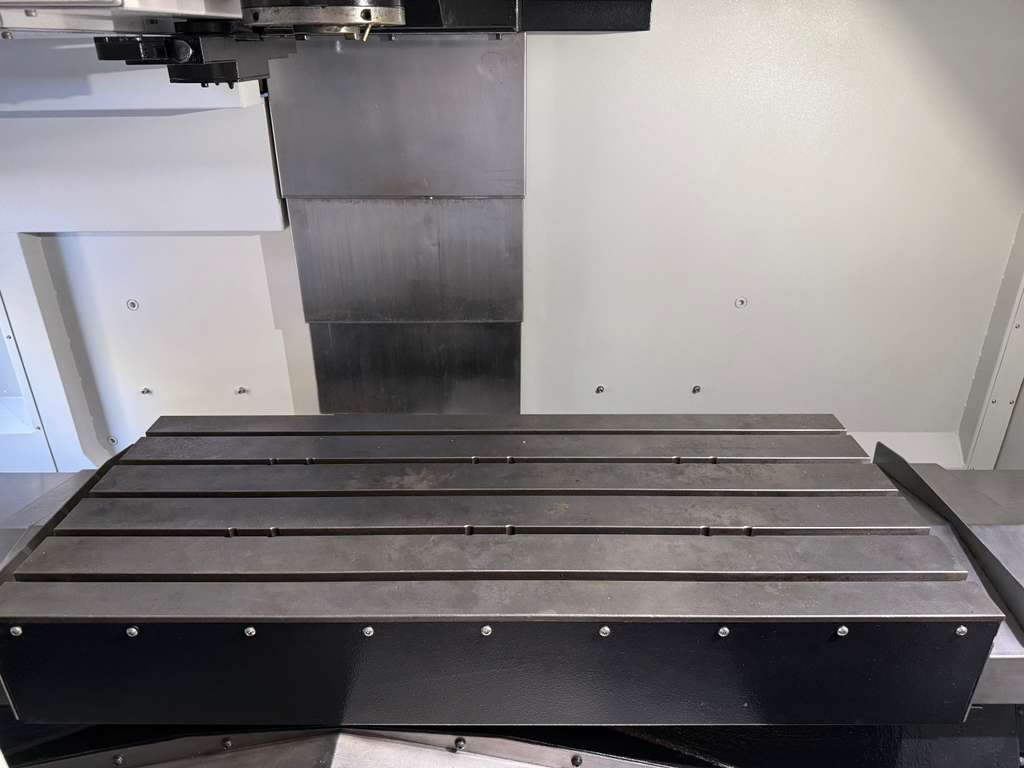

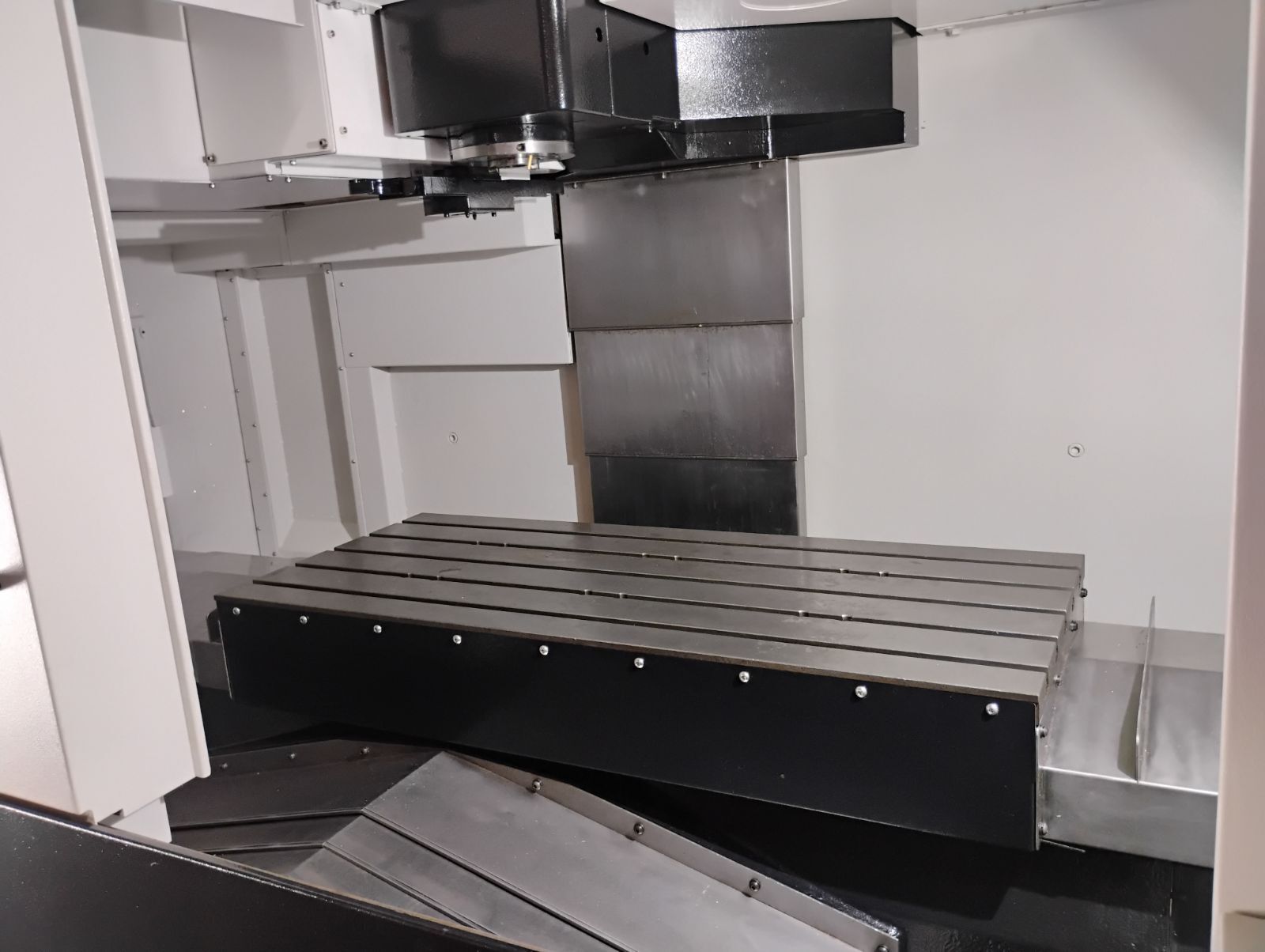

| Table: |
|---|
| Length: 51.18″ |
| Width: 21.65″ |
| Number of Std T-Slots: 5 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 2646 lbs |

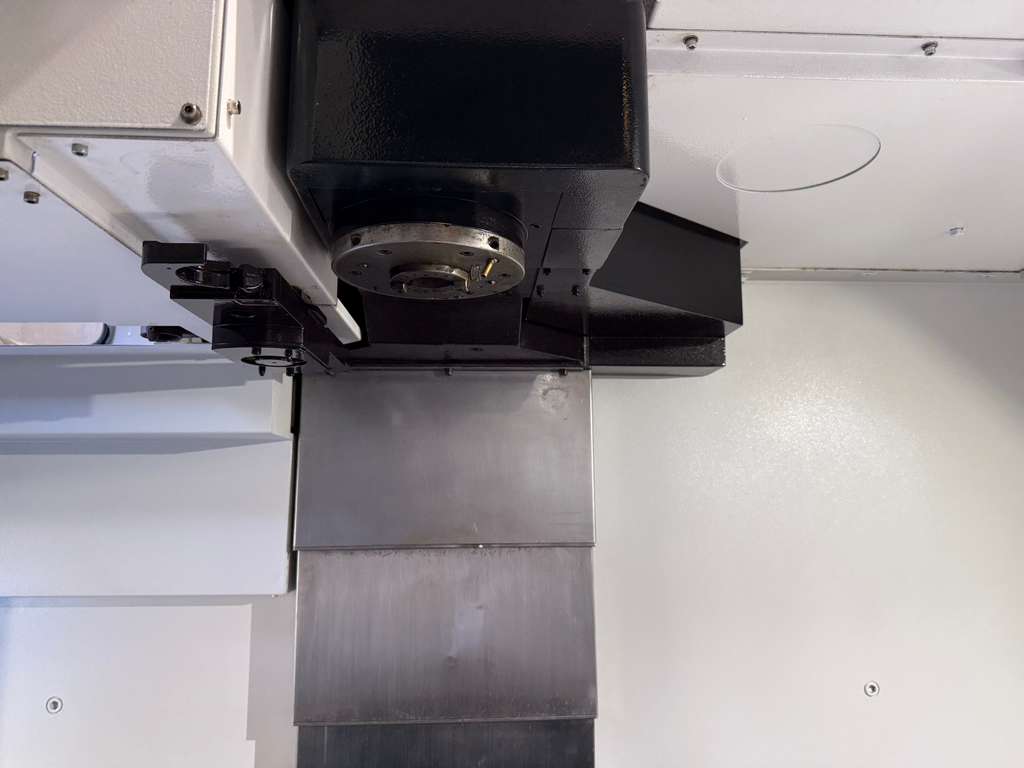

| Spindle: |
|---|
| Taper Size: CAT-40 |
| Speed Range: 12000 RPM |
| Spindle Type: Direct Drive |
| Spindle Power: 25 HP |

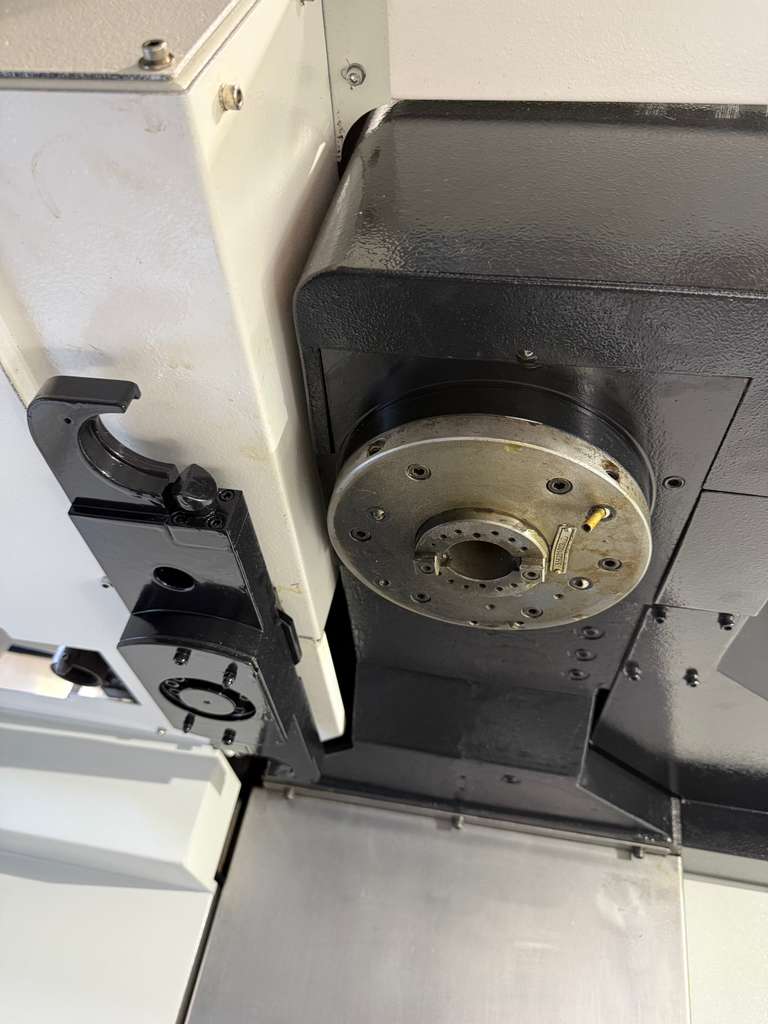

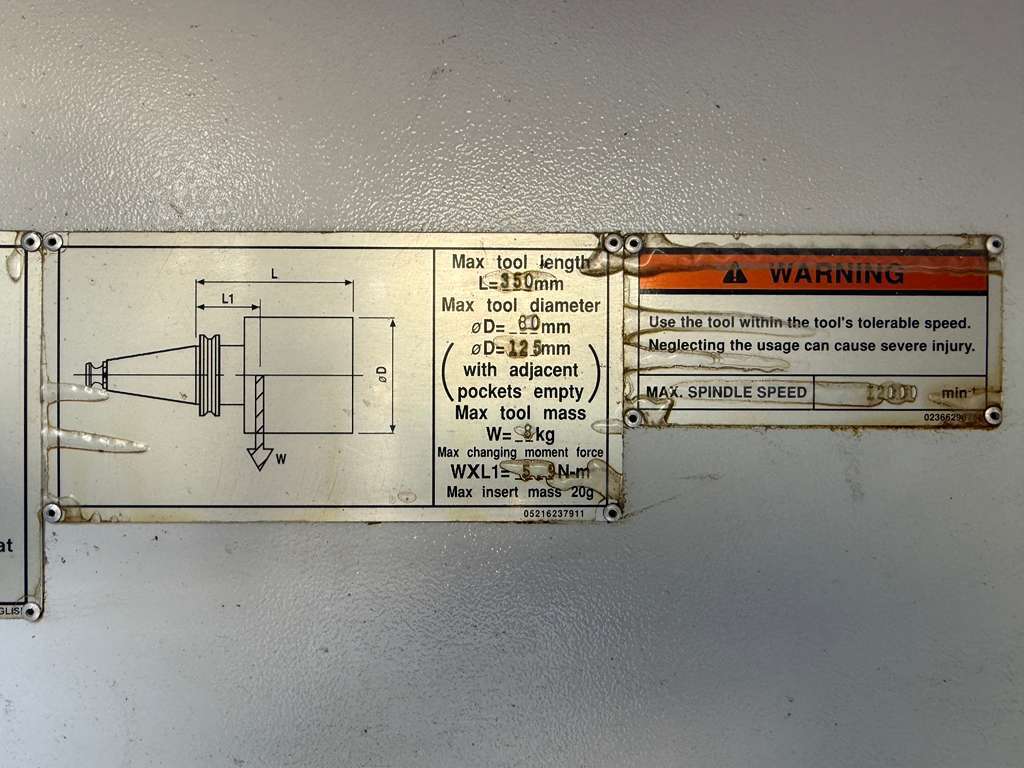

| Automatic Tool Changer: |
|---|
| Capacity: 30 Station Side Mounted |

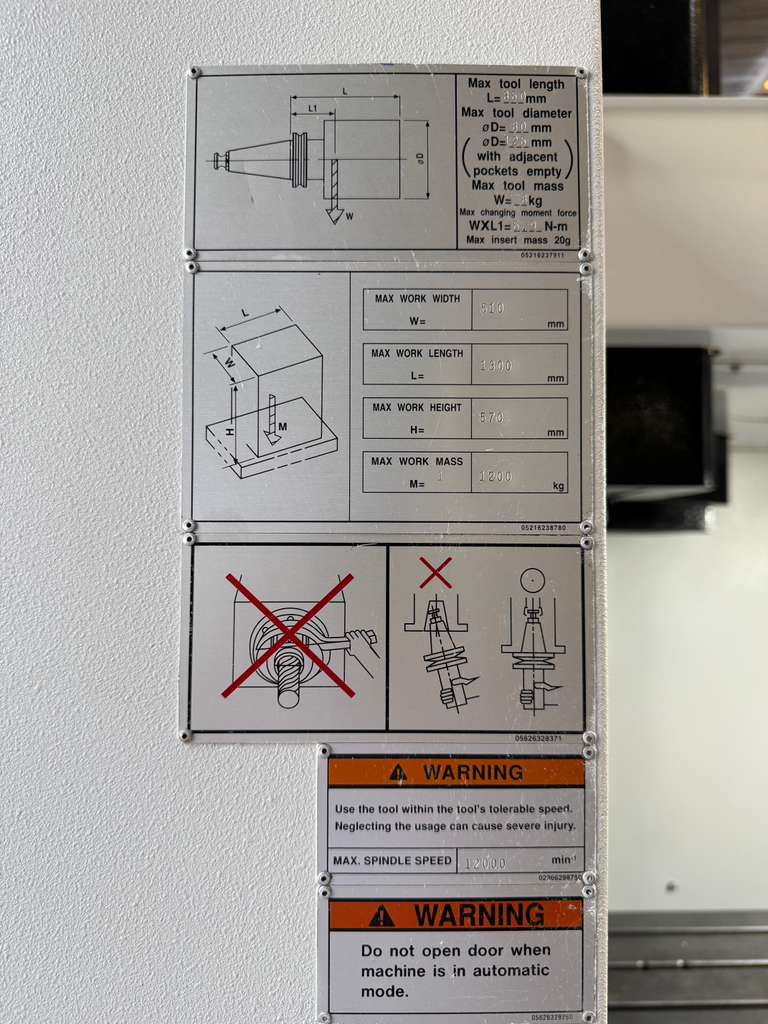

| Max Tool Weight: 13.78 lbs |
| Max Tool Dia: 3.15″ |
| Max Tool Length: 13.78″ |
| Tool Changing Time : 1.3 Seconds |
| General: |
|---|
| Air Required: 80 psi, 4 scfm |

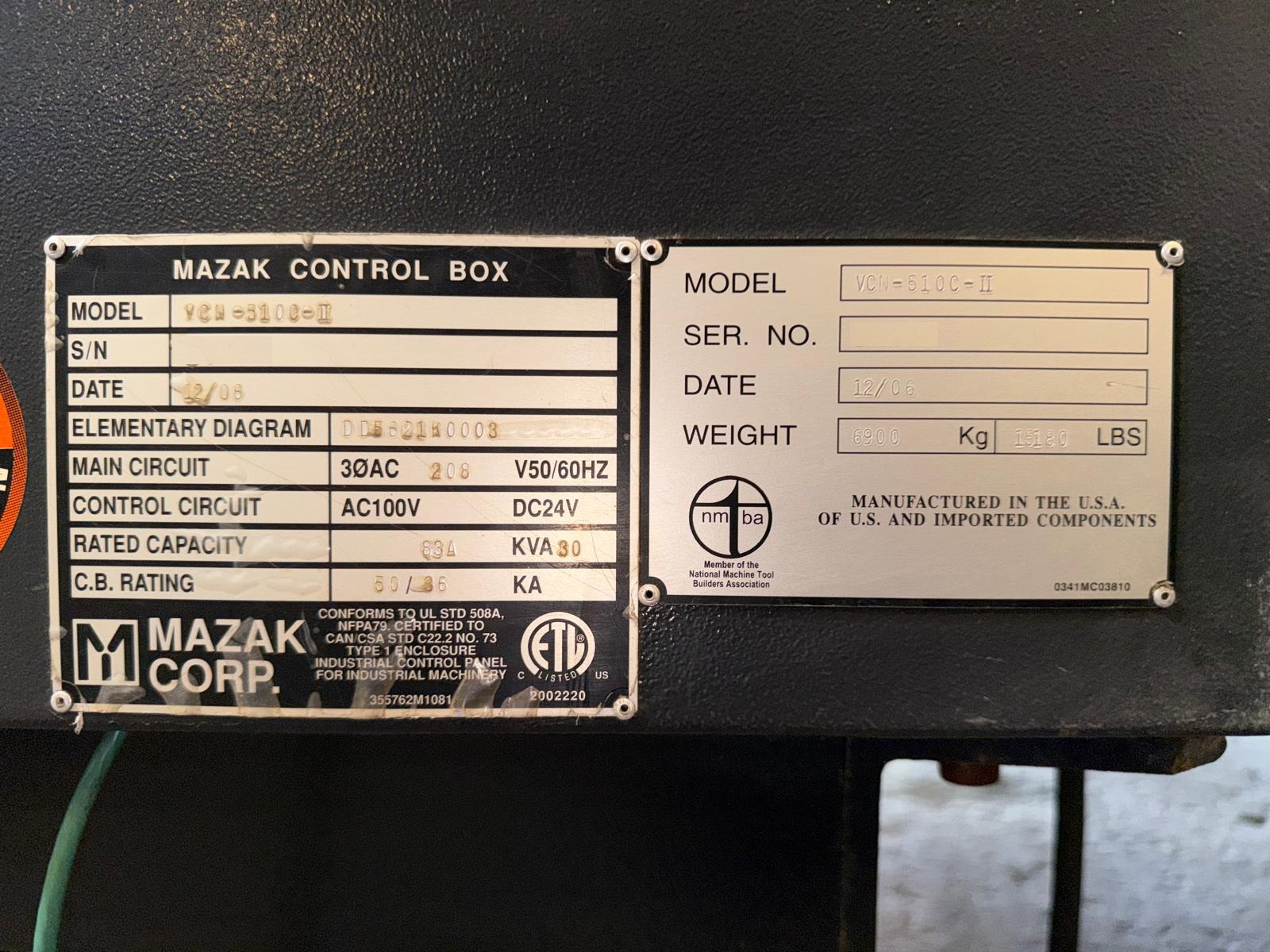

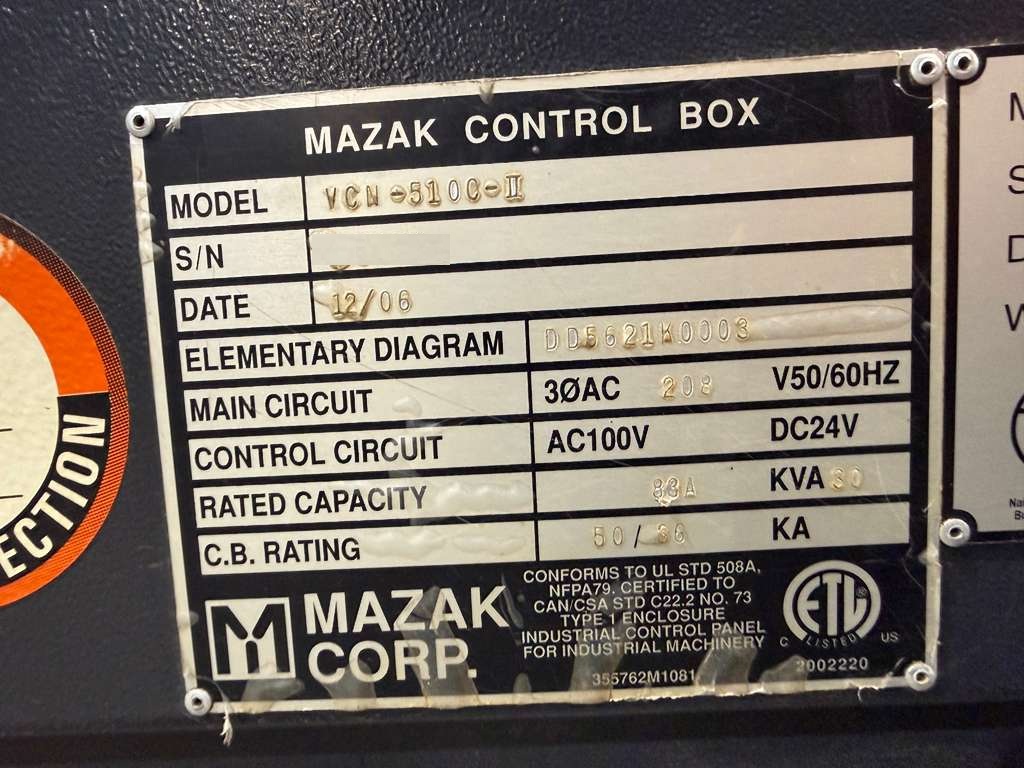

| Power: 220v / 30 kva / 3-Phase |
| Overall Dimensions: 120″ x 112″ x 114″ High |

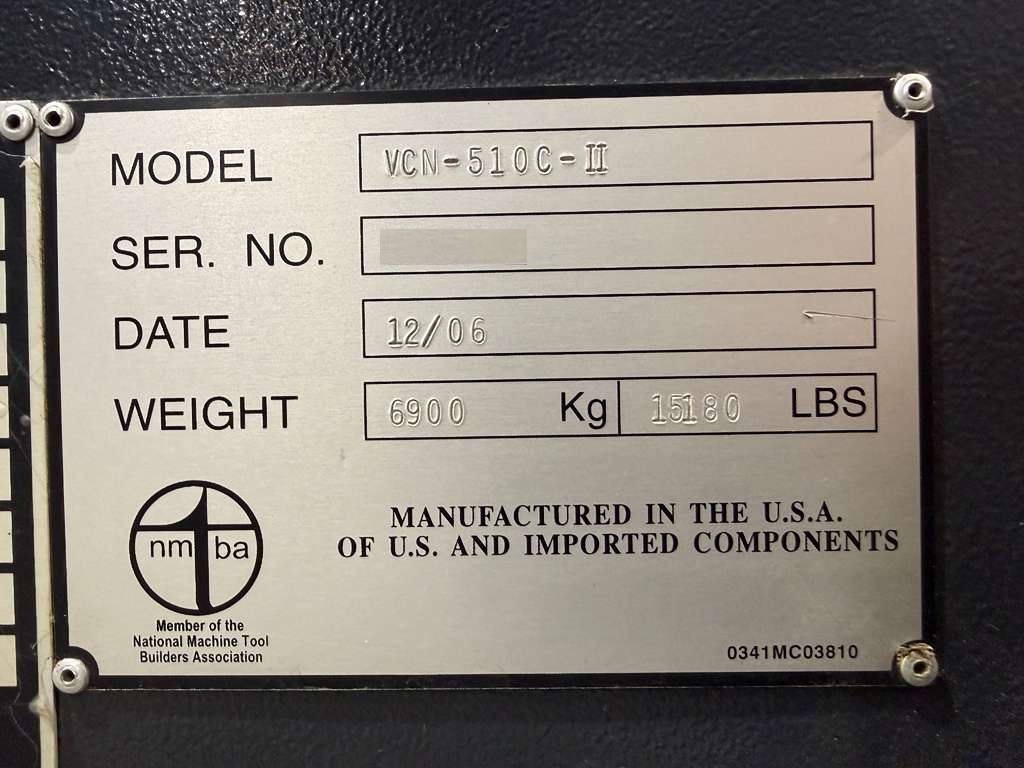

| Weight: 15,200 lbs |
