| Make: |
Mazak |
| Model No.: |
VTC-250/50D |
| Year of Manufacture: |
2007 |
| Condition: |
Used |
| Machine Type: |
CNC Vertical Machining Center |
| CNC Control: |
Mazatrol |
| Country of Origin: |
USA |
| Equipped With: |
| Mazatrol CNC Control |
| 50 Taper Spindle |
| 30 Station Automatic Tool Changer |
| Chip Conveyor |
| Coolant System |
| Full Enclosure |

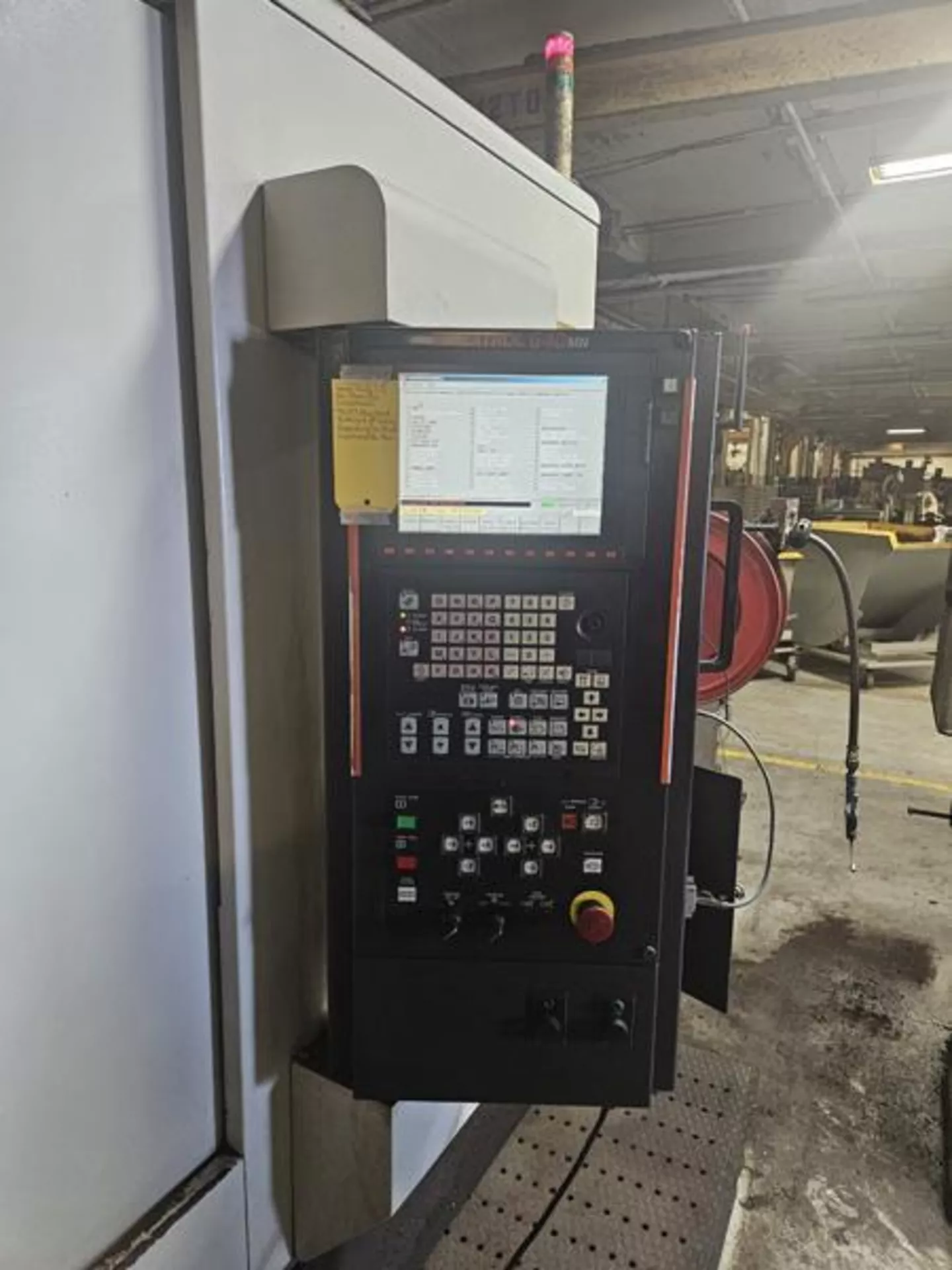

| Pendant Control |
| Work Light |
| Capacity: |
| Table Size: 65″ x 25″ |
| Table Load Capacity: 2,000 lbs |
| Table Type: Fixed Table |
| Travels: |
| X-Axis Travel: 50″ |
| Y-Axis Travel: 25″ |
| Z-Axis Travel: 25″ |
| Spindle: |
| Spindle Speed: Up to 10,000 RPM |
| Spindle Motor: 30 HP |
| Spindle Taper: CAT 50 |
| Spindle Nose: CAT 50 |
| Feed Rates: |
| Rapid Traverse (X/Y/Z): 1,200 IPM |
| Feed Rate: Programmable (CNC Controlled) |
| Tool Changer: |
| Tool Capacity: 30 Tools |
| Type: Automatic Tool Changer (ATC) |
| Tool Holder Type: CAT 50 |

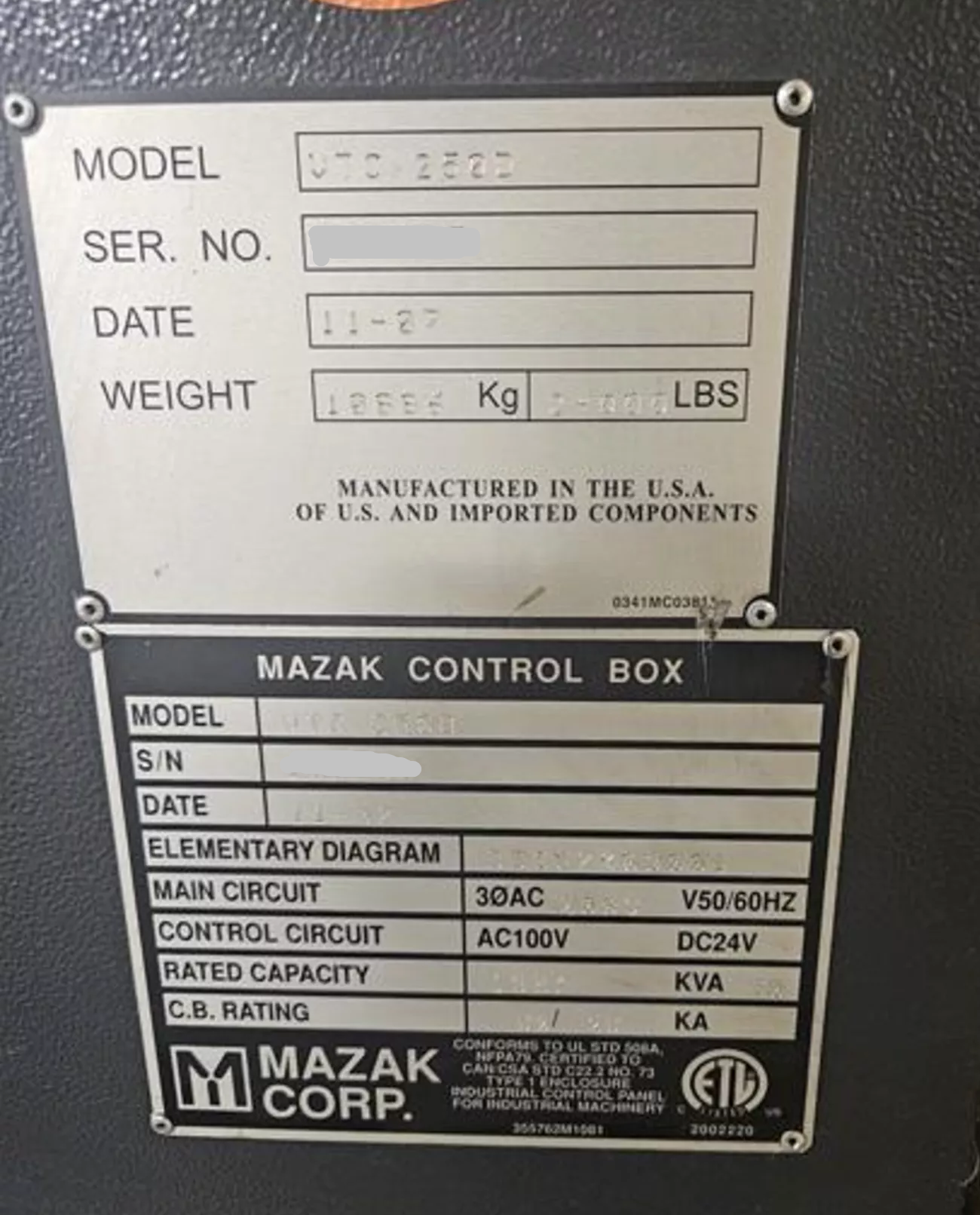

| Electrical: |
| Voltage: 200V |
| Phase: 3 Phase |
| Frequency: 50/60 Hz |
| Control Voltage: AC100V / DC24V |
| General: |
| Machine Weight: 13,600 kg |
| Footprint: Approx. 12′ x 10′ |
