*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

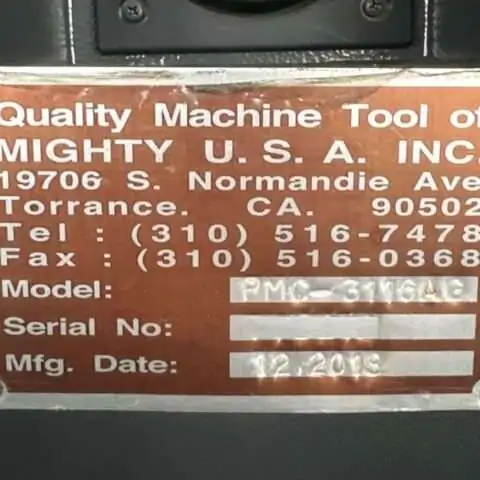

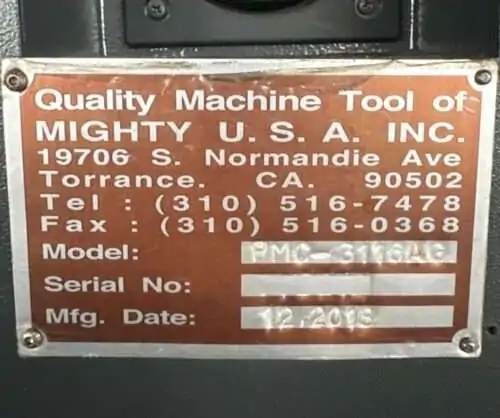

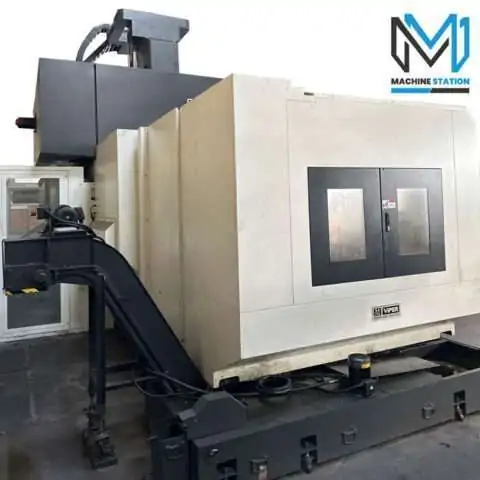

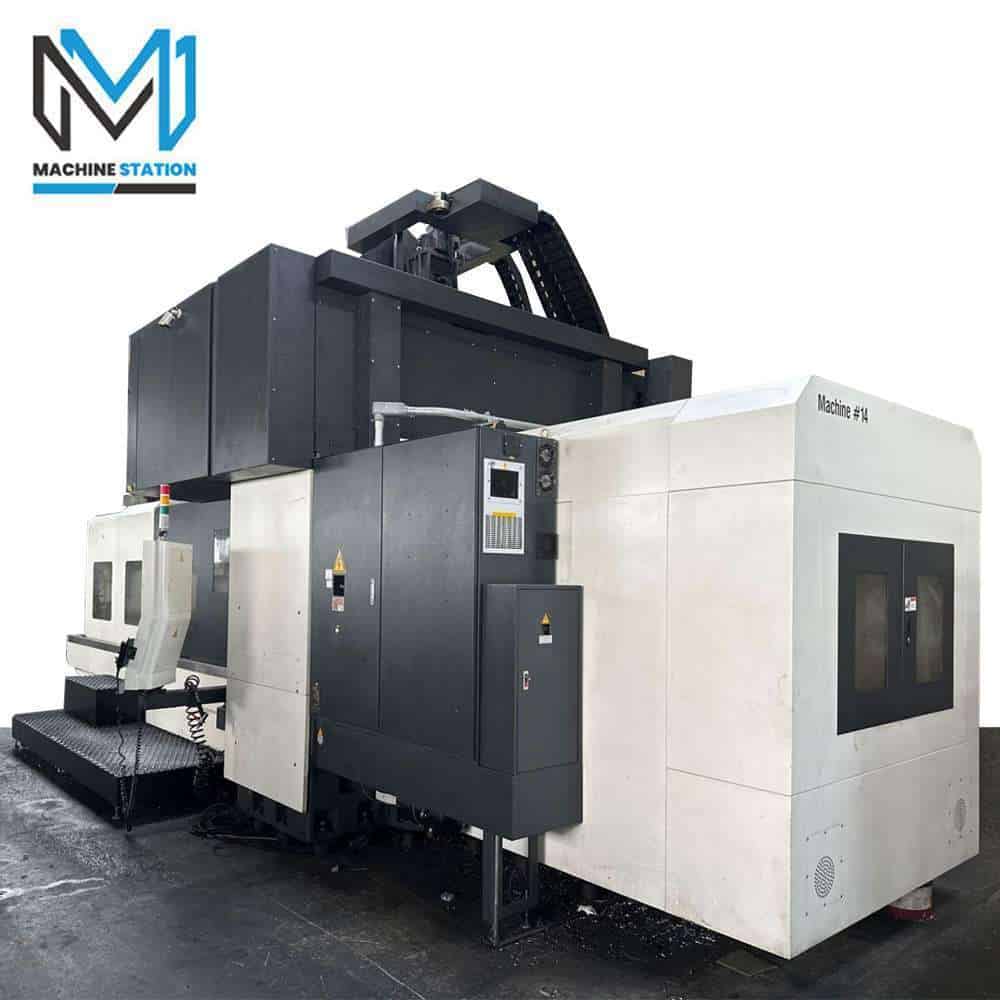

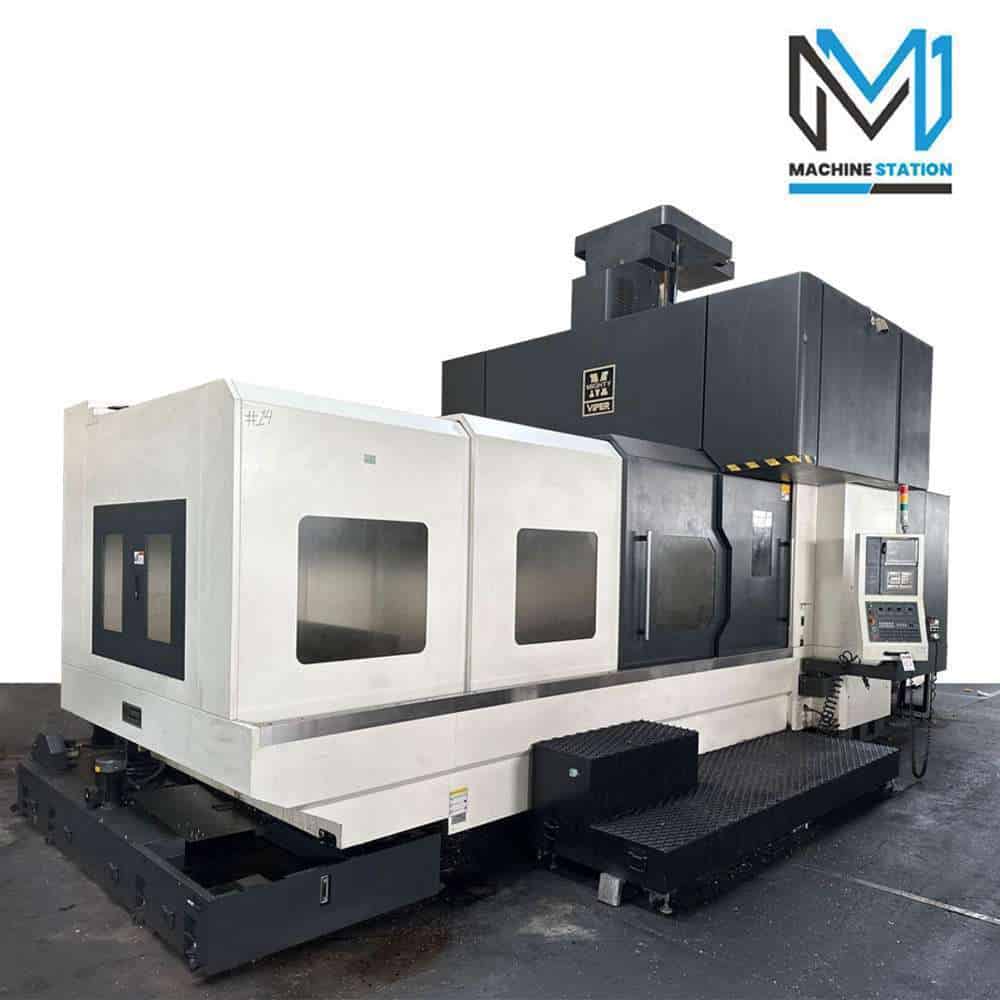

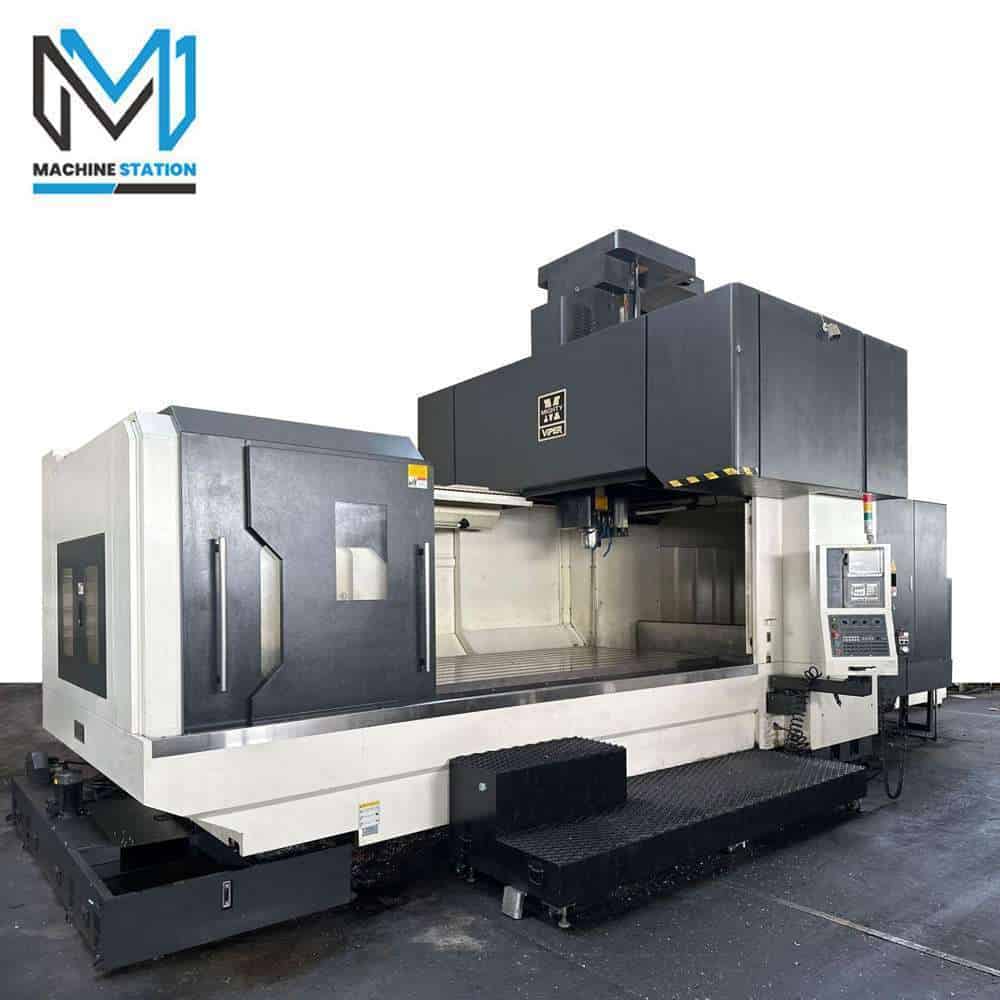

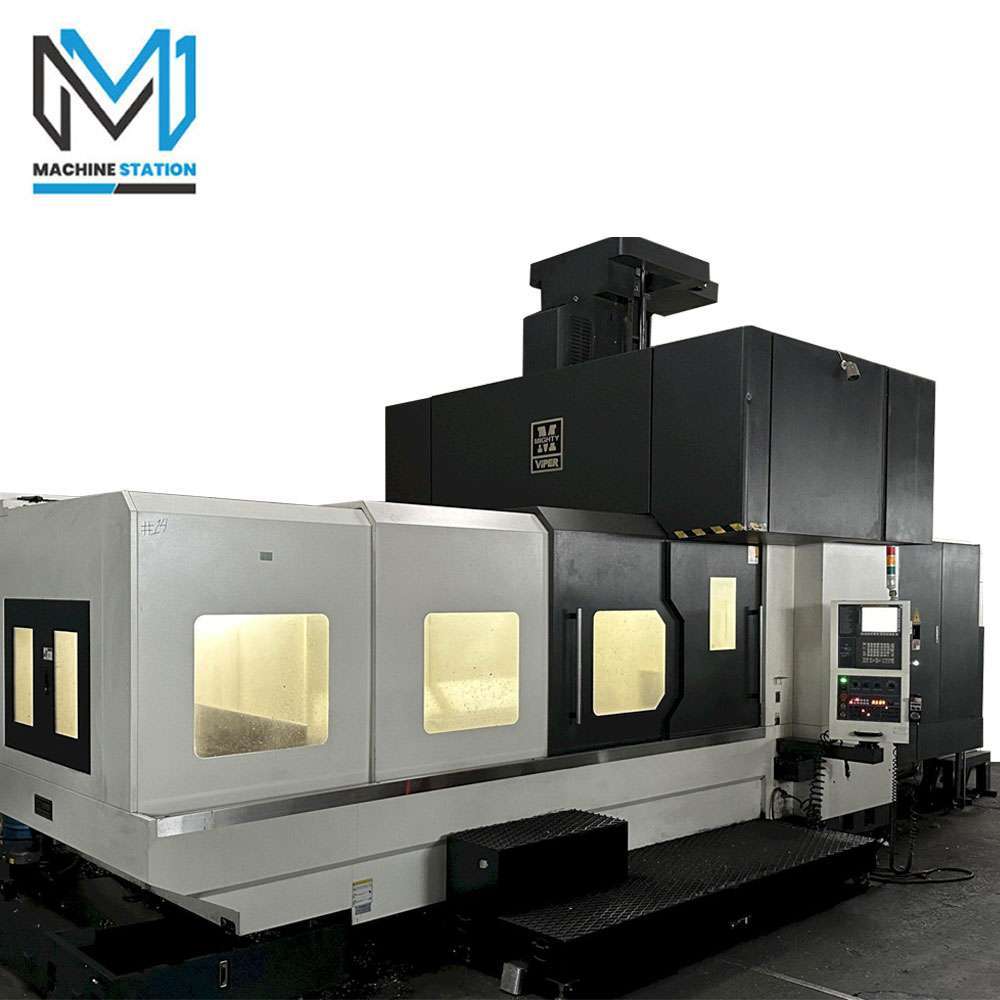

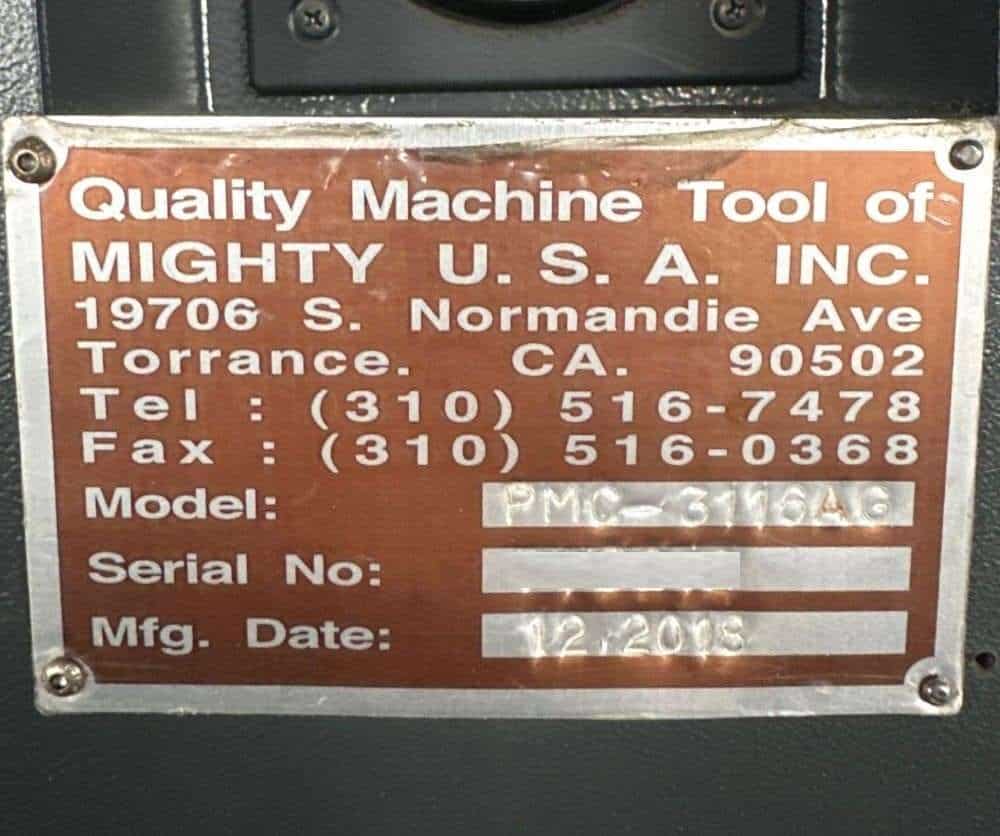

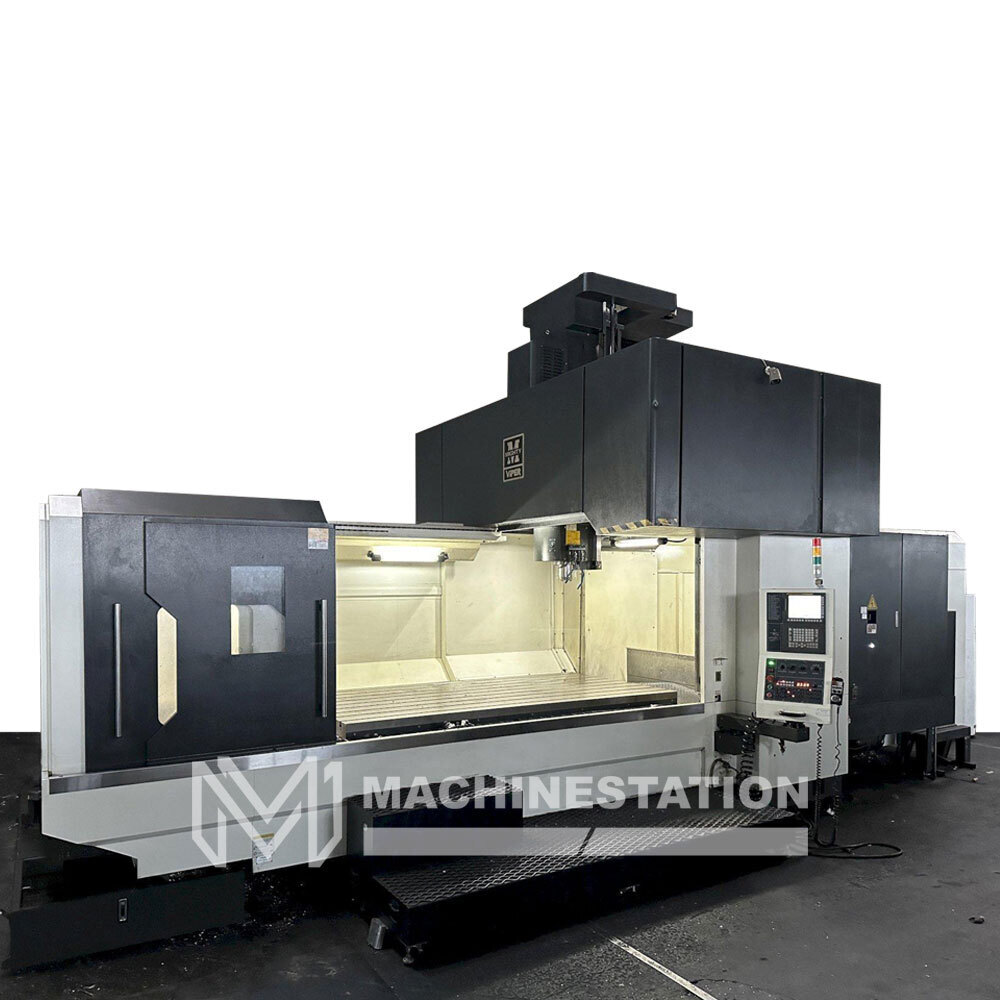

| Make: | MIGHTY VIPER |
| Model: | PMC-3116AG |
| Year: | 2018 |
| Condition: | Used – Excellent |
| Equipped With: |
|---|

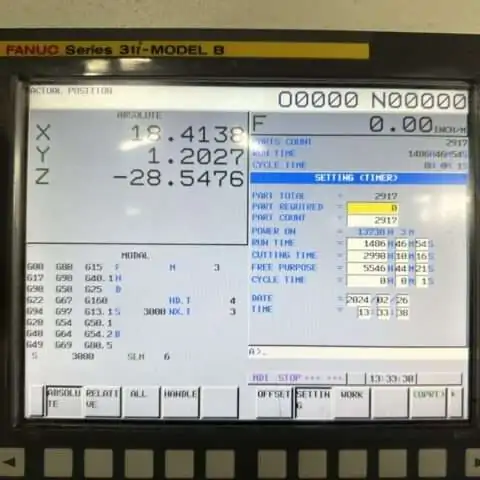

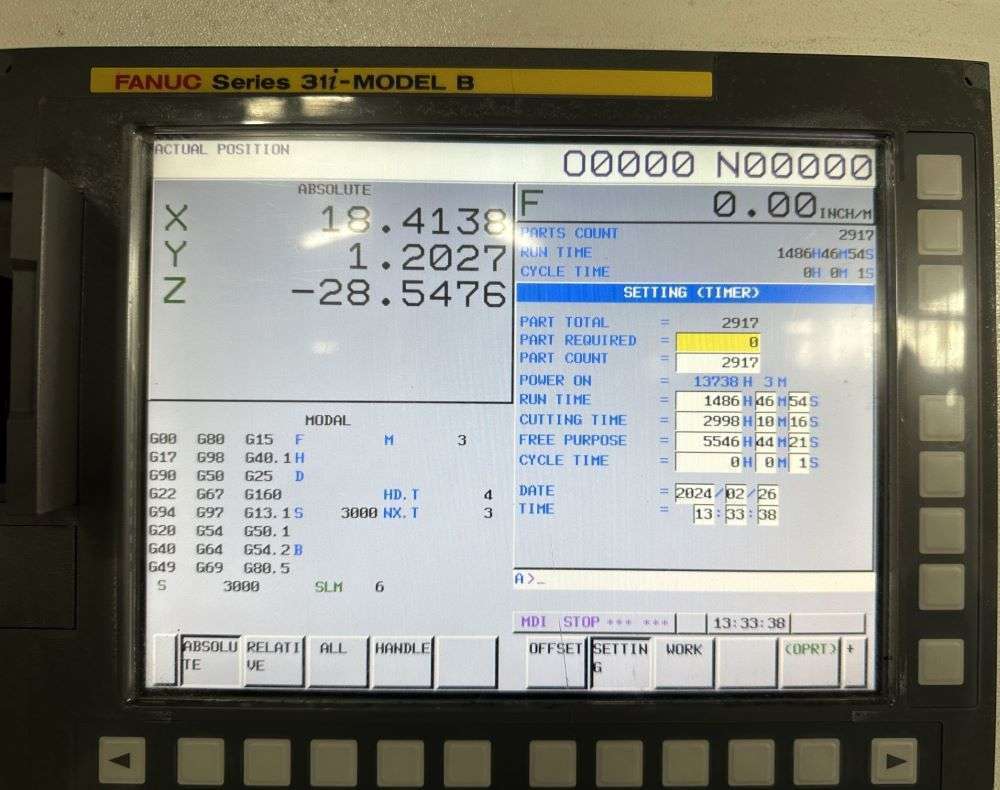

| Fanuc 31i-MB CNC Control |

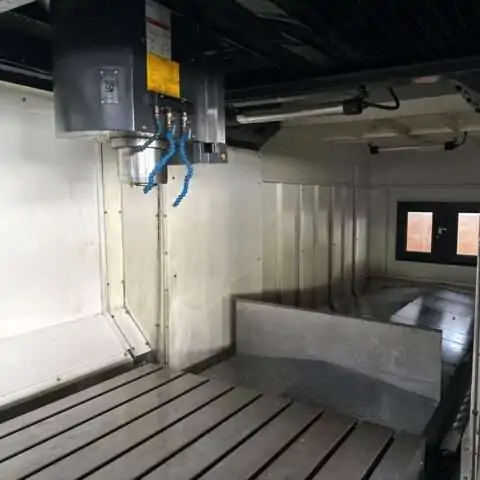

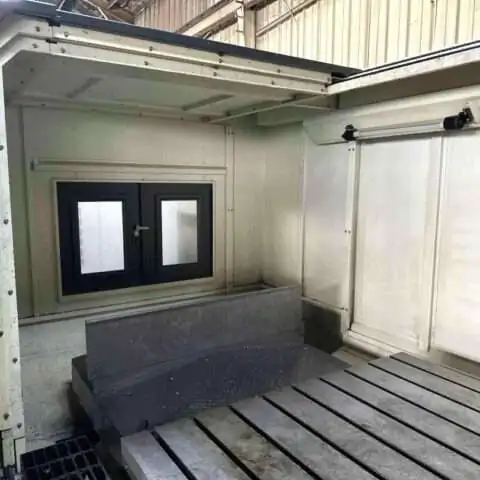

| 118″ X 59.1″ Table |

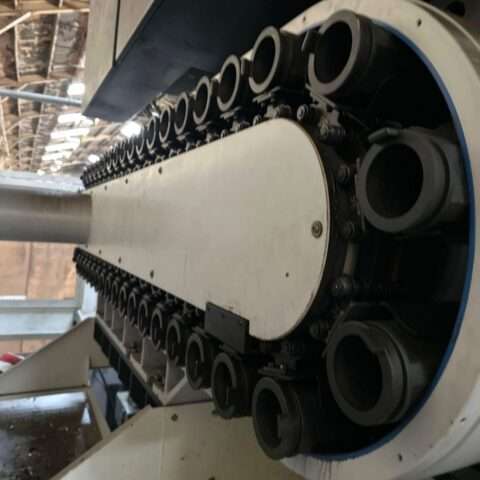

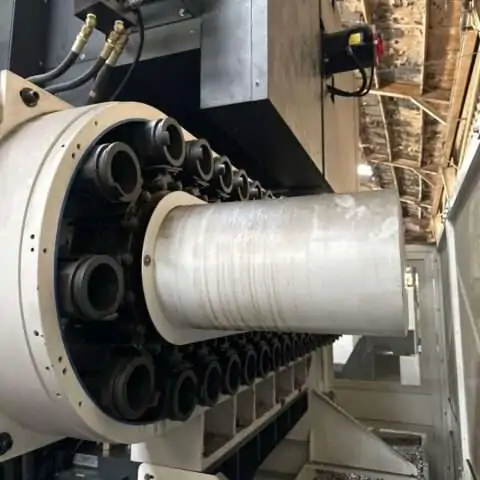

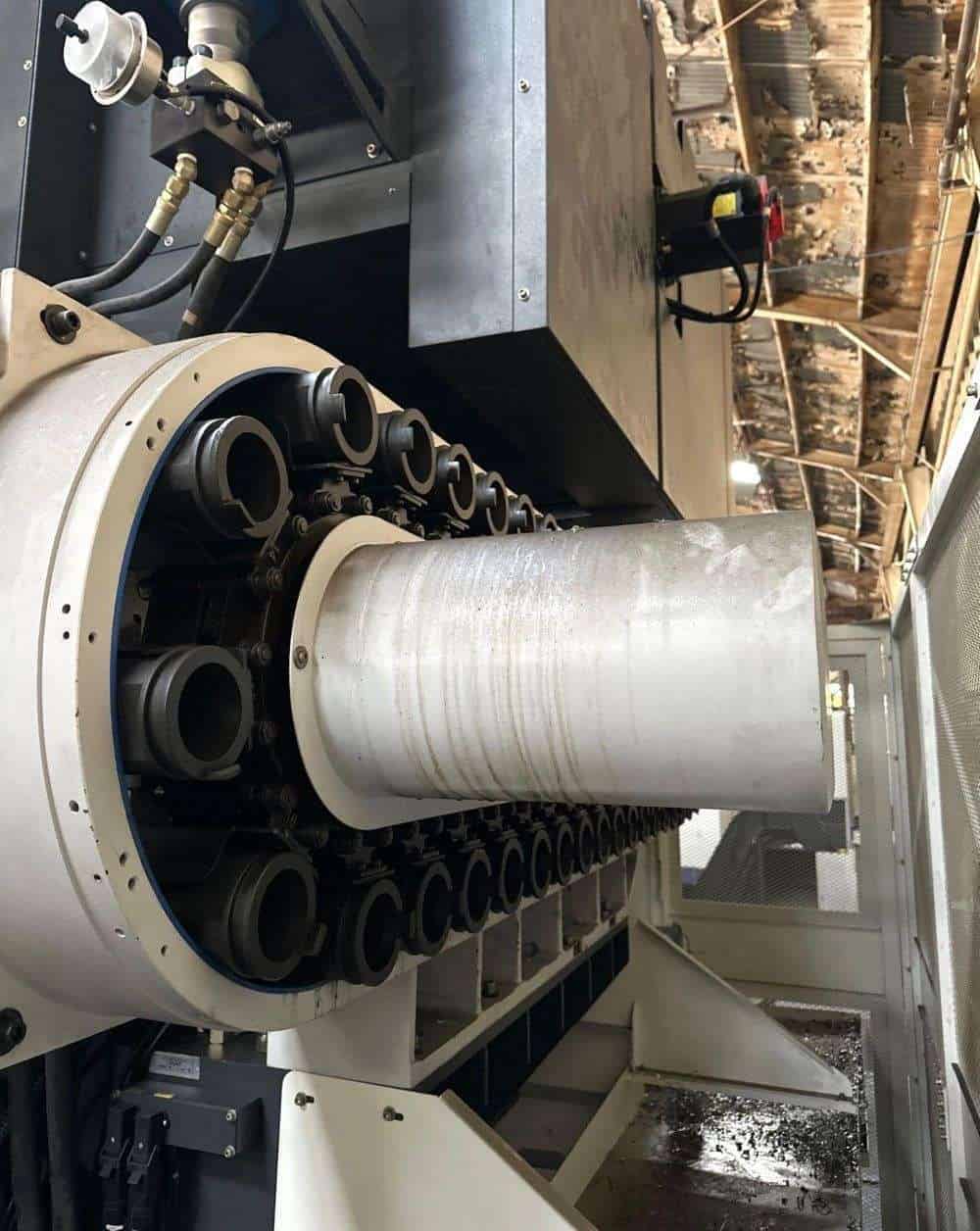

| 40 Station Side Mount Tool Changer |

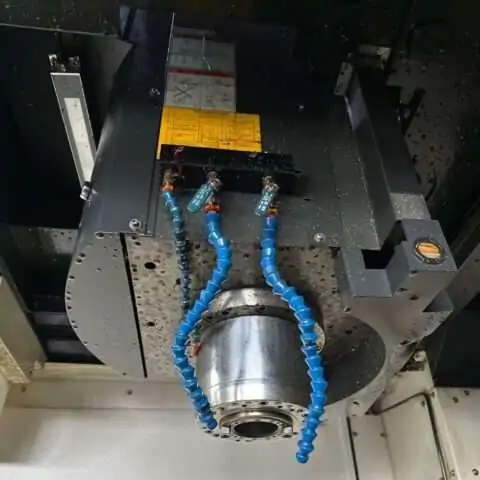

| 50 Taper Gear Head 6000 RPM Spindle |
| Powerful 35 HP high torque spindle motor |

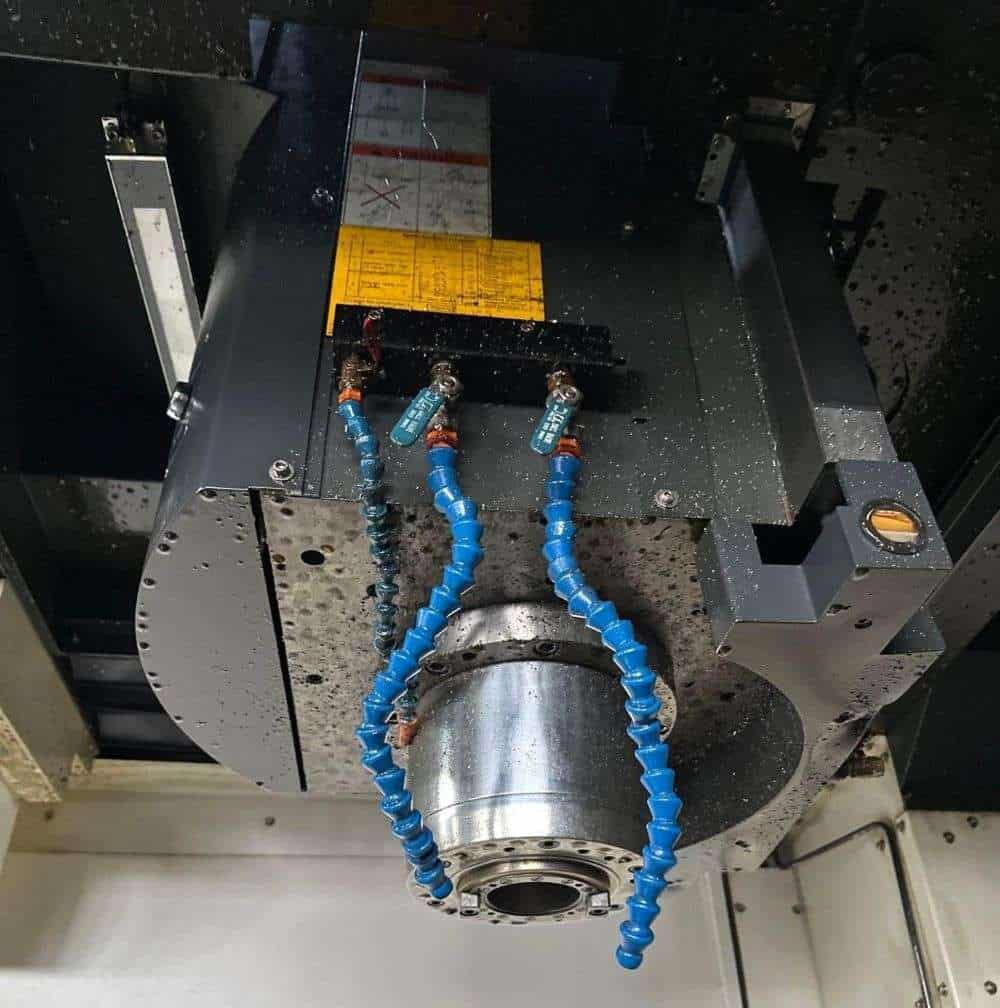

| Coolant Through Spindle |
| PCMCIA Card Slot |
| RS-232 Port |
| Spindle Orientation |
| Remote Jog Control |
| Coolant System |
| Base Flush Chip Disposal with Dual Auger |

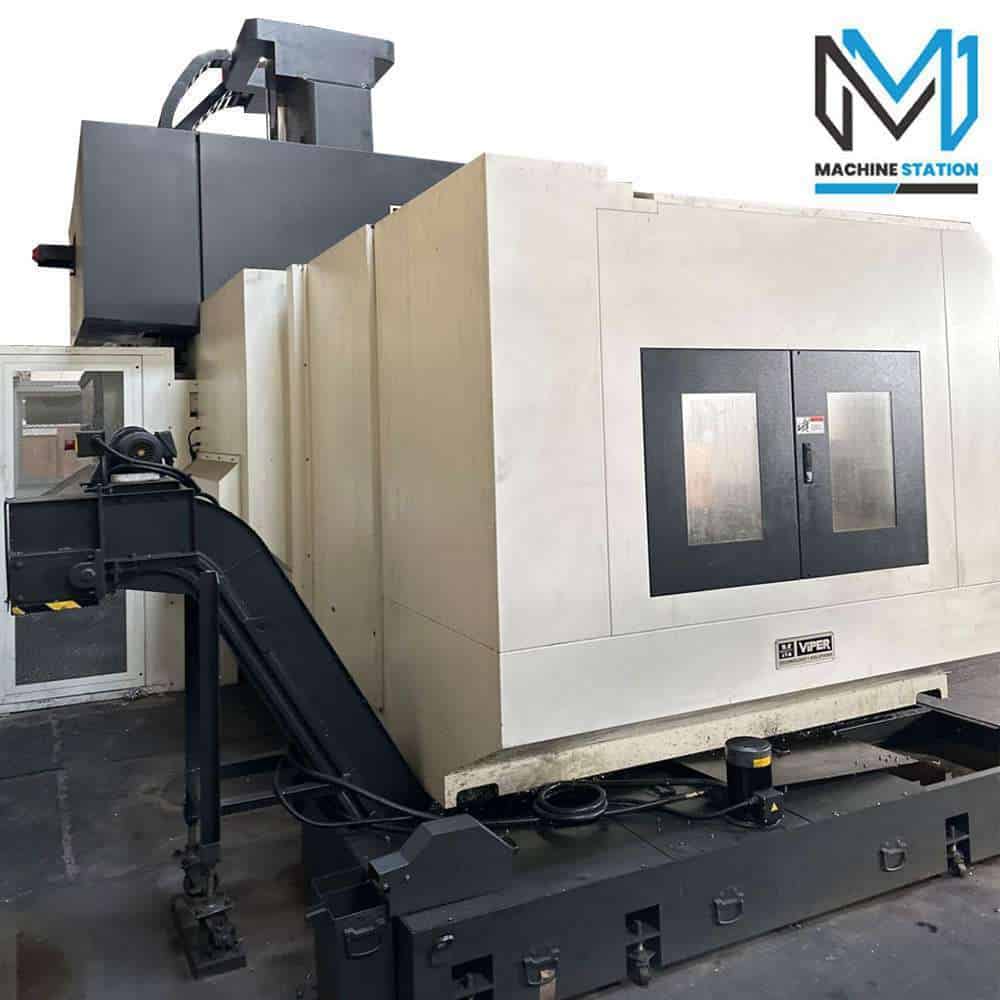

| Chip Conveyor |
| Chiller Unit |
| Travels: |
|---|
| X-Axis: 122″ |
| Y-Axis: 63″ |
| Z-Axis: 43″ |
| Distance Between Columns: 67″ |
| Spindle Nose to Table (Min.- Max.): 7.9″- 51.2″ |
| Rapid Feedrate X & Y: 945 IPM |
| Rapid Feedrate Z: 591 IPM |
| Cutting Feedrate: 394 IPM |

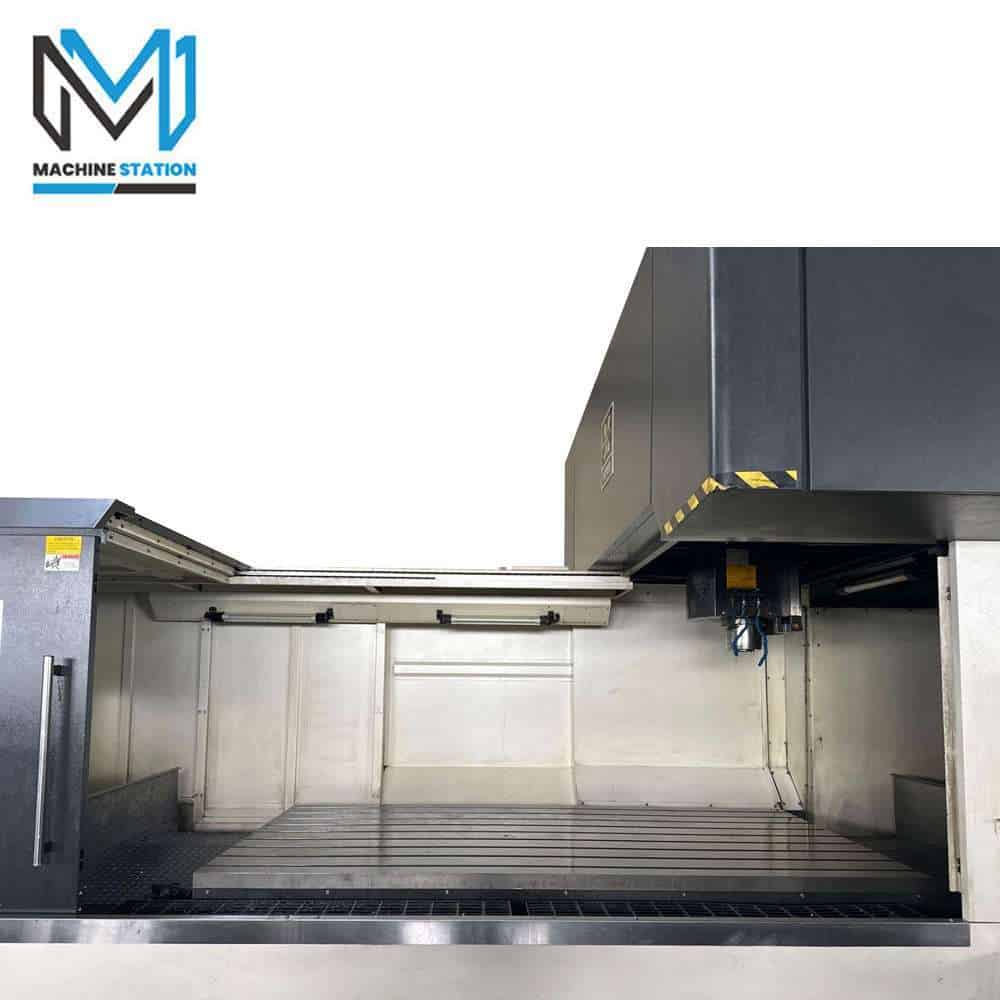

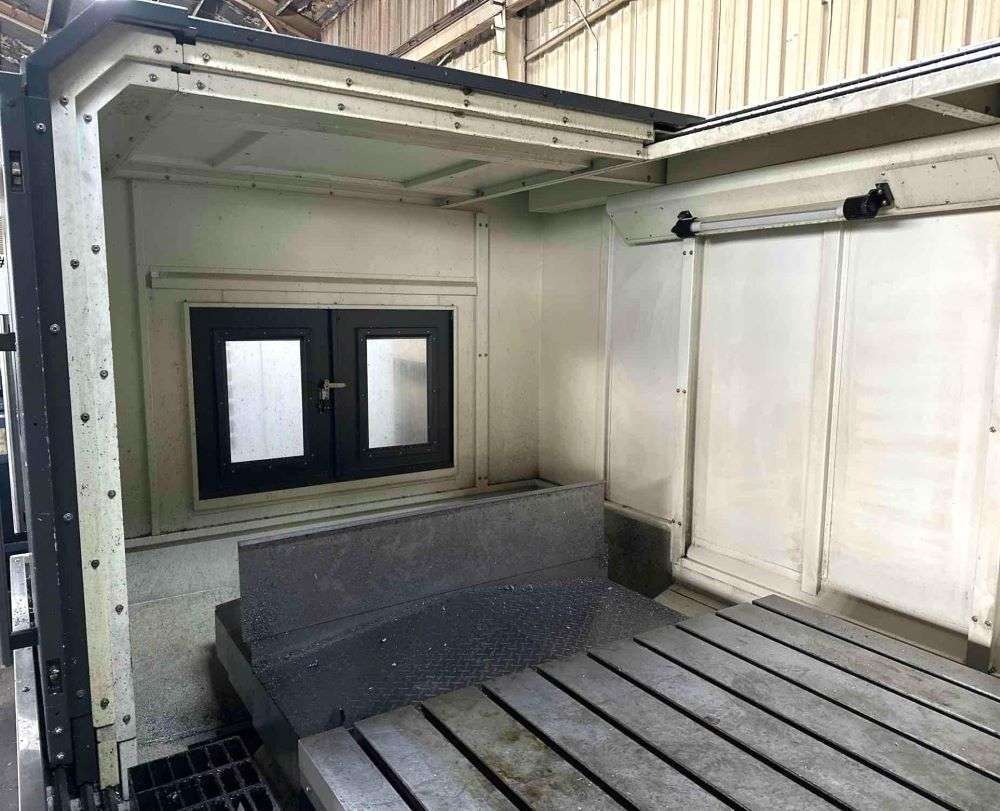

| Table: |
|---|
| Length: 118.0″ |
| Width: 59.1″ |
| T-Slot(Size X Number X Pitch): 0.8″ X 9 X 6.3″ |
| Max Weight on Table: 24,200 lbs |

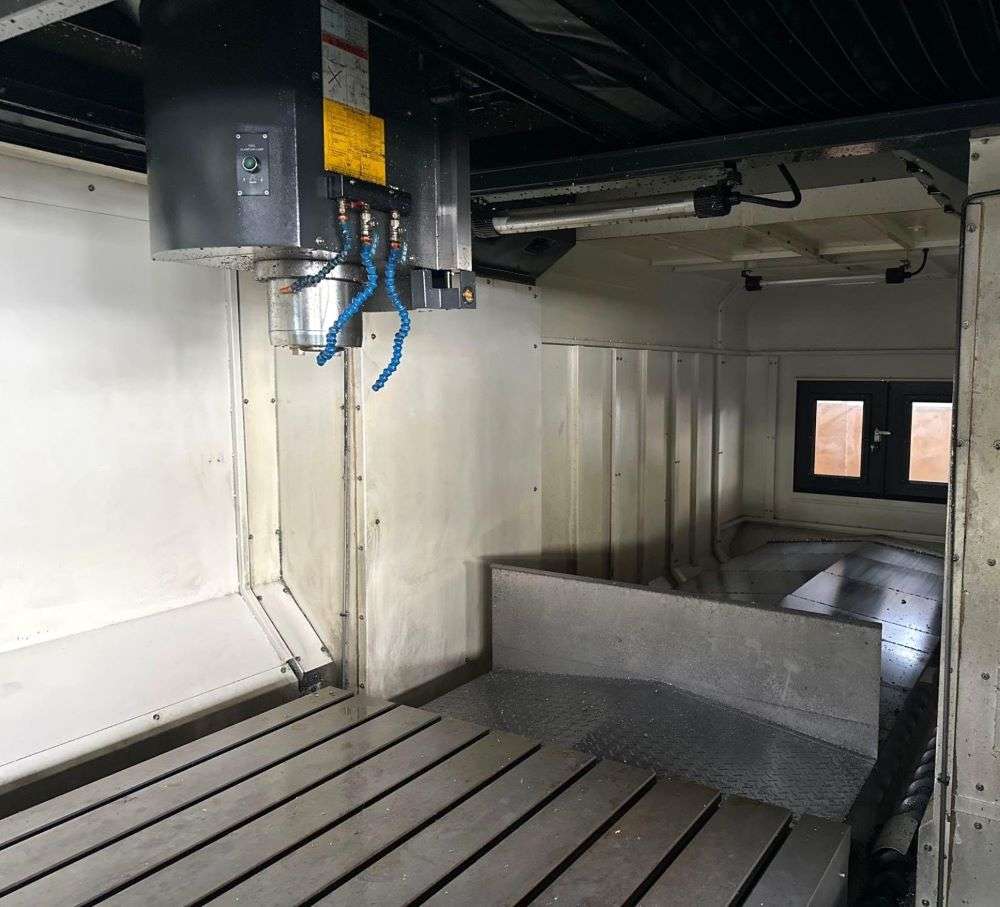

| Spindle: |
|---|
| Taper Size: CAT-50 |
| Speed Range: 6000 RPM |
| Spindle Power: 35 HP |

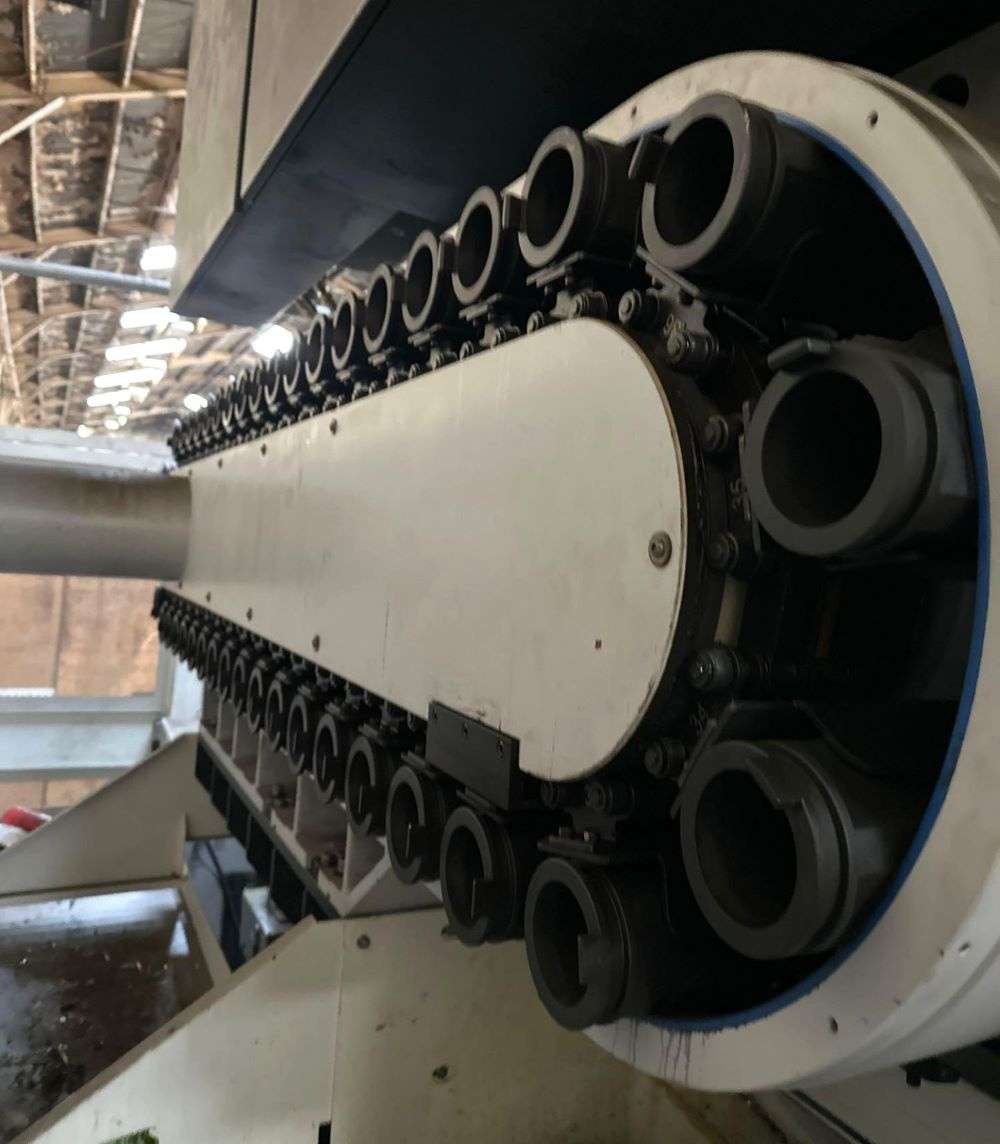

| Automatic Tool Changer: |
|---|
| CAT-50 Taper |
| Capacity: 40 Tools |
| Max Tool Weight: 44 lbs |
| Max Tool Length: 15.7″ |
| Max Tool Dia.: 4.9″ |
| General: |
|---|
| Air Required: 100 psi 4 scfm |
| Power: 205-235v / 66FLA / 3-Phase 50 Kva |
| Overall Shipping Dimensions: 372″ x 202″ x 180″ High |
| Weight: 70,500 lbs. |
