| MIGHTY VIPER V3000 VMC | |
|---|---|
| Make | Mighty Viper |
| Model No. | B3000 PXT |
| Year of Manufacture: | 2000 |
| Serial # | 003308 |
| Condition | Very Good |
All specifications are approximations and are subject to verification.
“This One Owner machine is in Great condition. On our Floor fully powered / tested and ready for inspection.”
MIGHTY VIPER V3000 Features:

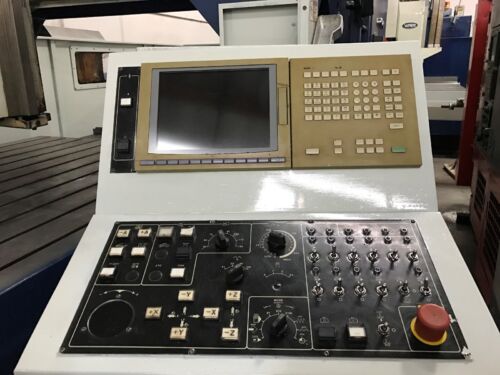

- Mitsubishi M625 CNC Control
- High precision 8,000 RPM Spindle
- Spindle Oil Cooler
- Powerful 30hp high torque spindle motor
- PCMCIA Card Slot
- Spindle Orientation
- Rigid Tapping
- Custom Micro B (User Definable)
- Memory random Double Arm (40) ATC
- Portable manual pulse generator
- RS232 Interface
- Base Flush Chip Disposal
- Flood coolant with large separate coolant tank
- Work light
- Magnetic Chip Conveyor
- Comes with All Available Books, Manuals and Parameters.
MIGHTY VIPER V3000 Specifications:
- WORKING TABLE:
- -Working surface: 122.05″ x 72.05″
- -T-slot: 0.79″ W x 11 x 6.3″
- -Max. Table load: 1980lbs
TRAVEL:
- -X=118.11″
- -Y=77.56″
- -Z= 28″
- -Distance from spindle end to table: 6.3″-42.52″
- -Width between columns: 86.61″
- -Distance from spindle center to column: 13.66″
MIGHTY VIPER V3000 SPINDLE
- -Spindle speed: 8000rpm
- -Spindle nose taper: #ISO50
- -Spindle Motor: 30Hp
FEED:
- -Cutting feedrate: 0.34-196.8″ Per Minute
- -Rapid traverse (X.Y.Z): 394″ Per Minute
TOOL CHANGER:
- -Automatic tool changer type: Chain type
- -Tool storage capacity: 40pcs
- -Max. Tool weight: 20kg/44lbs
- -Max. Tool size: D4.92″ x L17.72″
- -Tool Shank: CAT-50
- -Pull Stud Bolt: P50T-1
MOTOR:
- -Spindle drive motor: 30HP
- -Max. Torque of spindle: 635N.M.
General:
- Air Required: 100 psi, 4 scfm
- Power: 205-235v / 66FLA / 3-Phase
- Overall Dimensions: 250″ X 165″ X 145″ High
- Weight: 72000 lbs

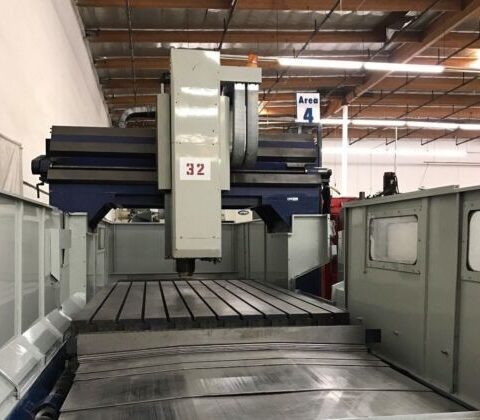

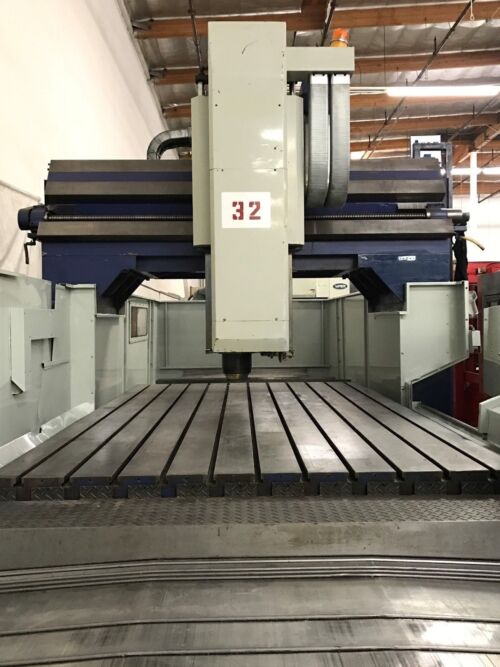

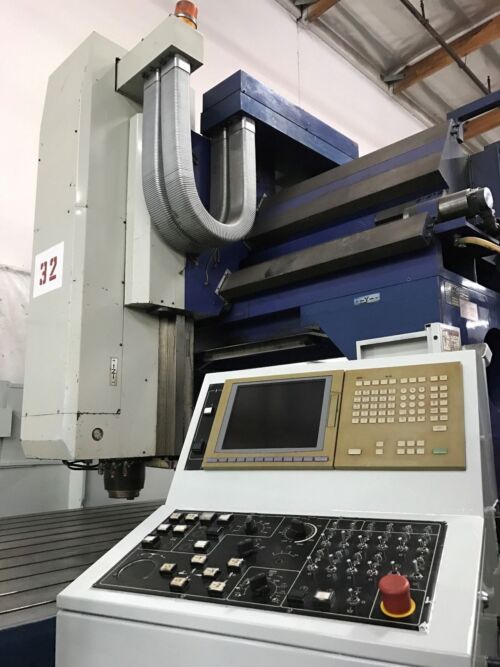

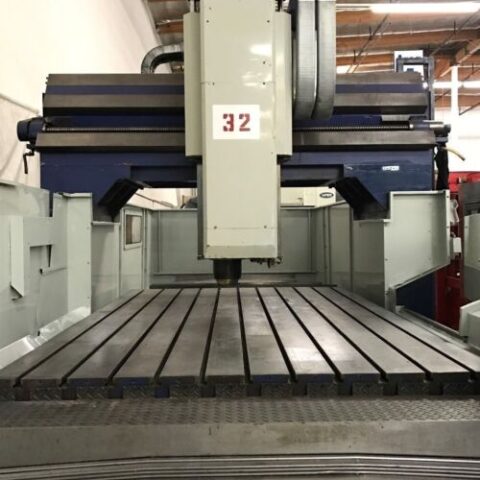

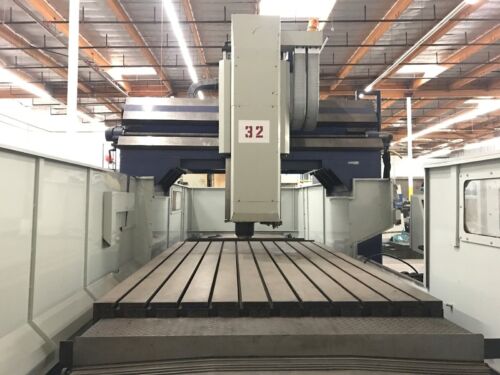

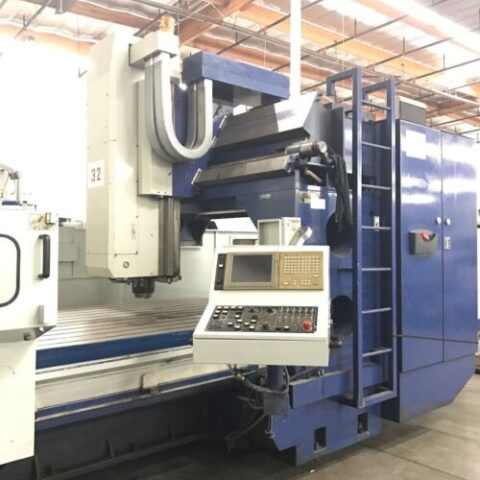

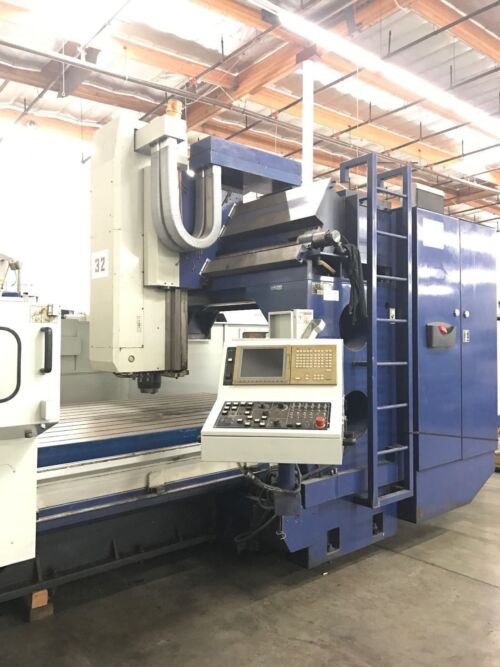

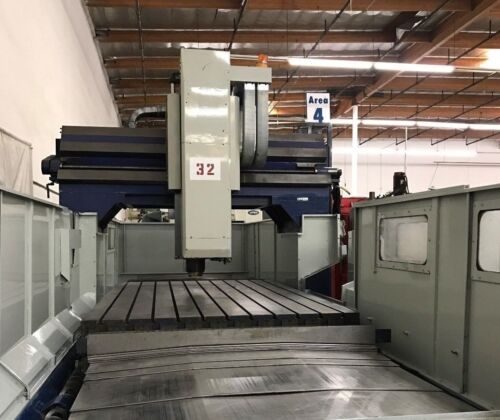

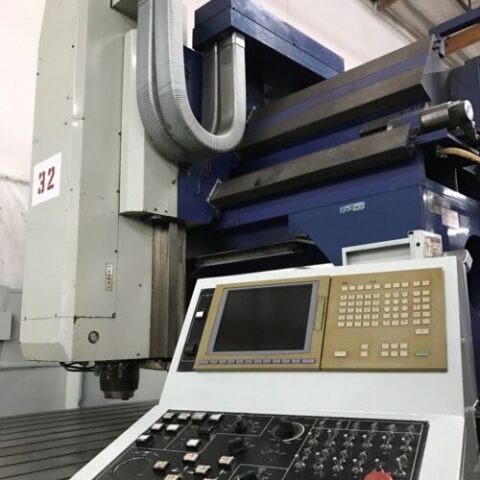

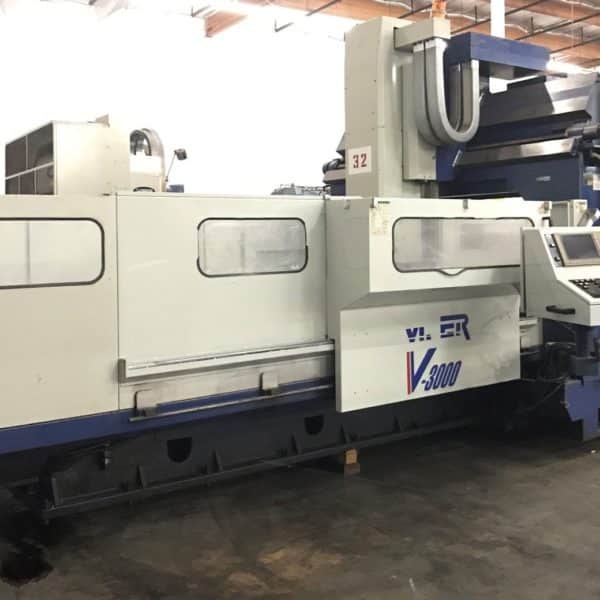

MIGHTY VIPER V3000 Comes as shown in pictures.
