*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Modern Challenger |
| Model: | MM-430 |
| Year: | 2012 |
| Machine Type: | Vertical Machining Center |

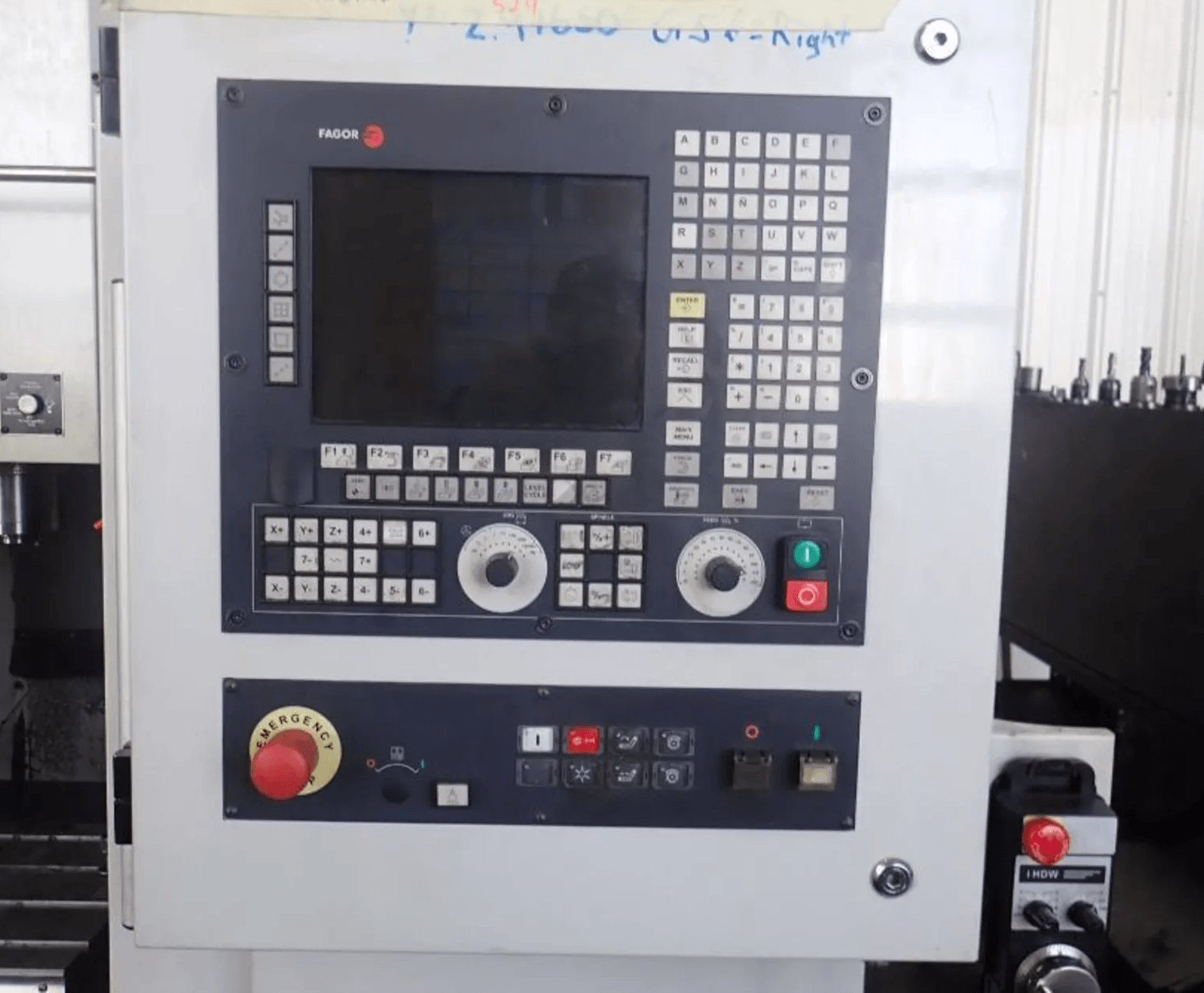

| Control: | Fagor CNC Control |
| Features: |
|---|
| 16-Position Automatic Tool Changer |
| Fagor CNC Control |
| Remote Handwheel |
| Flood Coolant System |
| Transformer Included |
| Approx. 2,416 Machining Hours |
| Fully Enclosed Splash Guard |
| Travels: |
|---|
| X-Axis Travel: 16.9″ |
| Y-Axis Travel: 11.8″ |
| Z-Axis Travel: 15.7″ |
| Table: |
|---|
| Table Size: 31.5″ x 11.8″ |
| Maximum Table Load: 440 lbs |
| Spindle: |
|---|
| Spindle Taper: BT30 |
| Spindle Speed: 8,000 RPM |
| Spindle Motor: 5 HP |
| Automatic Tool Changer: |
|---|
| Tool Capacity: 16 Tools |
| Maximum Tool Diameter: 3.1″ |
| Maximum Tool Length: 7.9″ |
| Maximum Tool Weight: 6.6 lbs |
| General: |
|---|

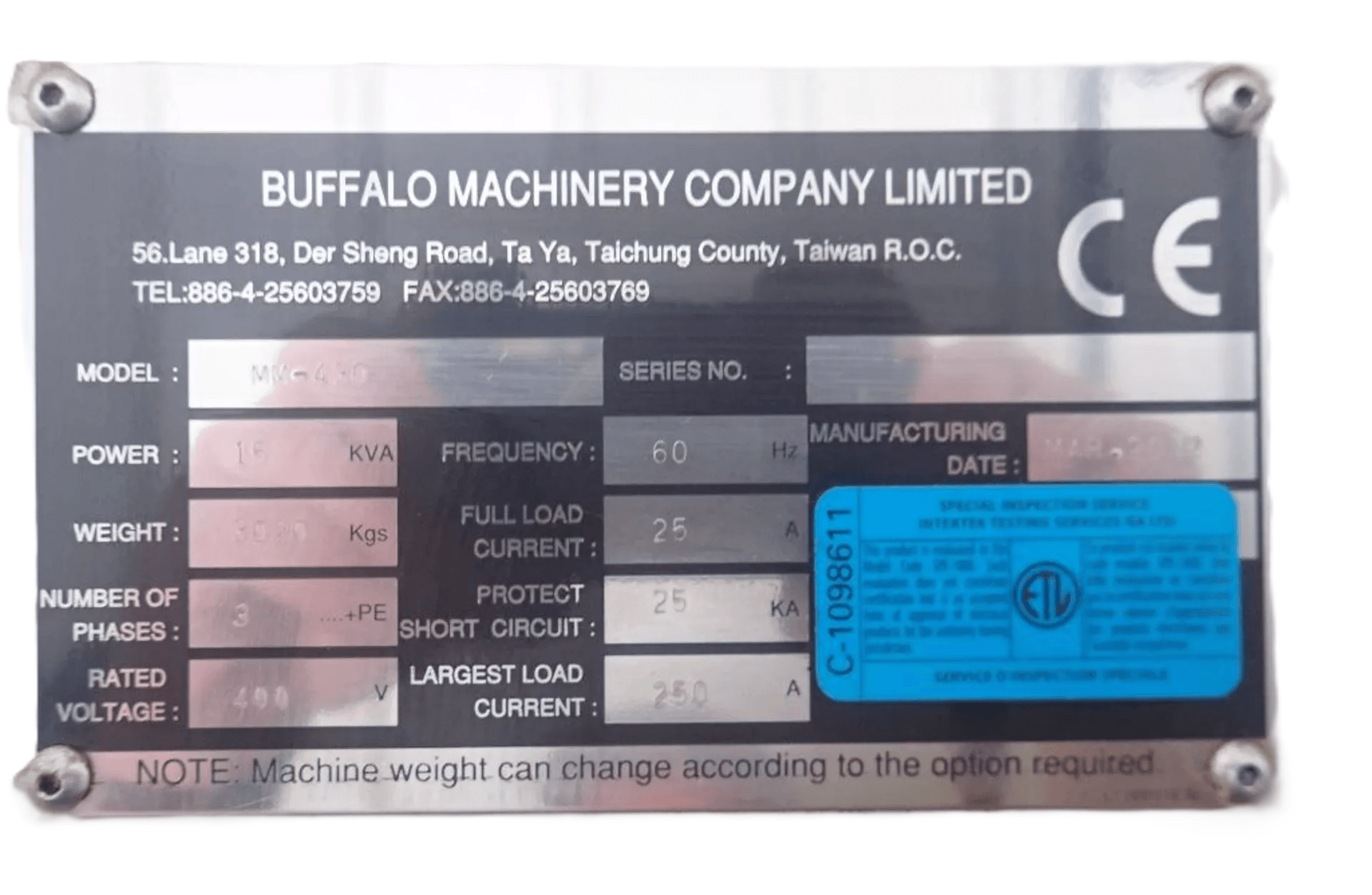

| Power: 400V / 60 Hz / 3-Phase / 15 kVA |
| Overall Dimensions: 72″ L x 70″ W x 88″ High Approx. |
| Machine Weight: 6,614 lbs Approx. |
| Country of Origin: Taiwan |
| Approx. 2,416 Machining Hours |
