*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | MORI SEIKI |
| Model: | CL-25A |
| Year: | 1995 |

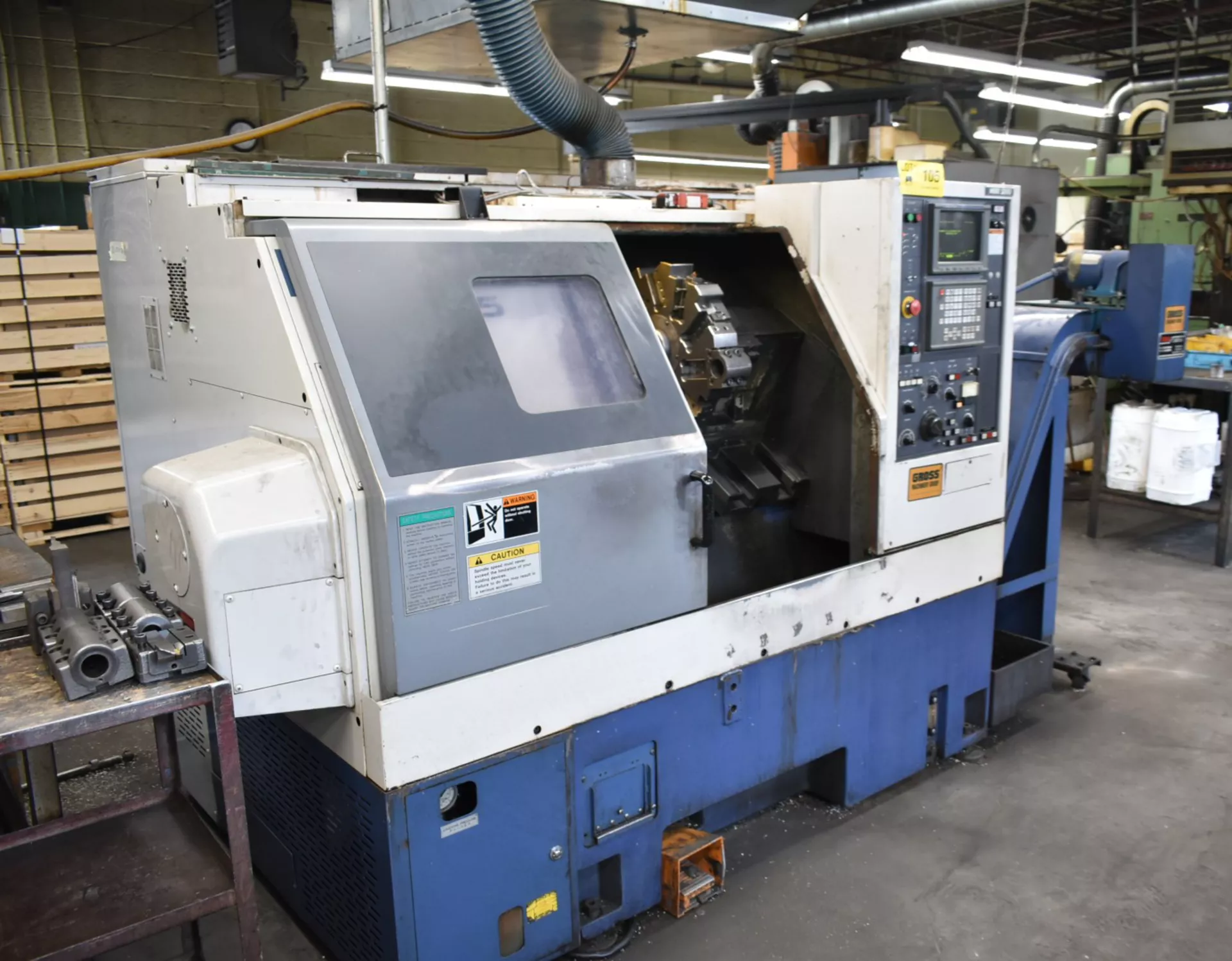

| Machine Type: | CNC Turning Center |
| Control: | MORI SEIKI MSC-518 CNC Control |
| Country of Origin: | Japan |
| Features: |
|---|

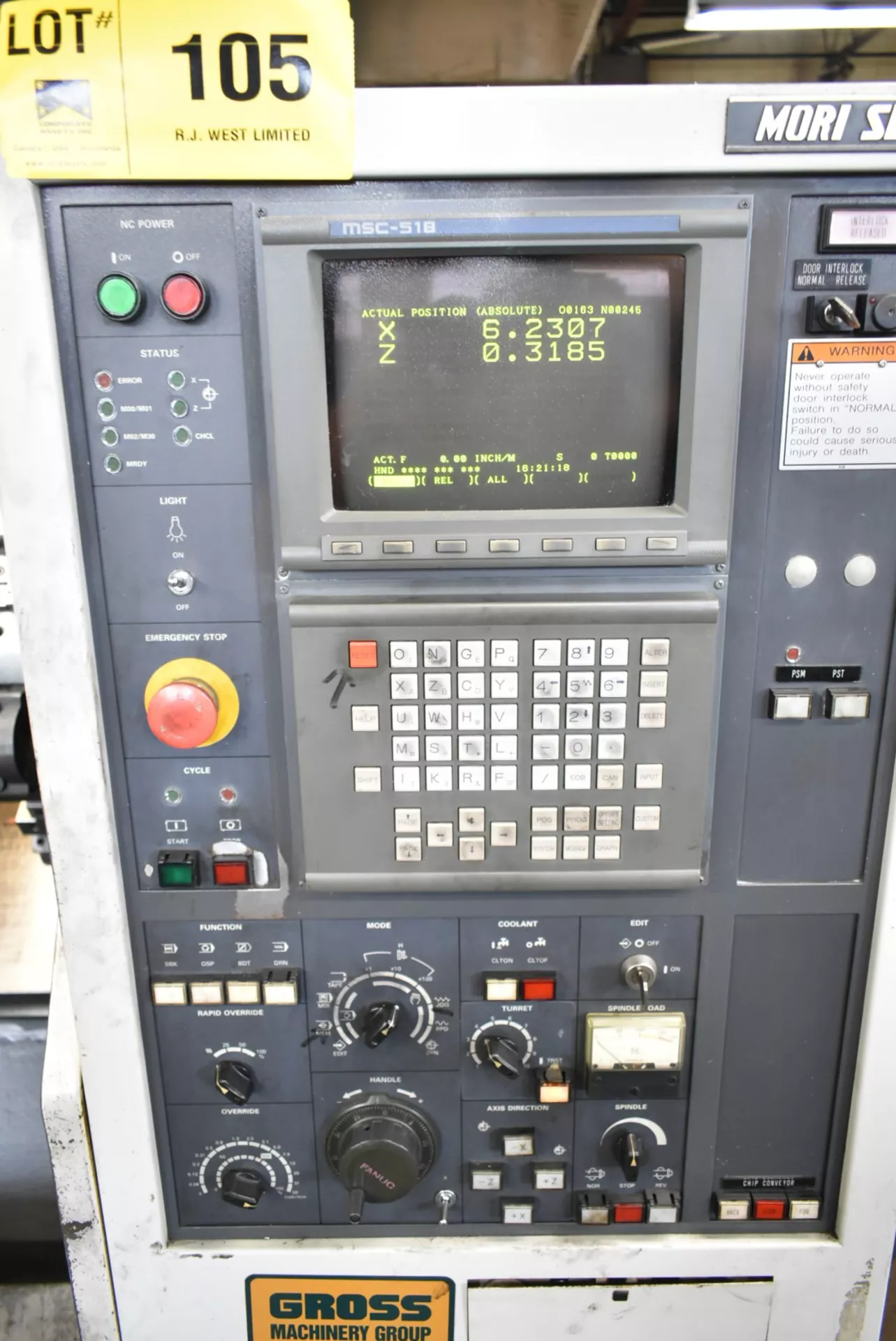

| MORI SEIKI MSC-518 CNC Control |

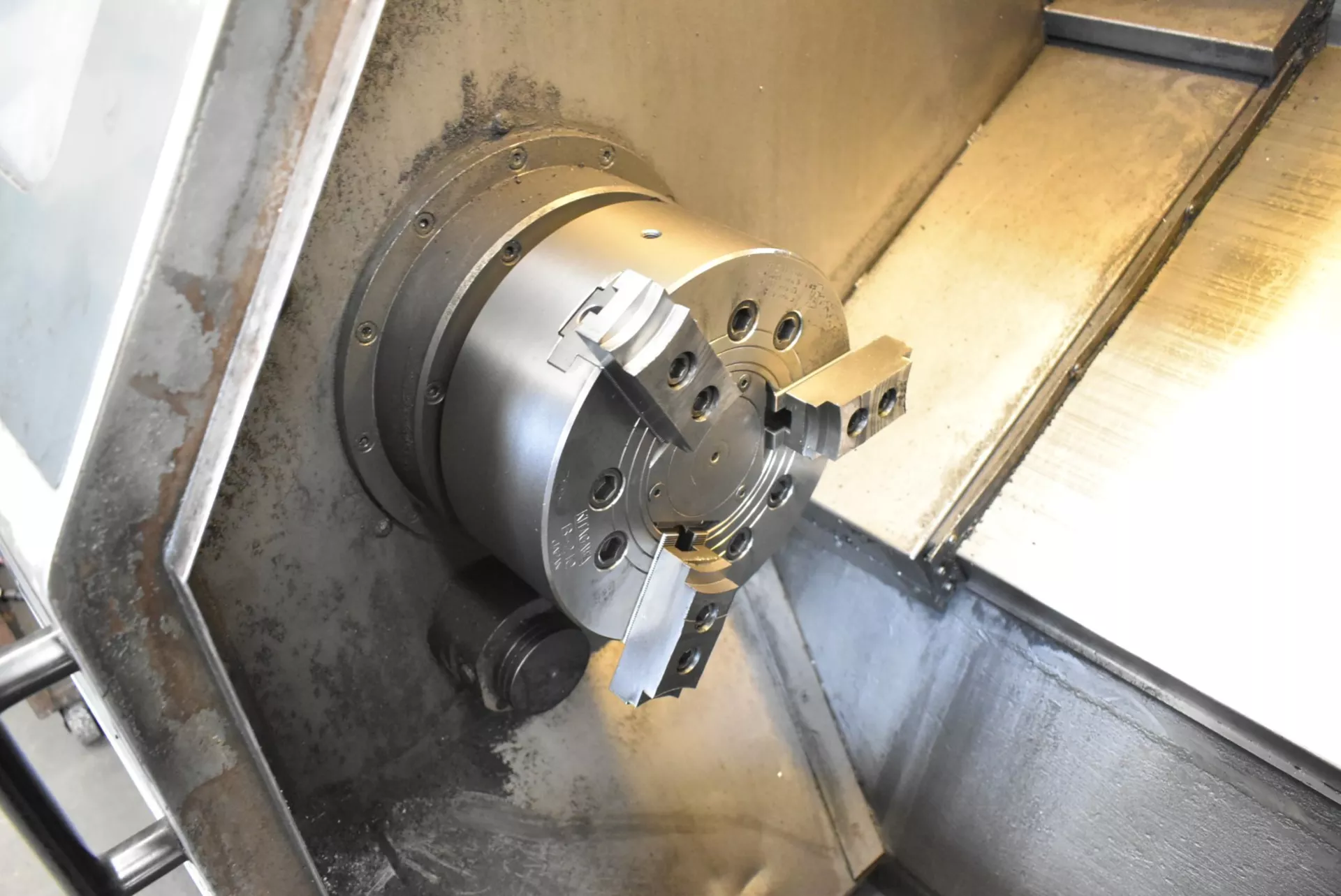

| 10″ 3-Jaw Hydraulic Chuck |

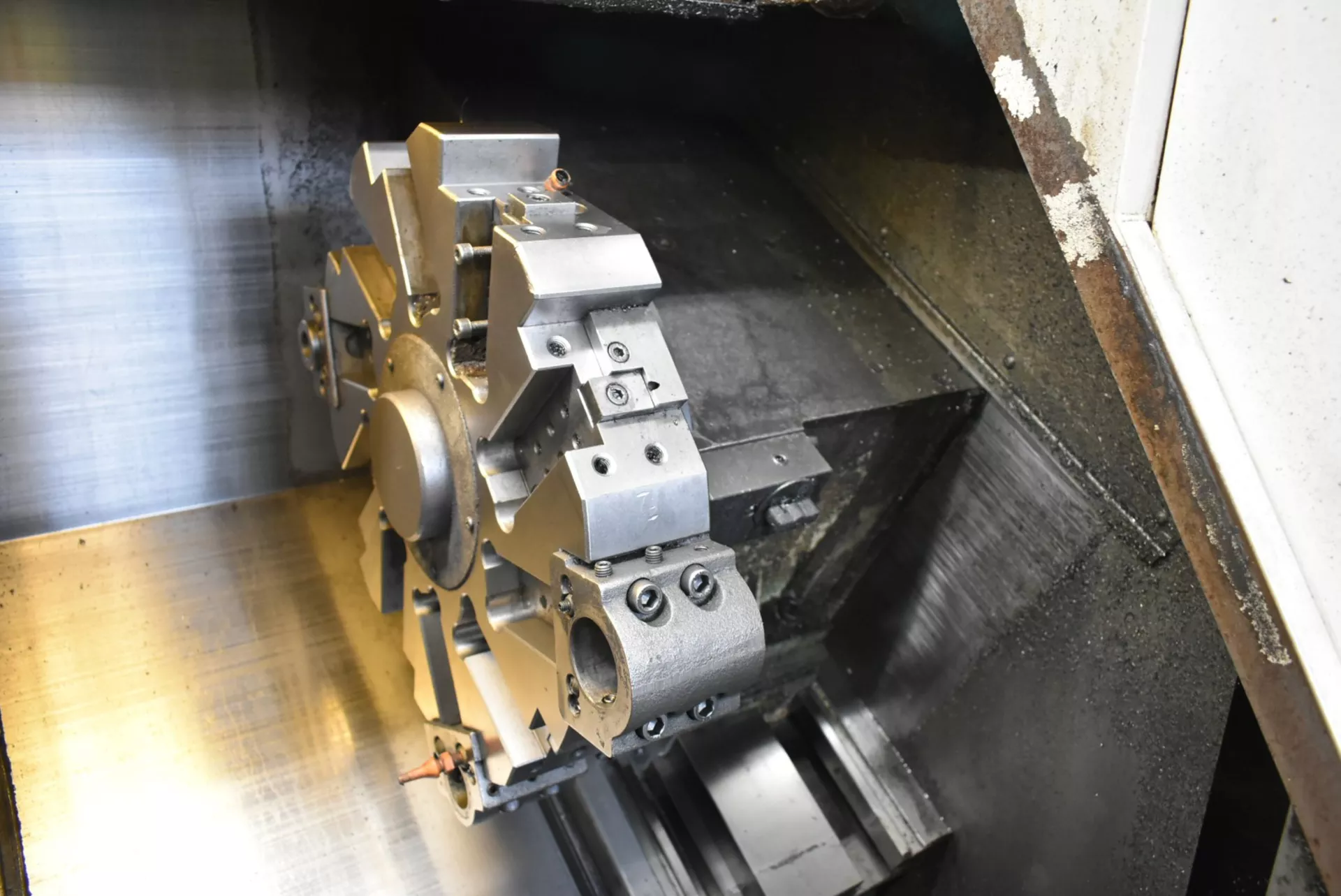

| 10-Station Turret |
| 3,000 RPM Spindle |
| 20 HP Spindle Motor |
| 3″ Spindle Bore |
| Coolant System |
| Chip Conveyor |
| Full Enclosure |
| Hydraulic Clamping System |
| Manual Pulse Generator |
| Programmable Machining Cycles |
| Capacity: |
|---|
| Swing Over Bed: 20″ |
| Maximum Turning Diameter: 17.7″ |
| Maximum Turning Length: 17.7″ |
| Chuck Size: 10″ |
| Spindle Bore: 3″ |
| Turret: |
|---|
| Turret Capacity: 10 Stations |
| Turret Type: Automatic Indexing |
| Tooling Type: OD/ID Turning Tool Holders |
| Spindle: |
|---|
| Spindle Speed: 3,000 RPM |
| Spindle Motor: 20 HP |
| Chuck Type: 3-Jaw Hydraulic Chuck |
| Spindle Bore: 3″ |

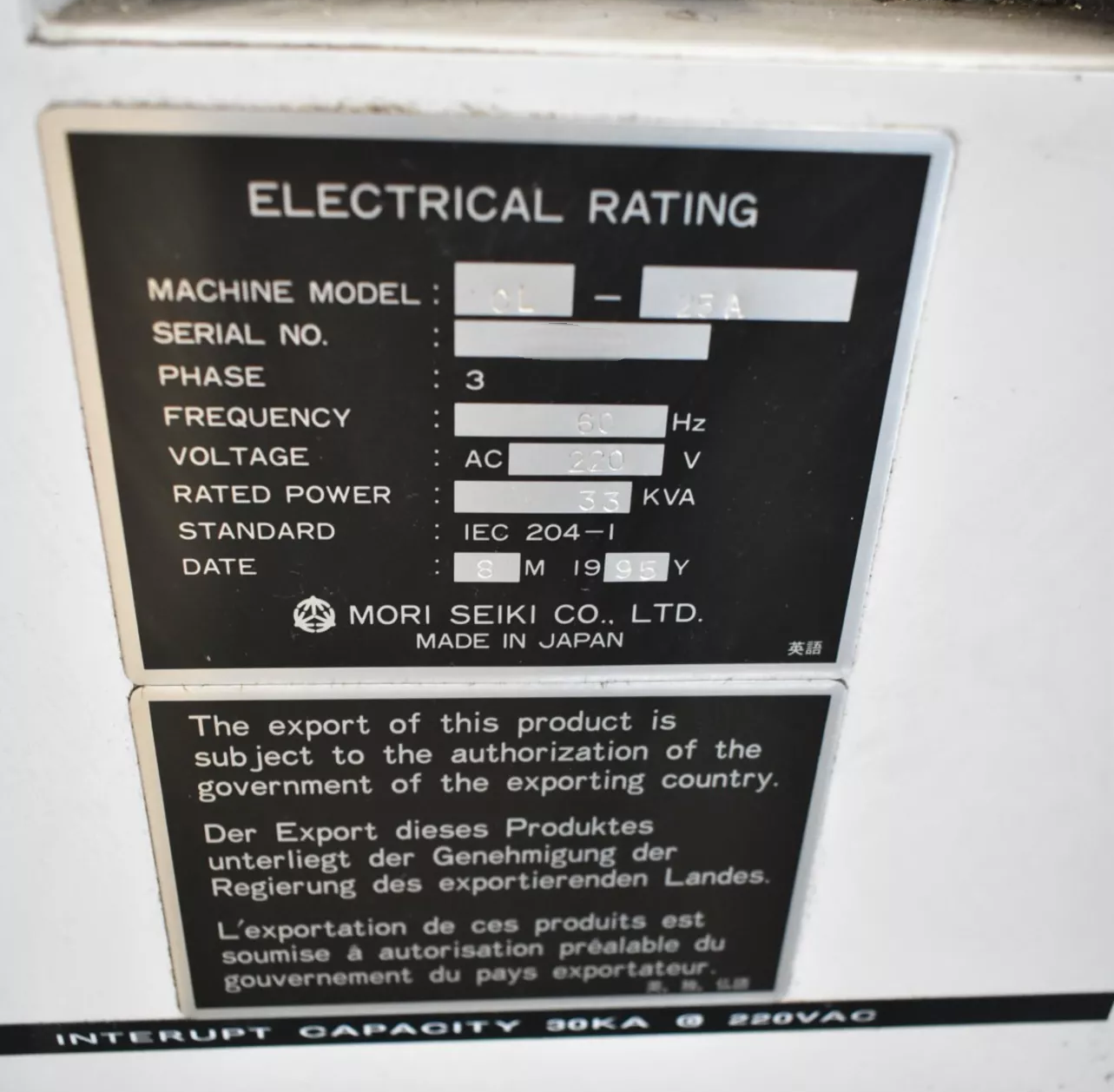

| Electrical: |
|---|
| Voltage: 220V |
| Phase: 3-Phase |
| Frequency: 60 Hz |
| Rated Power: 33 KVA |
| General: |
|---|
| Machine Weight: Approx. 11,000 lbs |
| Machine Dimensions: Approx. 110″ x 70″ x 75″ |
