Mori Seiki CV-500A CNC Vertical Machining Center
SKU
11439
Make/Model
Mori Seiki CV-500A
Year
2017
Video
On Request
Out of stock
| SKU: | 11439 |
| Make/Model: | Mori Seiki CV-500A |
| Year: | 2017 |
| Video: | On Request |
Add to WishlistRemove from Wishlist
Add to Wishlist
*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Mori Seiki |
| Model No.: | CV-500A |
| Year: | 1998 |
| Machine Type: | CNC Vertical Machining Center |

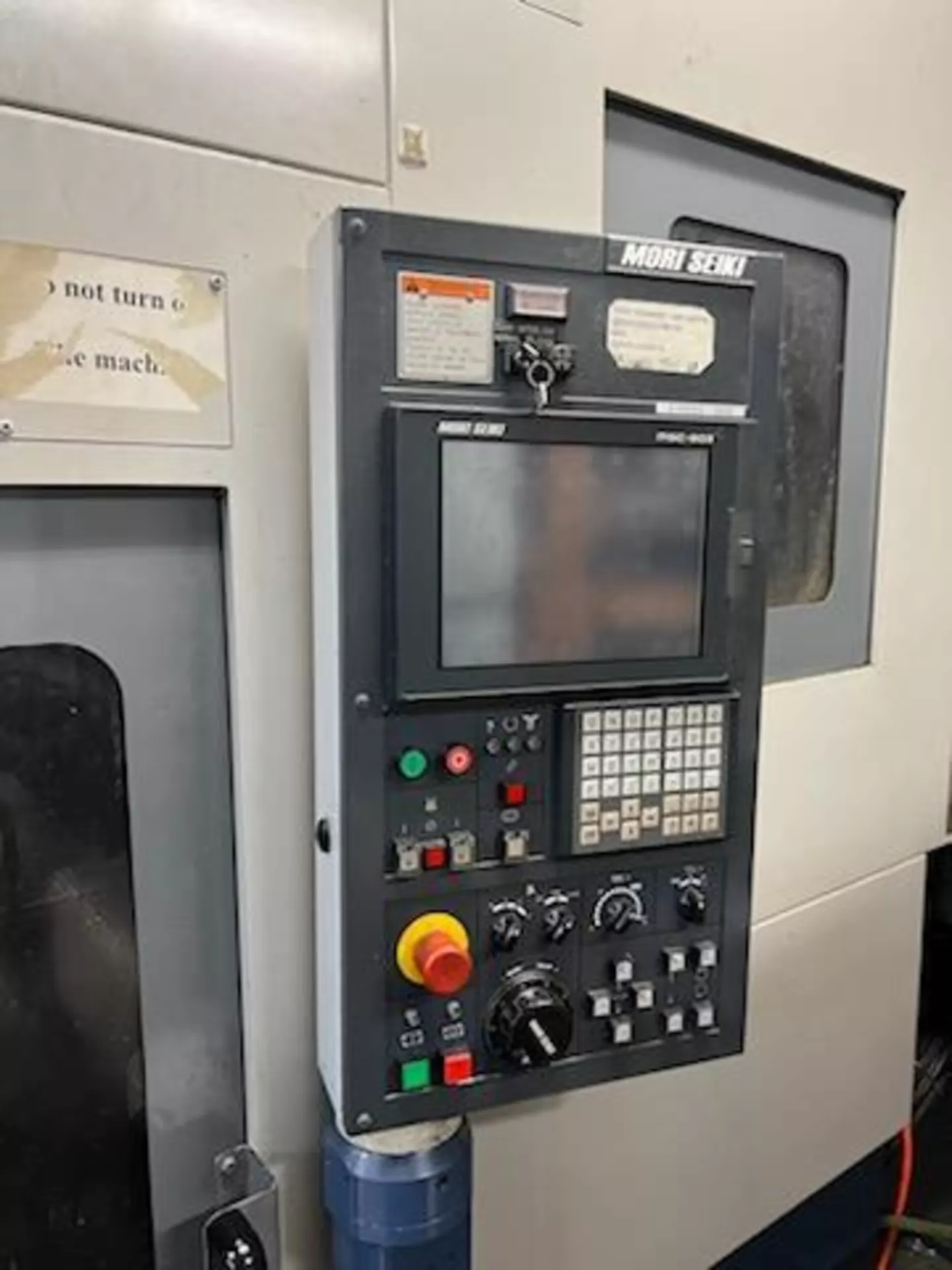

| Control: | Mori Seiki MSC-803 |
| Country of Origin: | Japan |
| Travels: |
|---|
| X-Axis Travel: 20.1″ |
| Y-Axis Travel: 20.1″ |
| Z-Axis Travel: 20.1″ |
| Spindle Nose to Table: 6.9″ – 27″ |
| Spindle: |
|---|
| Spindle Speed: 12,000 RPM |
| Spindle Taper: BT 40 |
| High-Speed Spindle |
| Feed Rates: |
|---|
| Rapid Feed Rates (X/Y/Z): 1653 / 1653 / 1260 IPM |
| Pallet System: |
|---|
| 2-Pallet Roto-Pallet System |
| Pallet Size: 29.5″ x 21.7″ |
| Max Load Capacity: 440 lbs |
| Tool Changer: |
|---|
| Tool Magazine Type: Chain-Type |
| Tool Capacity: 25 Tools |
| Max Tool Diameter: 3.9″ |
| Max Tool Length: 9.8″ |
| Max Tool Weight: 13.2 lbs |
| Features: |
|---|
| Automatic Pallet Changer (APC) |
| High-Speed Machining Capability |
| Rigid Tapping |
| Flood Coolant System |
| Full Enclosure |
| Manual Pulse Generator |
| Compact Production Cell Design |
| General: |
|---|
| Machine Weight: 9,700 lbs |
| Overall Dimensions: 76.3″ x 139.7″ x 108″ High |
| Travels: |
|---|
| X-Axis Travel: 511 mm |
| Y-Axis Travel: 511 mm |
| Z-Axis Travel: 511 mm |
| Spindle Nose to Table: 175 mm – 686 mm |
| Spindle: |
|---|
| Spindle Speed: 12,000 RPM |
| Spindle Taper: BT 40 |
| High-Speed Spindle |
| Feed Rates: |
|---|
| Rapid Feed Rates (X/Y/Z): 1653 / 1653 / 1260 IPM |
| Pallet System: |
|---|
| 2-Pallet Roto-Pallet System |
| Pallet Size: 749 mm x 551 mm |
| Max Load Capacity: 440 lbs |
| Tool Changer: |
|---|
| Tool Magazine Type: Chain-Type |
| Tool Capacity: 25 Tools |
| Max Tool Diameter: 99 mm |
| Max Tool Length: 249 mm |
| Max Tool Weight: 13.2 lbs |
| General: |
|---|
| Machine Weight: 9,700 lbs |
| Overall Dimensions: 1,938 mm x 3,548 mm x 2,743 mm High |
| Categories | CNC Vertical Machining Center |
|---|---|
| Make | Mori Seiki |
| Model | CV-500A |
- Automatic Pallet Changer (APC)
- High-Speed Machining Capability
- Rigid Tapping
- Flood Coolant System
- Full Enclosure
- Manual Pulse Generator
- Compact Production Cell Design
Payment Terms
A booking deposit secures the machine, with the remaining balance due prior to loading or shipment. We accept bank transfer, wire transfer, and approved payment methods.
Shipping & Logistics
We coordinate domestic and international shipping, including loading, containerization, and freight arrangements through trusted logistics partners.
Machine Inspection
Buyers can request a live video demonstration, machine inspection, or schedule an on-site visit before completing the purchase.
Export & Documentation
For international orders, we can assist with export documentation, commercial paperwork, and pre-shipment inspection requirements.
