All specifications are approximations and are subject to verification.
On our Floor now, fully powered / tested & is in Great working condition.”
-

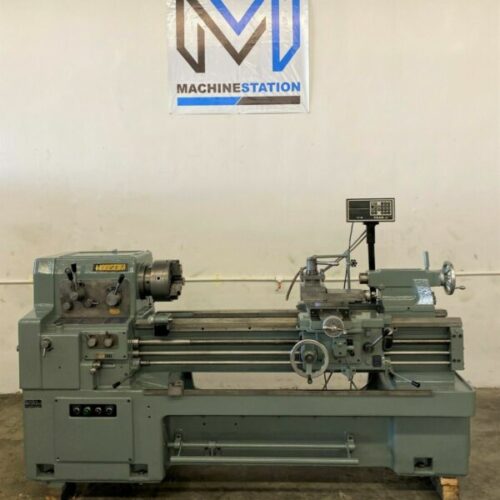

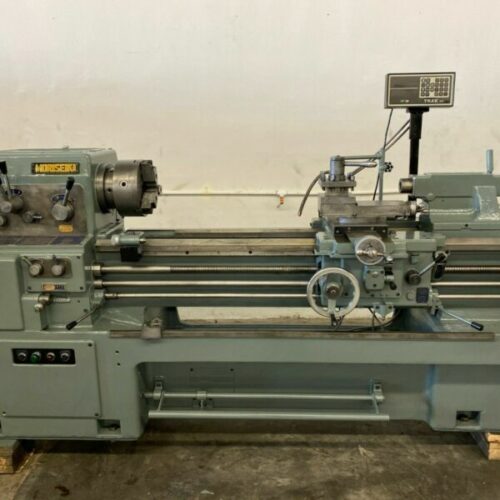

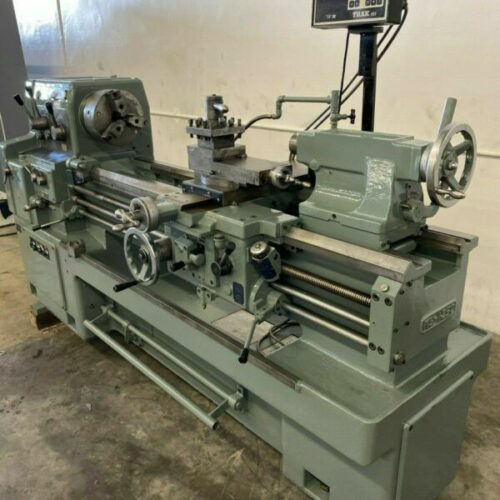

Mori Seiki MS-1250 Features:
- Super quiet and vibration free
- 10″ 3 jaw Chuck

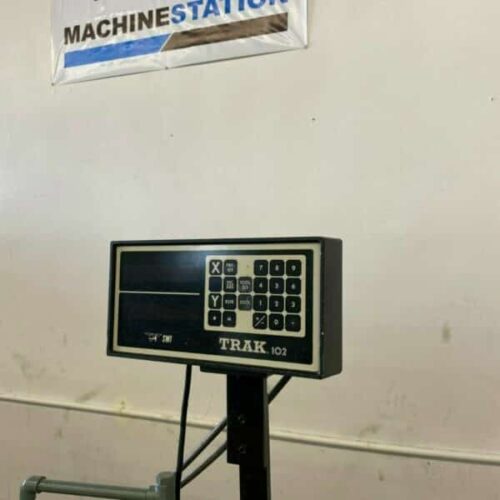

- Trak DRO installed
- A1-6 Spindle Nose
- 12 speed spindle
- Hardened and ground spindle
- Hydraulic Disc Brake
- Double angular contact bearings support spindle
- Quick-action compound slide for threading

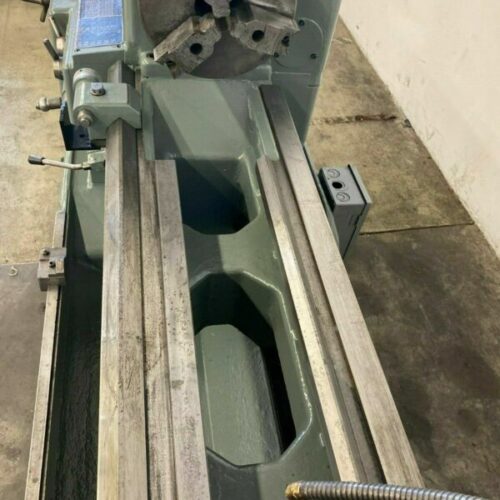

- Hardened and ground bed ways
- Hardened and ground leadscrews
- Coolant System
-
Mori Seiki MS-1250 Specifications:
- Swing over bed: 17.25″
- Swing over bed from face plate: 19.75″
- Swing over cross slide: 9.75″
- Distance between centers: 49.0″
- Spindle speed range: 32-1800 rpm
- Spindle nose taper (inside): 5C (10º)
- Spindle nose: A1-6
- Spindle Bore: 2.04″
- Cross slide travel: 10.0″
- Compound slide travel: 5.9″”
- Tailstock spindle taper: MT # 4
- Tailstock spindle travel: 6.0″
-
GENERAL:
- Main motor: 5 hp
- 3 Phase
- Weight (approx): 4750 lbs
Tags: DMG MORI, DMG Mori Seiki
