*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Manufacturer: | Mori Seiki |
| Model: | NT-1000/SZ |
| Machine Type: | CNC Turn-Mill Center |
| Year: | 2011 |
| Control: | MSX-711 IV CNC Control |
| Country of Origin: | Japan |
| Features: |
|---|

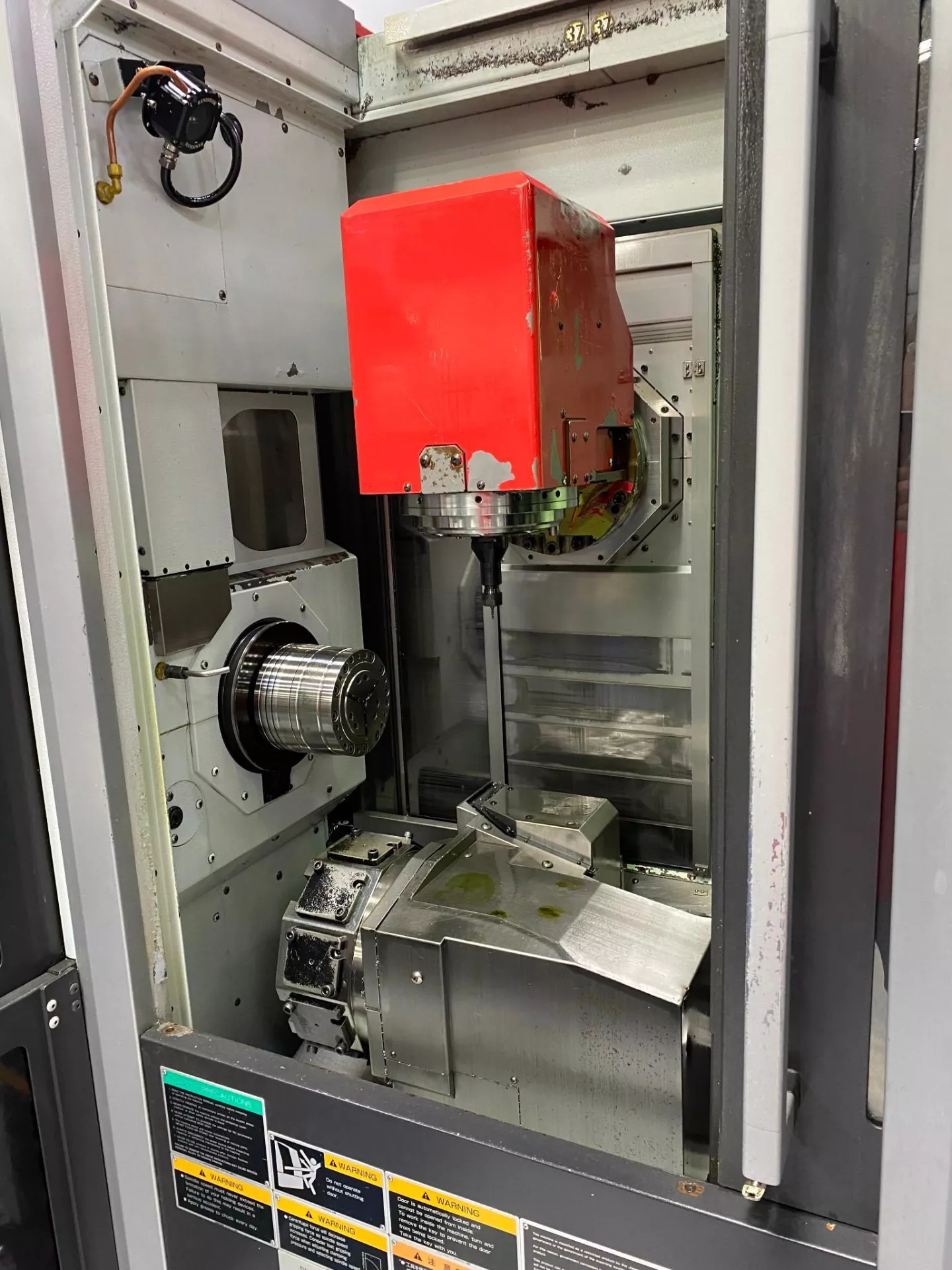

| Main & Sub Spindle Configuration |
| Full B-Axis Milling Head |
| 20,000 RPM Milling Spindle |
| 38 Position Automatic Tool Changer |
| Chip Conveyor |
| ChipBlaster F-75MSF High Pressure Coolant System |
| Renishaw OMP400 Probe System |
| Air Blast |
| C-Axis Main & Sub Spindles |
| Twin Spindle Multi-Tasking Capability |
| Capacity: |
|---|
| Maximum Swing of Work Piece: 14.5″ |
| Swing Over Cross Slide: 14.5″ |
| Swing Over Turret 2: 11.8″ |
| Maximum Turning Length: 16.6″ |
| Bar Capacity Main Spindle: 2.0″ |
| Bar Capacity Sub Spindle: 1.5″ |
| Travels: |
|---|
| X-Axis Travel: 15″ |
| Y-Axis Travel: +/- 4.1″ |
| Z-Axis Travel: 18.1″ + 6.1″ |
| Turret 2 X-Axis Travel: 6.1″ |
| Turret 2 Z-Axis Travel: 24″ |
| C-Axis Resolution: .0001 Degree |
| B-Axis Range: -120° to +120° |
| Spindle: |
|---|
| Milling Spindle Speed: 20,000 RPM |
| Tool Spindle Motor: 12 HP |
| Main Spindle Motor: 15 HP |
| Sub Spindle Motor: 10 HP |
| Main Spindle Speed: 6,000 RPM |
| Sub Spindle Speed: 1,000 RPM |
| Spindle Nose: A2-5 / G6 Flat Nose |
| Hole Through Main Spindle: 2.4″ |
| Hole Through Sub Spindle: 2.2″ |
| Automatic Tool Changer: |
|---|
| Automatic Tool Changer Capacity: 38 Tools |
| Turret Configuration: 10 Station |
| Turret Indexing Time: .26 Seconds |
| Rapid Traverse Rates: |
|---|
| X-Axis: 945 IPM |
| Y-Axis: 945 IPM |
| Z-Axis: 629 IPM |
| A-Axis: 300 IPM |

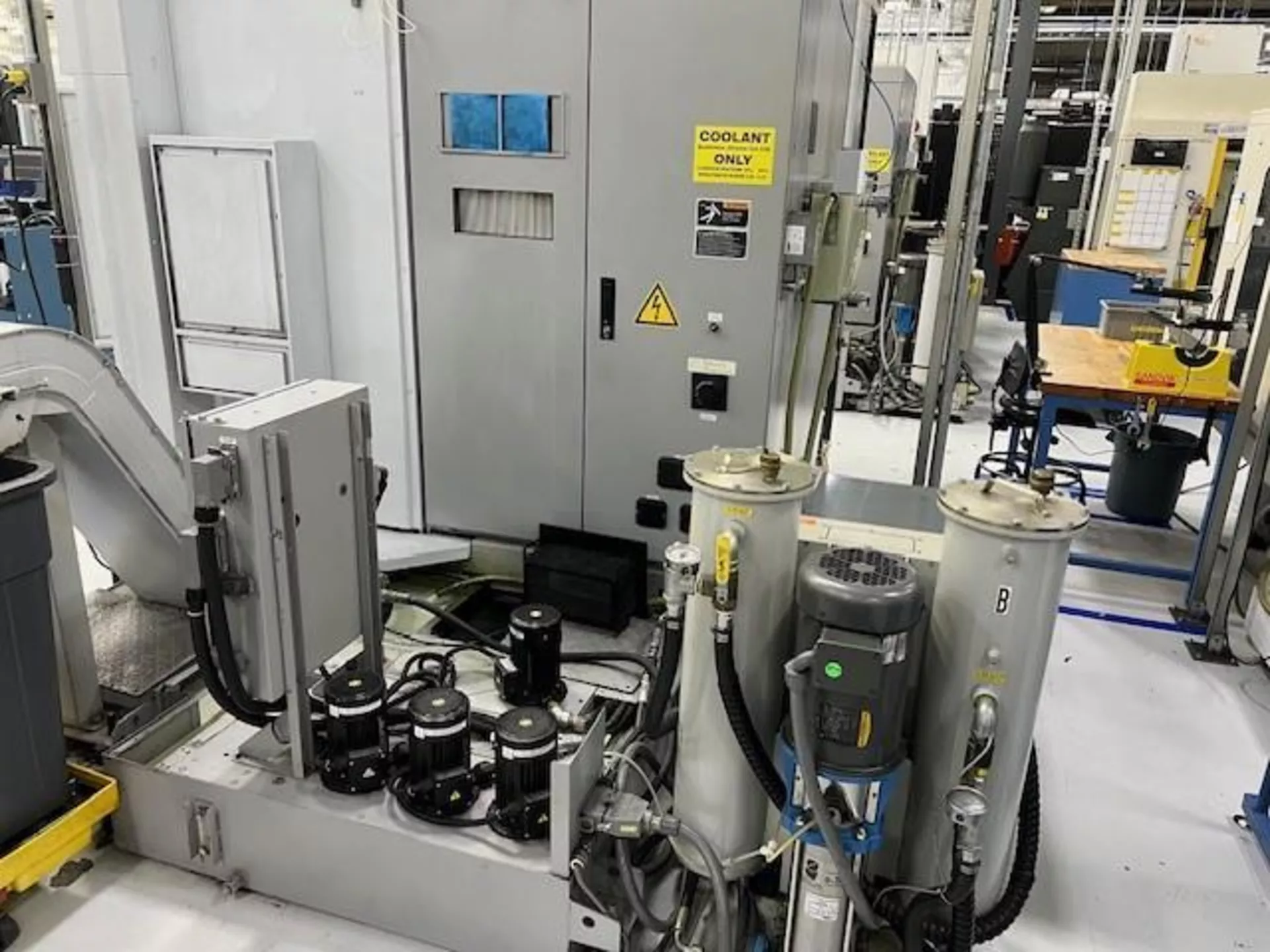

| Chip & Coolant System: |
|---|
| Chip Conveyor Included |
| ChipBlaster F-75MSF High Pressure Coolant System |
| Air Blast System |
| General: |
|---|
| Machine Weight: 19,690 LBS. |
| Electrical Rating: 220V |
| Rated Power: 45 KVA |
| Made in Japan |
| Multi-Tasking Turning & Milling Center |
