*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 112804 |

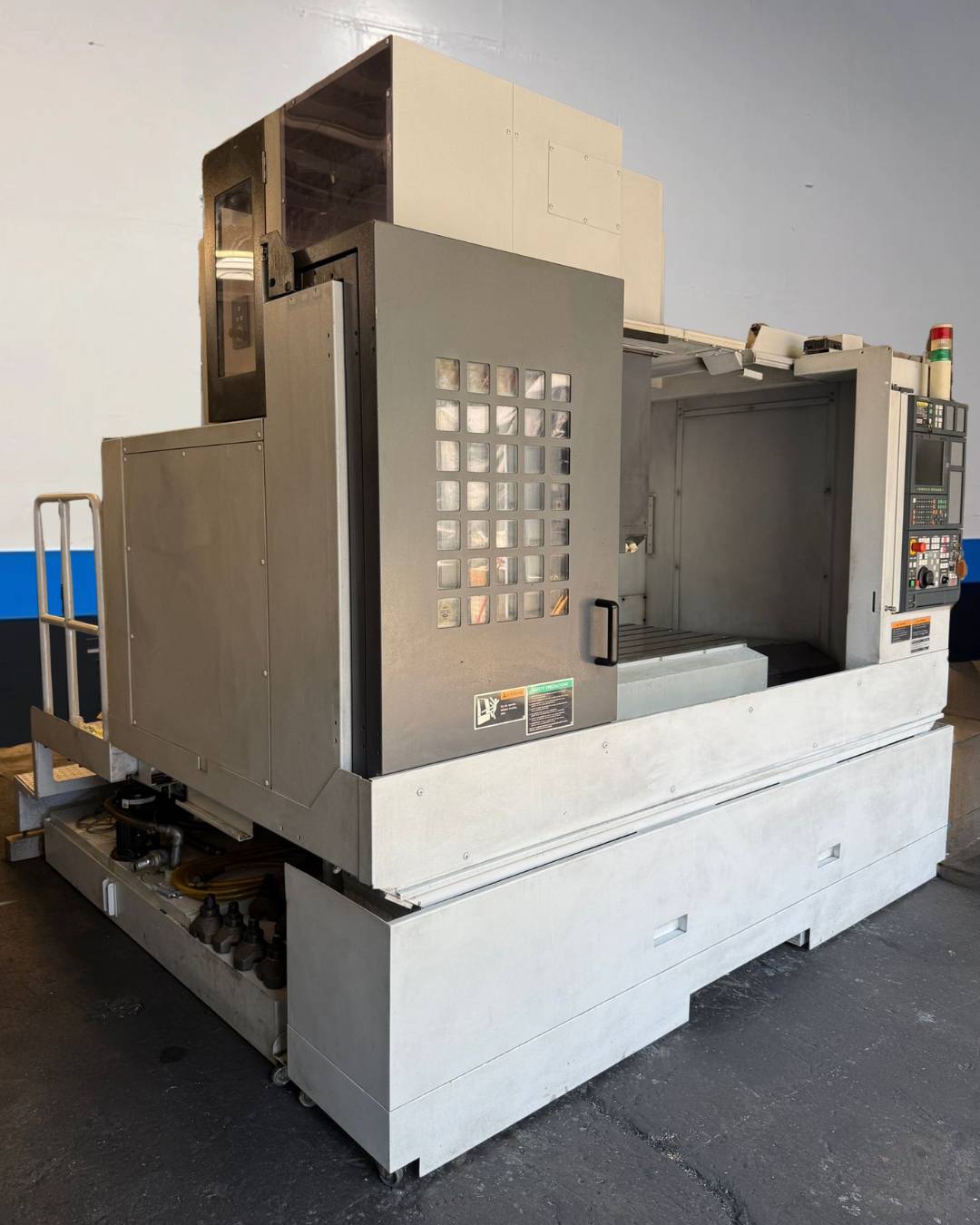

| Make: | Mori Seiki |
| Model: | NVD5000 α1B/40 |
| Year: | 2007 |
| Condition: | Used – Good |
| Equipped With: |
|---|

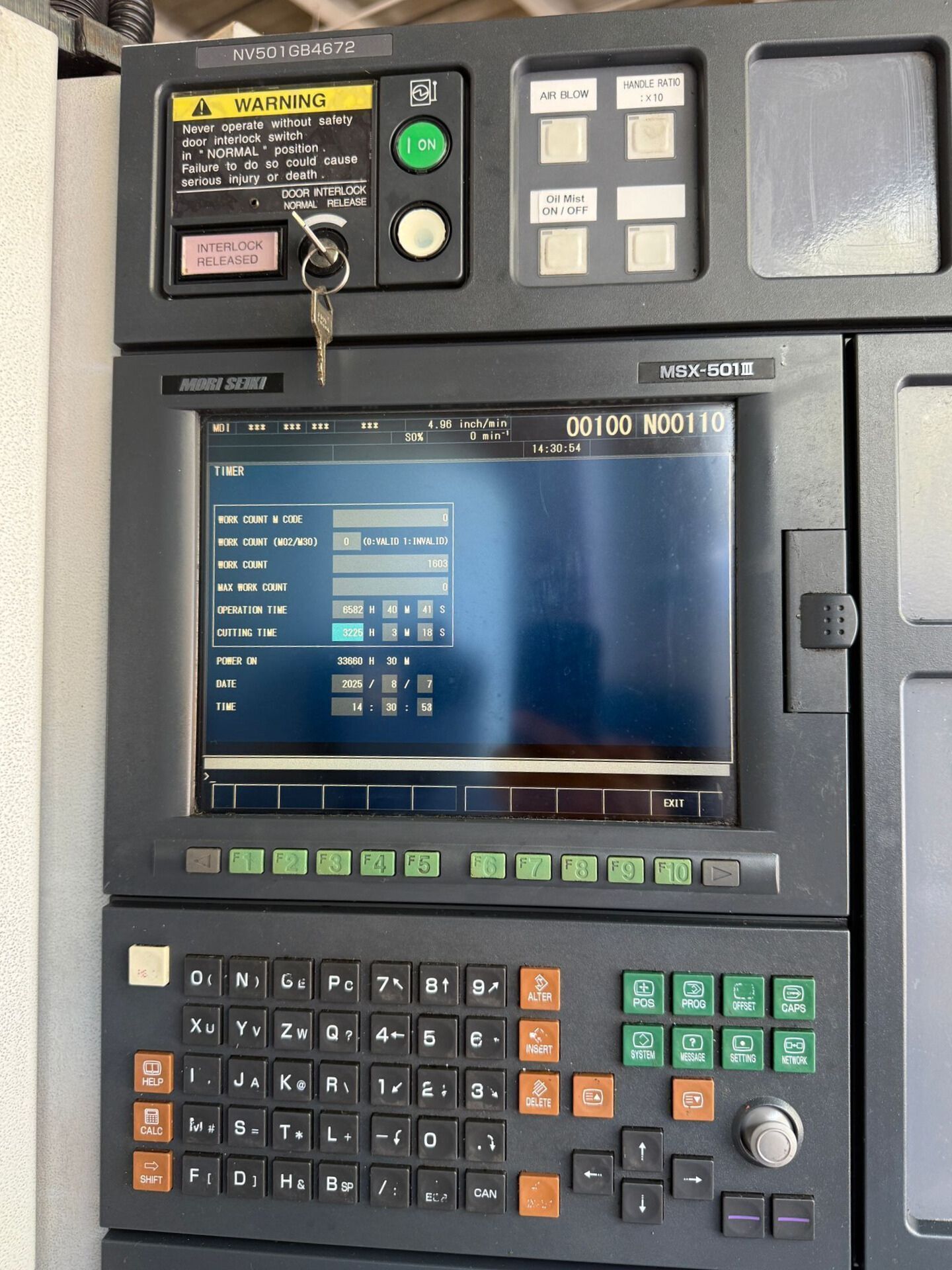

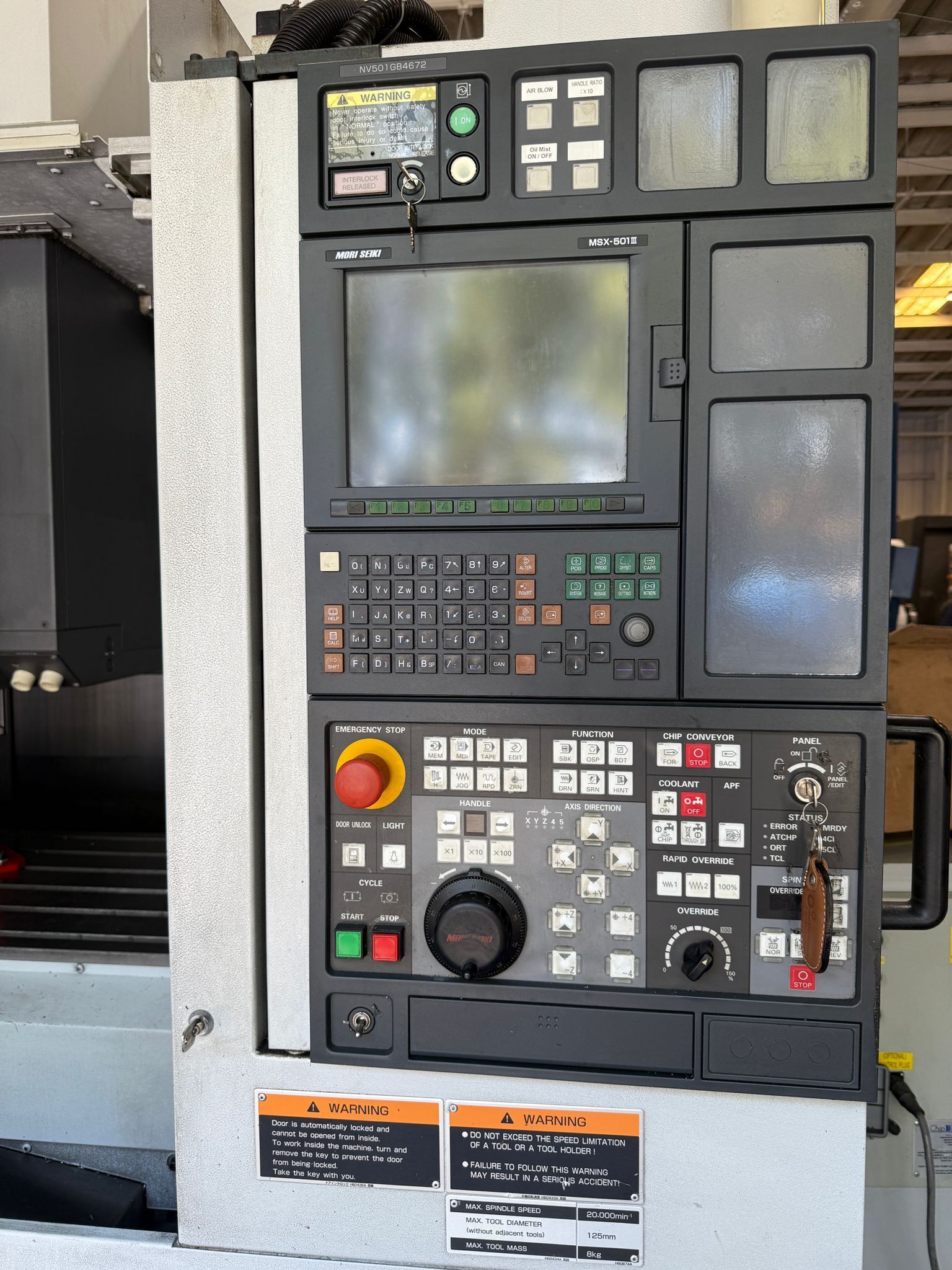

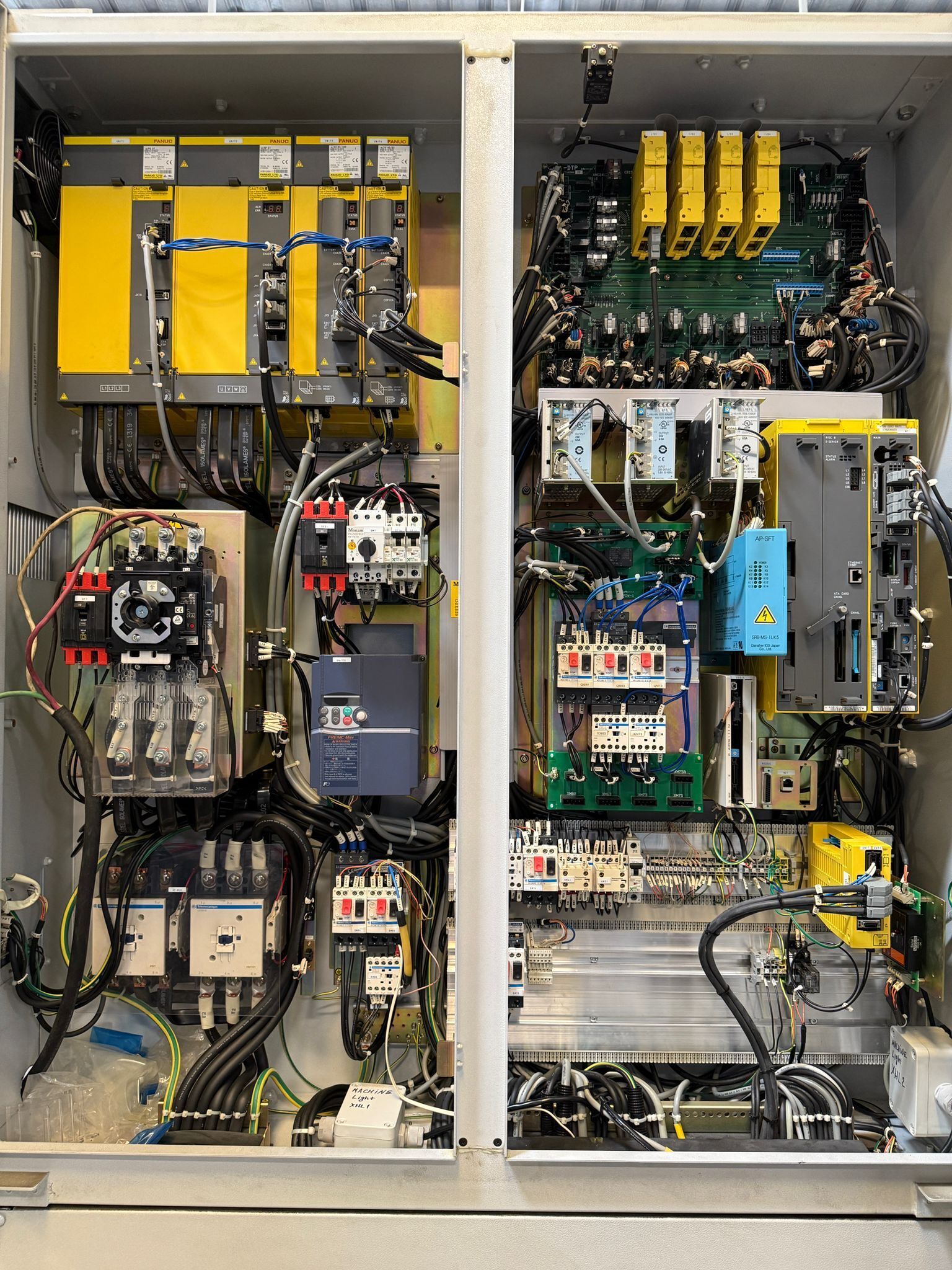

| MSX-501III ( FANUC ) CNC Control |
| 20,000 RPM High Speed Spindle – (Upgraded $30,000 value Included) |
| Through Spindle Coolant |
| 30 Station Automatic Tool Changer |
| 25 HP high torque Spindle Motor |

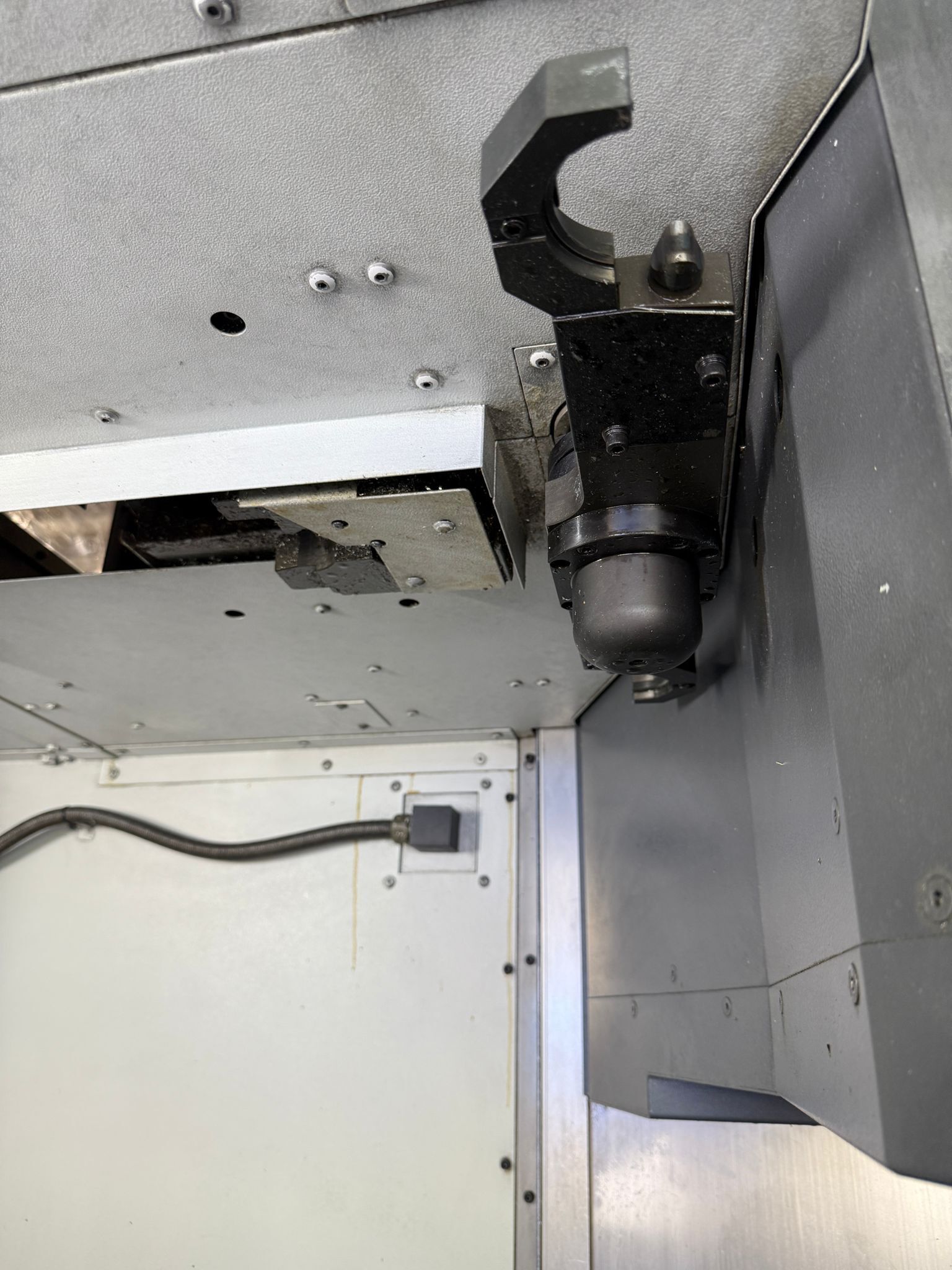

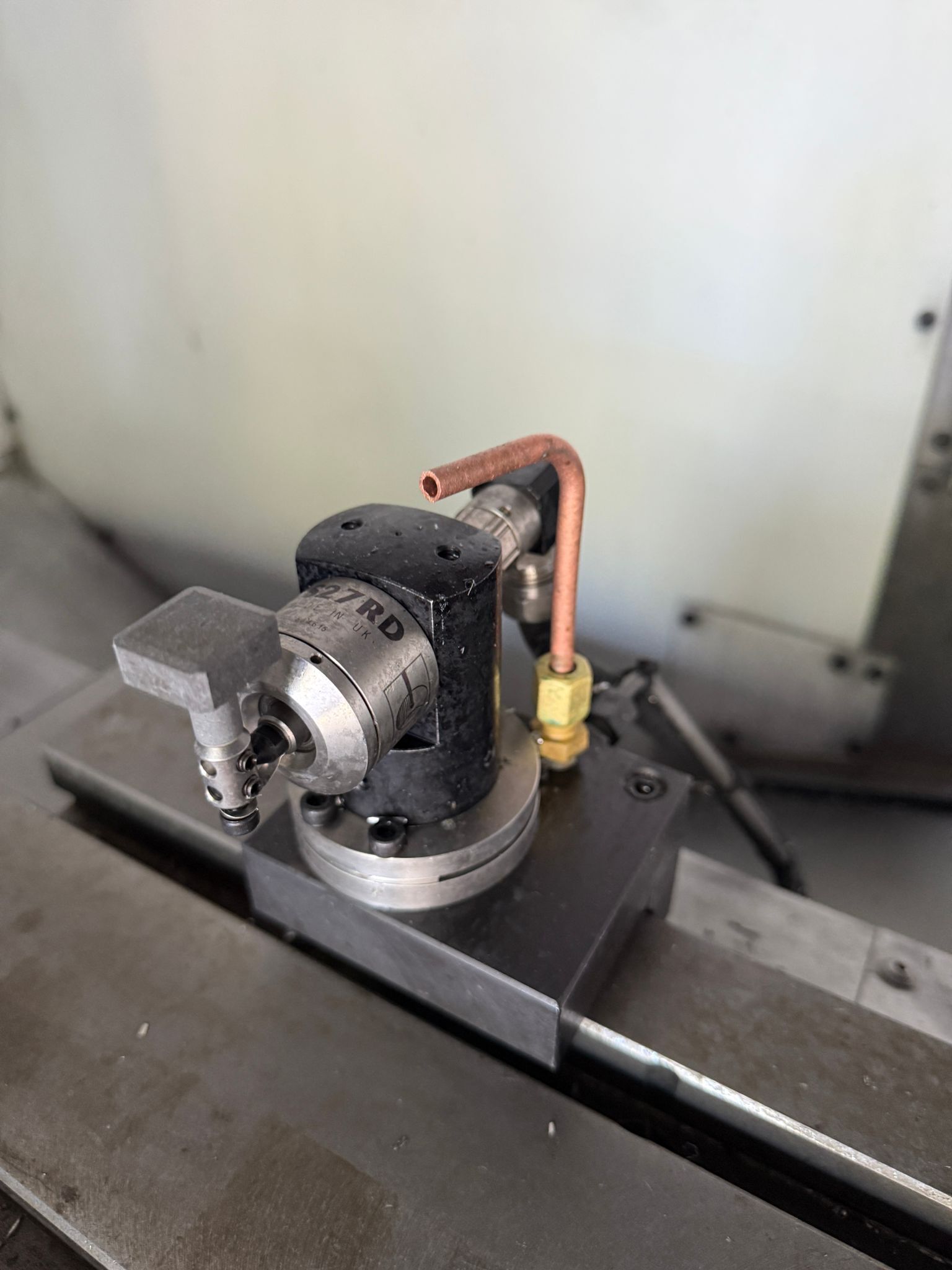

| Tool Presetter |
| Rigid Tapping |

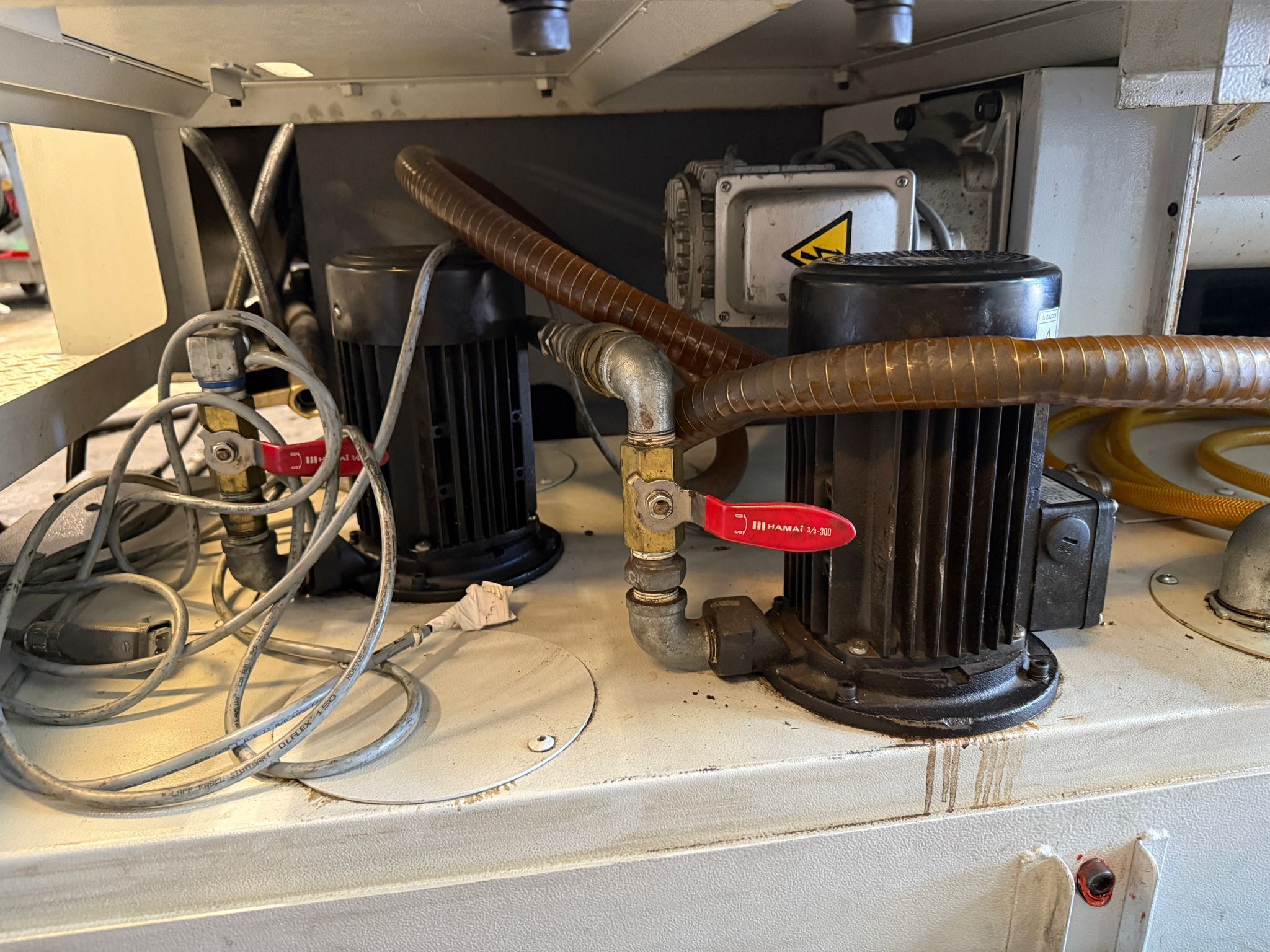

| Coolant System |

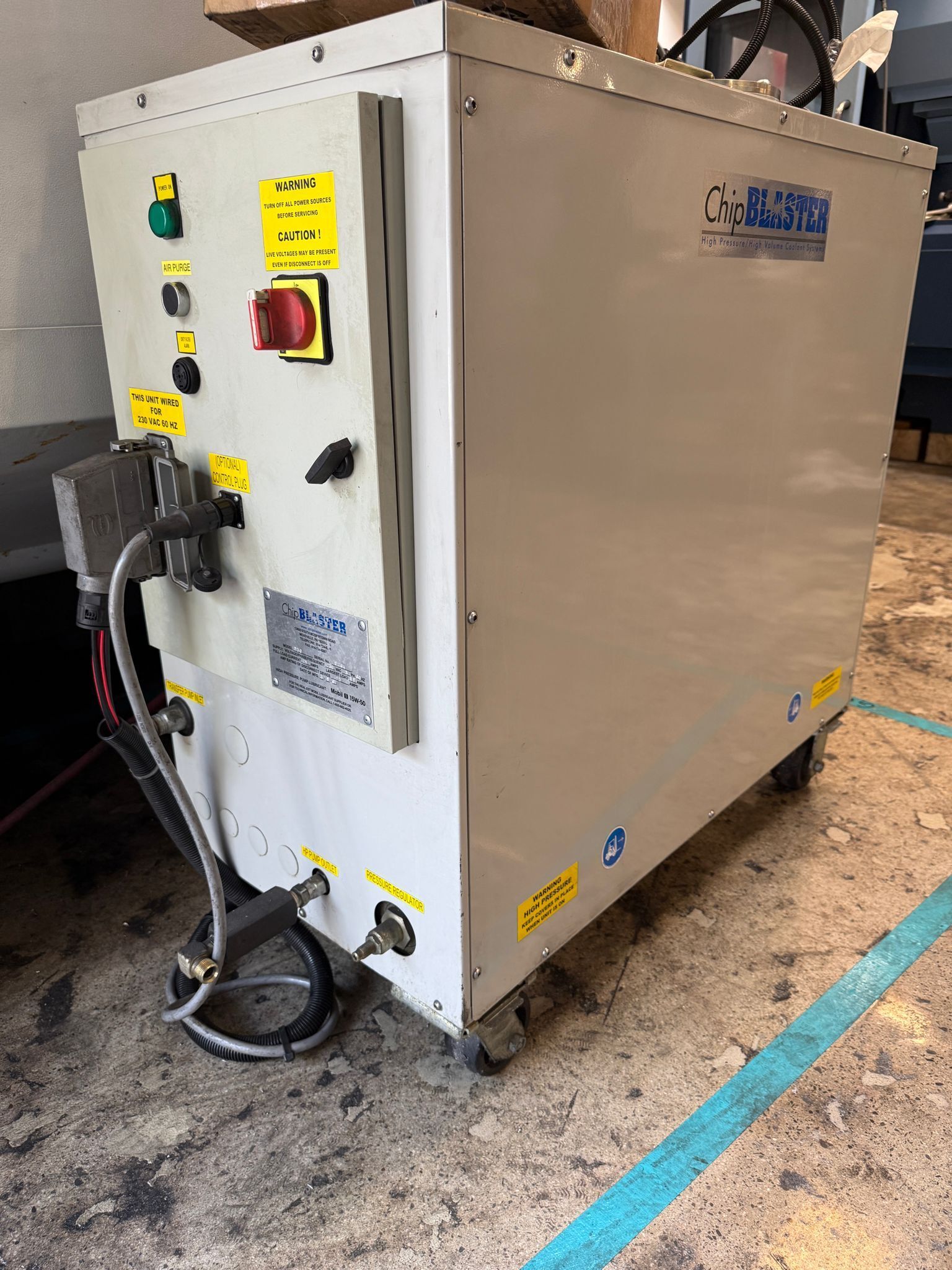

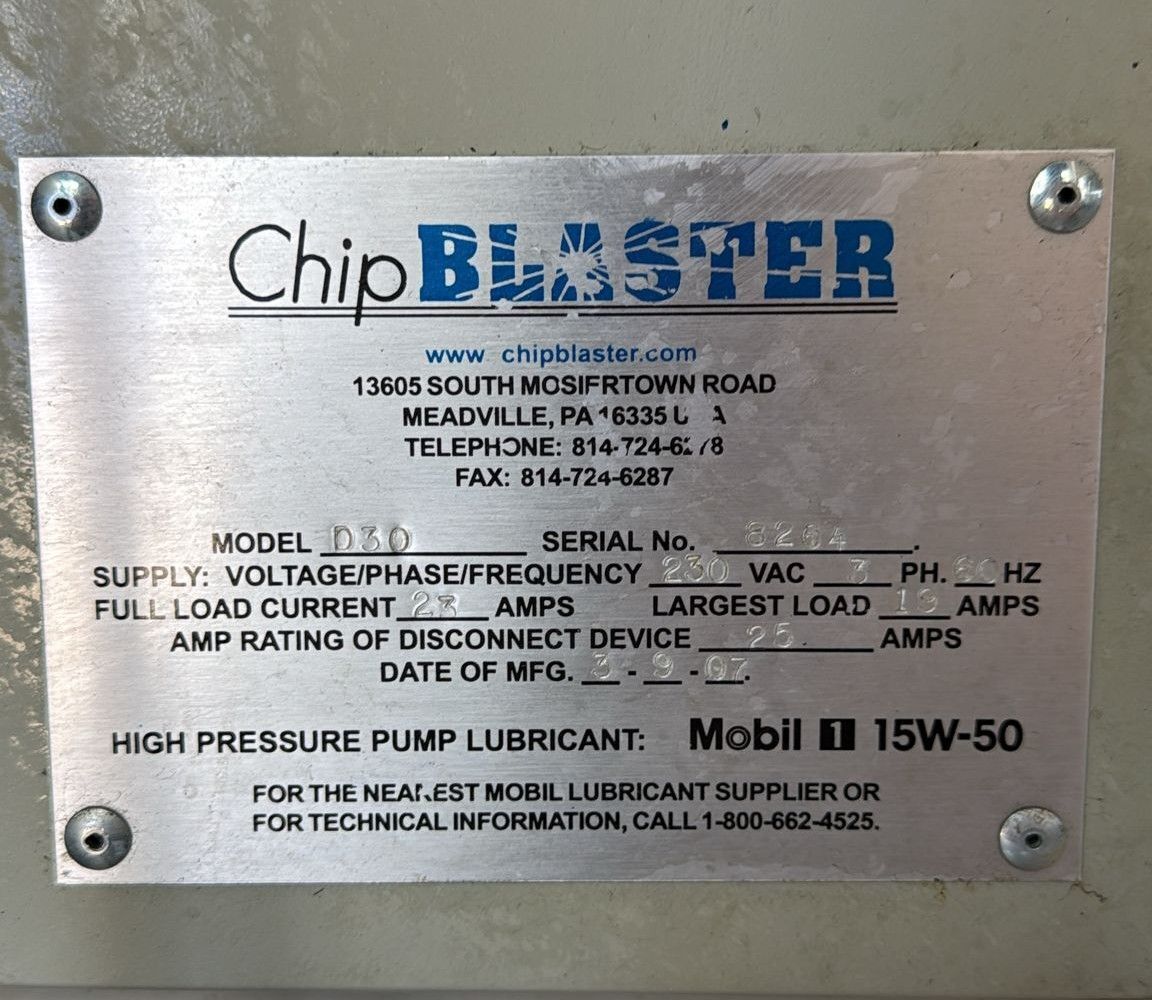

| D-30 Chip Blaster High Pressure Unit – (Upgraded $10,950 value Included) |

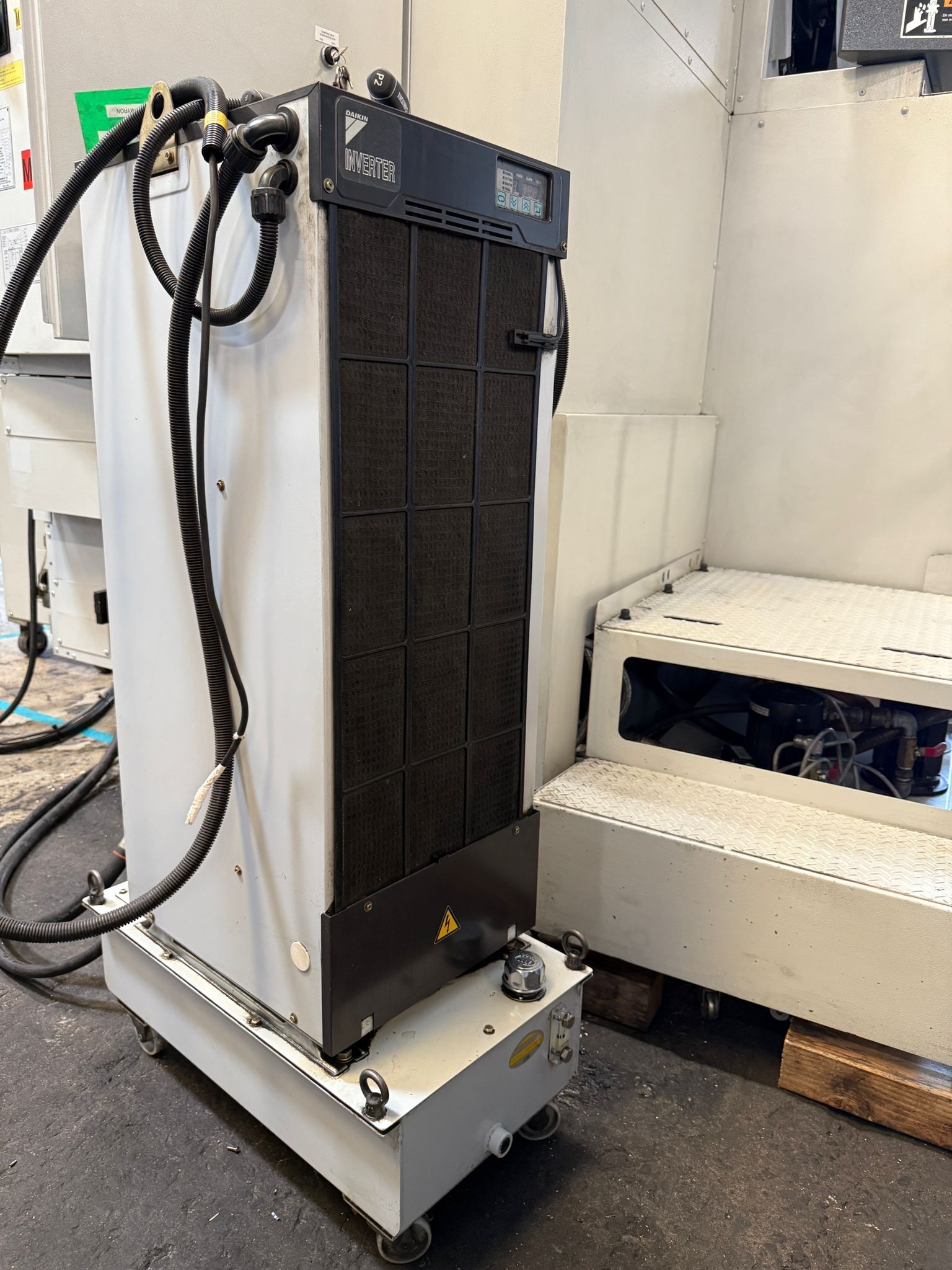

| Spindle Chiller Unit |
| Books & Manuals Set |
| Levelling Pads |
| Travels: |
|---|
| X-Axis: 40.2″ |
| Y-Axis: 20.1″ |
| Z-Axis: 20.1″ |
| Spindle Nose to Table (Min.- Max.): 5.9″ – 26.0″ |
| Table: |
|---|
| Length: 52.0″ |
| Width: 23.6″ |
| Max Weight on Table: 2640 lbs |
| Number of T-slots & Size: 6 × 0.7″ × 3.9″ |
| Spindle: |
|---|
| Taper Size: BT-40 |

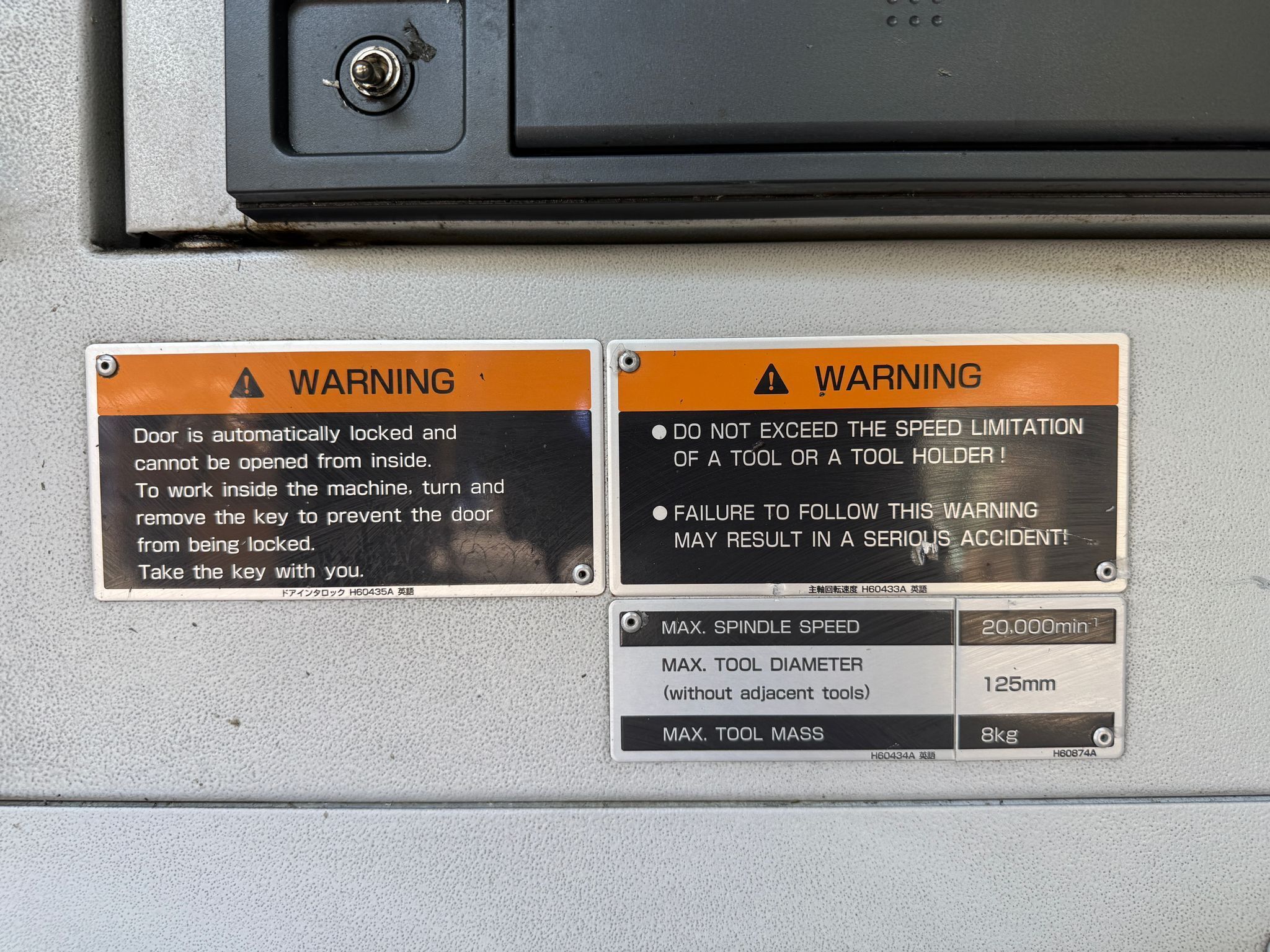

| Speed Range: 20,000 RPM |
| Spindle Power: 25 HP |
| Feed Rate: |
|---|
| Rapid X, Y & Z: 787 inch/PM |
| Cutting Feed rate: 787 inch/PM |
| Automatic Tool Changer: |
|---|
| BT-40 Taper |
| Capacity: 30 |
| Max Tool Weight: 17.6 lbs |
| Max Tool Length: 11.8″ |
| Max Tool Dia: 4.92″ |
| General: |
|---|
| Air Required: 80 psi, 4 scfm |

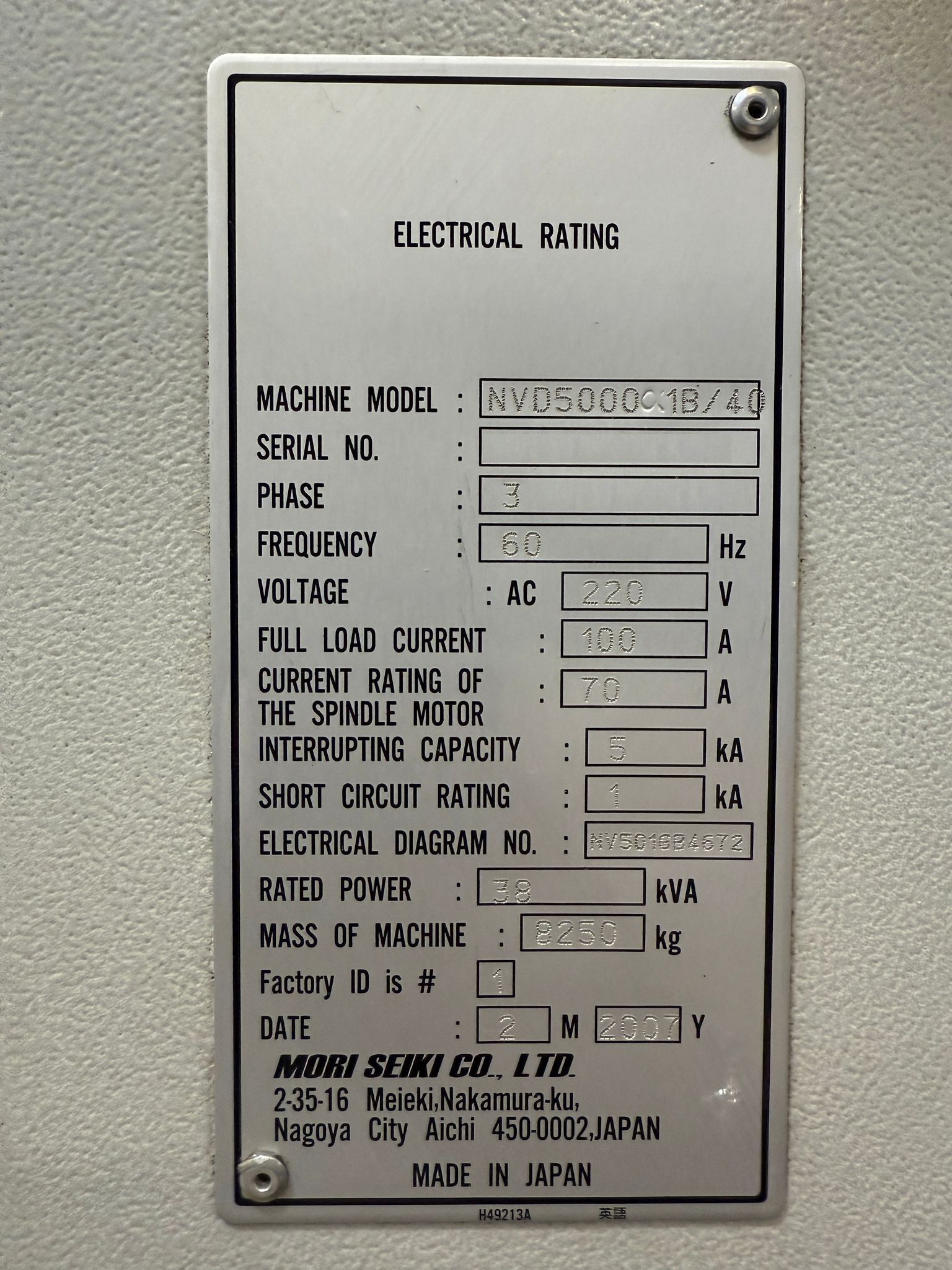

| Power: 220v / 66FLA / 3-Phase / 38 kva |
| Overall Dimensions: 110″ L X 108″ W X 102″ High |
| Weight: 18,190 lbs Approx. |
