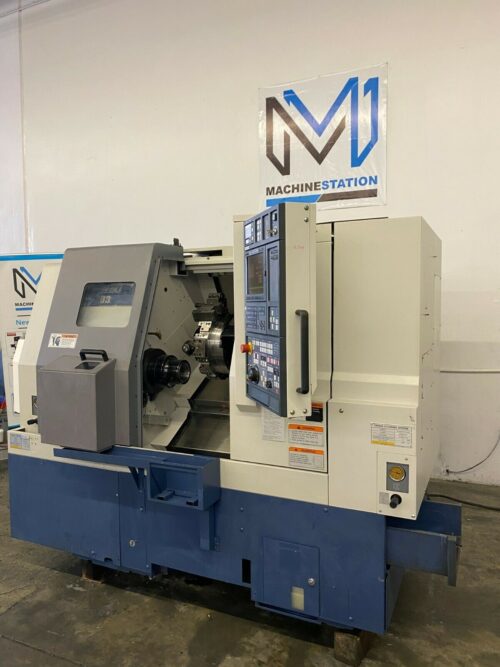

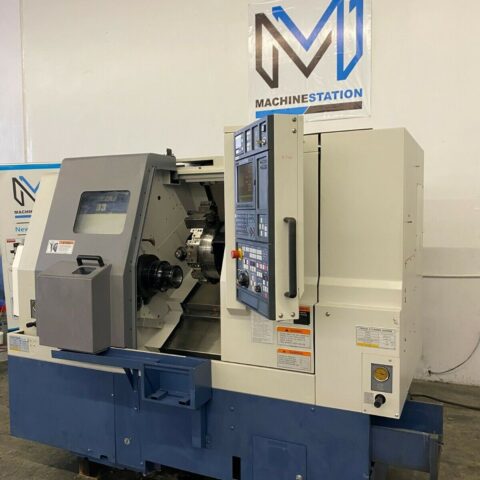

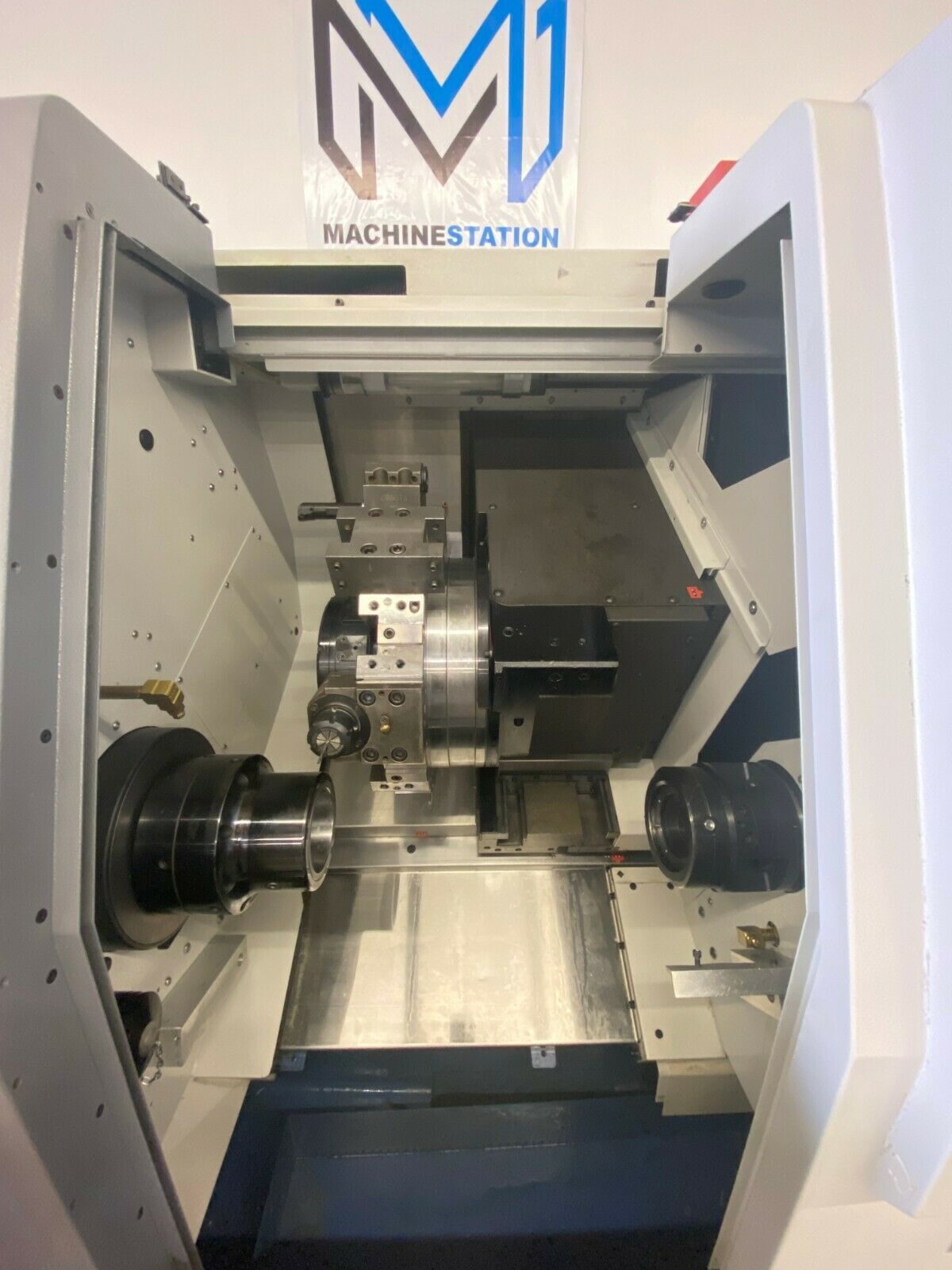

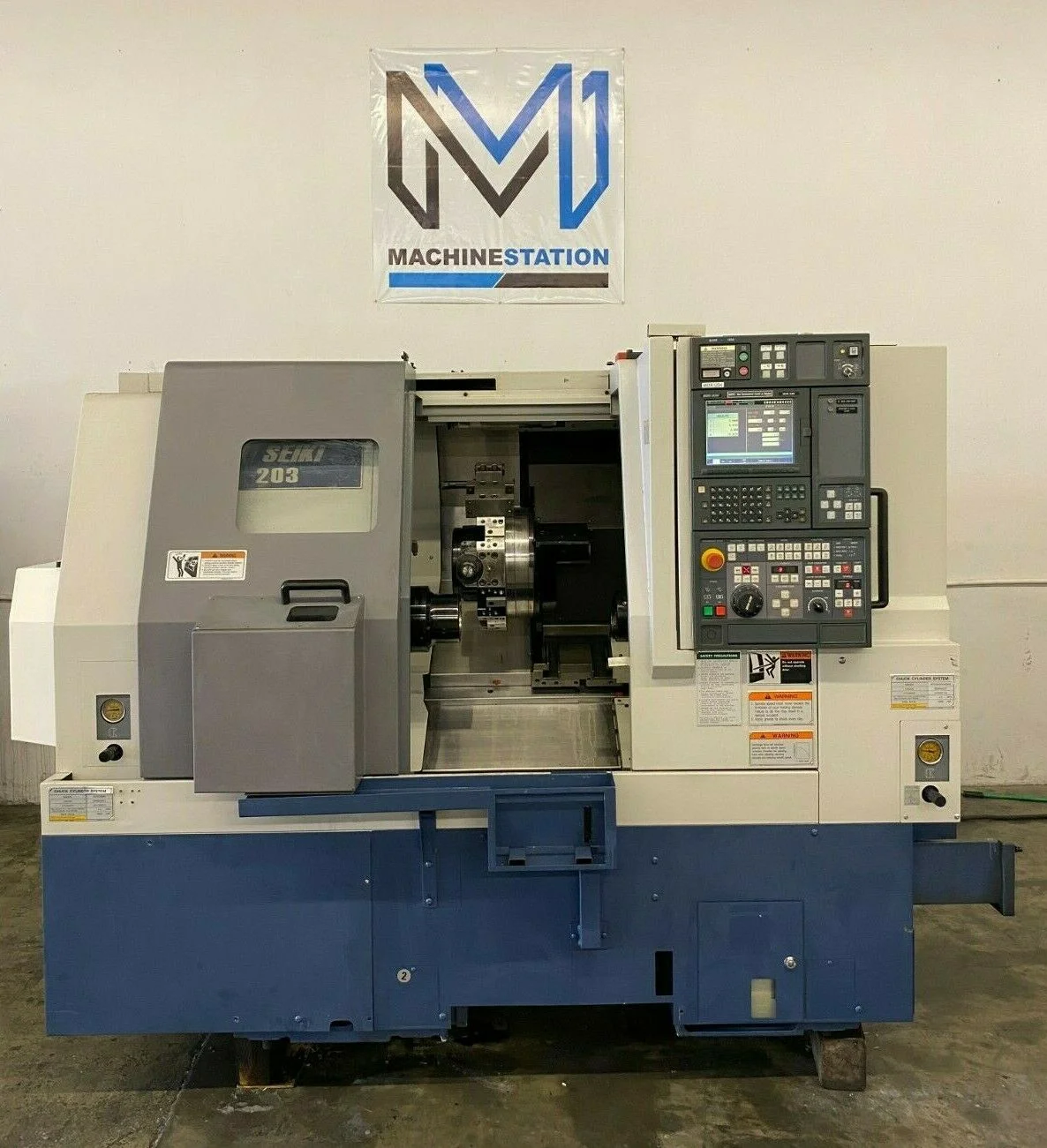

MORI SEIKI SL-203 SMC CNC Turning Center Lathe

All specifications are approximations and are subject to verification.

MORI SEIKI SL-203 Equipped With:

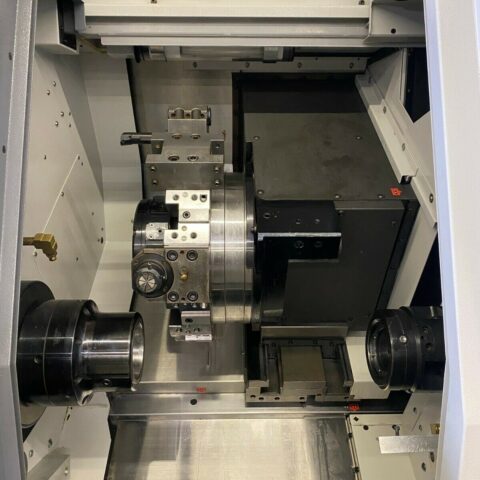

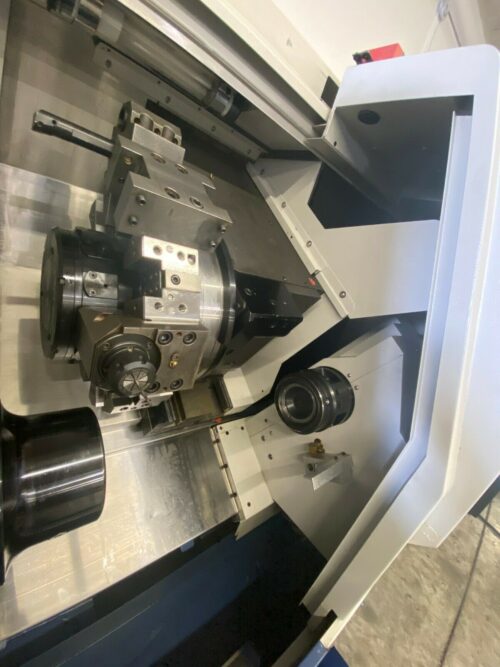

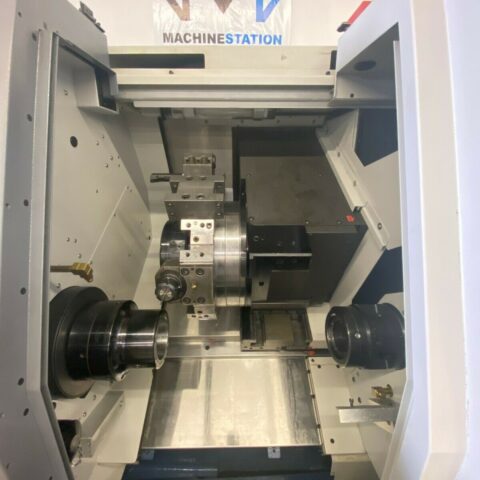

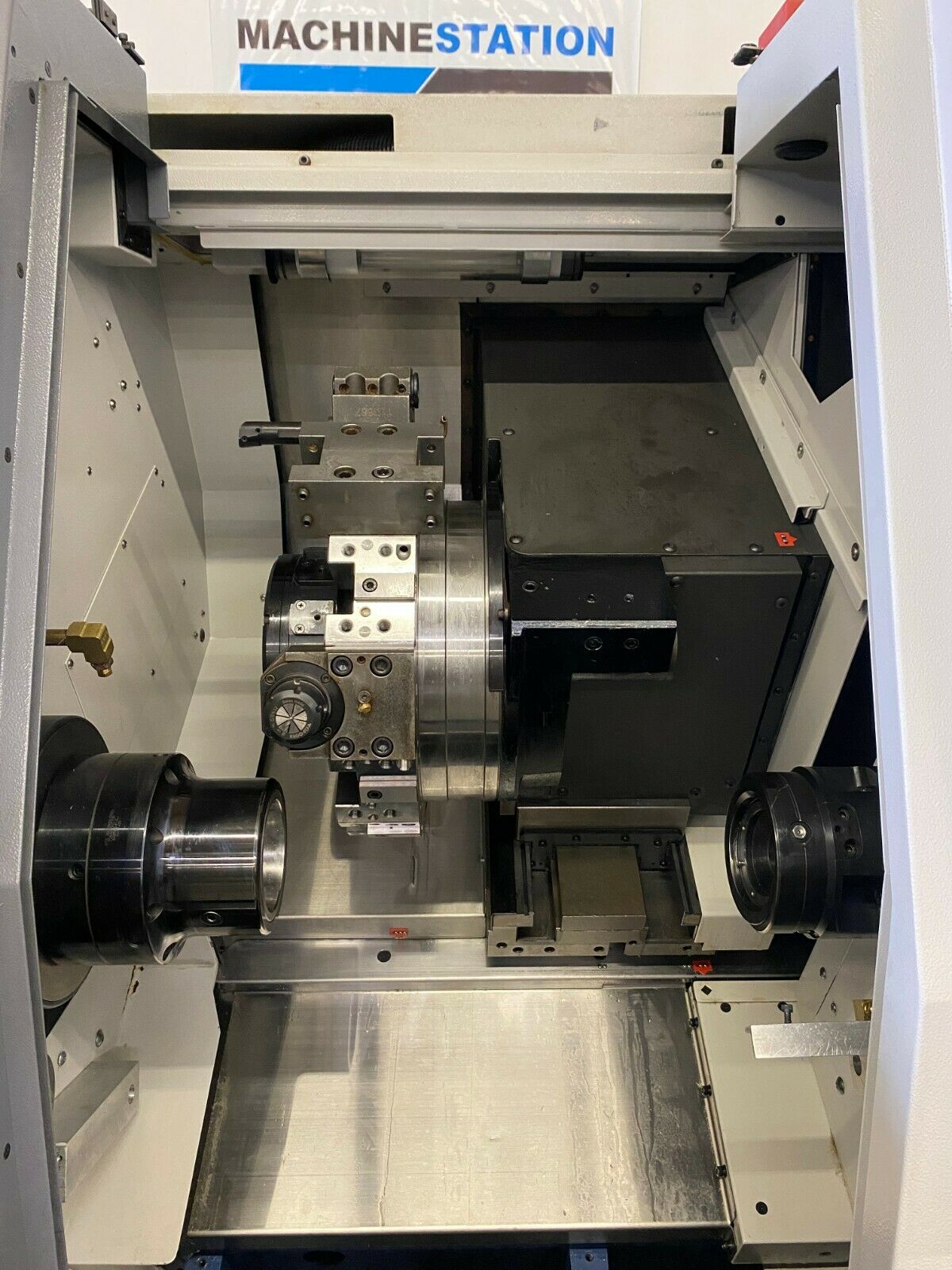

• 12-Station Turret –  Live / Rotary Tools
• Servo Controlled Full C-Axis on Both Spindles

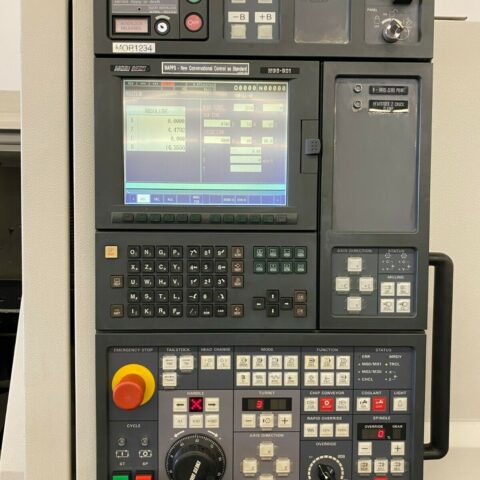

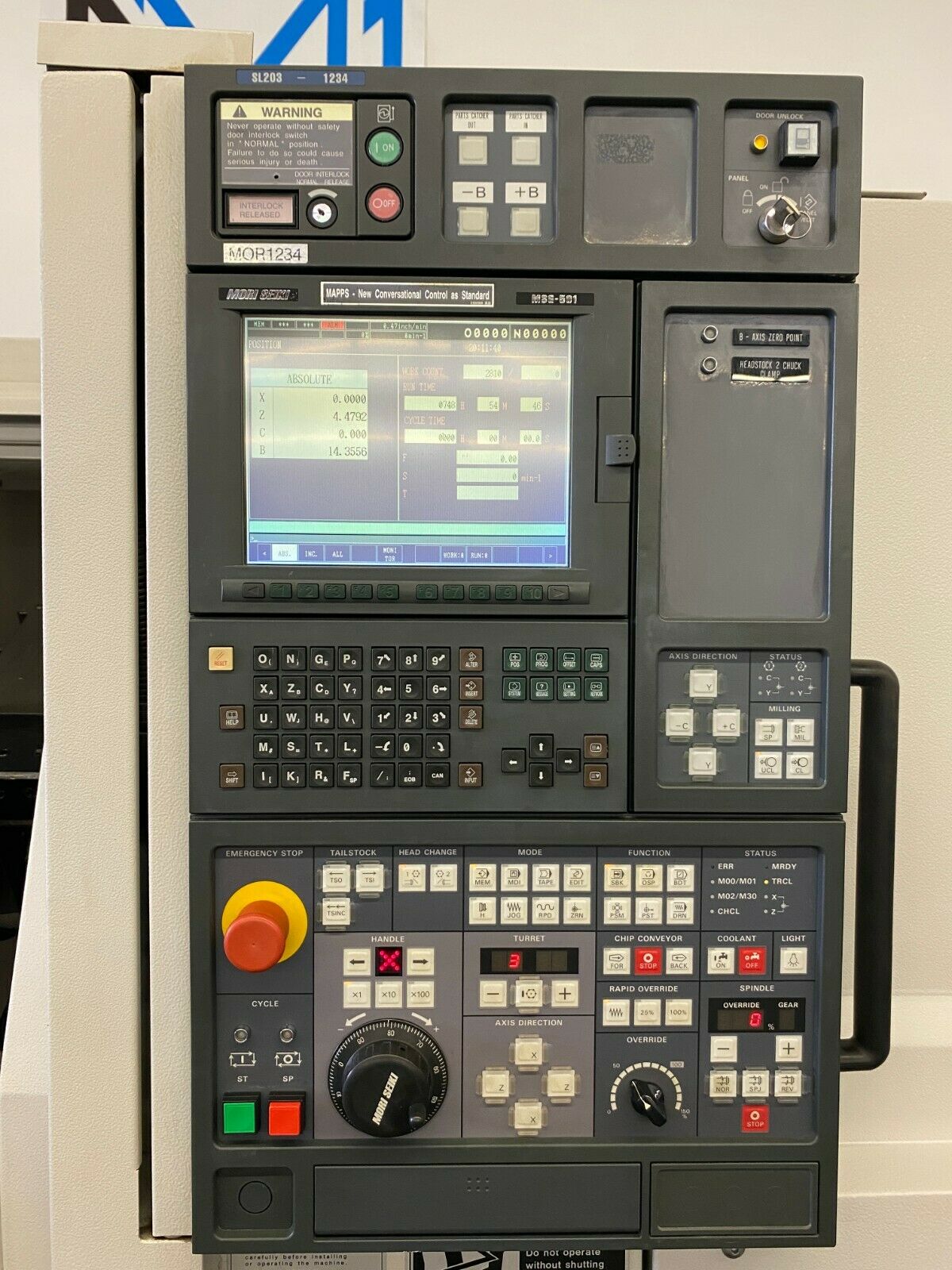

• Fanuc 18iT CNC Control
• PCMCIA Card Slot
• Tool Presetter
• Parts Catcher
• Parts Conveyor
• Collet Chuck on Main Spindle
• Collet Chuck on Sub Spindle
• Rigid Tapping on Both Spindles
• Foot Operated Control for Chuck
• Turbo Systems Chip Conveyor
• Comes with 2 Live Tools & some Static Tool Holders
• Books & Manuals

MORI SEIKI SL-203 Specifications:

• Capacity:
• Max Turning Diameter: 15.35″
• Max Turning Length: 12.76″
• Max Bar Capacity: 2.01″
• Swing Over Bed: 26.77″
• Swing over Cross Slide: 20.08″

Travels:

• X Axis Travel: 9.25″
• Z Axis Travel: 19.49″
• B Axis Travel: 19.88″ ( Sub Spindle )
• C Axis:

Feedrate:

• Rapid Traverse X Axis: 708 IPM
• Rapid Traverse Z Axis: 945 IPM
• Rapid Traverse B Axis: 945IPM

Spindle:

• Main Spindle Bore: 2.87″
• Sub Spindle Bore: 1.69″
• Main Spindle Nose: A2-6
• Sub Spindle Nose:  A2-5
• Main Spindle Speed: 40-4000 RPM
• Sub Spindle Speed: 40-4000 RPM
• Main Spindle Power: 15 HP
• Sub Spindle Power: 10 HP
• Live Tool Spindle Motor: 8.04 kw

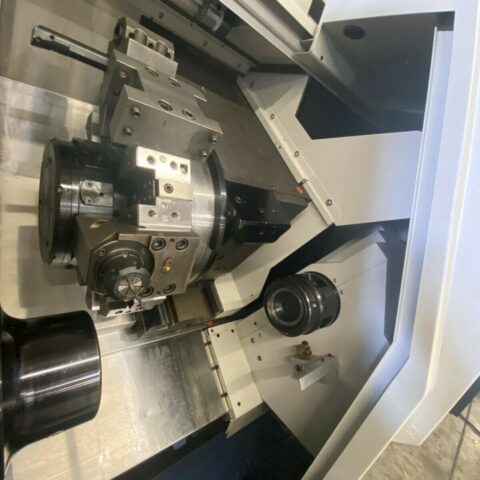

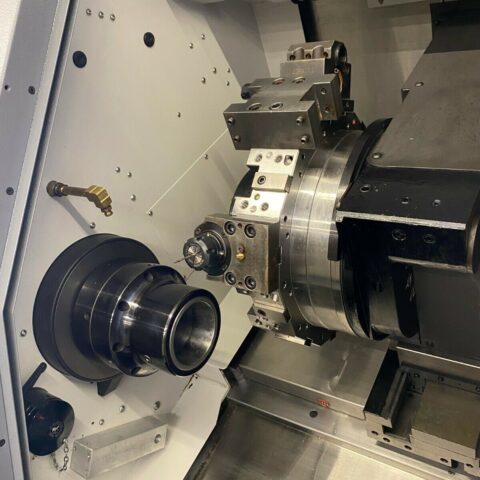

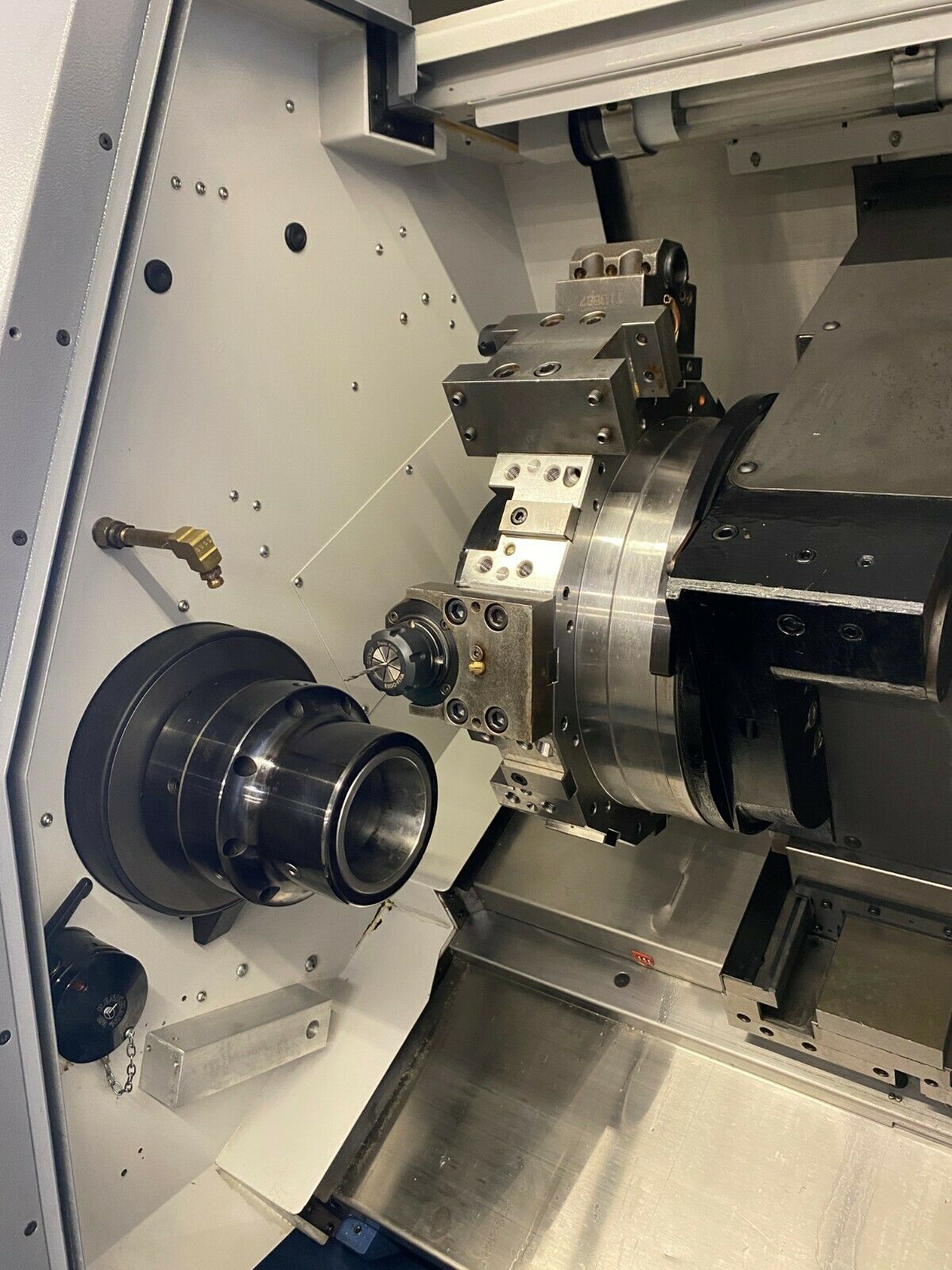

Turret:

• Capacity: 12 Live Stations Turret
• Index Time:  Second Live
• Tool Speed:  3000 RPM

General:

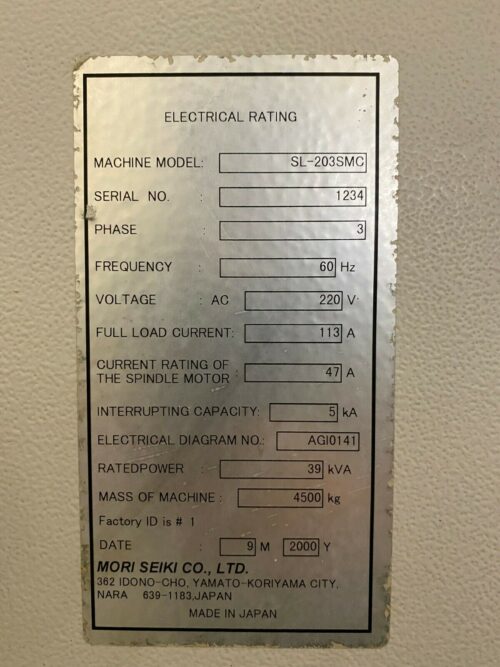

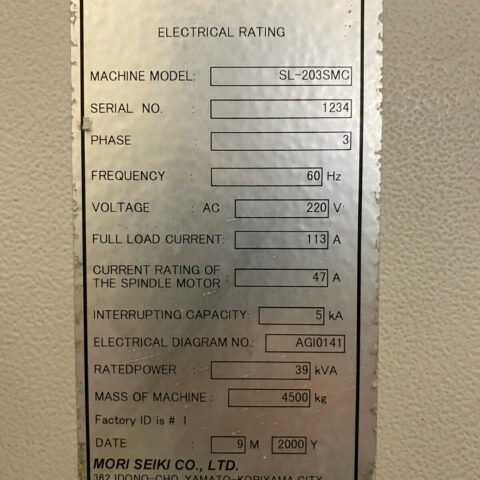

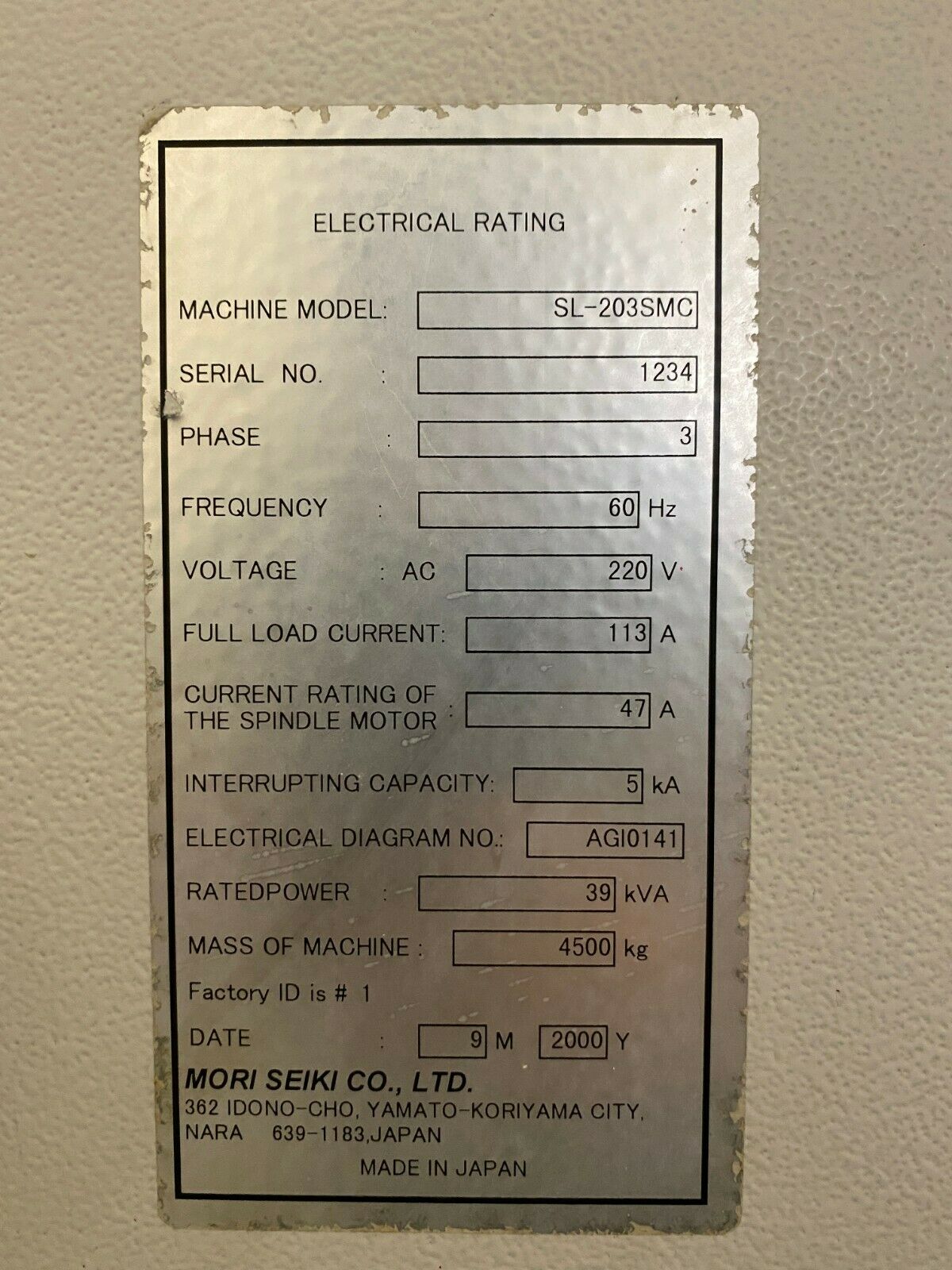

• Power: 37.9 kVA, 220v / 3-Phase Overall
• Dimensions: 92″ x 71″ x 72″ High
• Weight: 9,900 lbs
