*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

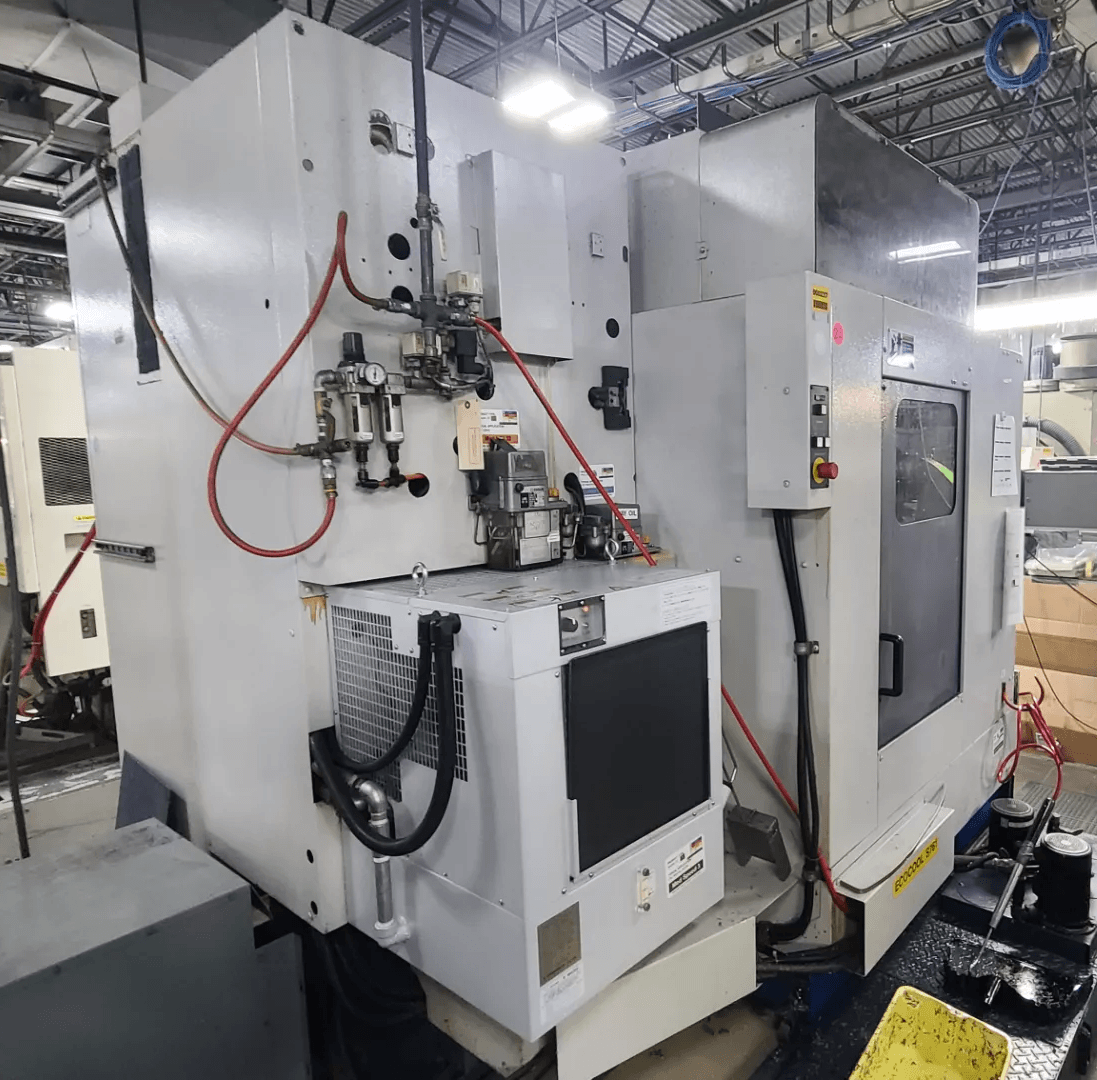

| Make: | Mori Seiki |
| Model No.: | SV-400 |
| Condition: | Used – Good |
| Machine Type: | CNC Vertical Machining Center |
| Control: | Mori Seiki MSC-501 CNC Control (Fanuc Based) |
| Country of Origin: | Japan |
| Specifications: |
|---|
| X-Axis Travel: 31.5″ |
| Y-Axis Travel: 23.6″ |
| Z-Axis Travel: 23.6″ |
| Table Size: 43.3″ x 23.6″ |
| Max Table Load: 1,760 lbs |
| Spindle Speed: 12,000 RPM |
| Spindle Taper: BT40 |
| Spindle Motor: 20 HP |
| Tool Capacity: 30 ATC |
| Rapid Traverse (X/Y): 1,417 IPM |
| Rapid Traverse (Z): 1,181 IPM |
| Equipped With: |
|---|
| Mori Seiki MSC-501 CNC Control |
| 30 Station Automatic Tool Changer |
| 12,000 RPM Spindle |
| Rigid Tapping |
| Full Enclosure |
| Coolant System |
| Chip Conveyor (if equipped) |
| Work Light |

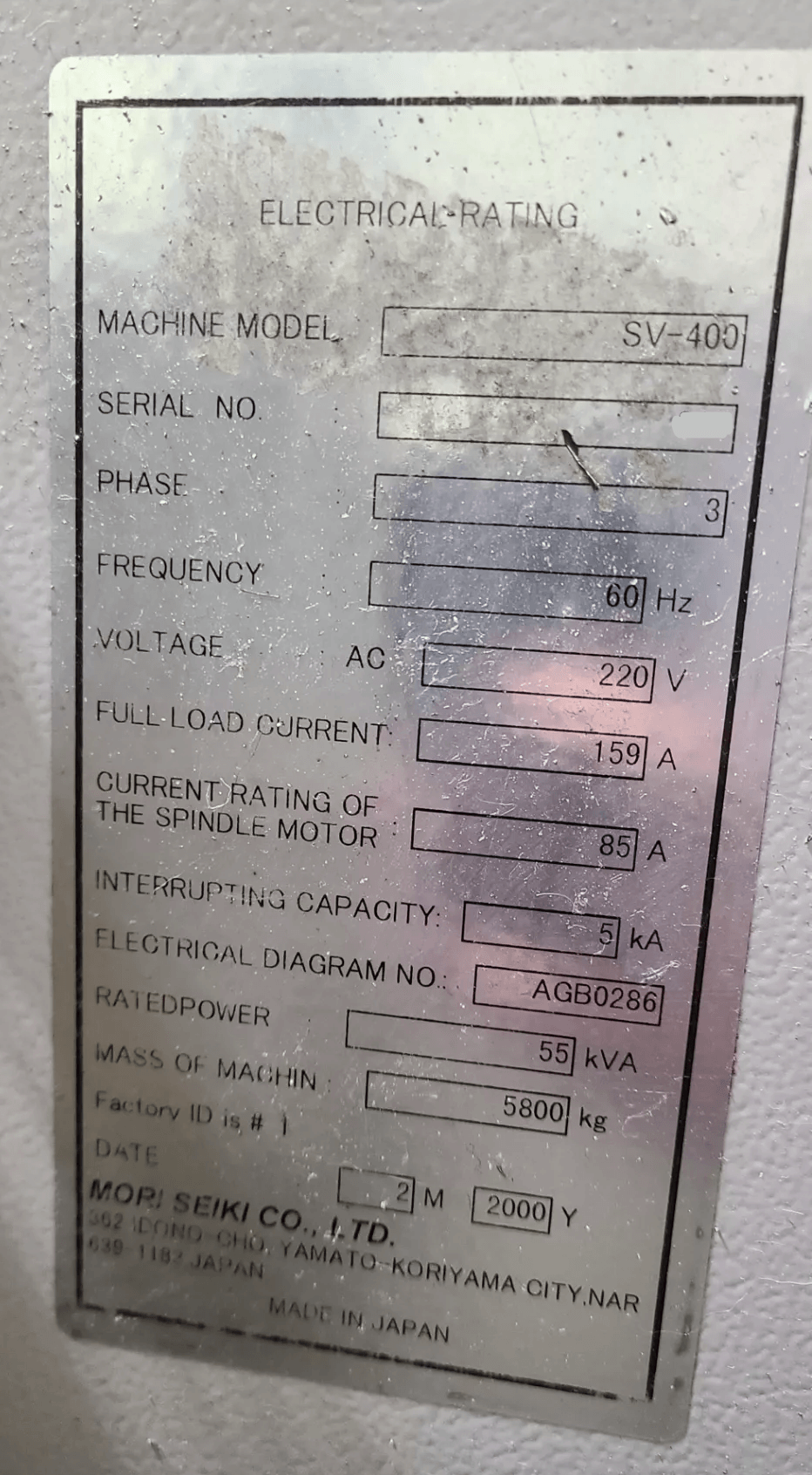

| Electrical: |
|---|
| Voltage: 220V |
| Phase: 3 |
| Frequency: 60 Hz |
| Rated Power: 55 kVA |
| Full Load Current: 159 A |
| General: |
|---|
| Machine Weight: 12,800 lbs (Approx.) |
| Machine Dimensions (L x W x H): 110″ x 95″ x 105″ (Approx.) |
| Shipping Weight: 14,000 lbs (Approx.) |
