MORI SEIKI ZL 25B 4AXIS CNC TURNING CENTER

Payments shown a 60 month term.*

Out of stock

Product Description

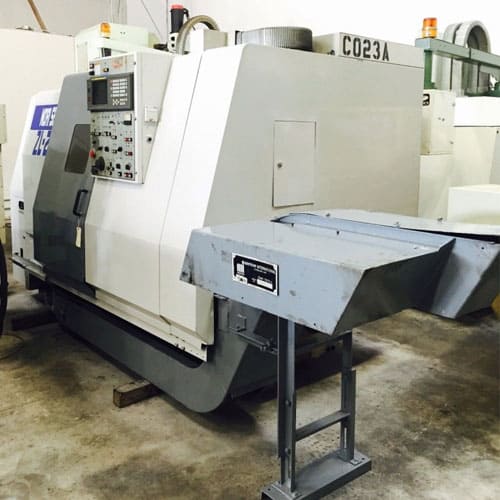

MORI SEIKI ZL 25B 4AXIS CNC TURNING CENTER

Make: Mori Seiki
Model #: ZL-25B
Serial #: 720
Country of Origin: Japan

Condition: We are unable to fully test this machine, and therefore we are selling it AS-IS.


MORI SEIKI ZL 25B Features:

  • Fanuc MF-D6 Control.
  • Chip Conveyor.
  • 10-Station Top Turret.
  • 8-Station Bottom Turret.
  • Programmable Tailstock.
  • Includes 3 manuals shown in photos.

MORI SEIKI ZL 25B Specifications:

Capacities:
Swing Over Bed: 20.47″
Swing Over Cross Slide: 13.78″
Maximum Turning Diameter: 10.24″
Maximum Turning Length: 20.87″

Travels:
Cross Travel Turret 1 (X1-Axis): 6.3″
Longitudinal Travel Turret 1 (Z1-Axis): 23.23″
Cross Travel Turret 2 (X2-Axis): 6.3″
Longitudinal Travel Turret 2 (Z2-Axis): 23.23″

Feedrates:
Rapid Traverse Rate (X1, X2 Axes): 472 IPM
Rapid Traverse Rate (Z1, Z2 Axes): 590 IPM

Spindle:
Standard Chuck Diameter: 10″
Spindle Nose: A2-6
Spindle Bore: 3.15″
Spindle Speeds: 35 to 3,500 rpm
Horsepower: 25 approx.

Tailstock:
Center Taper: #3 Morse Taper
Quill Diameter: 3.375″
Quill Stroke: 3.1
Tailstock Stroke: 23.2″

General:
Electrical: 220 Volt, Three Phase, 60 Hz
Overall Dimensions (without chip conveyor): 132″ x 73″ x 82″ tall

MORI SEIKI ZL 25B and Comes as shown in pictures.


GUARANTEE: If any machine guaranteed by us does not prove satisfactory mechanically, the Purchaser may return it freight prepaid within 14 days from date of shipment and we will refund the purchase price in full. This does not apply to machine sold “as is” or “subject to inspection”. This guarantee applies only to machines which we own. The machine must be returned in the same condition that it left our warehouse. MachineStation shall not be responsible for any damage done by truckers, riggers, or other parties. Machine damaged in shipping are not covered under the return privilege.

WARRANTY: Seller makes no warranties of any kind whatever, expressed, or implied. All specifications and descriptions of said goods are approximate, not binding and meant only as a guide. It is the Buyer’s responsibility to inspect the goods and ascertain if the specifications, description and condition of the goods confirm to the Buyer’s requirement.

MACHINE USE AND SAFETY: Buyer acknowledges that the goods described herein are pre-owned used goods which were neither designed or manufactured by the Seller, nor has the Seller knowledge of, or control over, the prior use or misuse of said goods: nor does the Seller have knowledge or control over the application of these goods by the Buyer. It is the Buyer’s (user’s), responsibility to provide proper safety devices, equipment and instructions for any particular use, and to take all necessary steps to confirm to all Federal, State or Local Government Safety Standards and including OSHA.

BUYER IS RESPONSIBLE FOR SCHEDULING TRANSPORTATION OF THIS MACHINE, AS WELL AS ALL COST TO MOVE IT. IF YOU NEED HELP WITH SCHEDULING, PLEASE CONTACT US AND WE WILL ASSIST YOU. WE SHIP GLOBALLY.
