Model #: VF-2SS
Serial #: 37327
All specifications are approximations, and are subject to verification.
- User Friendly Haas Automation Control
- 12,000 Spindle RPM
- 30″ x 16″ x 12″ Travels
- In-line Direct Drive Spindle
- Through Spindle Coolant
- 24 Station Automatic Tool Changer
- Made entirely in the U.S.A.
- Automatic Lubrication System
- Massive Cast Iron Construction
- Heavy-Duty Sheet Metal Enclosure
Spindle Nose to Table (Min.): 4″
Spindle Nose to Table (Max.): 24″
T-Slot Width: 5/8″
T-Slot Center Distance: 4.92″
Number of T-Slots: 3
Max Weight on Table (evenly distributed): 1,500 lbs
Max Rating: 30 HP
Max Speed: 12,000 RPM
Max Torque: 90 ft-lb @ 2,000 RPM
Drive System: Inline Direct Drive
Taper: CAT 40
Bearing Lubrication: Air/Oil Injection
Cooling: Liquid Cooled
Rapids on X: 1400 in/min
Rapids on Y, Z: 1400 in/min
Max Cutting: 833 in/min
Max Thrust on X,Y: 1995 lbs
Max Thrust on Z: 3085 lbs
Automatic Tool Changer:
Type: Side Mount
Capacity: 24 + 1
Max Tool Diameter (adjacent empty): 5″
Max Tool Diameter (full): 3″
Max Tool Length (from gage line): 11″
Max Tool Weight: 12 lbs
Tool-to-Tool (avg.): 1.6 seconds
Chip to Chip (avg.): 2.2 seconds
Air Required: 4 scfm, 100 psi / 113L/min, 6.9 bar
Coolant Capacity: 55 gal
Overall Dimensions: 89″ x 92″ x 104″ tall

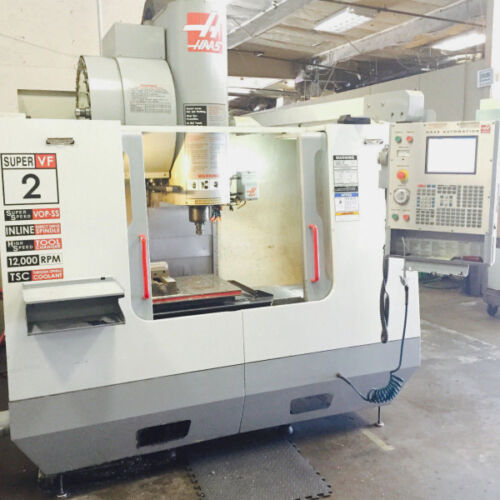

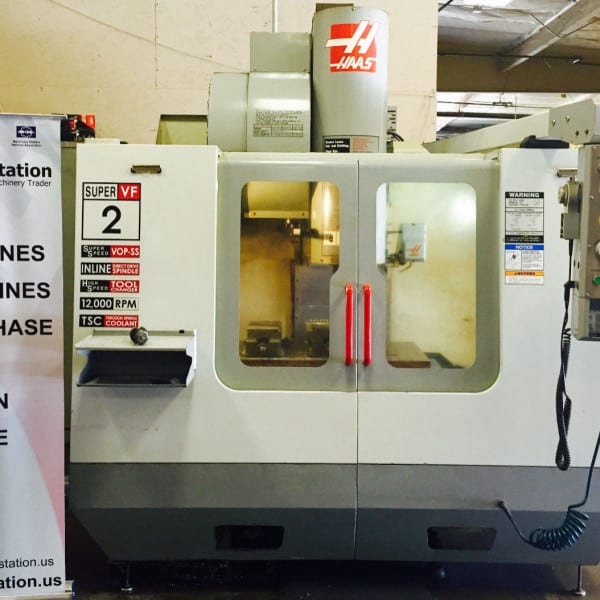

USED-HAAS CNC VERTICAL MILLING MACHINE Model VF-2SS and Comes as shown in pictures.
GUARANTEE: If any machine guaranteed by us does not prove satisfactory mechanically, the Purchaser may return it freight prepaid within 14 days from date of shipment and we will refund the purchase price in full. This does not apply to machine sold “as is” or “subject to inspection”. This guarantee applies only to machines which we own. The machine must be returned in the same condition that it left our warehouse. MachineStation shall not be responsible for any damage done by truckers, riggers, or other parties. Machine damaged in shipping are not covered under the return privilege.
WARRANTY: Seller makes no warranties of any kind whatever, expressed, or implied. All specifications and descriptions of said goods are approximate, not binding and meant only as a guide. It is the Buyer’s responsibility to inspect the goods and ascertain if the specifications, description and condition of the goods confirm to the Buyer’s requirement.
MACHINE USE AND SAFETY: Buyer acknowledges that the goods described herein are pre-owned used goods which were neither designed or manufactured by the Seller, nor has the Seller knowledge of, or control over, the prior use or misuse of said goods: nor does the Seller have knowledge or control over the application of these goods by the Buyer. It is the Buyer’s (user’s), responsibility to provide proper safety devices, equipment and instructions for any particular use, and to take all necessary steps to confirm to all Federal, State or Local Government Safety Standards and including OSHA.
BUYER IS RESPONSIBLE FOR SCHEDULING TRANSPORTATION OF THIS MACHINE, AS WELL AS ALL COST TO MOVE IT. IF YOU NEED HELP WITH SCHEDULING, PLEASE CONTACT US AND WE WILL ASSIST YOU. WE SHIP GLOBALLY.
