AMERICAN Pacemaker ENGINE LATHE

SKU:
1149
Categories: , ,

Out of stock

Product Description


AMERICAN Pacemaker GEARED HEAD ENGINE LATHE

Make: The American Tool Works Co.
Model #: American Pacemaker 16×30
Serial #: 71475-49
Condition: Great


AMERICAN Pacemaker Features:

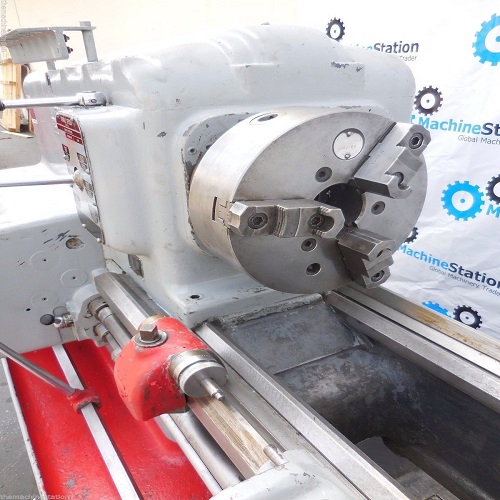

  •  10″ Cushman 3 Jaw Chuck #10236E5
  • Additional 4 Jaw Chuck
  • Tailstock
  • Thread Counter
  • Lathe Stop
  • Steadyrest
  • Compound Slide
  • Hardened and ground leadscrews

AMERICAN Pacemaker Specifications:

Capacities:
Swing Over Bed: 16″
Distance Between Centers: 30″

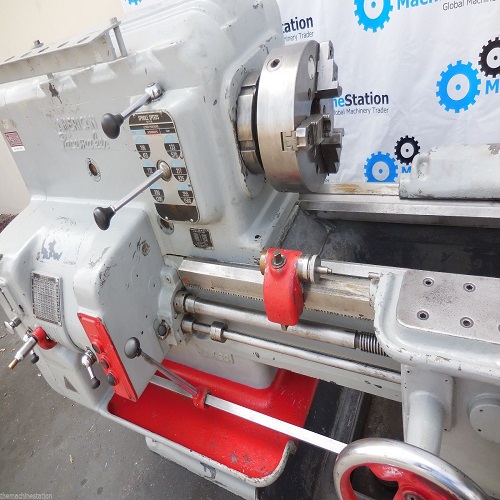

Spindle:
Thru Hole: 1.75″
Height from Floor to Center: 44″
No. of Speeds: 18
Spindle speed range: 25 – 1,500 rpm

Carriage:
Cross Slide Travel: 13″
Compound Slide Travel: 3-3/4″
T-Slot Dimensions: 1-5/8″ x 2-1/4″
Threading:
Thread Ranges (48): 1-1/2 to 2-7/8″

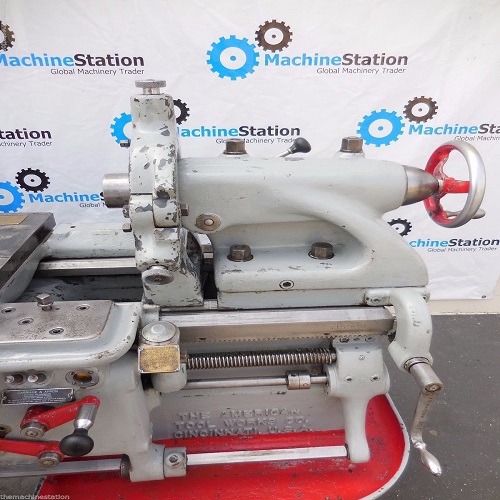

Tailstock:
Spindle Taper: #4 Morse Taper
Spindle Diameter: 3″
Spindle Travel: 4″
Bed:
Width: 15″
Length: 54″
General:
Motor: 10 Horsepower 220/440 1750 RPM 50/60 Hz
Electrical: 440 3 Phase
Overall Dimensions: 100″ x 38″ x 52″

More Detailed Specifications upon request

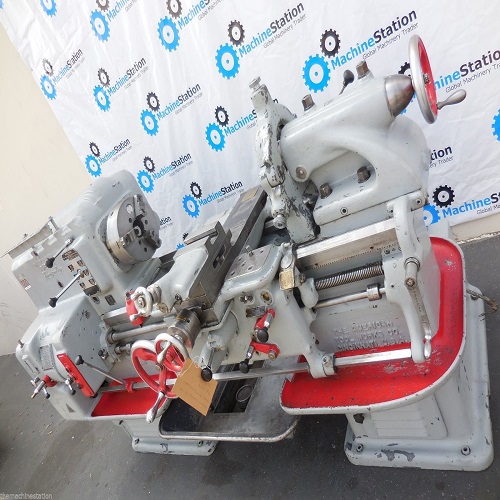

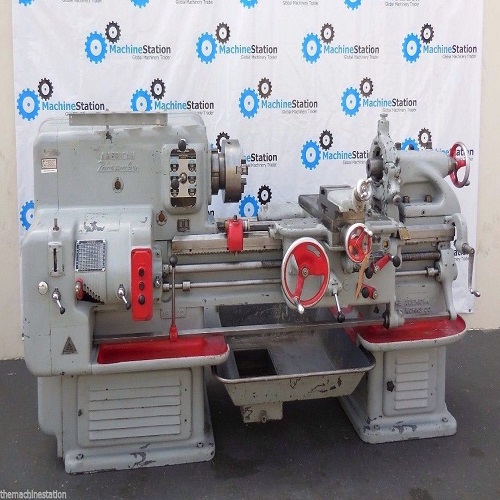

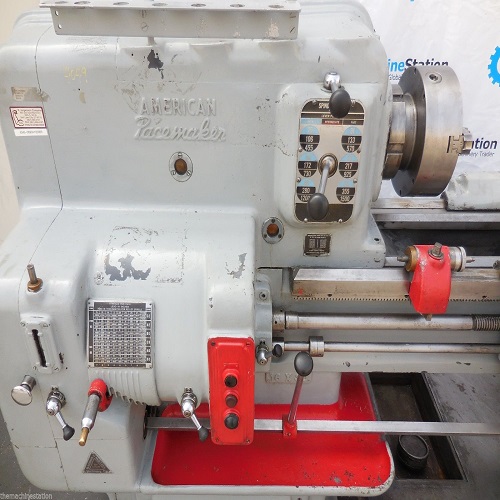

AMERICAN Pacemaker and Comes as shown in pictures.


PAYMENT: Banker’s check or wire transfer are preferred when dealing with transactions that exceed $1000. Any purchase of over $1000 will come with an extra 3% charge when paying through Paypal or with a Credit/Debit Card. All major credit cards are accepted.

WARRANTY: Sharp Industries warrants to the original purchaser, other than a purchaser for resale, (the “Purchaser”) that Sharp Industries machine tools shall be free of defects in materials and workmanship. For a period of one (1) year from completion of installation, Sharp Industries will, at its sole and exclusive discretion, either replace or repair any machine or part thereof defective in workmanship or material, at no charge to the Purchaser.

All warranty repairs must either be performed by Sharp Industries or MachineStation. To obtain warranty service, Purchaser must contactMachineStation. Purchaser must provide verification of the date of delivery/installation when requesting warranty service (dated installation report). Ground freight charges (UPS regular or common carrier truck) for all warranty replacement parts are paid by Sharp Industries. If machine is not operational, Sharp Industries will pay next-day air shipment charges for necessary parts weighing 100 lbs. or less. Materials or parts alleged to be defective shall be returned to Sharp Industries, at Sharp Industries’ request, transportation charges prepaid. After the warranty repair or replacement of a defective part, Sharp Industries’ warranty for such part shall continue for ninety (90) days or for the remainder of the original Limited Warranty, whichever is longer.

MACHINE USE AND SAFETY: Buyer acknowledges that the Seller has no knowledge or control over the application of these goods by the Buyer. It is the Buyer’s (user’s), responsibility to provide proper safety devices, equipment and instructions for any particular use, and to take all necessary steps to confirm to all Federal, State or Local Government Safety Standards and including OSHA.

BUYER IS RESPONSIBLE FOR SCHEDULING TRANSPORTATION OF THIS MACHINE, AS WELL AS ALL COST TO MOVE IT. IF YOU NEED HELP WITH SCHEDULING, PLEASE CONTACT US AND WE WILL ASSIST YOU. WE SHIP GLOBALLY.
