*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: |
Mori Seiki |
| Model: |
ZL-45B/1500 |
| Year: |
1999 |
| Machine Type: |
CNC Turning Center (Twin Turret) |
| CNC Control: |

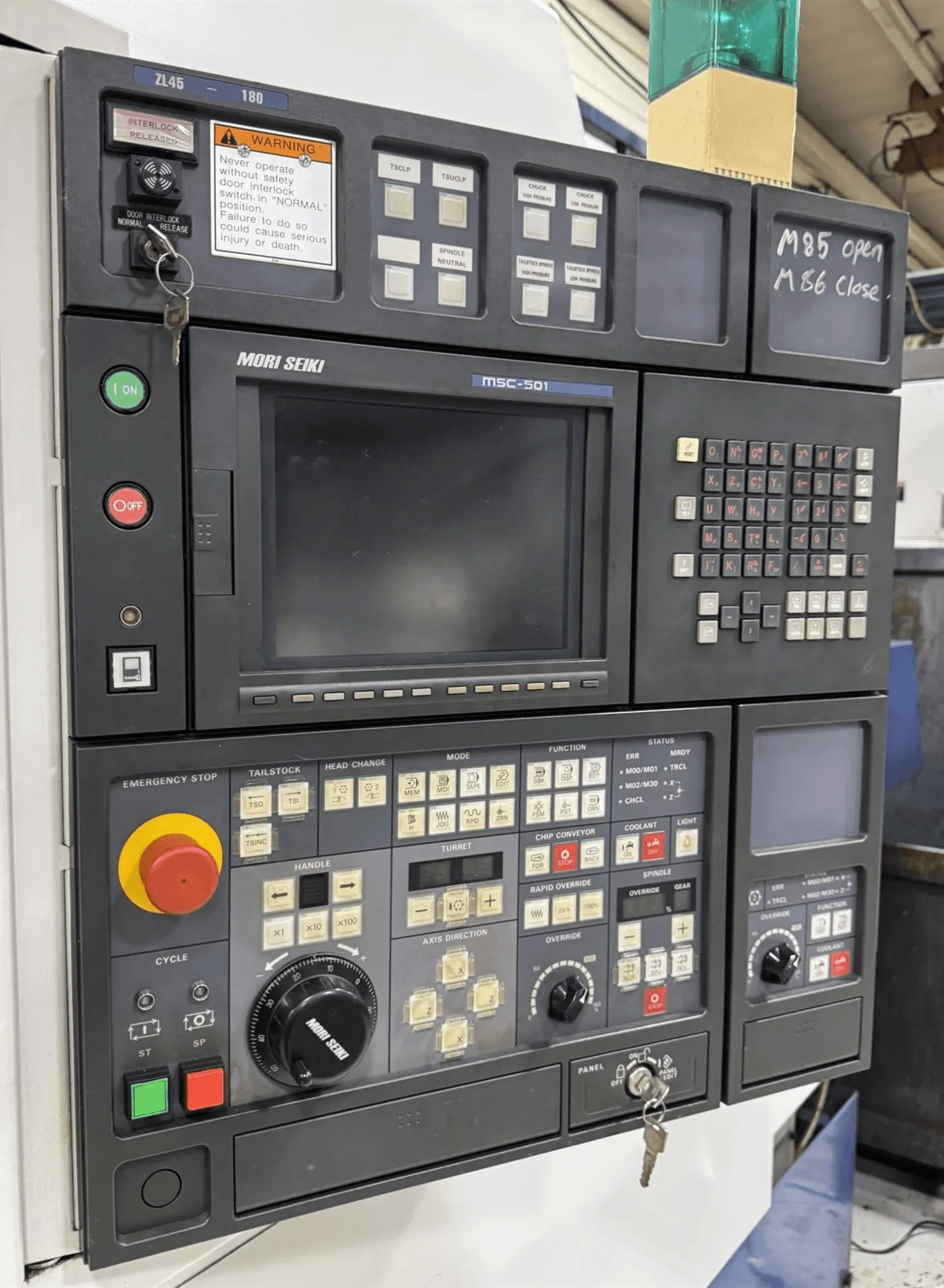

MORI SEIKI MSC-501 |
| Country of Origin: |
Japan |
| Equipped With: |
| MSC-501 CNC Control |

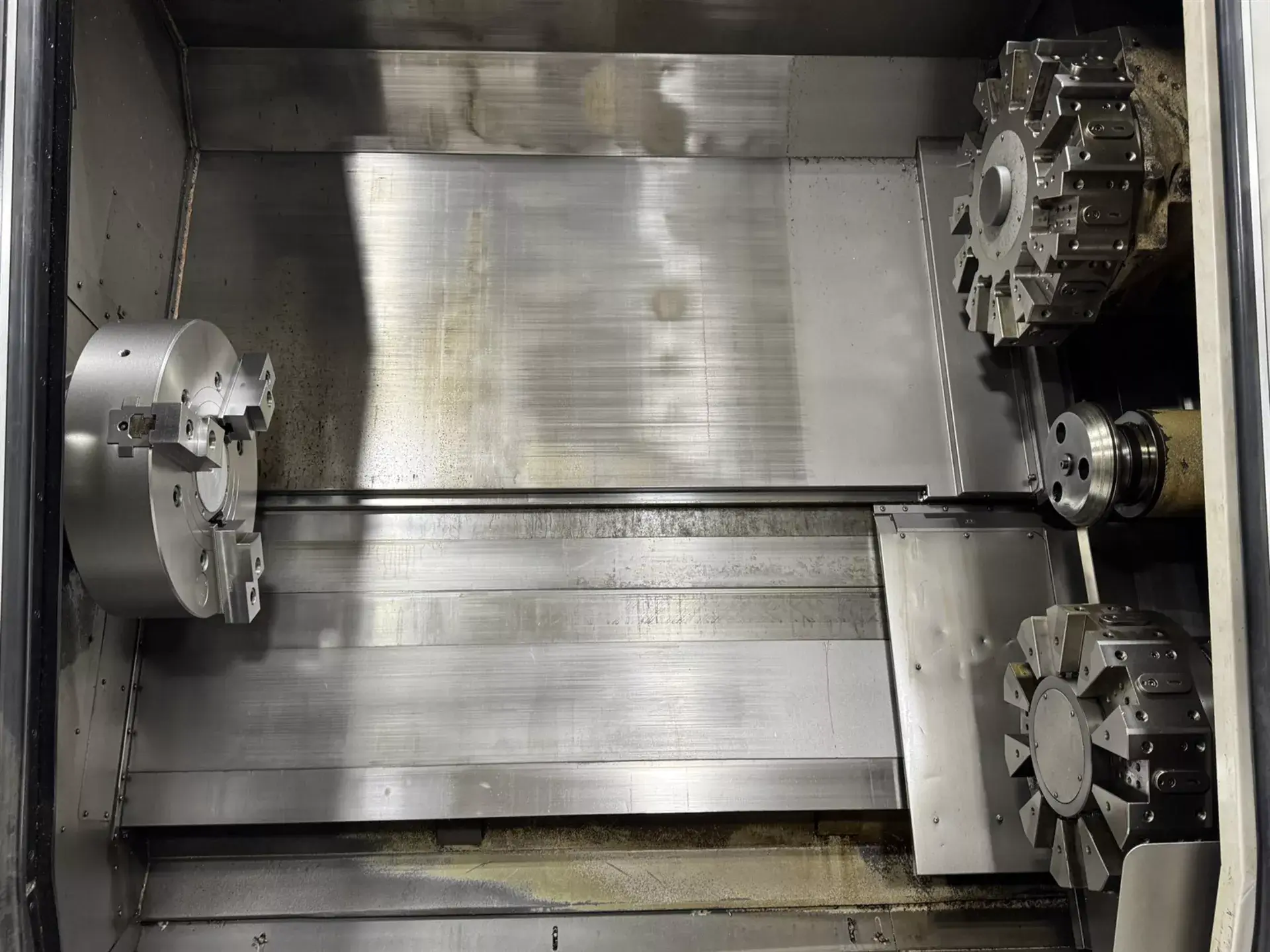

| Twin Turrets (Upper & Lower) |
| 12-Station Turrets |
| Hydraulic Chuck |
| Tailstock |
| Chip Conveyor |
| Coolant System |
| Full Enclosure |
| Capacity: |
| Max Swing Over Bed: ~30″ |
| Max Turning Diameter: ~24″ |
| Max Turning Length: ~60″ |
| Distance Between Centers: ~60″ |
| Chuck Size: 15″ – 18″ |
| Bar Capacity: ~4.0″ |
| Travels: |
| X-Axis Travel: ~10″ |
| Z-Axis Travel: ~62″ |
| Spindle: |
| Spindle Speed: ~2,000 RPM |
| Spindle Bore: ~4.1″ |
| Spindle Motor: ~30 HP |
| Turret: |
| Number of Stations: 12 (Each Turret) |
| Configuration: Twin Turret (Upper & Lower) |
| Feed Rates: |
| Rapid Traverse (X): ~472 IPM |
| Rapid Traverse (Z): ~787 IPM |
| Cutting Feed Rate: Programmable |

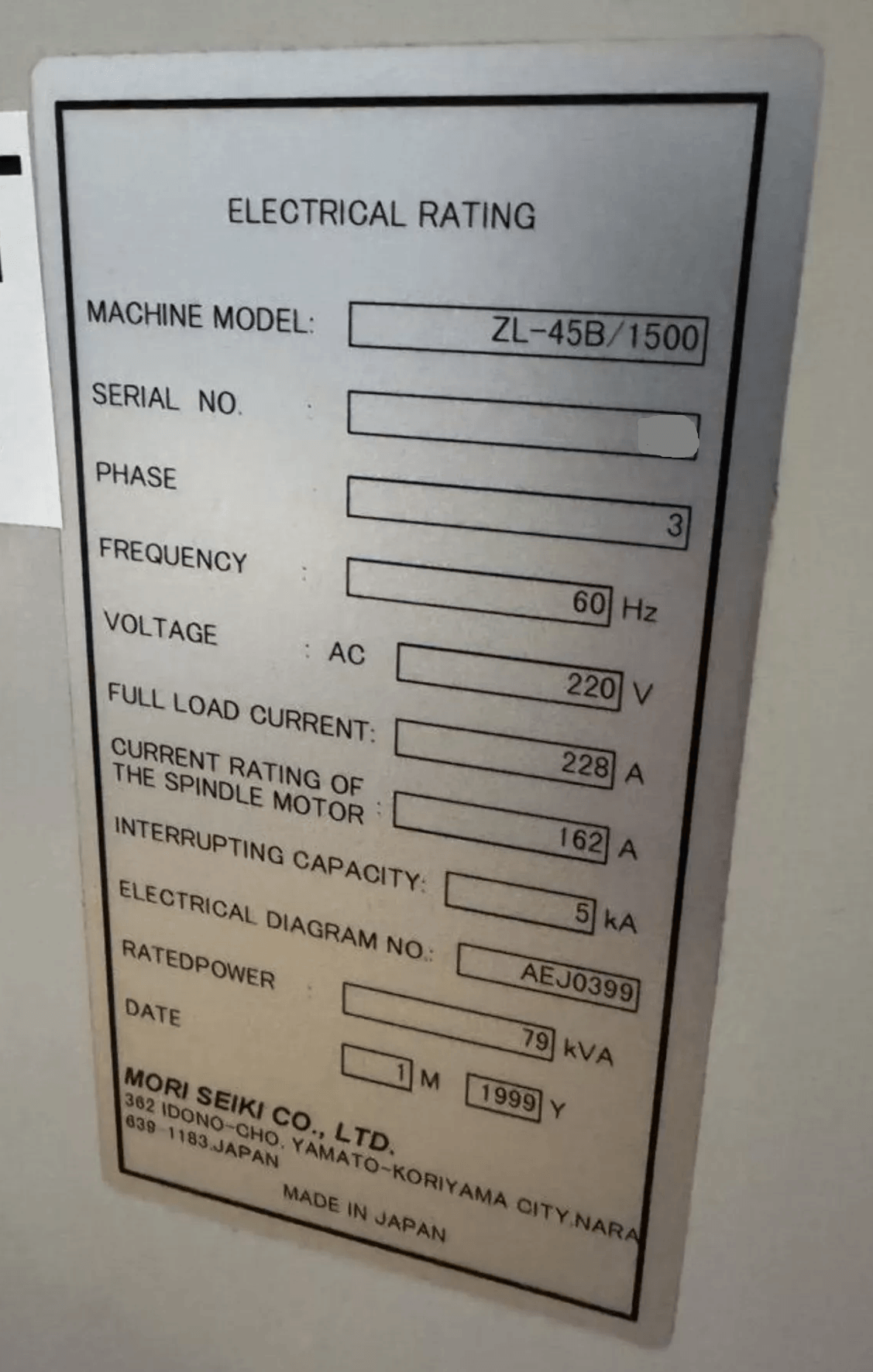

| Electrical: |
| Voltage: AC 220V |
| Phase: 3 Phase |
| Frequency: 60 Hz |
| General: |
| Power: AC 220V, 3-Phase, 60 Hz |
| Rated Capacity: 79 kVA |
| Overall Dimensions: ~210″ x 90″ x 95″ High |
| Weight: ~38,000 lbs |
