*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Muratec |
| Model No.: | MW120 |
| Year: | 2014 |
| Machine Type: | Twin Spindle CNC Turning Center |

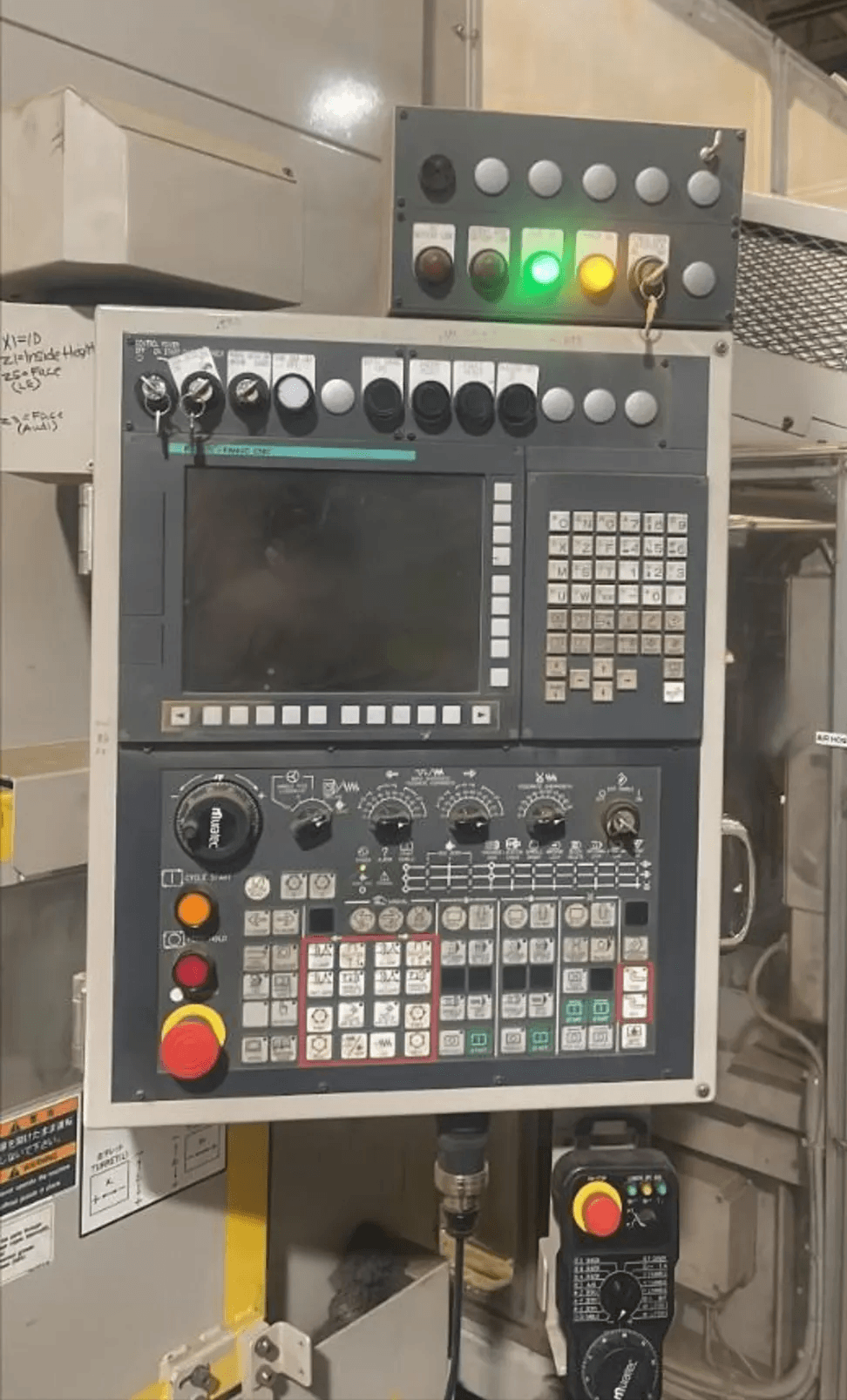

| Control: | Fanuc CNC Control |
| Country of Origin: | Japan |
| Features: |
|---|
| Fanuc CNC Control |
| Twin Opposed Spindles |

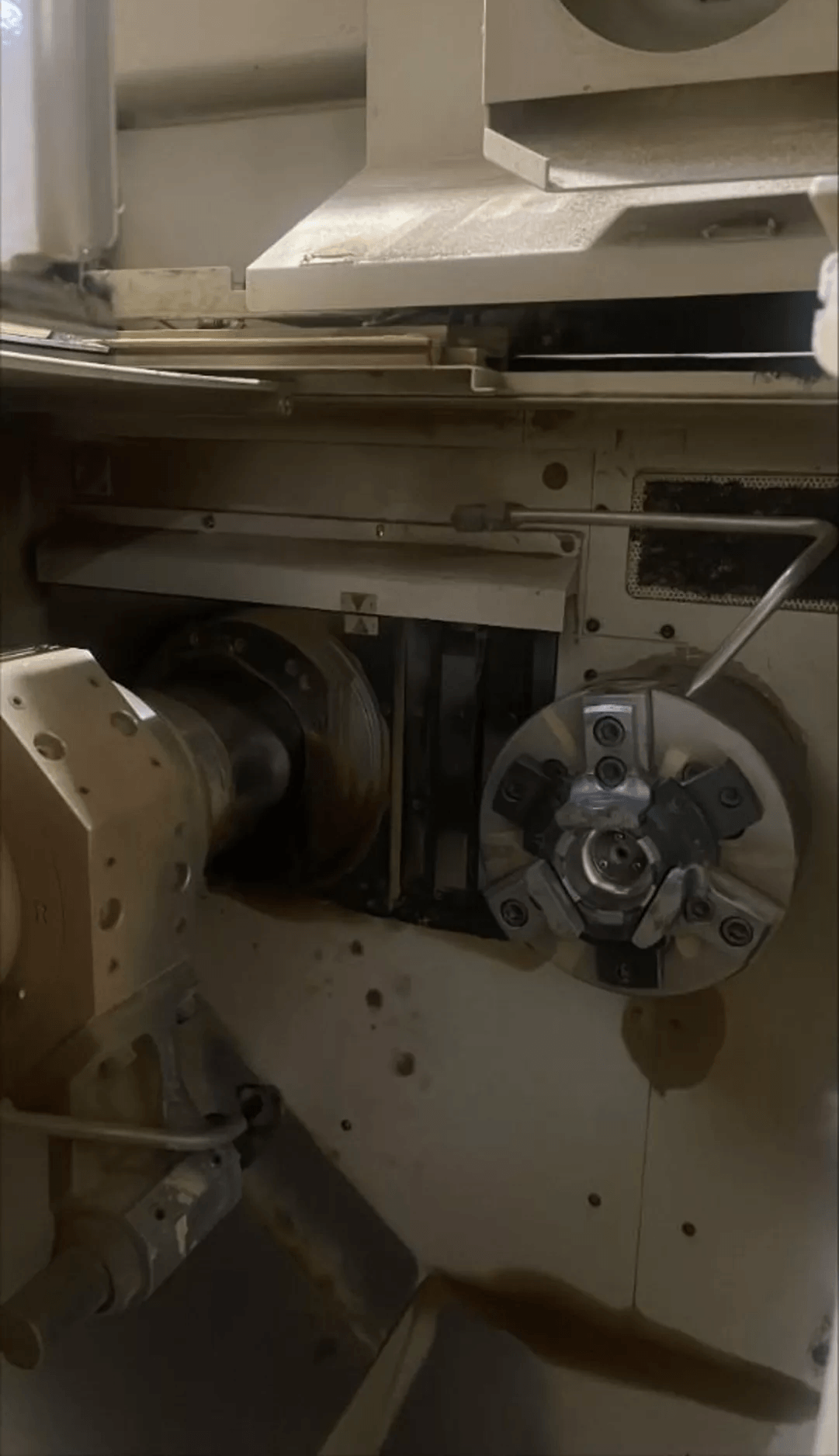

| Dual 3-Jaw Hydraulic Chucks |
| Integrated Gantry Loader |
| Automatic Part Transfer System |
| Dual Turret Configuration |
| Automatic Load / Unload Capability |
| High Production Turning Cell |
| Coolant System |
| Hydraulic System |
| Automatic Lubrication System |
| Fully Enclosed Splash Guard |
| Parts Catcher |
| Chip Conveyor |
| Compact Production Footprint |
| Capacity: |
|---|
| Maximum Turning Diameter: 4.72″ |
| Maximum Turning Length: 4.72″ |
| Bar Capacity: 1.57″ |
| Chuck Size: 6″ |
| Distance Between Spindles: Approx. 14.2″ |
| Spindle: |
|---|
| Number of Spindles: 2 |
| Spindle Speed: 4,500 RPM |
| Spindle Motor: 15 HP (Each) |
| Spindle Nose: A2-5 |
| Turret: |
|---|
| Number of Turrets: 2 |
| Turret Capacity: 8 Stations Each |
| Tool Size: 20 mm |
| Boring Bar Capacity: 1.25″ |
| Automation: |
|---|
| Integrated Gantry Robot Loader |
| Automatic Part Transfer Between Spindles |
| Automated High Production Operation |

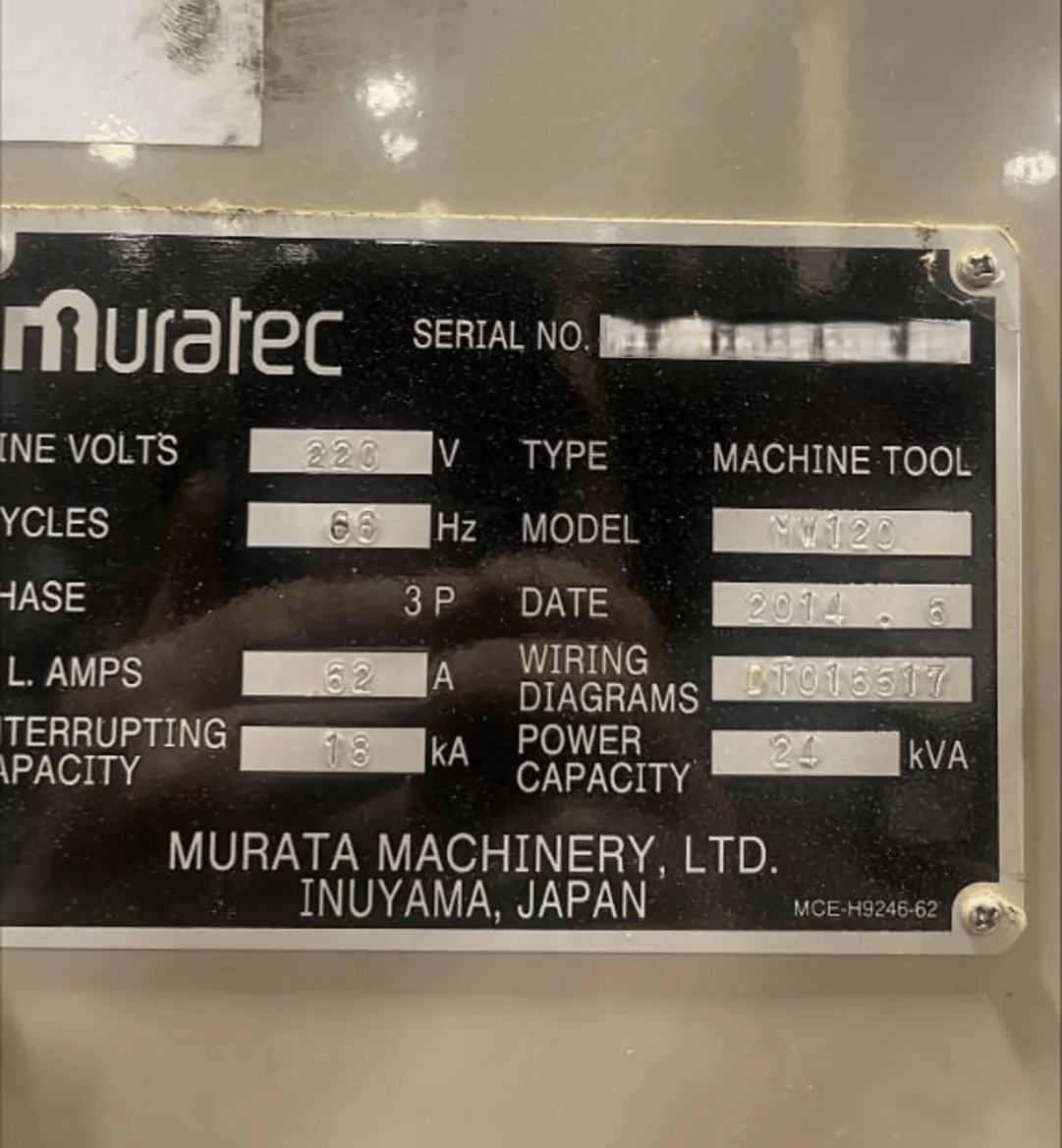

| Electrical: |
|---|
| Voltage: 220V |
| Phase: 3 Phase |
| Frequency: 60 Hz |
| Power Capacity: 24 kVA |
| General: |
|---|
| Machine Weight: Approx. 12,000 Lbs |
| Machine Dimensions: Approx. 95″ x 70″ x 90″ |
