*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Nakamura-Tome |
| Model: | SC-250 |
| Machine Type: | CNC Turning Center |

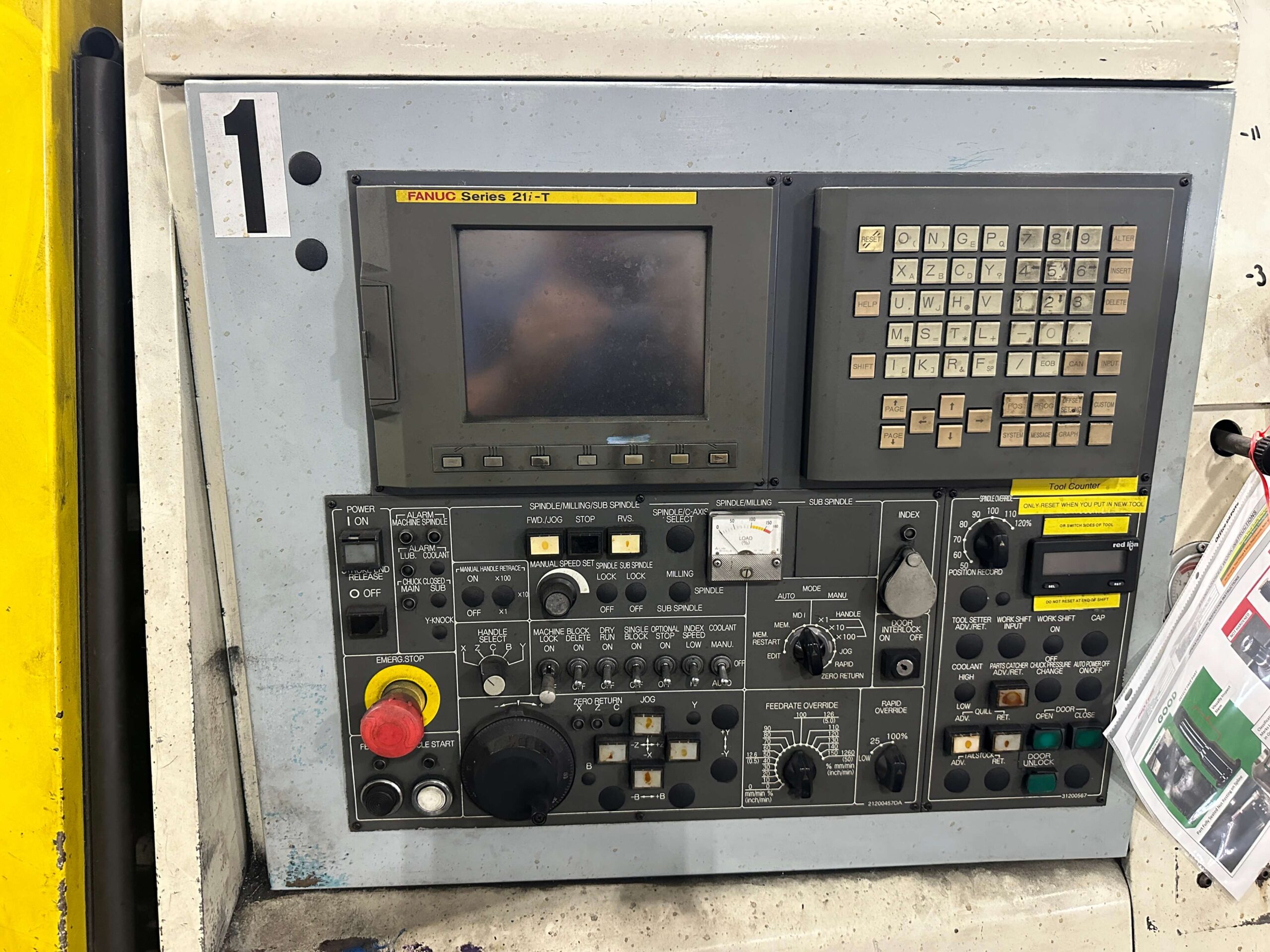

| CNC Control: | FANUC Series 21i-T |
| Equipped With: |
|---|
| FANUC Series 21i-T CNC Control |
| 8″ Hydraulic 3-Jaw Chuck |
| 12-Station Turret |
| Hydraulic Tailstock |
| Coolant System |
| Chip Conveyor |
| Enclosed Slant-Bed Machine Design |
| Rigid Box-Type Slideways |
| Tool Counter |
| Parts Catcher |
| Capacity: |
|---|
| Maximum Swing Over Bed: 17.72″ |
| Maximum Swing Over Saddle: 15.75″ |
| Maximum Turning Diameter: 11.81″ |
| Maximum Turning Length: 19.69″ |
| Distance Between Centers: 27.13″ |
| Bar Capacity: 2.00″–2.56″ |
| Travels: |
|---|
| X-Axis Travel: 6.99″–8.75″ |
| Z-Axis Travel: 21.65″–25.00″ |
| Spindle: |
|---|
| Spindle Speed: Up to 5,000 RPM |
| Spindle Motor: 20 HP |
| Spindle Nose: A2-6 |
| Spindle Bore: 2.56″ |
| Turret: |
|---|
| Turret Type: Automatic Turret |
| Number of Tool Stations: 12 |
| Tailstock: |
|---|
| Quill Taper: MT-4 |
| Quill Diameter: Approx. 3.54″ |
| General: |
|---|
| Machine Dimensions (Approx.): 102″ L × 65″ W × 75″ H |
| Machine Weight (Approx.): 8,600 lbs. |
