*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Nakamura-Tome |
| Model: | Super NTJ |
| Year: | 2007 |
| Machine Type: | CNC Milling & Turning Center |

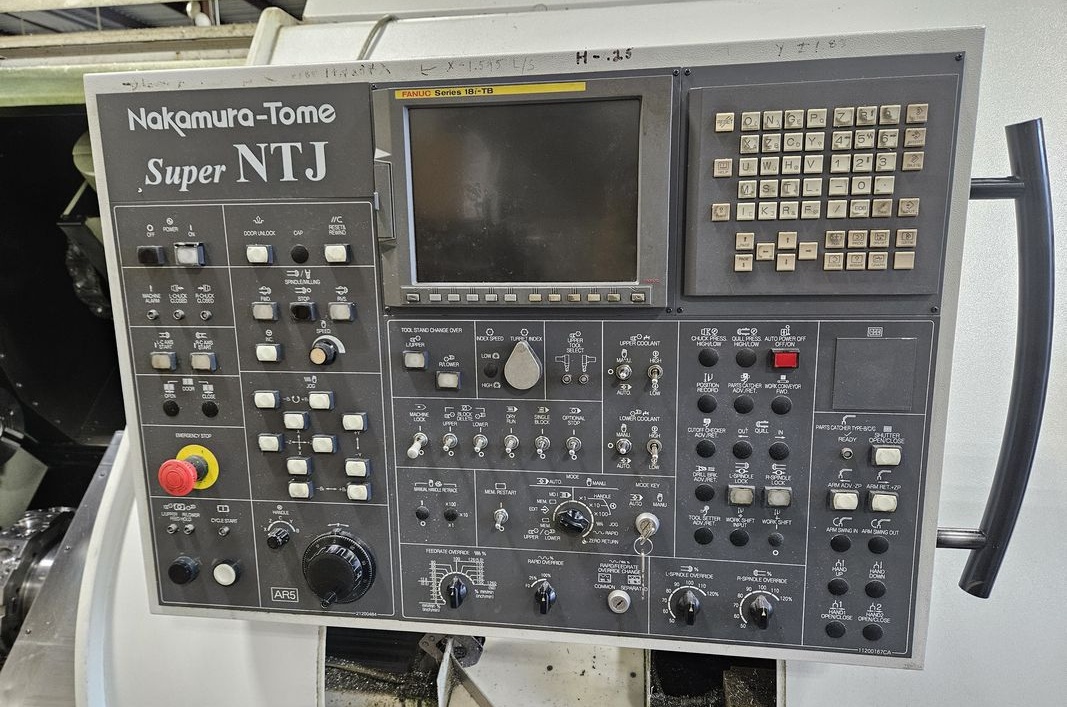

| CNC Control: | Fanuc 18i-TB |
| Equipped With: |
|---|
| Bar Feeder: LNS Quickload Servo S3 |
| Bar Feeder Serial Number: 303708 |
| High-Pressure Coolant: (2) 1,000 PSI Coolant Pumps |
| Chip Management: Chip Conveyor |

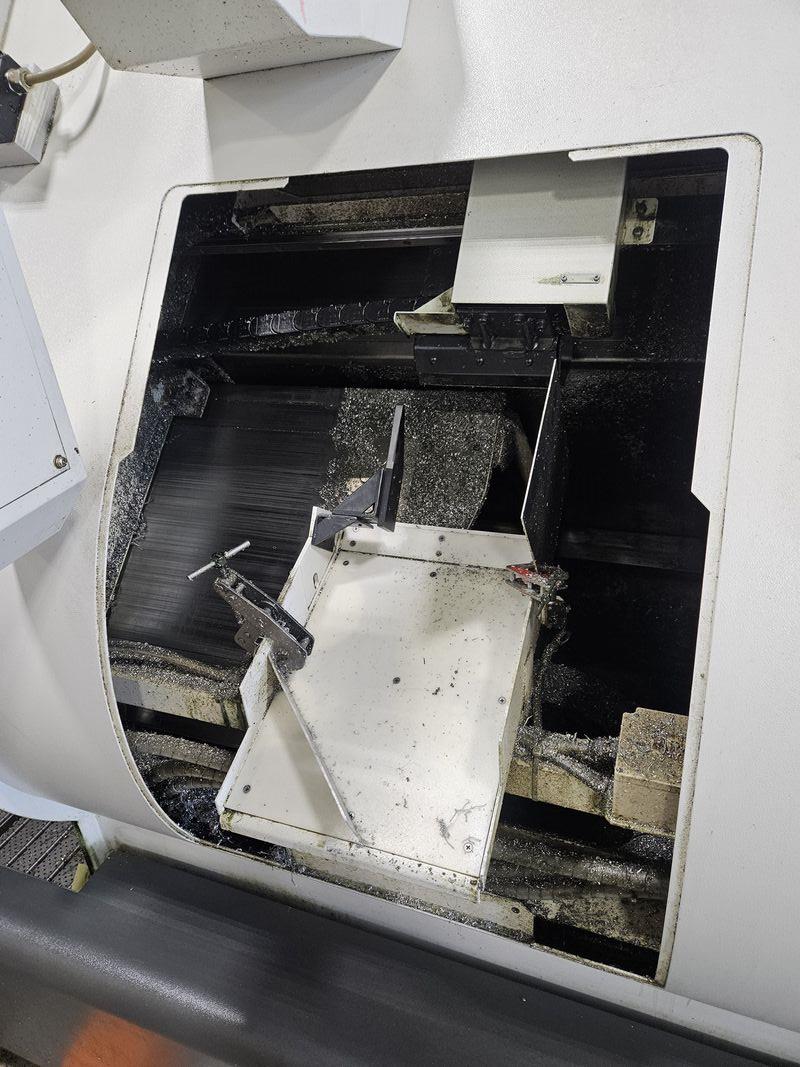

| Parts Handling: Parts Chute |
| Capacity: |
|---|
| Max. Swing Over Cross Slide: 7.48″ |
| Max. Turning Diameter: 7.48″ |
| Max. Turning Length: 24.41″ |
| Max. Bar Capacity – Main Spindle: 2.50″ |
| Max. Bar Capacity – Sub Spindle: 2.10″ |
| Distance Between Spindles: 8.27″ to 38.22″ |
| Travels: |
|---|
| X1-Axis Travel: 13.58″ |
| X2-Axis Travel: 6.59″ |
| Y-Axis Travel: 1.77″ |
| Z1-Axis Travel: 48.82″ |
| Z2-Axis Travel: 6.97″ |
| B-Axis Tilt: 91° |
| Rapid Traverse – X: 630 IPM |
| Rapid Traverse – Z: 1,575 IPM |
| Spindle: |
|---|
| Main Spindle Nose: A2-6 |
| Sub Spindle Nose: A2-5 |
| Sub Spindle Bore: 2.48″ |
| Main Spindle Speed: 4,500 RPM |
| Sub Spindle Speed: 5,000 RPM |
| Main Spindle Motor: 20 HP |
| Sub Spindle Motor: 1.5 HP |
| Turret: |
|---|
| Upper Turret Positions: 24 Stations |
| Lower Turret Positions: 24 Stations |
| Live Tool Positions: 12 per Turret |
| Upper & Lower Turret Milling Speed: 6,000 RPM |
| General: |
|---|
| Overall Dimensions (Approx.): 156″ L × 94″ W × 89″ H |
| Machine Weight (Approx.): 27,500 lbs. |
| Cutting Hours: 10,077 |
