*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Nakamura-Tome |
| Model: | TW-20 |
| Machine Type: | CNC Milling & Turning Center |

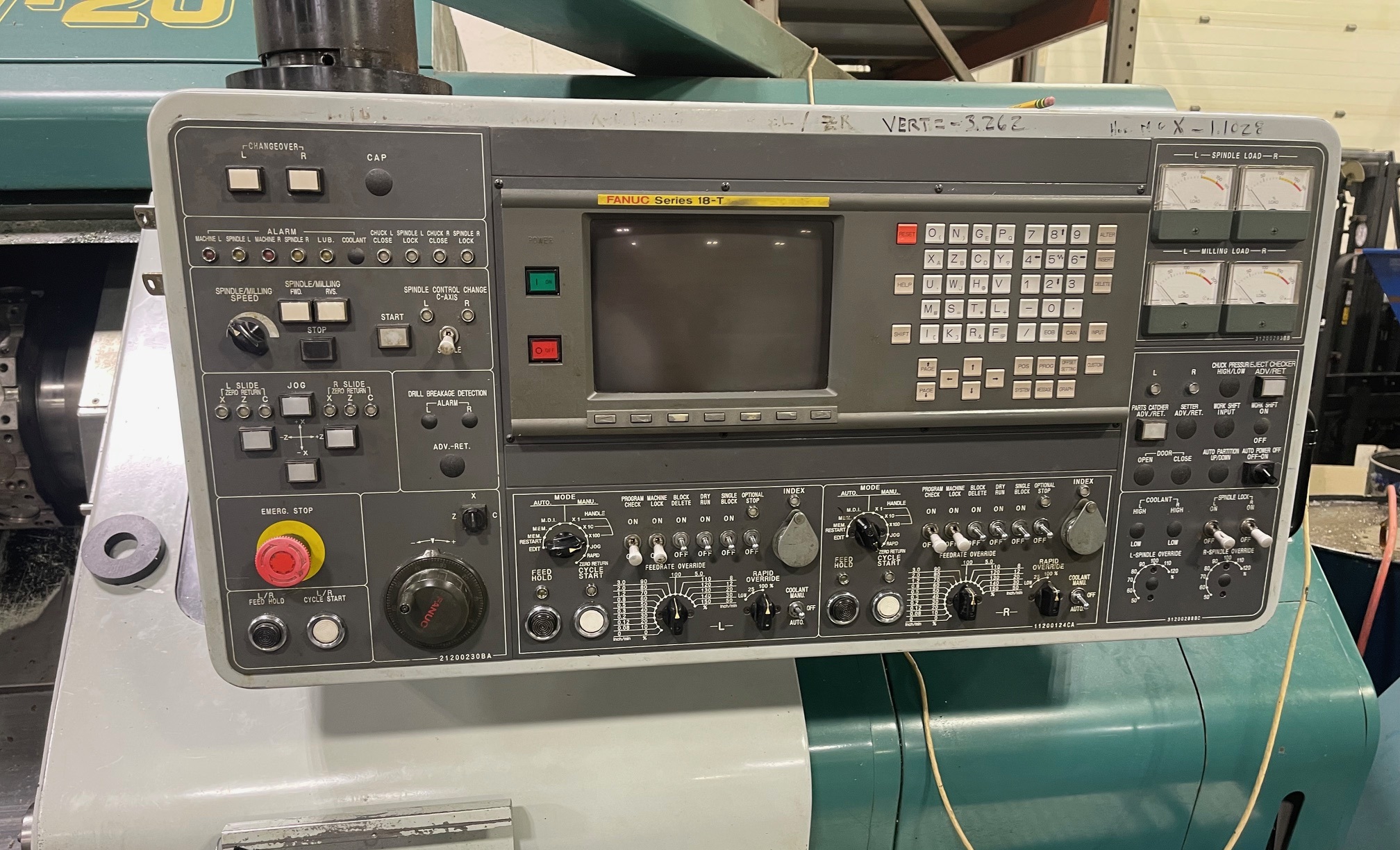

| CNC Control: | Fanuc 18-T |
| Equipped With: |
|---|
| Chuck: Collet Chuck |
| Parts Handling: Parts Catcher with Conveyor |
| Chip Management: Chip Conveyor |
| Coolant System: Included |
| Capacity: |
|---|
| Max. Turning Diameter: 10.63″ |
| Max. Turning Length: 7.56″ |
| Max. Swing Over Bed: 10.63″ |
| Bar Capacity: 2″ |
| Distance Between Spindles: Approx. 11.81″ to 42.51″ |
| Travels: |
|---|
| X1-Axis Travel: 7.68″ |
| X2-Axis Travel: 7.68″ |
| Z1-Axis Travel: 10.43″ |
| Z2-Axis Travel: 30.70″ |
| Spindle: |
|---|
| Main Spindle Speed: 50–5,000 RPM |
| Sub-Spindle Speed: 50–5,000 RPM |
| Main Spindle Motor: 20 HP |
| Sub-Spindle Motor: 20 HP |
| Spindle Nose: A2-6 |
| Main Spindle Bore: 2.56″ |
| Sub-Spindle Bore: 2.56″ |
| Turret: |
|---|
| Turret Capacity: 12 Stations per Turret |
| Driven Tool Speed: Up to 3,600 RPM |
| Driven Tool Stations: Up to 12 per Turret |
| General: |
|---|
| Machine Weight (Approx.): 17,200 lbs. |
| Machine Dimensions (Approx.): 135″ L × 82″ W × 84″ H |
