*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Nakamura Tome |
| Model: | WT-250 |
| Year: | 2005 |
| Condition: | Used – Good |
| Machine Type: | CNC Multi-Tasking Turning Center |

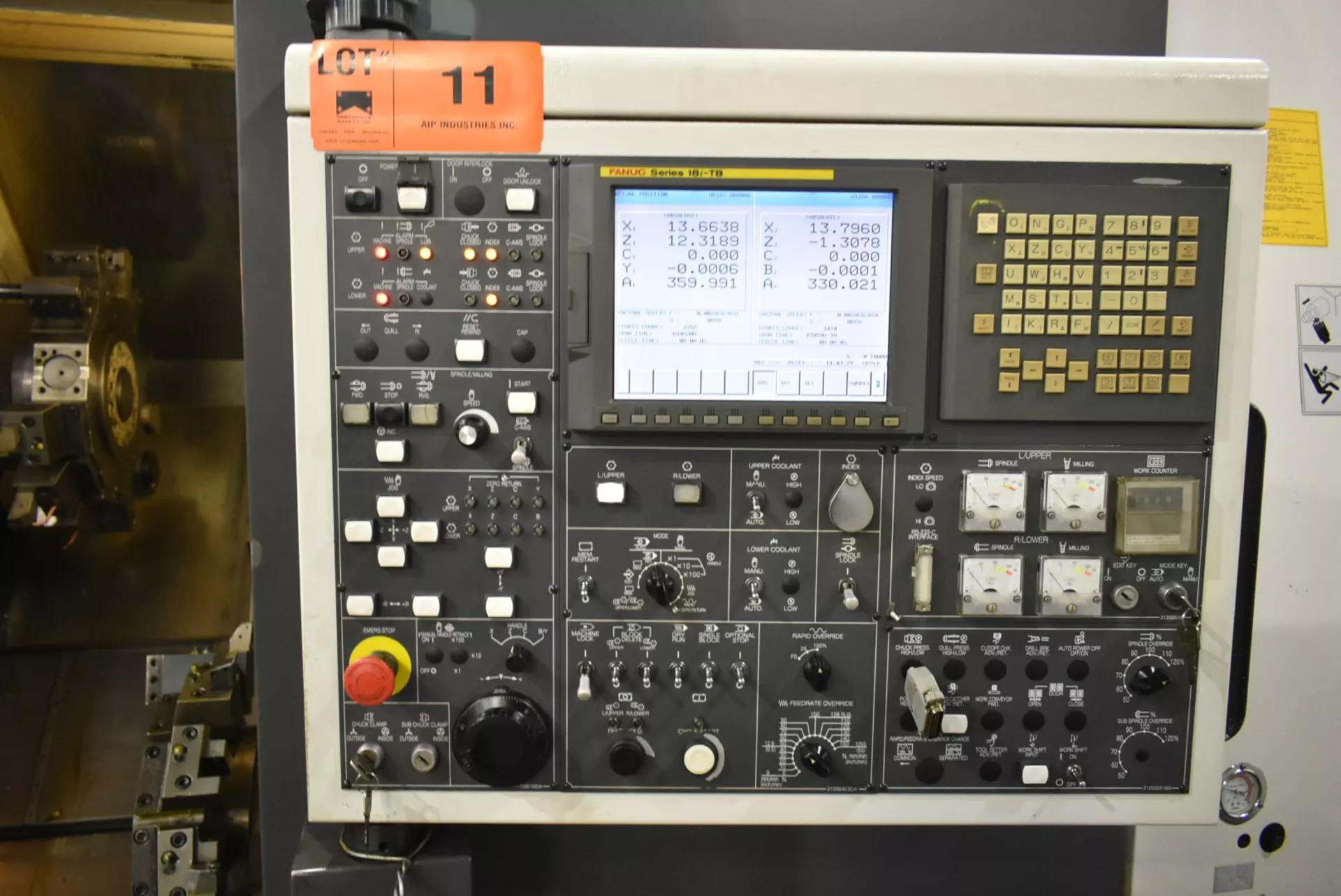

| Control: | Fanuc Series 18i-TB CNC Control |
| Equipped With: |
|---|
| Fanuc Series 18i-TB CNC Control |

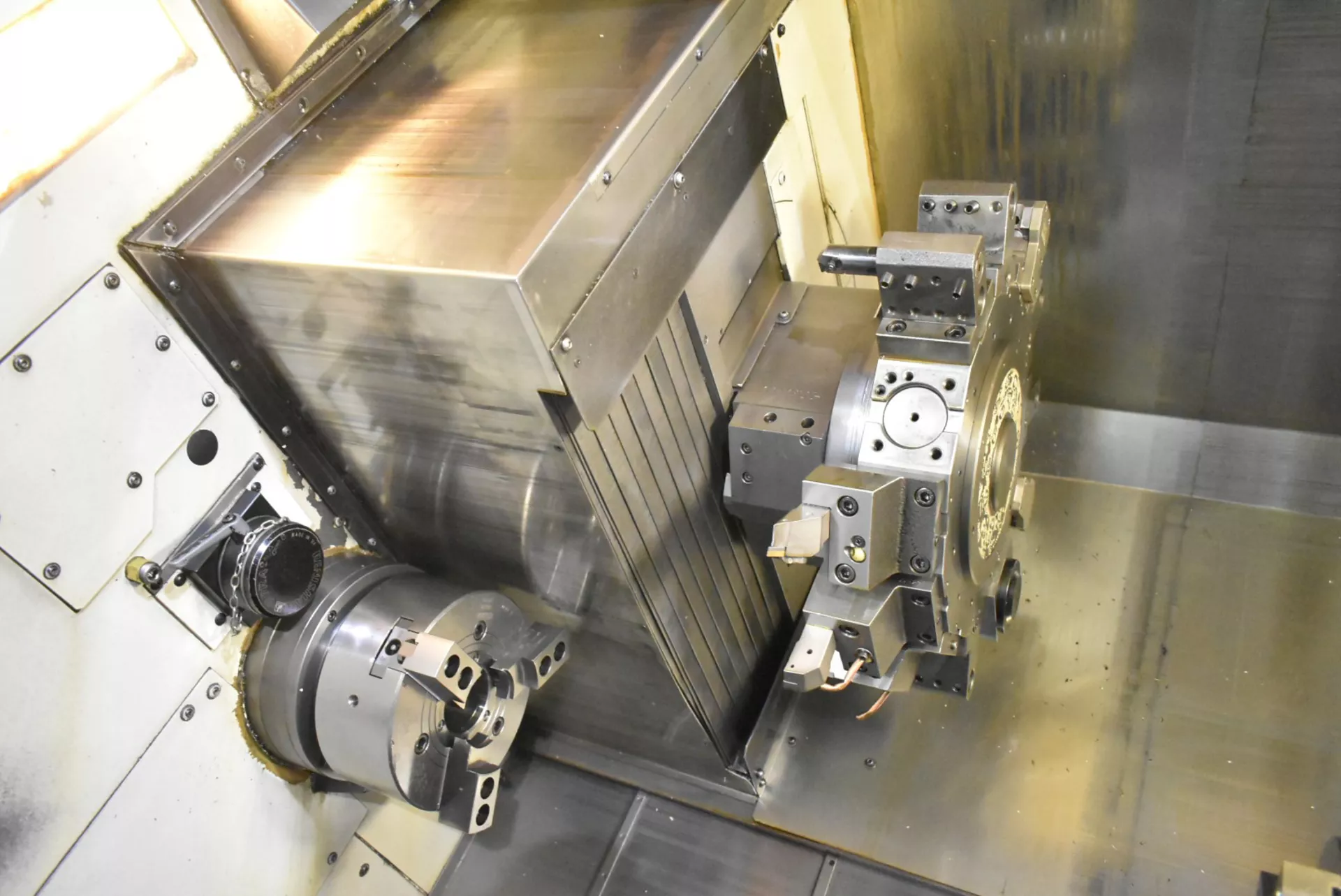

| Twin Opposed Spindles |

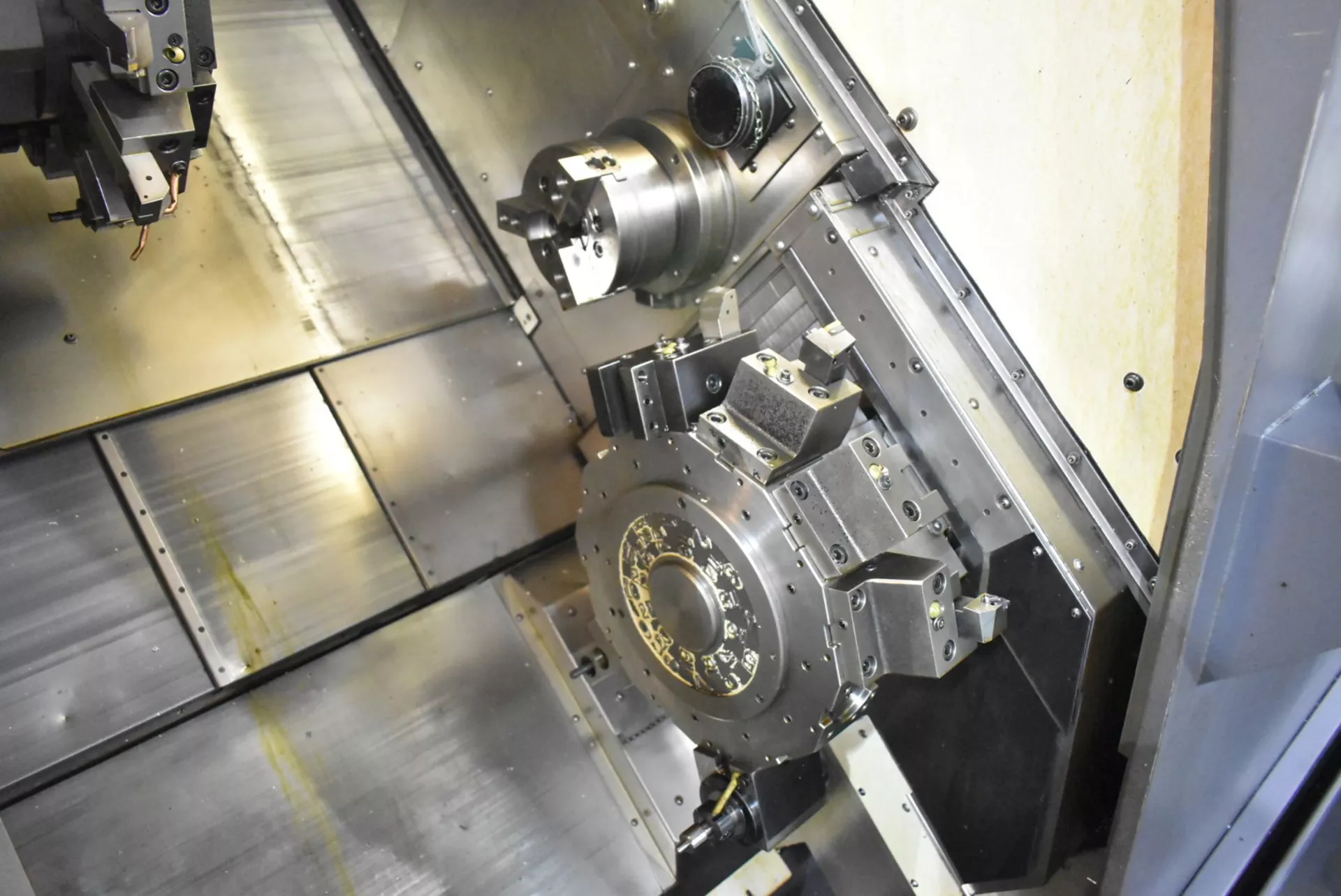

| Twin 12-Station Turrets |
| Kitagawa B208 8″ Hydraulic Main Chuck |
| Kitagawa B206 6″ Hydraulic Sub Chuck |
| Live Tool Capability |
| Parts Catcher |
| Chip Conveyor |
| Coolant System |
| Capacity: |
|---|
| Swing Over Bed: 9.84″ |
| Maximum Turning Length: 21.85″ |
| Main Chuck Size: 8″ |
| Sub Chuck Size: 6″ |
| Travels: |
|---|
| X1-Axis Travel: 7.68″ |
| Z1-Axis Travel: 23.62″ |
| X2-Axis Travel: 7.68″ |
| Z2-Axis Travel: 23.62″ |
| Feedrate: |
|---|
| Rapid Traverse Rate (X-Axis): 945 IPM |
| Rapid Traverse Rate (Z-Axis): 1,181 IPM |
| Spindle: |
|---|
| Main Spindle Speed: 4,500 RPM |
| Main Spindle Motor: 25 HP |
| Sub Spindle Speed: 4,500 RPM |
| Sub Spindle Motor: 14.75 HP |
| Main Chuck Size: 8″ |
| Sub Chuck Size: 6″ |
| Turret: |
|---|
| Upper Turret Stations: 12 |
| Lower Turret Stations: 12 |
| Turret Configuration: Twin Turret |
| Live Tool Capability: Yes |
| General: |
|---|
| Air Required: 72 PSI |
| Power: 220V / 50-60 Hz / 3 Phase / 77 KVA |
| Overall Dimensions: 146″ L x 92″ W x 88″ H Approx. |
| Machine Weight: 13,228 Lbs Approx. |
