*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 2115 |
| Make: | Femco |
| Model: | HL-250 |
| Condition | Brand New |
| Equipped With: |
|---|
| FANUC 0iTF CNC Control |
| 10.4″ LCD Screen Display |

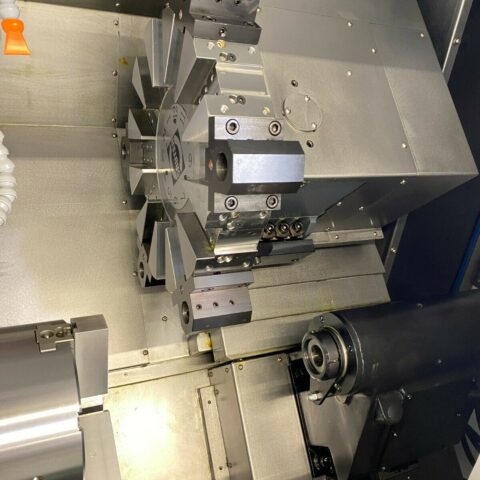

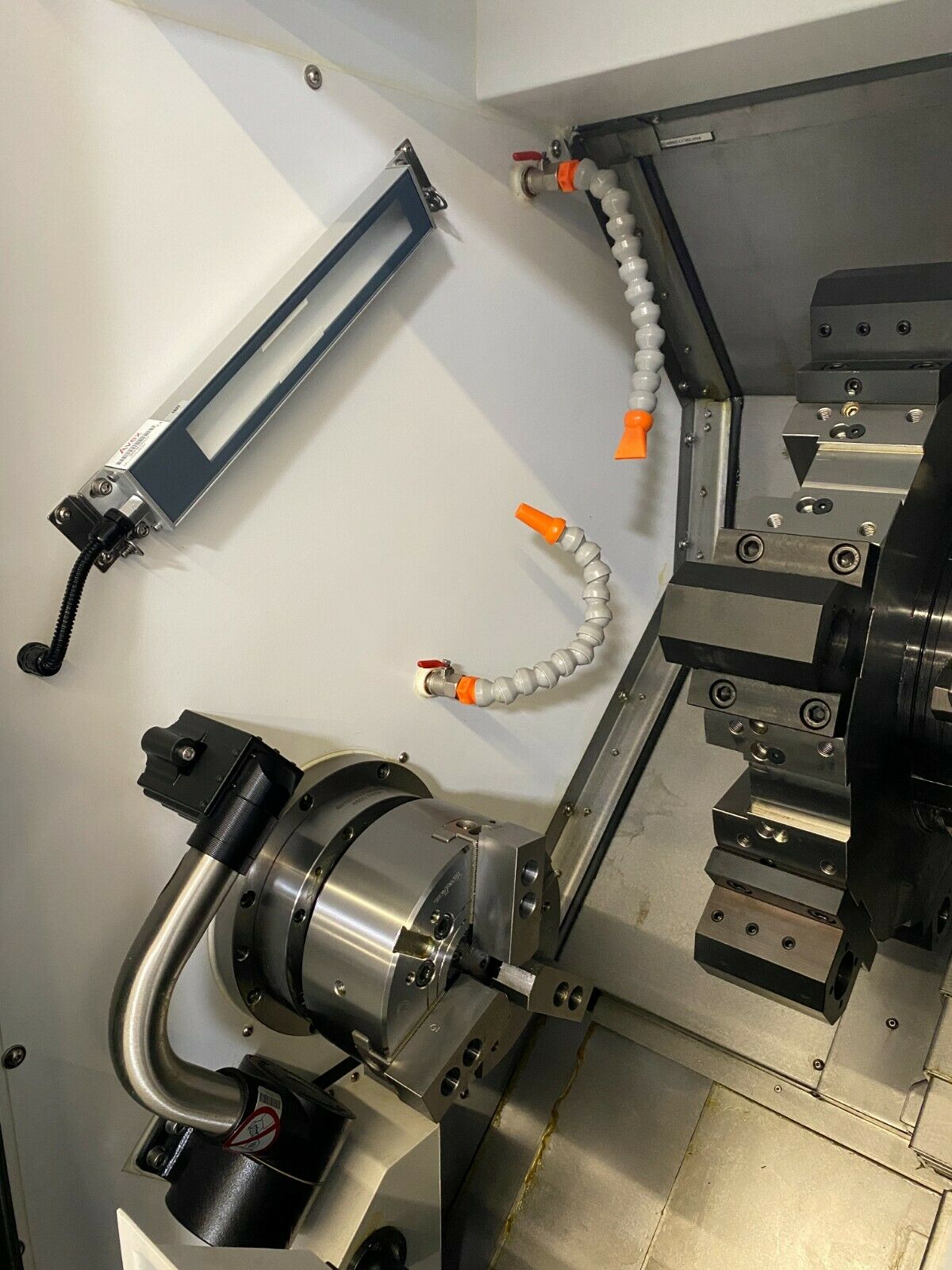

| 12-Station SAUTER Servo Turret |
| Tool Presetter |
| Slant Bed Construction |
| USB & PCMCIA Drive |

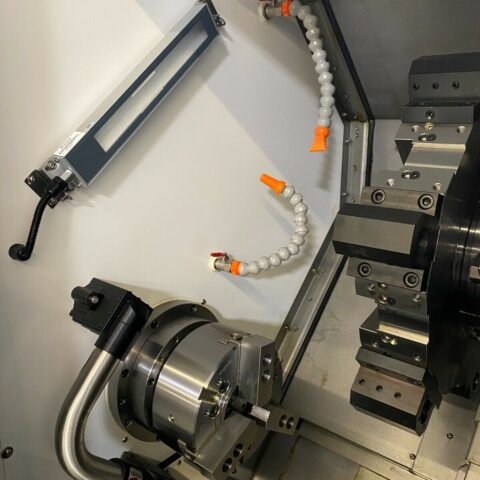

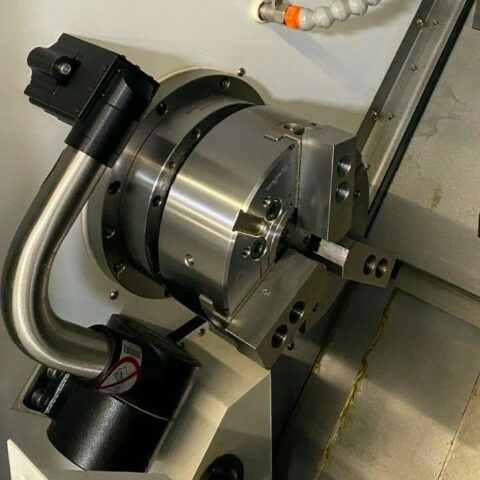

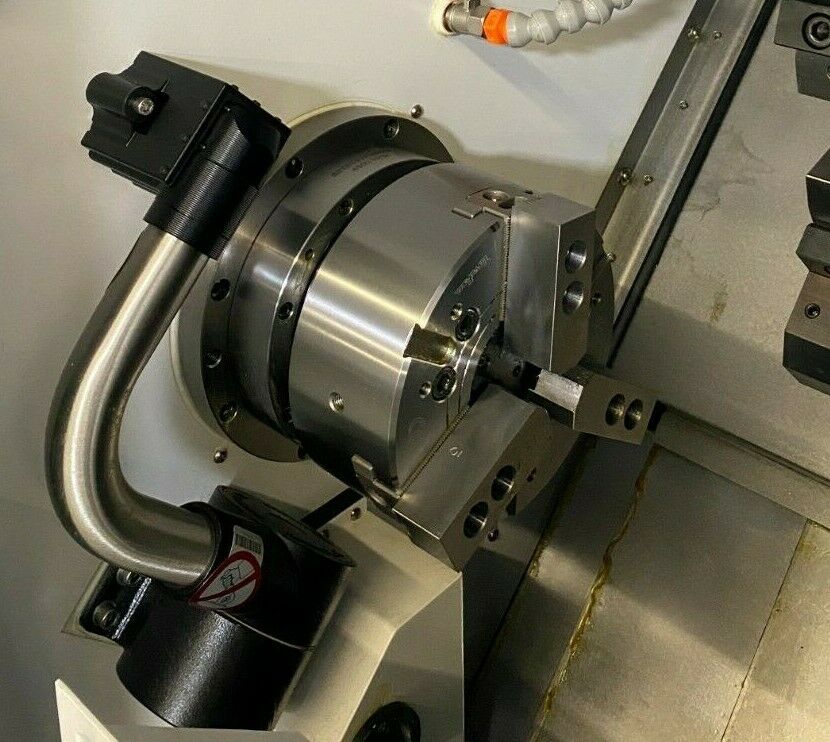

| 8″ 3 Jaw Chuck |
| A2-6 4500 RPM Spindle |

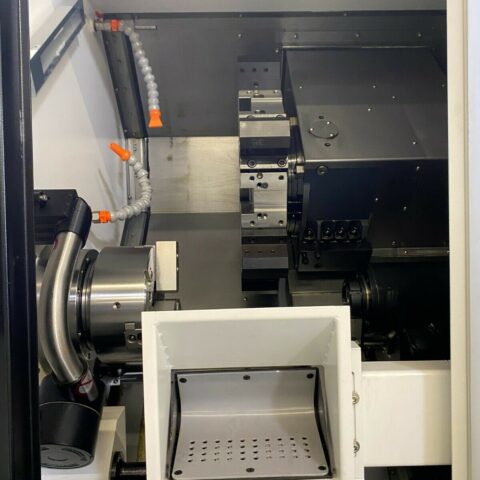

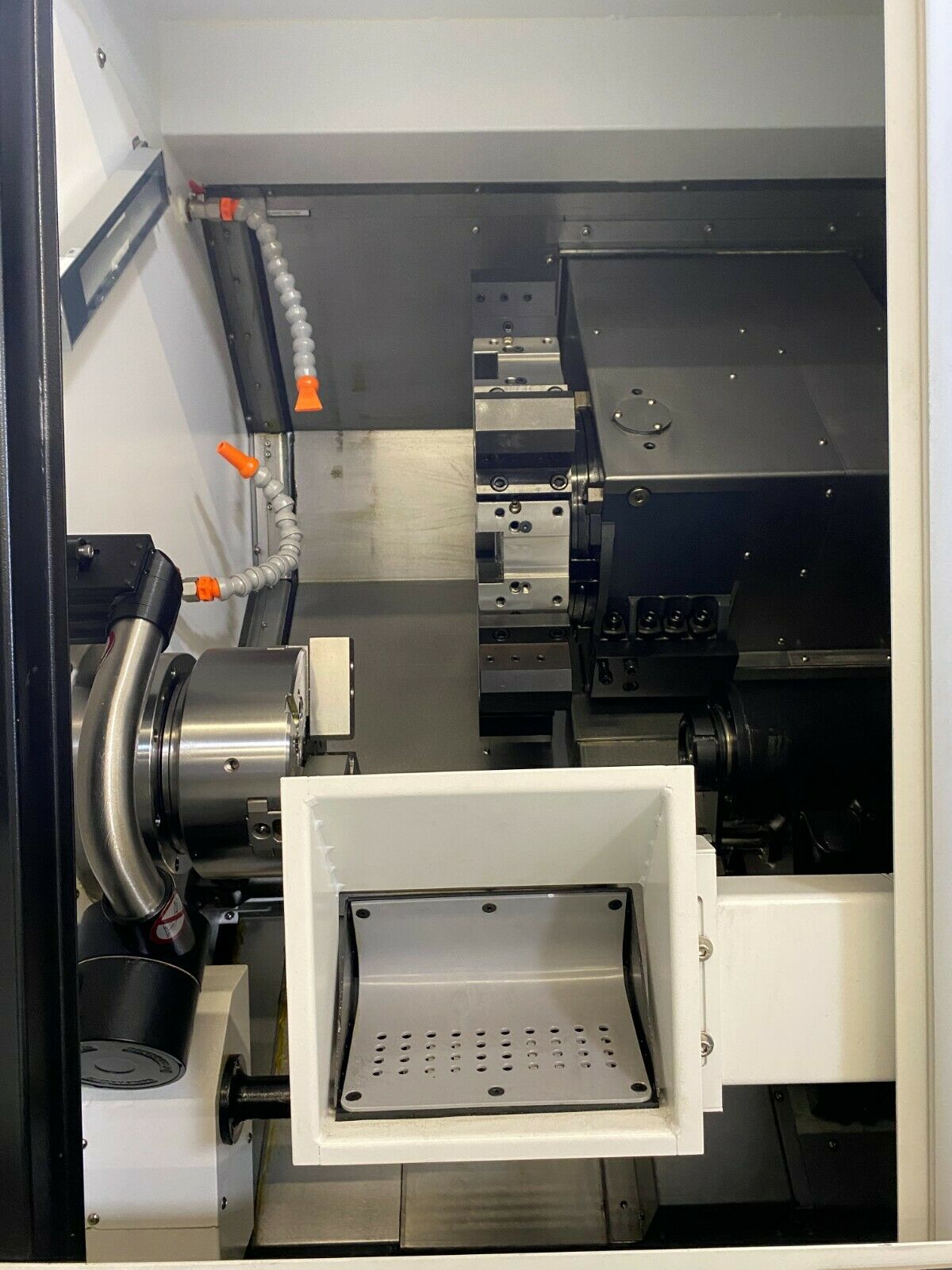

| Auto Parts Catcher |
| Auto Parts Conveyor Belt |
| Hydraulic Tailstock with Power Quill |
| Boring Tool Holders X 4 QTY |
| Facing Tool Holder |
| Chip Pan and |

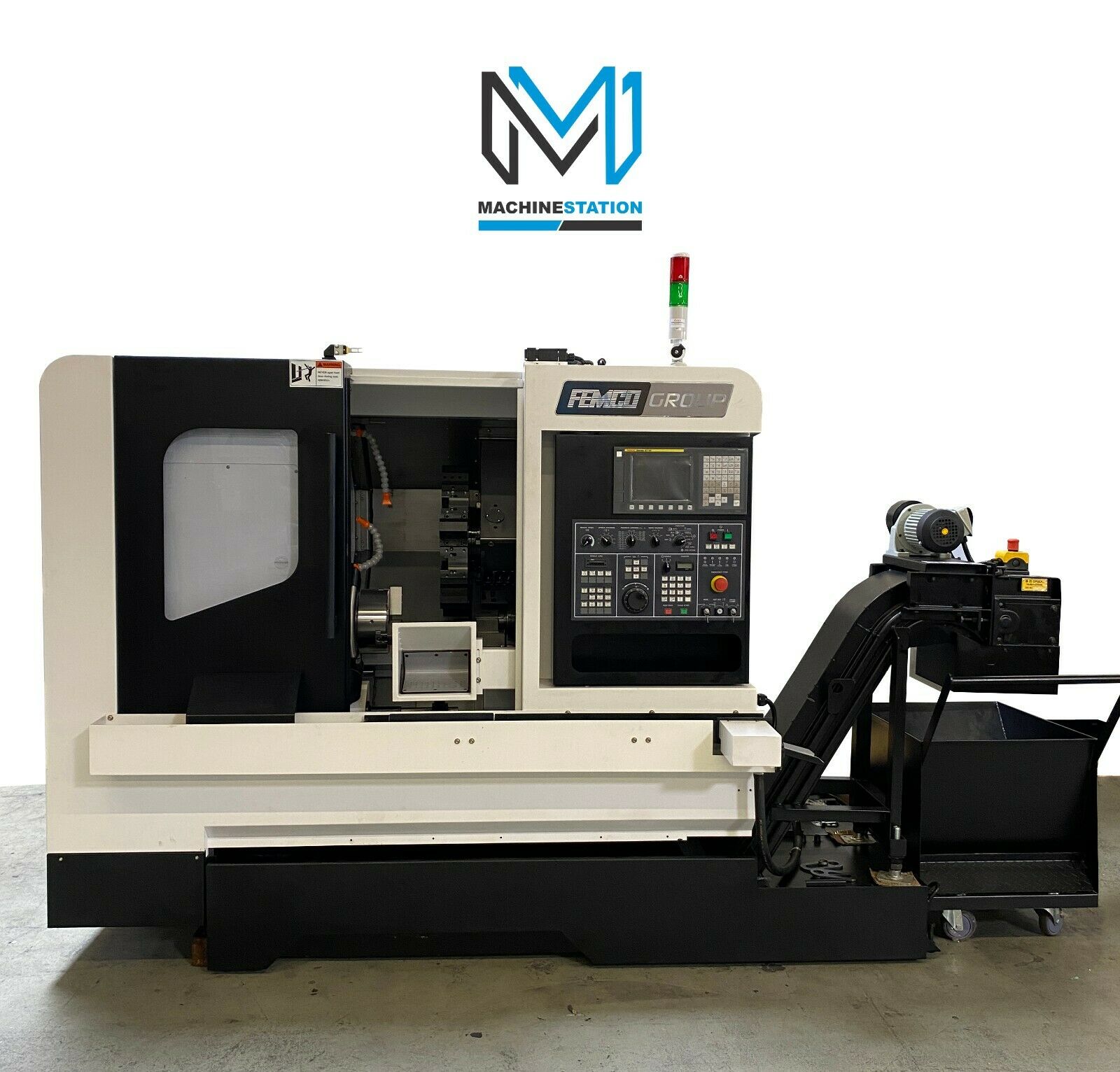

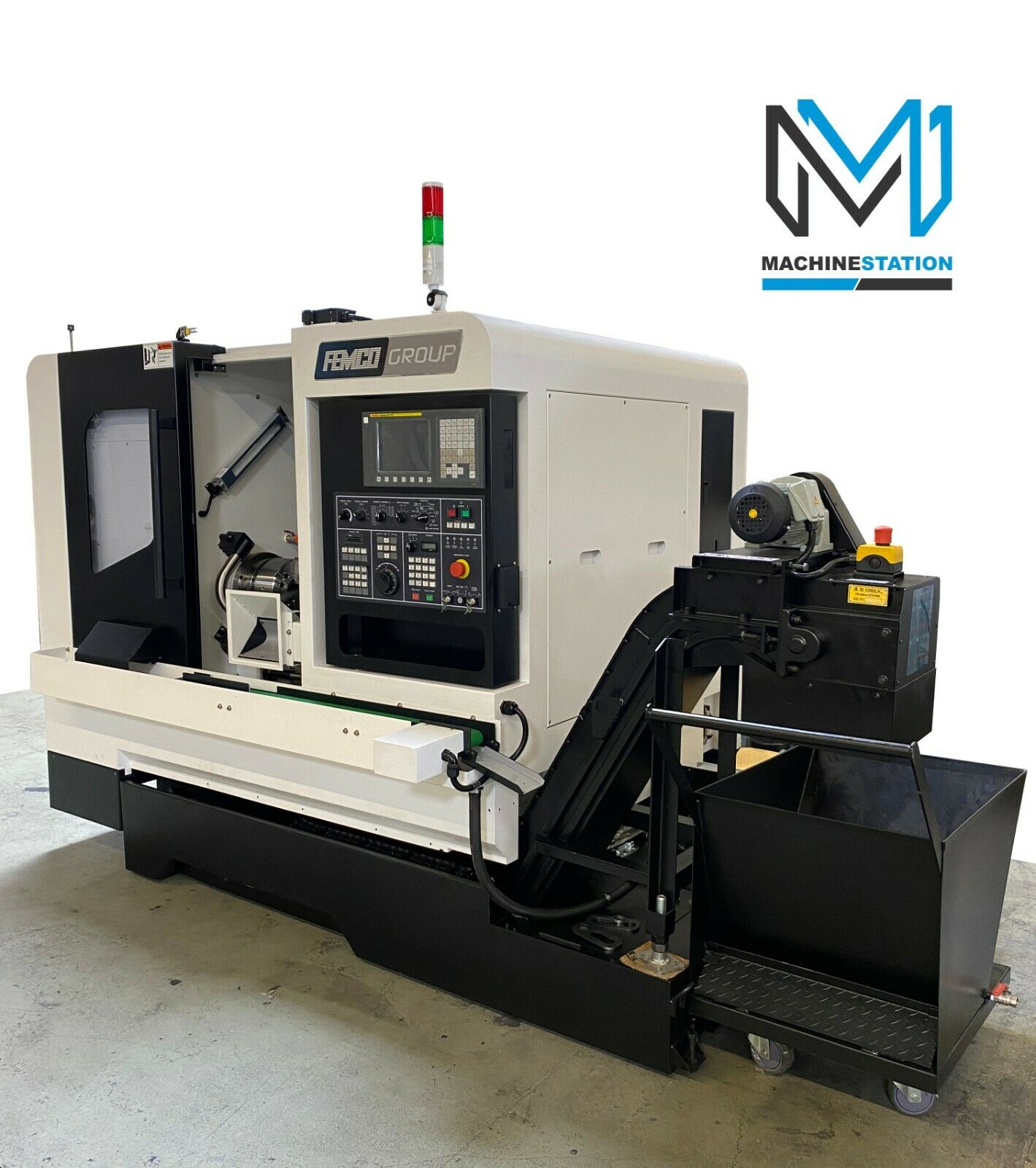

| Chip Conveyor with Cart |
| Coolant System |
| Work light |
| Automatic Lubrication system |
| Foot Operated Control for Chuck and Tailstock |

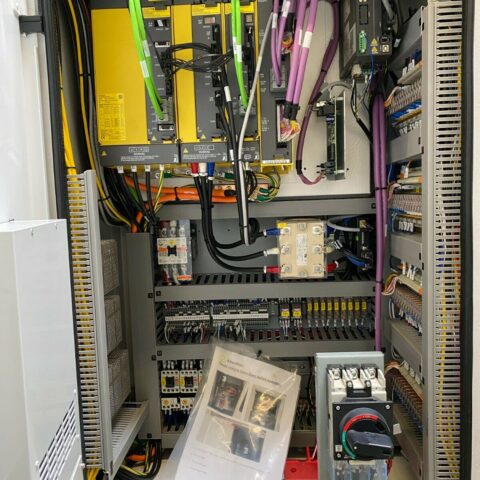

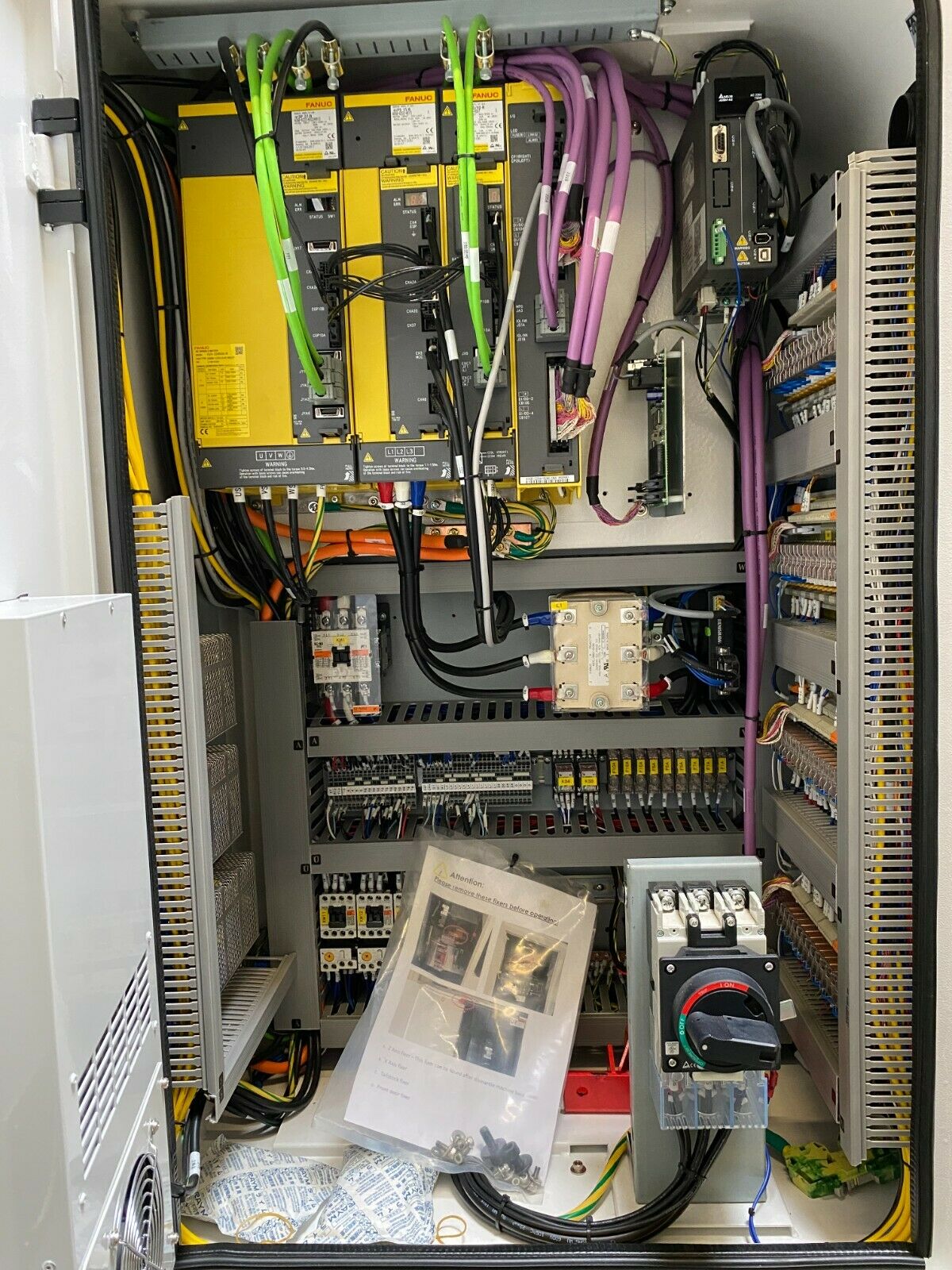

| AC Unit for Electric Panel |
| Leveling Pads |
| Operation Manuals and Books |
| Specifications: |
|---|
| Max Turning Diameter: 9.84″ |
| Max Turning Length: 11.81″ |
| Max Bar Capacity: 2.02″ |
| Swing Over Bed: 20.66″ |
| Distance Between Centers: 24.72″ |
| Travel: |
|---|
| X Axis Travel: 7.87″ |
| Z Axis Travel: 12.59″ |
| Rapid Traverse X Axis: 787 IPM |
| Rapid Traverse Z Axis: 1181 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-6 |
| Spindle Bore: 2.44″ |
| Spindle Speed: 4500 RPM |
| Spindle Motor: HP |
| Turret: |
|---|

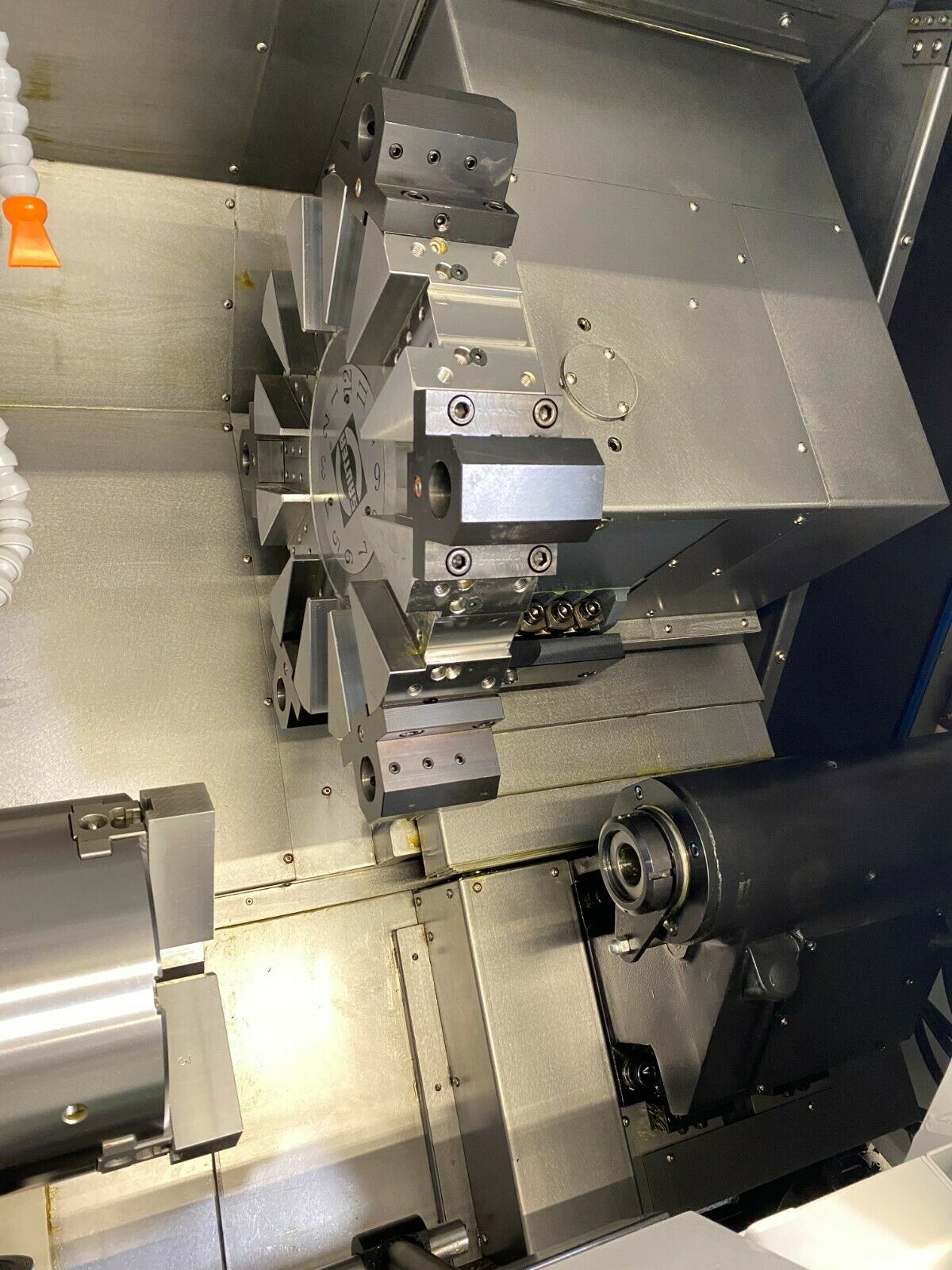

| Turret Capacity: 12 Stations |
| Turret Index Time: 0.4 Second |
| OD Tool Size: 1″ |
| ID Tool Size: 1.5″ |
| Tailstock: |
|---|
| Tailstock Body Travel: 12.59″ |
| Tailstock Quill Dia.: 3.14″ |
| Tailstock Quill Stroke: 3.14″ |
| Tailstock Taper: MT-4 |
| General: |
|---|
| Power Source: |
| Power Requirement: Amps |
| Overall Dimensions: ″ x ″ x ″ High |
| Overall Dimensions: ″ x ″ x ″ High with Chip Conveyor |
| Weight : lbs Approx. |
