New Quaser MV184E/12B Vertical Machining Center

Qty =

Product Description

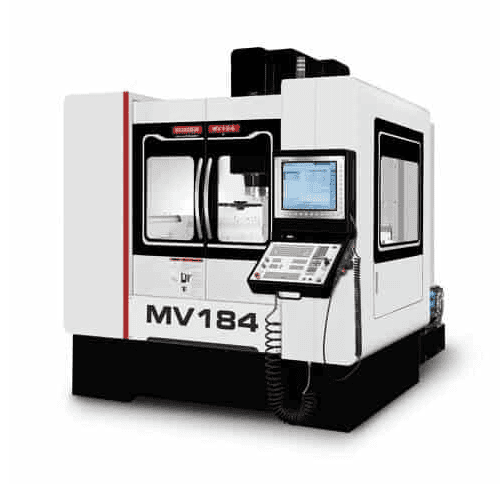

New Quaser MV184E/12B Vertical Machining Center

Make: Quaser
Model: MV184E/12B

Quaser MV184E/12B Features:

Powerful 25HP H/L Shifting Spindle Motor
Digital Servo and Spindle Drives
12,000 RPM Spindle with Chiller
AI Contour Control
Additional Tool and Work Offsets
40 Block Look Ahead
1280 Meters of Memory

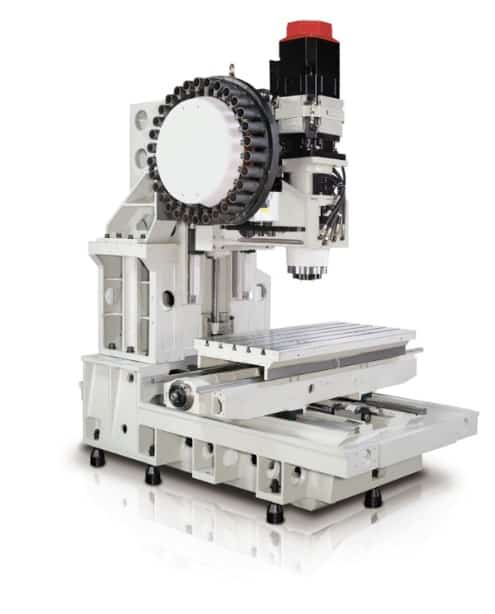

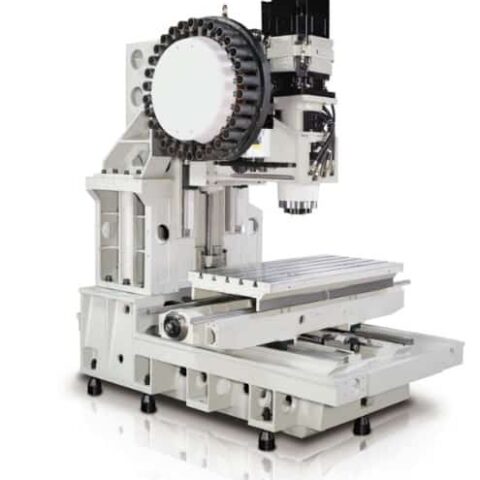

Rigid Meehanite Casting
Rigid Tapping
Helical Interpolation
Custom Macro B
High Speed Skip Function
PCMCIA Slot for Flash Memory & Modem Card

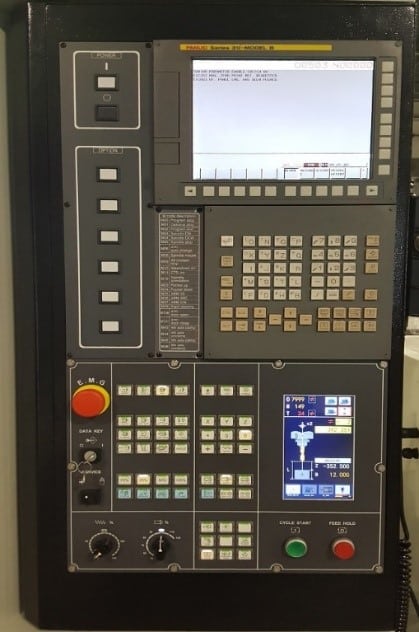

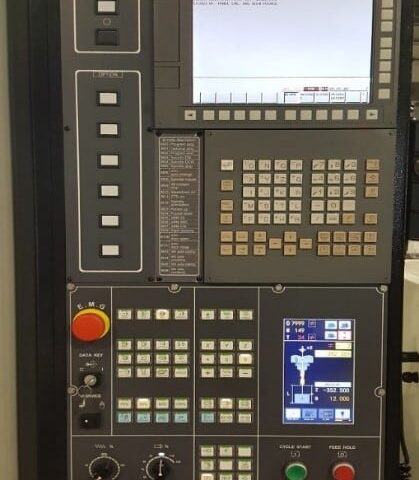

8.4″ LCD Color Monitor with Graphics
RS232C Interface with Ethernet Connection
Full Machine Guarding
High Speed 30 Tool Swing-Arm ATC
Random Access Bi-directional Tool Magazine
45mm Y&Z Roller Guides-35mm X Linear Guide
Direct Coupled Servo Motors
Pre-Tensioned Hardened and Ground Ball screws
Spindle Air Blast
290 psi Coolant Through Spindle
Remote Manual Pulse Generator
Belt Driven Spindle Motor
Heavy Duty Coolant Pump
Circular Coolant Nozzle
BIG PLUS Dual Contact Spindle
Hand Held Coolant Gun
Dual Chip Augers
Scraper Type Chip Conveyor Low Profile
16 gal./min. Chip Removal System
Full Chip, Coolant Guards with Top Cover

Quaser MV184E/12B Specifications:

HEADSTOCK
Motor————————————-FANUC AC Digital Spindle Motor
Horsepower————————————-25 HP High/Low Shifting
Max Spindle Torque————————————-87.0 ft/lbs.
Maximum Speed————————————-12,000 RPM
Spindle————————————-Belt to Spindle
Spindle Nose to Table———————–3.9″ ~ 27.9″
Spindle Center to Z-axis Way Cover————24.0″
TABLE
Size————————————-47.2″ x 23.6″
T-Slots No. Width, Pitch———————–5 x 0.71″ x 3.93″
Maximum Load————————————-1,102.3 lbs.
Table Height————————————-33.7″
ATC SYSTEM
Tool Type————————————-CT-40 (BT-40 Optional)
Tool Selection————————————-Bi-directional Random Access
Max Tool Weight————————————-15.4 lbs.
Max Tool Length————————————-11.0 “
Max Tool Diameter————————————-3.0″ / 4.92″ with empty adjacent pocket
Max Tool Capacity————————————-30 Standard (48, 60 Optional)
Tool Change Time————————————-4.0 sec (T-T) 5.0 sec (C-C)
AXES TRAVELS
X-Axis————————————-40.1″2.4 Hp
Y-Axis————————————-24.0″2.4 Hp
Z-Axis————————————-24.0″3.4 Hp
AXES POS./ REPEAT.
X-Axis————————————-+ 0.0001″+ 0.00008″
Y-Axis————————————-+ 0.0001″+ 0.00008″
Z-Axis————————————-+ 0.0001″+ 0.00008″
AXES RAPID / CUTTING SPEED
X-Axis————————————-1260 imp787 ipm
Y-Axis————————————-1260 imp787 ipm
Z-Axis————————————-1260 imp787 ipm
