*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

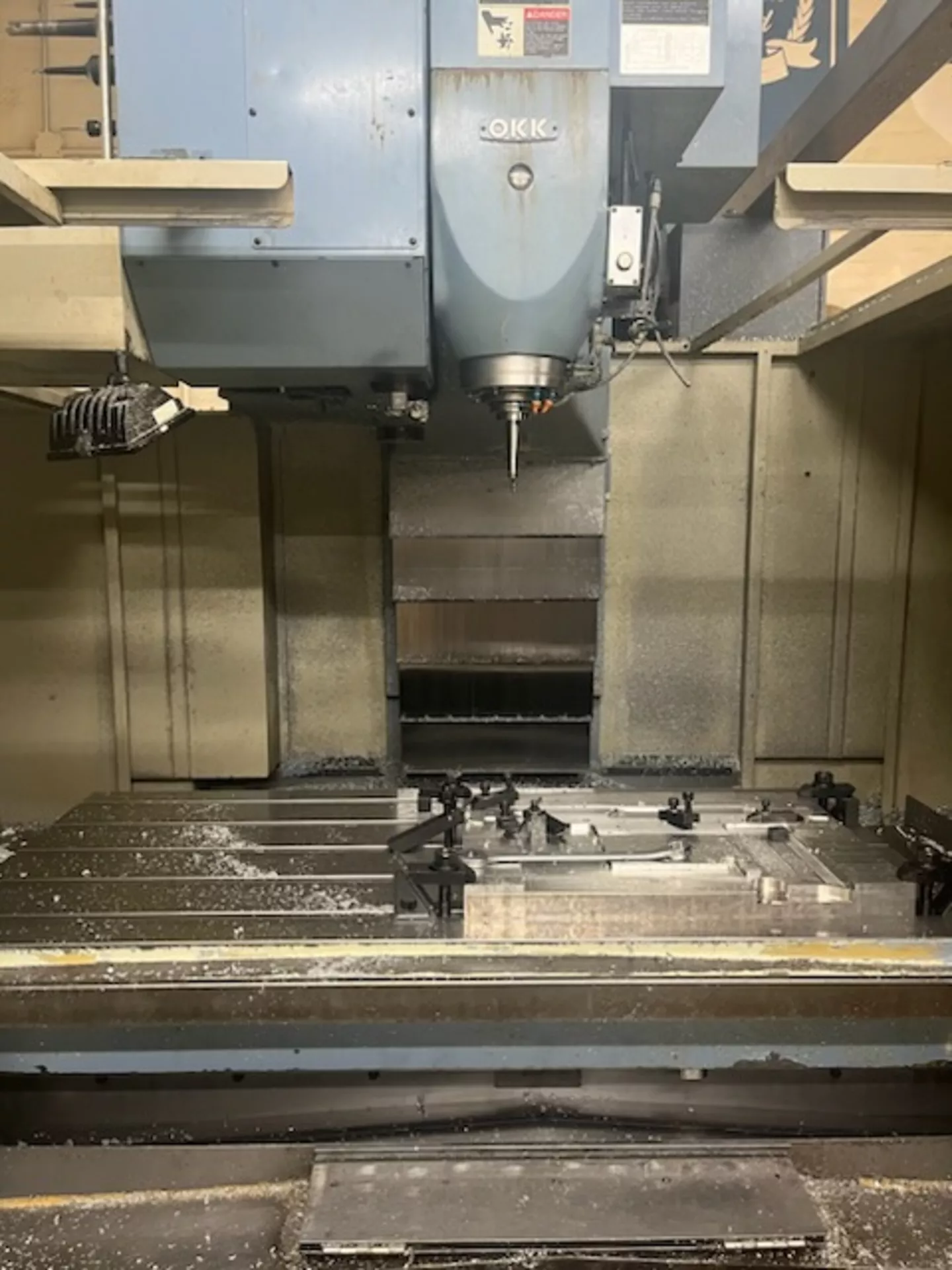

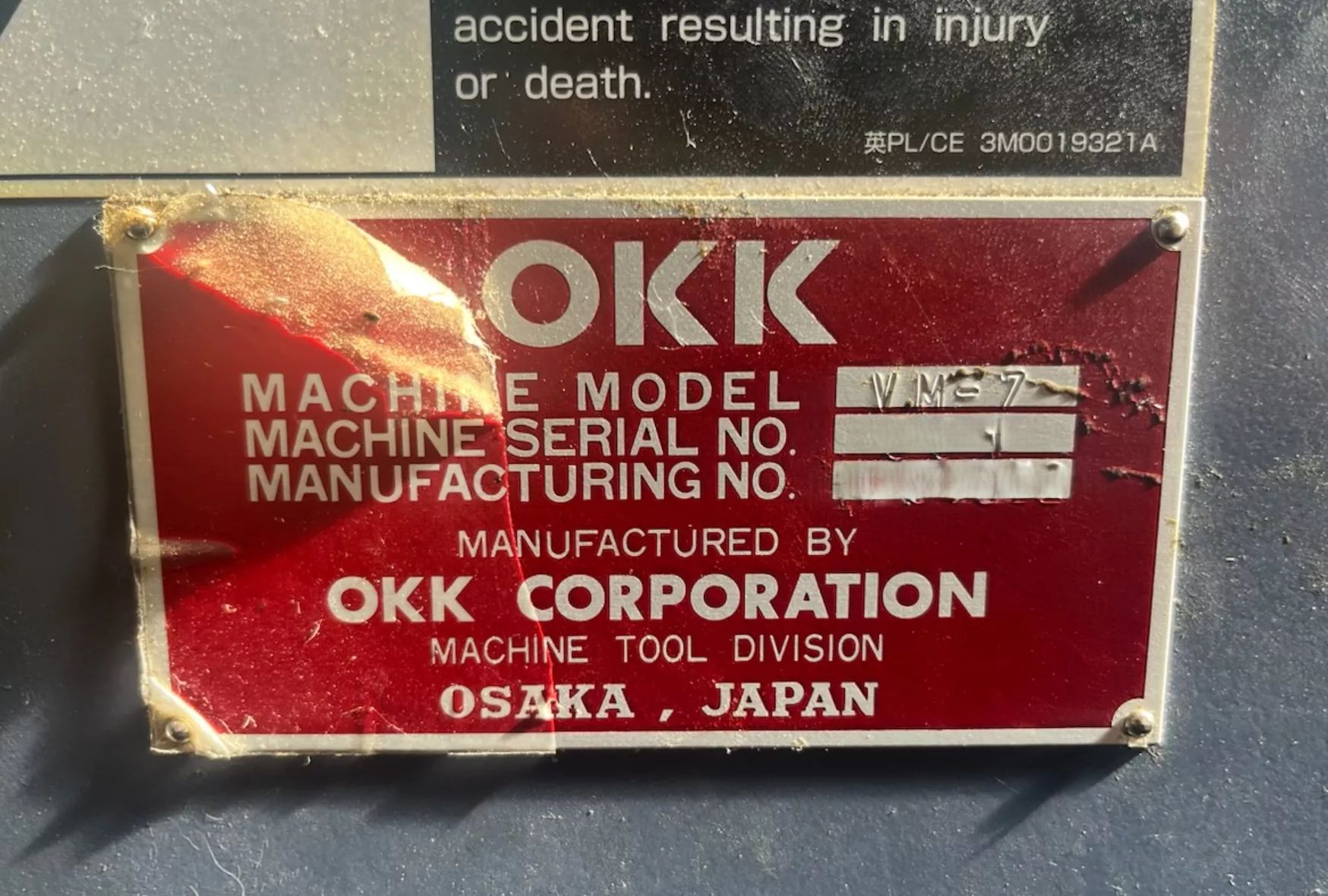

| Make: | OKK |
| Model: | VM-7 |
| Year: | 2001 |
| Features: |
|---|
| Neomatic 635 CNC Control |
| CAT-50 Geared Head Spindle |
| 10,000 RPM Spindle |
| 20-Station Side Mount Automatic Tool Changer |
| Full Machine Enclosure |
| Box Way Construction |
| Synchronized Rigid Tapping |
| Helical Interpolation |
| Manual Pulse Generator (Handy Pulser) |
| Flood Coolant System |
| Coolant Tank |
| Spindle Chiller Unit |
| Dual Chip Augers |
| Prepared for Through Spindle Coolant |
| Ethernet & RS-232 Communication |
| Tooling Included |
| Electrical Cabinet |
| Travels: |
|---|
| X-Axis Travel: 60.24″ |
| Y-Axis Travel: 29.13″ |
| Z-Axis Travel: 25.98″ |
| X & Y Axis Rapid Traverse Rates: 945 IPM |
| Z-Axis Rapid Traverse Rate: 787 IPM |
| Cutting Feed Rate: 394 IPM |
| Spindle Nose to Table (Min.–Max.): 5.91″ – 31.89″ |
| Table: |
|---|
| Length: 61.02″ |
| Width: 29.13″ |
| Maximum Weight on Table: 3,306 lbs |
| Spindle: |
|---|
| Taper Size: CAT-50 |
| Speed Range: 25 – 10,000 RPM |
| Spindle Power: 40 HP |
| Geared Head Spindle |
| Automatic Tool Changer: |
|---|
| Capacity: 20-Station Side Mounted |
| Maximum Tool Diameter: 4.92″ |
| Maximum Tool Length: 15.75″ Approx. |
| Maximum Tool Weight: 33 lbs Approx. |
| General: |
|---|
| Power: 200/220V / 3-Phase / 60 Hz |
| Machine Dimensions (Approx.): 157″ × 152″ × 124″ |
| Machine Weight (Approx.): 23,100 lbs |
