*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

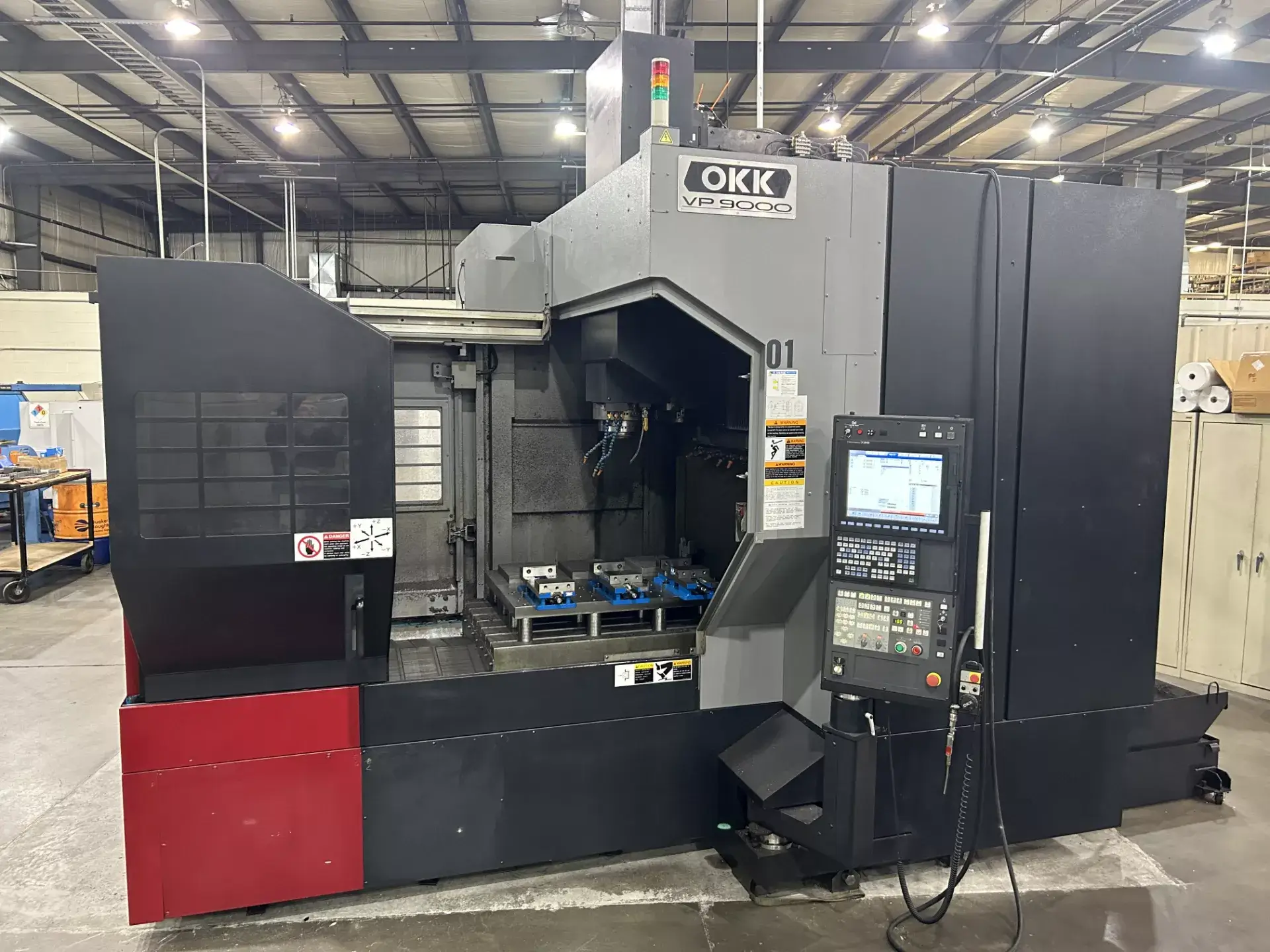

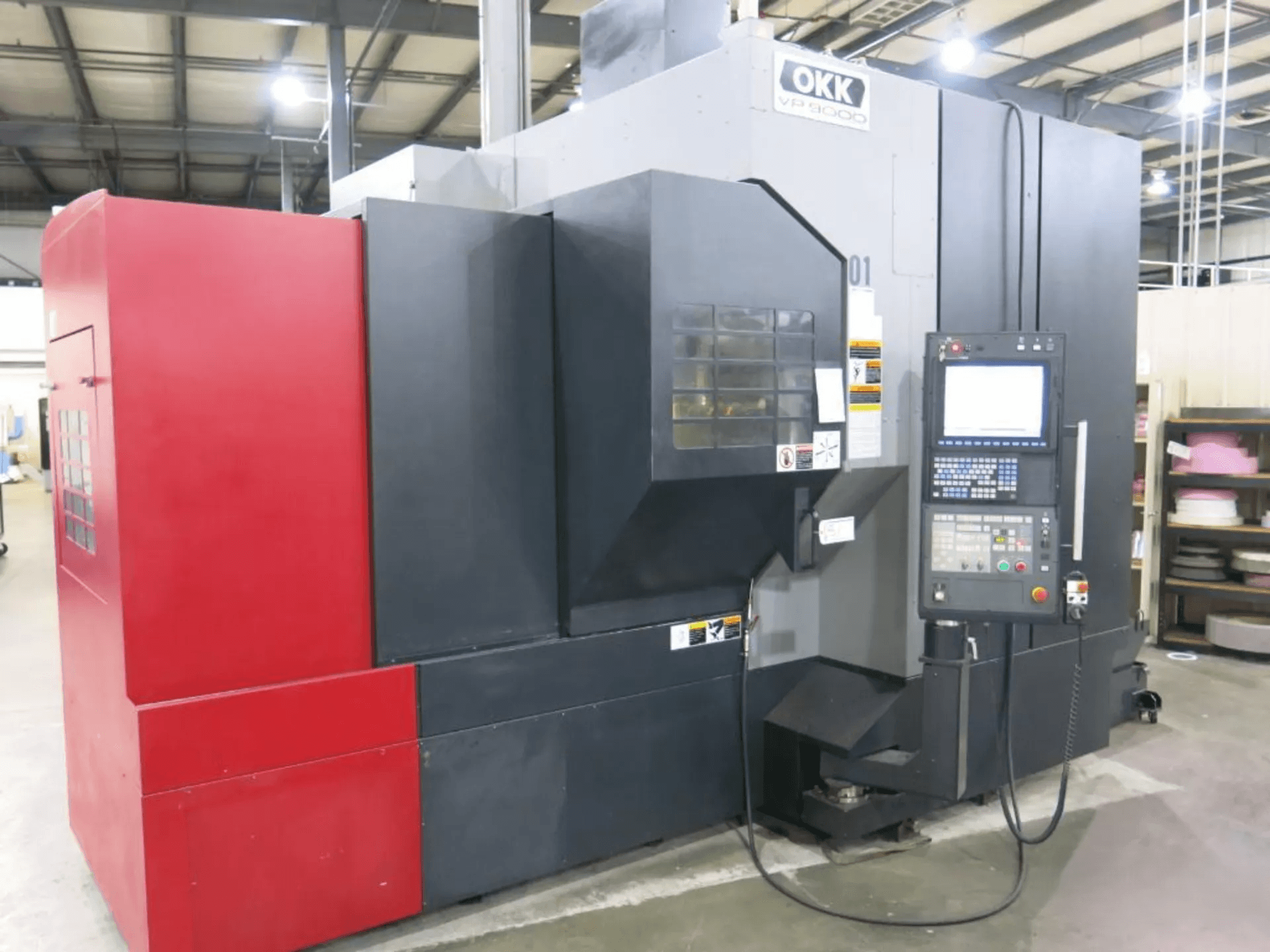

| Make: | OKK |
| Model: | VP9000 |
| Year: | 2016 |
| Condition: | Used – Good |
| Machine Type: | CNC Vertical Machining Center |

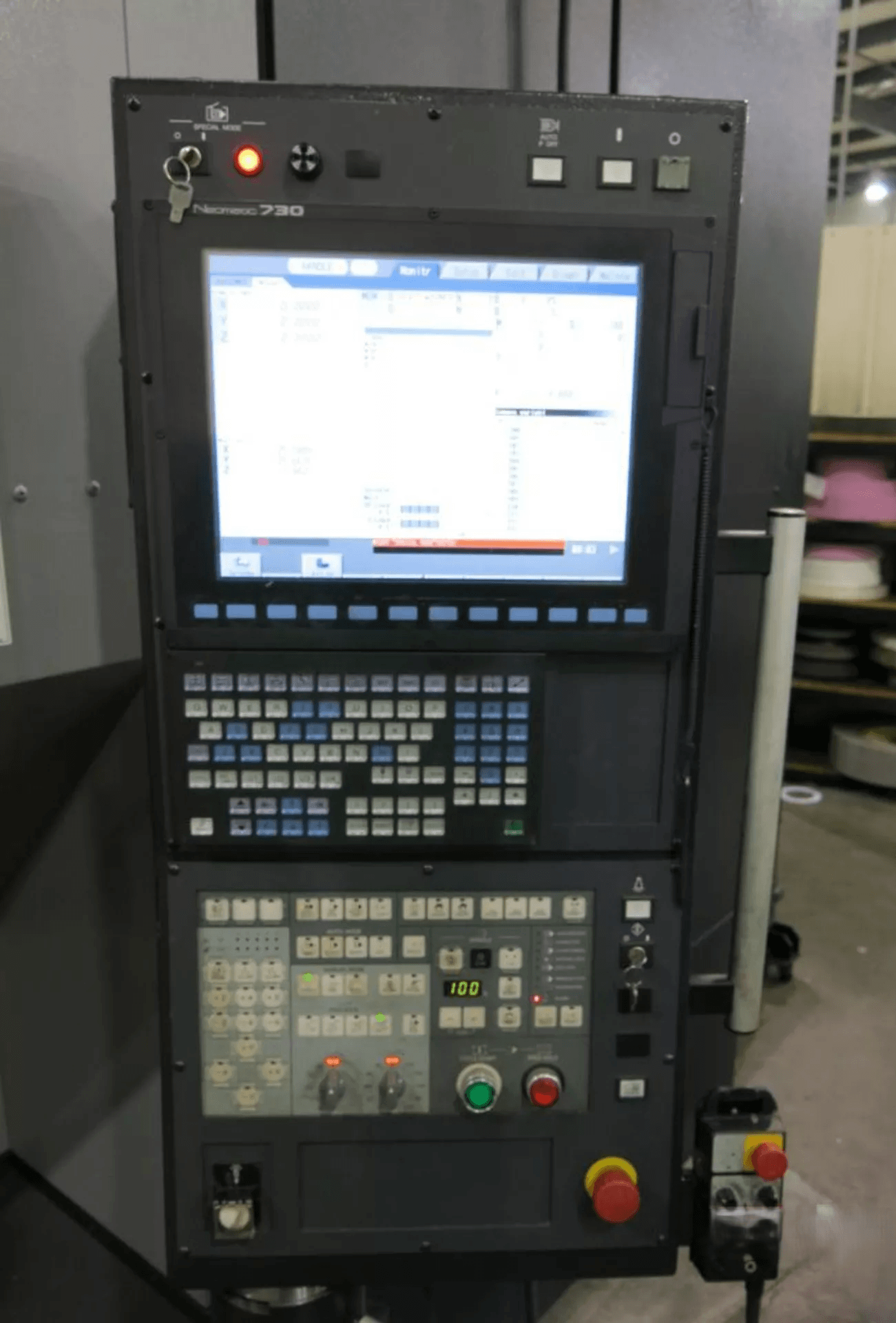

| Control: | Neomatic 730 CNC Control |
| Features: |
|---|
| Neomatic 730 CNC Control |
| BIG PLUS CAT 40 Spindle |
| 20,000 RPM High-Speed Spindle |
| 40-Position Automatic Tool Changer |
| Renishaw Spindle Probe |
| Flood Coolant System |
| Coolant Pump |
| Transformer |
| Automatic Tool Changer Magazine |
| Full Machine Enclosure |
| Work Light |
| Rigid Tapping |
| Capacity: |
|---|

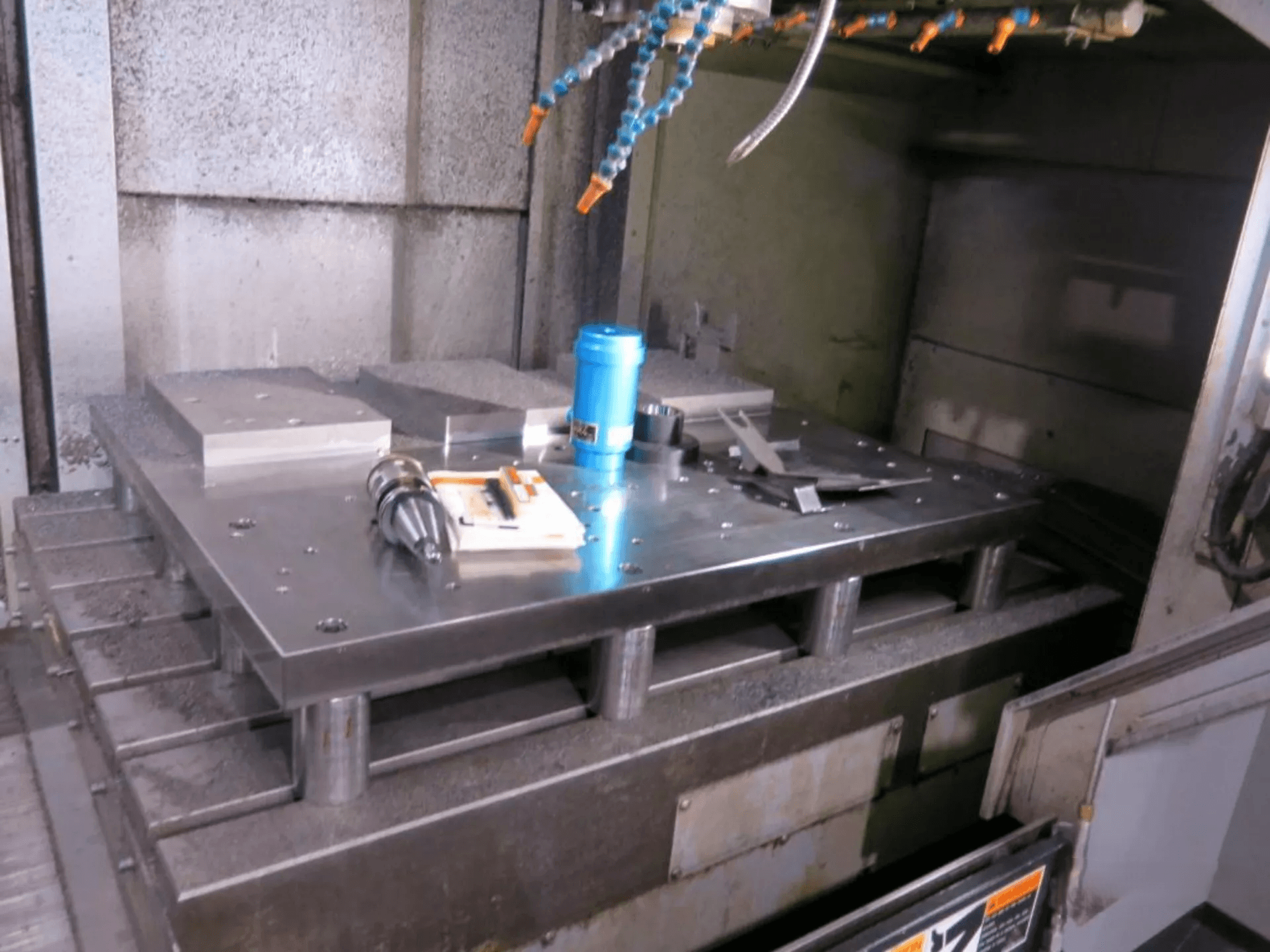

| Table Size: 51.18″ x 36.22″ |
| Maximum Table Load Capacity: 3,300 lbs |
| Travels: |
|---|
| X-Axis Travel: 44.17″ |
| Y-Axis Travel: 36.29″ |
| Z-Axis Travel: 22.11″ |
| Spindle Nose to Table: Approx. 5.9″ – 28.0″ |
| Spindle: |
|---|
| Spindle Taper: BIG PLUS CAT 40 |
| Maximum Spindle Speed: 20,000 RPM |
| Automatic Tool Changer: |
|---|
| Tool Capacity: 40 Positions |
| ATC Type: Side-Mounted Chain Type |
| Maximum Tool Diameter: 3.23″ |
| Maximum Tool Diameter (Without Adjacent Tools): 4.92″ |
| Maximum Tool Length: 11.81″ |
| Maximum Tool Weight: 15.4 lbs |
| Feed Rates: |
|---|
| Rapid Traverse (X/Y/Z): 1,260 IPM |
| Cutting Feed Rate: 1 – 1,260 IPM |
| Electrical: |
|---|
| Power Source: 3 Phase |
| Voltage: 220 / 240 Volt |
| Frequency: 60 Hz |
| General: |
|---|
| Machine Weight: Approx. 33,000 lbs |
| Floor Space (L x W x H): Approx. 190.9″ x 139.4″ x 126.6 |
