OKK VM7-III 4-Axis CNC Vertical Machining Center

SKU 11723
Make/Model OKK VM7-III
Video On Request
Out of stock
SKU: 11723
Make/Model: OKK VM7-III
Video: On Request
SKU: 11723

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make: OKK
Model: VM7-III
Features:

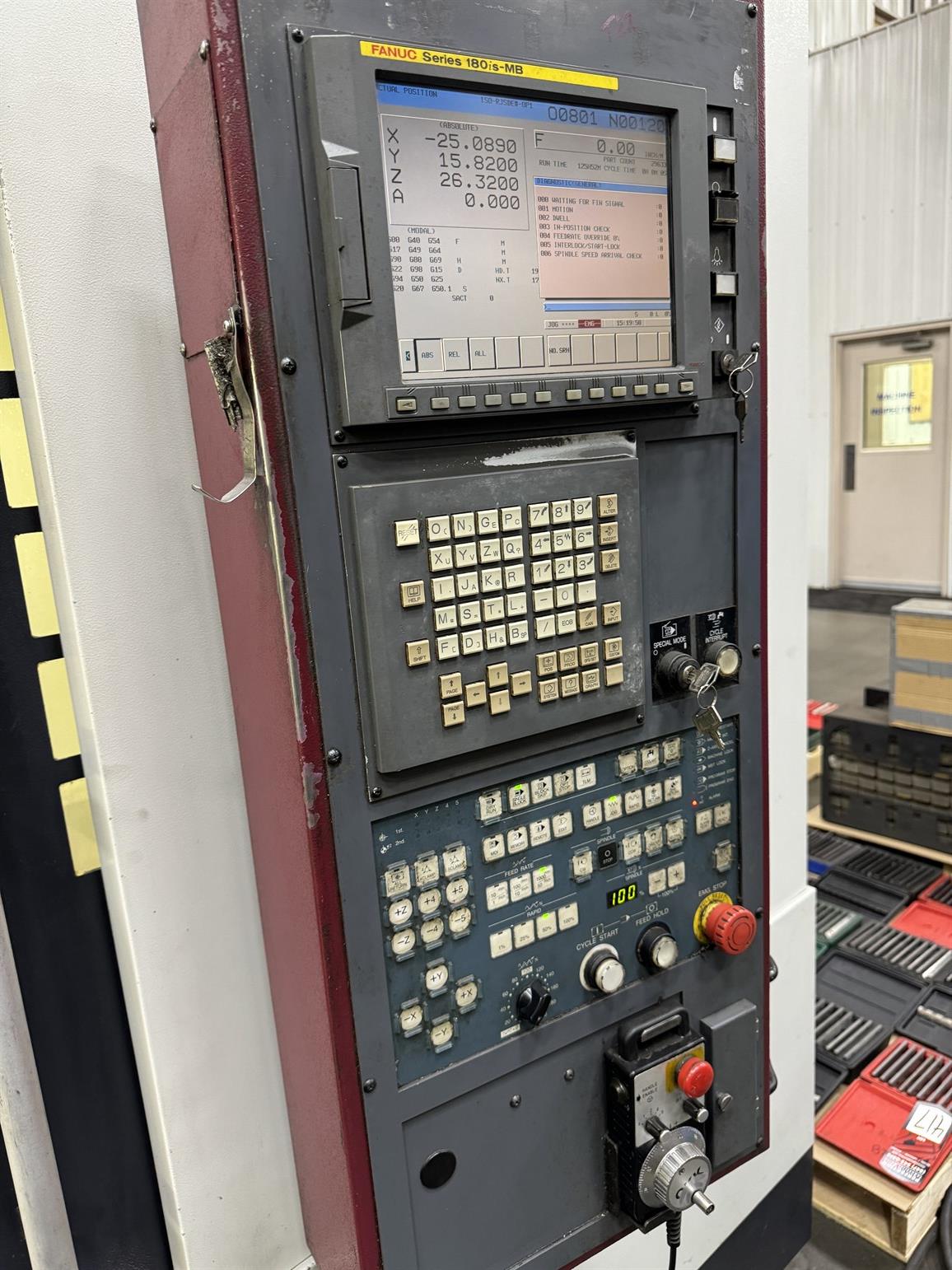

Fanuc Series 180is-MB CNC Control
Nikken CNC 4th Axis Rotary Table
Tailstock for 4th Axis

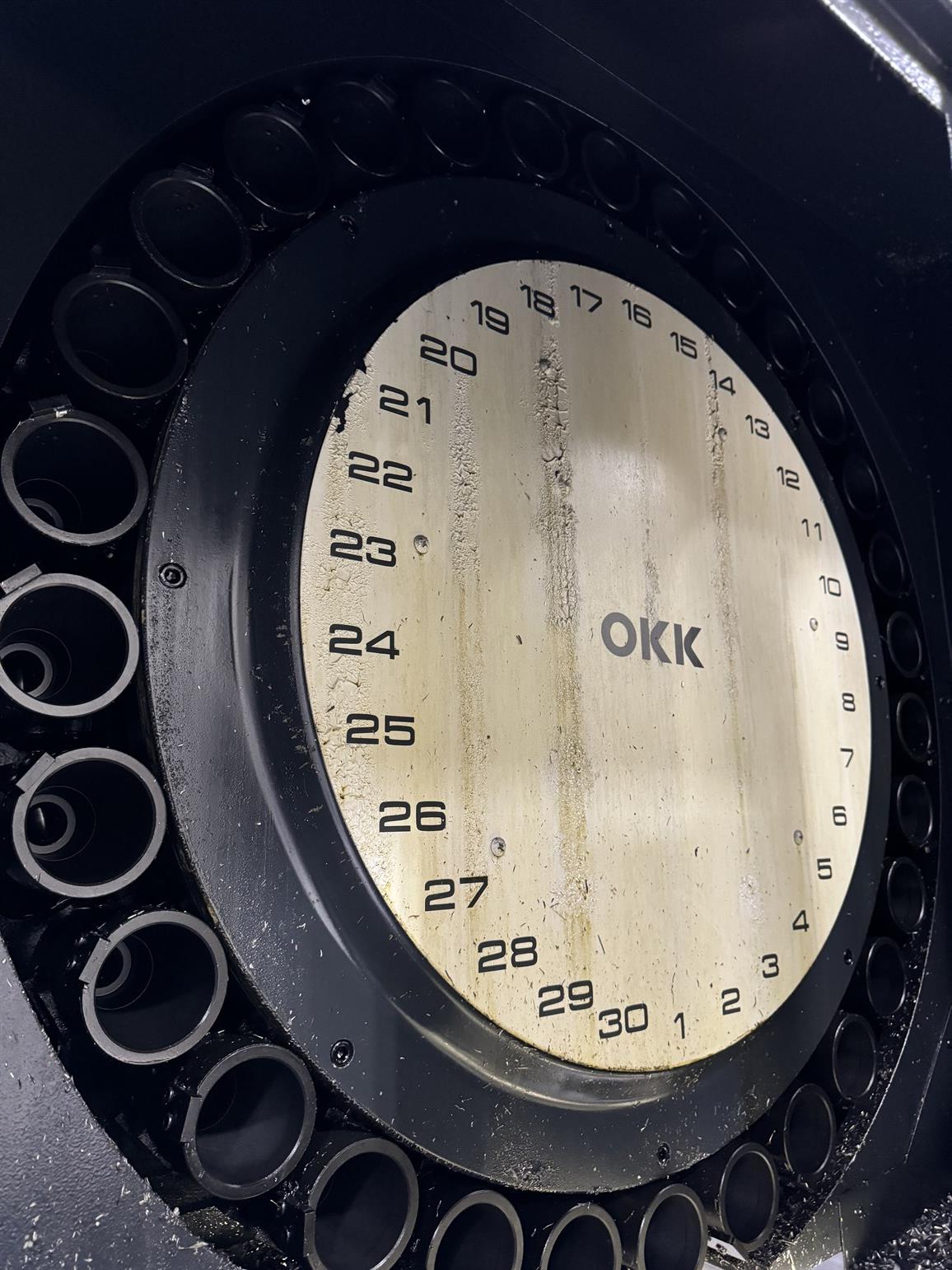

30-Position Automatic Tool Changer
CAT 50 Spindle
Through-Spindle Coolant (TSC)
Coolant Chiller / Cooler Unit
Chip Conveyor
Flood Coolant System
Fully Enclosed Splash Guard
Work Light
Electronic Handwheel (MPG)
Travels:
X-Axis Travel: 60″
Y-Axis Travel: 29″
Z-Axis Travel: 26″
Table:
Table Size: 60″ × 29″
Table Load Capacity: 4,400 lbs
Spindle:
Spindle Speed: 6,000 RPM
Spindle Taper: CAT 50
Spindle Drive Motor: 30 HP
Automatic Tool Changer:
Tool Capacity: 30 Tools
Tool Shank: CAT 50
ATC Type: Automatic Tool Changer
Feed Rates:
Rapid Traverse (X/Y/Z): 1,260 IPM
Electrical:
Power Requirement: 200/220v / 3 Phase / 50/60 Hz
Connected Load: 81 kVA
General:
Machine Dimensions (Approx.): 180″ × 145″ × 132″
Machine Weight (Approx.): 29,800 lbs
Travels:
X-Axis Travel: 1,524 mm
Y-Axis Travel: 737 mm
Z-Axis Travel: 660 mm
Table:
Table Size: 1,524 mm × 737 mm
Table Load Capacity: 4,400 lbs
Spindle:
Spindle Speed: 6,000 RPM
Spindle Taper: CAT 50
Spindle Drive Motor: 30 HP
Automatic Tool Changer:
Tool Capacity: 30 Tools
Tool Shank: CAT 50
ATC Type: Automatic Tool Changer
Feed Rates:
Rapid Traverse (X/Y/Z): 1,260 IPM
Electrical:
Power Requirement: 200/220v / 3 Phase / 50/60 Hz
Connected Load: 81 kVA
General:
Machine Dimensions (Approx.): 4,572 mm × 3,683 mm × 3,353 mm
Machine Weight (Approx.): 29,800 lbs
CategoriesCNC Vertical Machining Centers
MakeOKK
ModelVM7-III
  • Fanuc Series 180is-MB CNC Control
  • Nikken CNC 4th Axis Rotary Table
  • Tailstock for 4th Axis
  • 30-Position Automatic Tool Changer
  • CAT 50 Spindle
  • Through-Spindle Coolant (TSC)
  • Coolant Chiller / Cooler Unit
  • Chip Conveyor
  • Flood Coolant System
  • Fully Enclosed Splash Guard
  • Work Light
  • Electronic Handwheel (MPG)
OKK VM7 III (2)MM
