*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

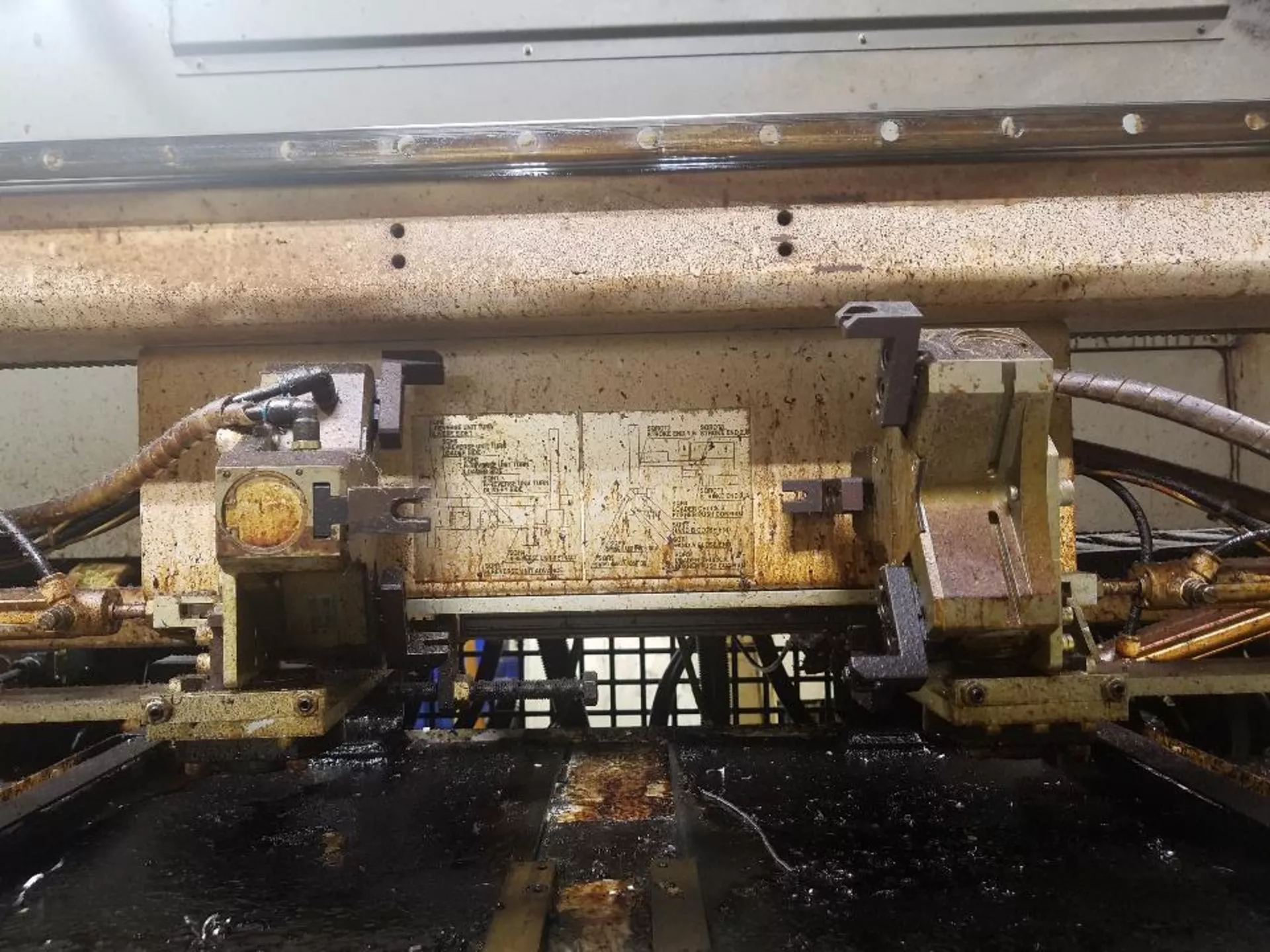

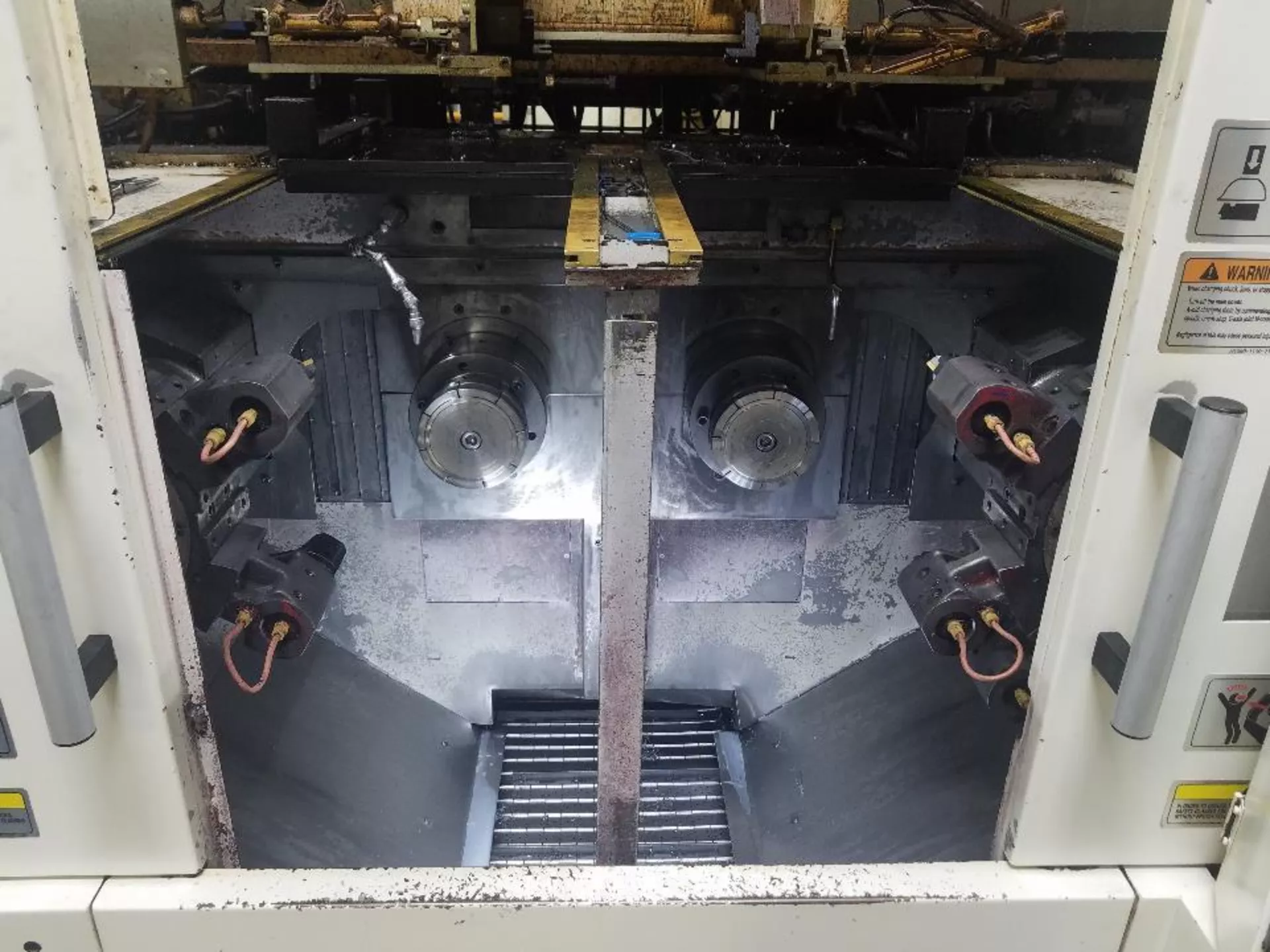

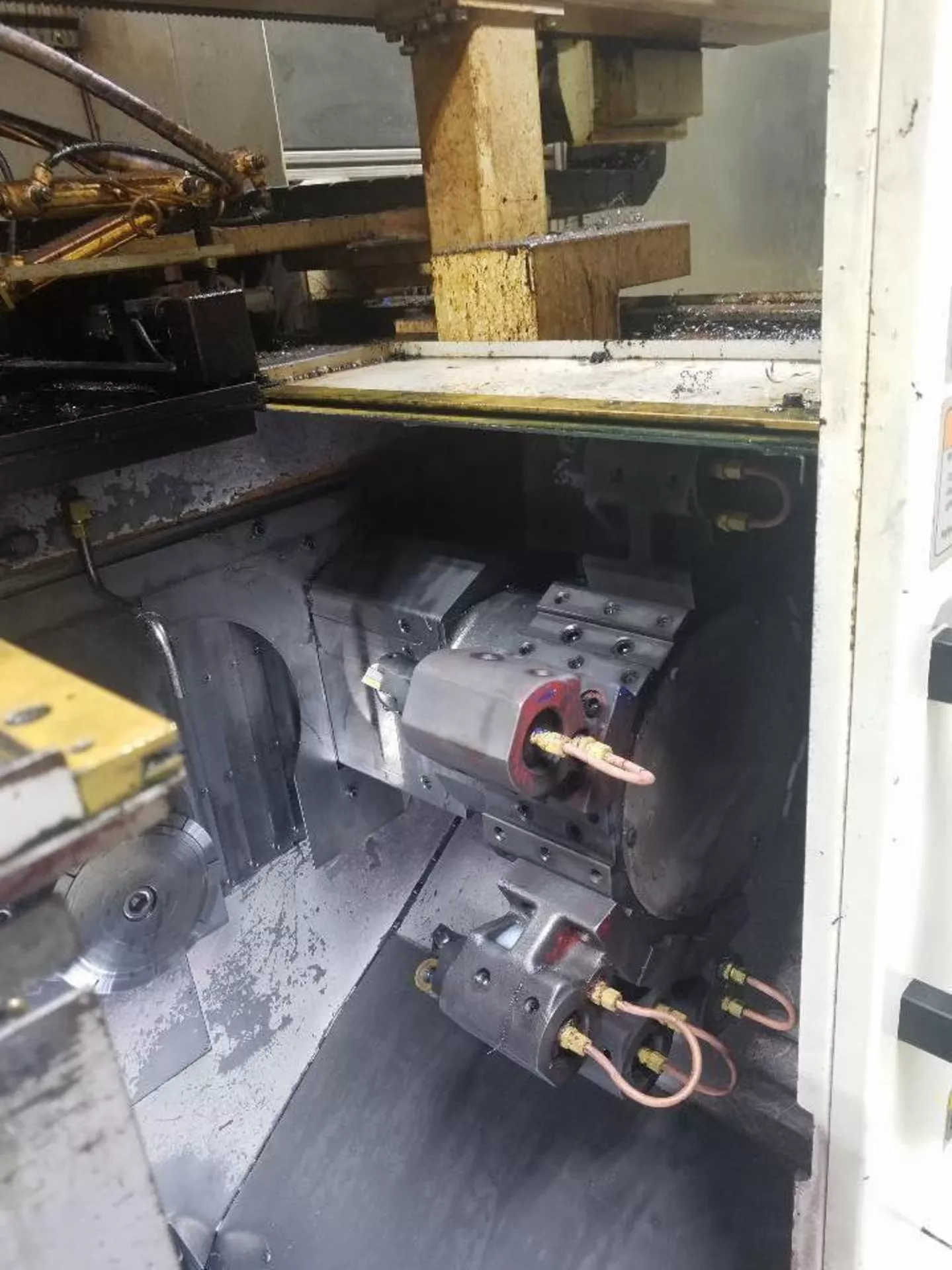

| Make: | Okuma |
| Model No.: | 2SP-150H |
| Year: | 2007 |
| Machine Type: | Twin Spindle CNC Chucker Lathe |
| Control: | Okuma OSP CNC Control |
| Country of Origin: | Japan |
| Features: |
|---|
| Twin Opposed Spindle Configuration |
| Dual Turrets (Upper & Lower) |
| Automatic Part Transfer Between Spindles |
| Hydraulic Chucking System |
| Parts Catcher / Automation Ready |
| High Production Chucker Design |
| Full Enclosure |
| Coolant System |
| Chip Conveyor |
| Manual Pulse Generator (MPG) |
| Rigid Tapping |
| Programmable Tailstock / Sub-Spindle Support |
| Capacity: |
|---|
| Max Turning Diameter: ~6.5″ – 8″ |
| Max Turning Length: ~6″ |
| Chuck Size: 6″ |
| Bar Capacity: ~2″ |
| Spindles: |
|---|
| Main Spindle Speed: Up to 6,000 RPM |
| Sub Spindle Speed: Up to 6,000 RPM |
| Spindle Nose: A2-5 |
| Number of Spindles: 2 |
| Turrets: |
|---|
| Upper Turret: 8 Position |
| Lower Turret: 8 Position |
| Total Tool Positions: 16 |
| Travels: |
|---|
| X Axis Travel: ~6″ |
| Z Axis Travel: ~12″ |
| General: |
|---|
| Power Requirement: 220V / 3-Phase |
| Machine Weight: Approx. 12,000 – 14,000 lbs |
| Overall Dimensions: Approx. 110″ x 70″ x 75″ High |
