*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Okuma |
| Model: | Captain L370MW |
| Year: | 2001 |
| Condition: | Used – Good |
| Machine Type: | CNC Turning Center |

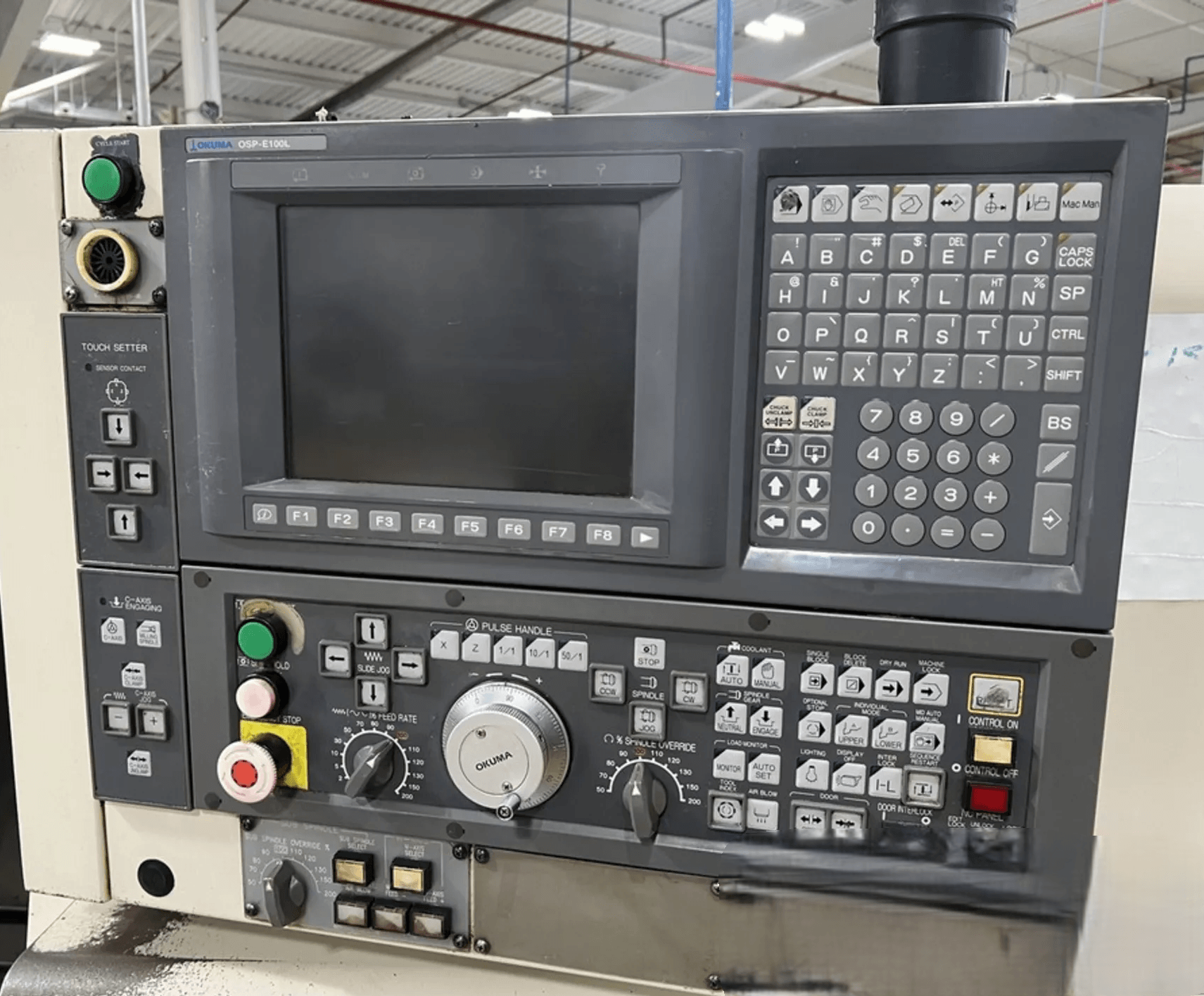

| Control: | Okuma OSP-E100L CNC Control |
| Country of Origin: | Japan |
| Equipped With: |
|---|
| Okuma OSP-E100L CNC Control |
| Twin Spindle Configuration |
| 12-Station Turret |
| Live Tooling |
| Y-Axis |
| Sub Spindle |
| Chip Conveyor |
| Parts Catcher |
| Coolant System |
| Full Enclosure |
| Capacity: |
|---|
| Swing Over Bed: 20.87″ |
| Bar Capacity: 2″ |
| Max Turning Diameter: Approx. 14.17″ |
| Max Turning Length: Approx. 20″ |
| Travels: |
|---|
| X-Axis Travel: 10.23″ |
| Z-Axis Travel: 20.47″ |
| Y-Axis Travel: Approx. ±2″ |
| Spindle: |
|---|
| Main Spindle Speed: 4,500 RPM |
| Sub Spindle: Yes |
| Main Spindle Motor: 20 HP |
| Chuck Size: Approx. 8″ |

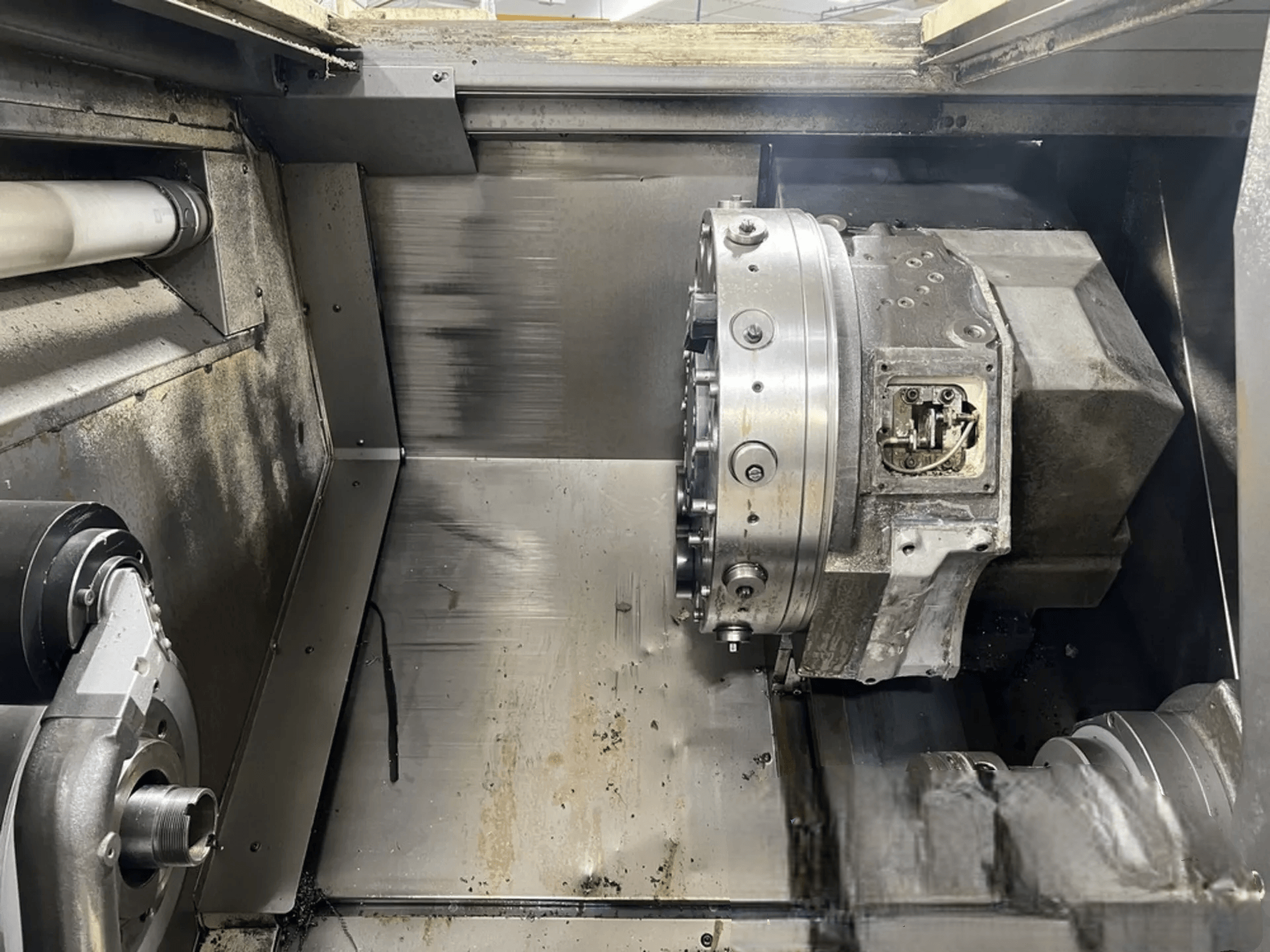

| Turret: |
|---|
| Turret Stations: 12 |
| Live Tooling Capability: Yes |
| Tool Change Type: Automatic |
| Feed Rates: |
|---|
| Rapid Traverse Rate: Approx. 787 IPM |
| Cutting Feed Rate: Typical – Verify |
| Electrical: |
|---|
| Power Requirement: 220V / 3-Phase / 60 Hz |
| Air Requirement: Typical |
| General: |
|---|
| Machine Dimensions: Approx. 118″ x 72″ x 78″ |
| Machine Weight: Approx. 13,000 lbs |
