All specifications are approximations and are subject to verification.
| SKU | 112980 |

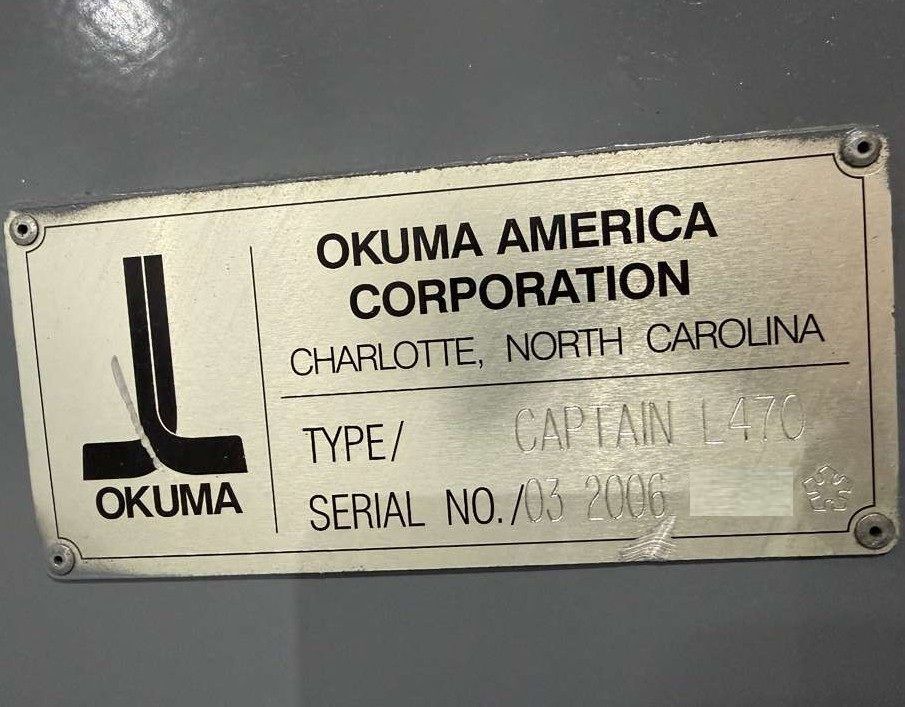

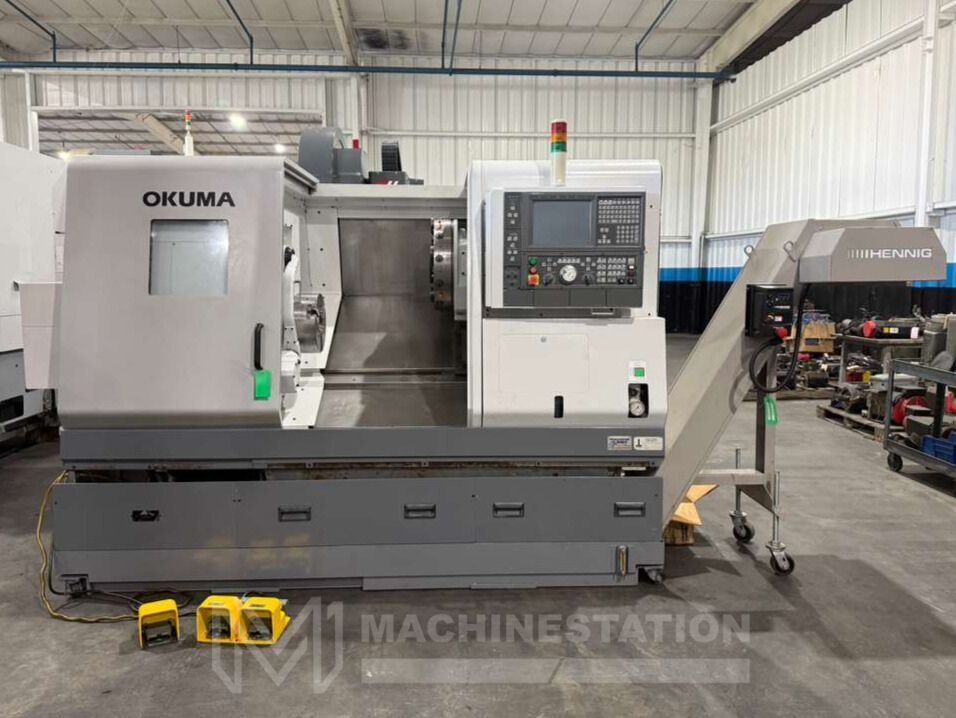

| Make | Okuma |

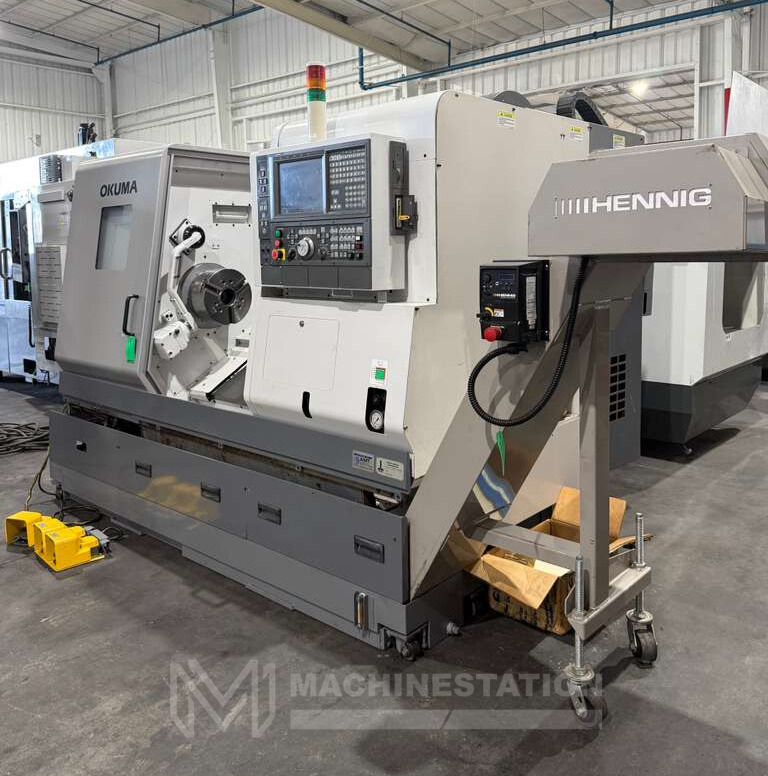

| Model No. | Captain L470M |
| Year | 2006 |
| Condition | Used – Good |
| Equipped With: |
|---|

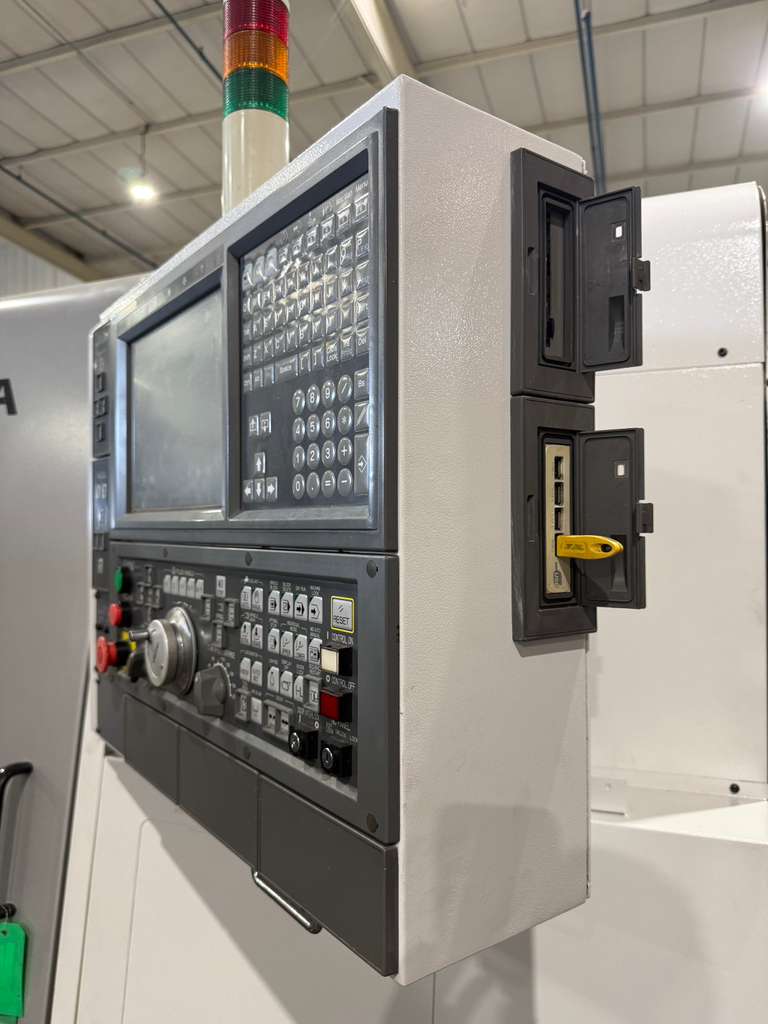

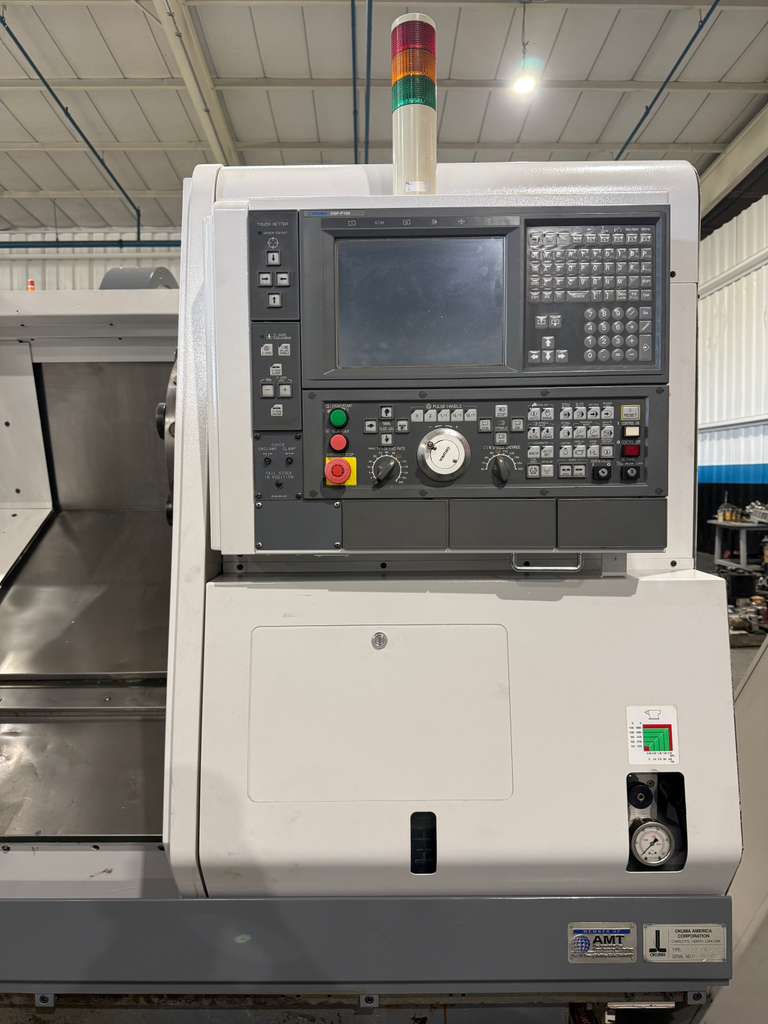

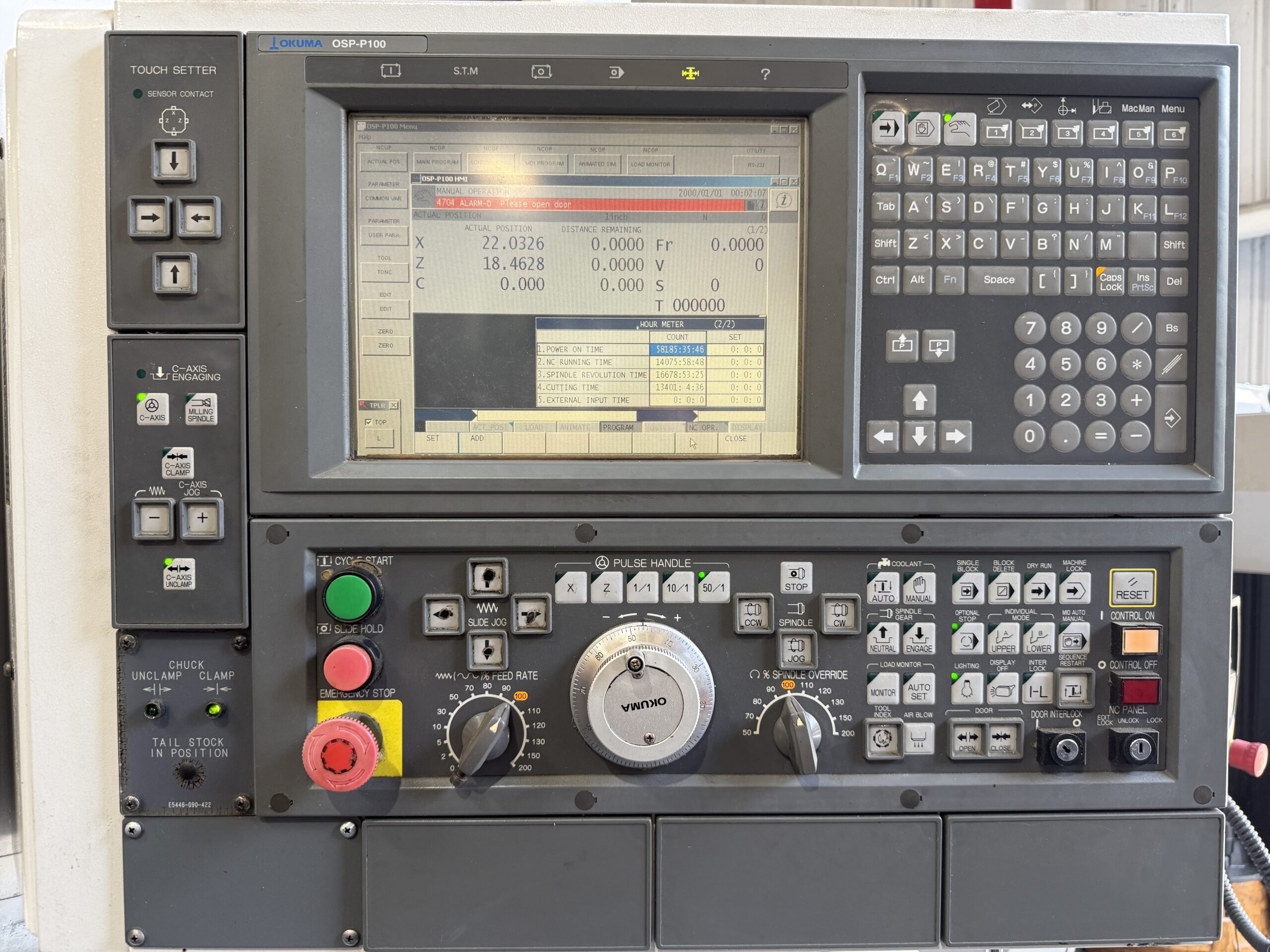

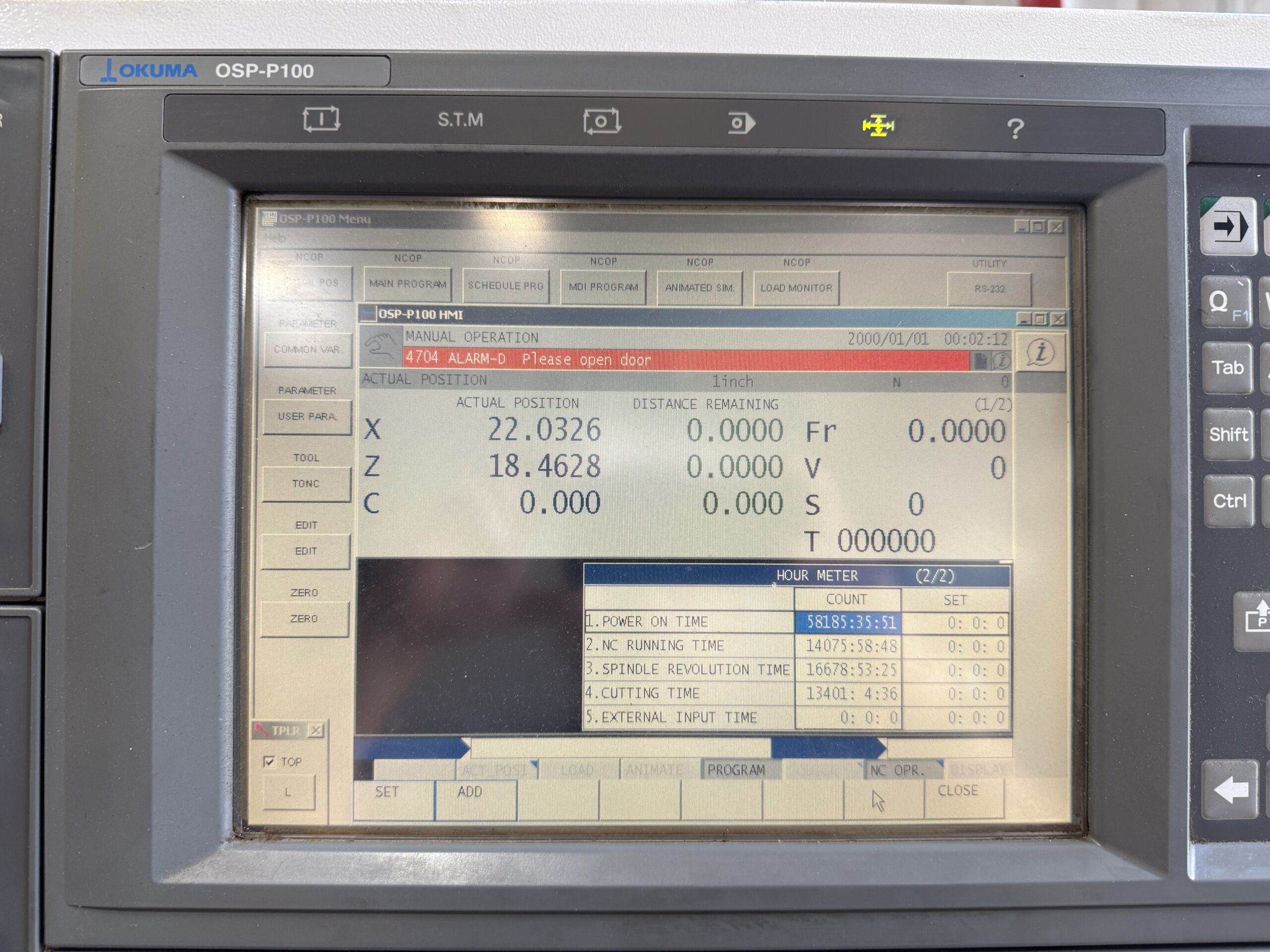

| Okuma OSP-P100 CNC Control |

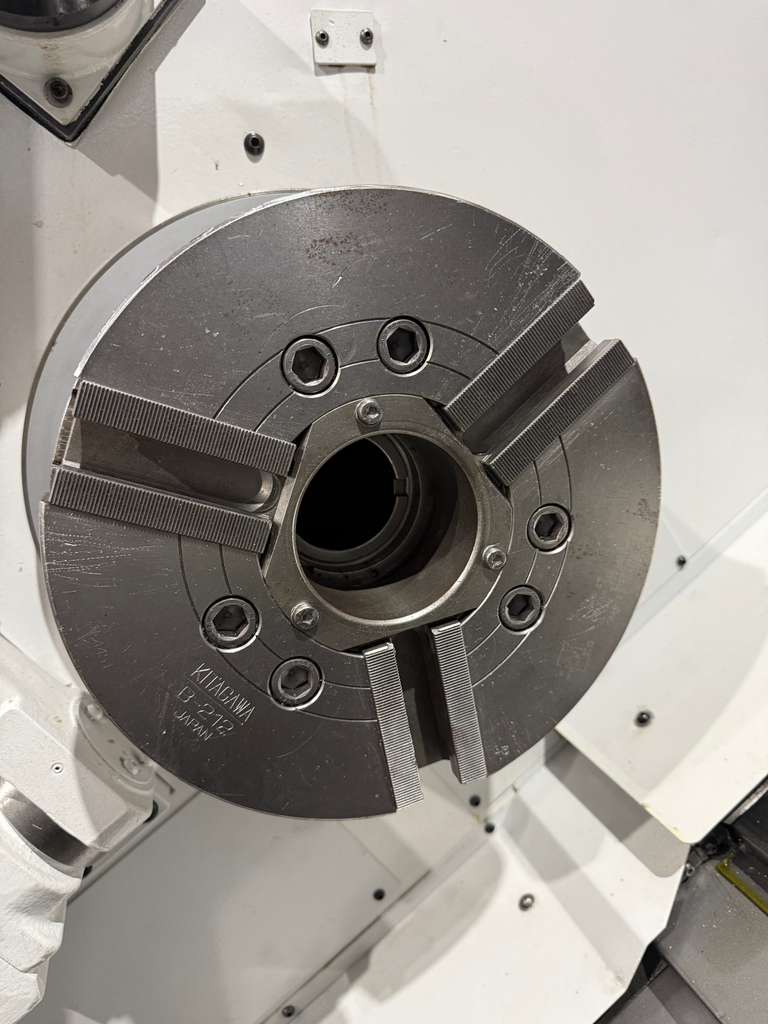

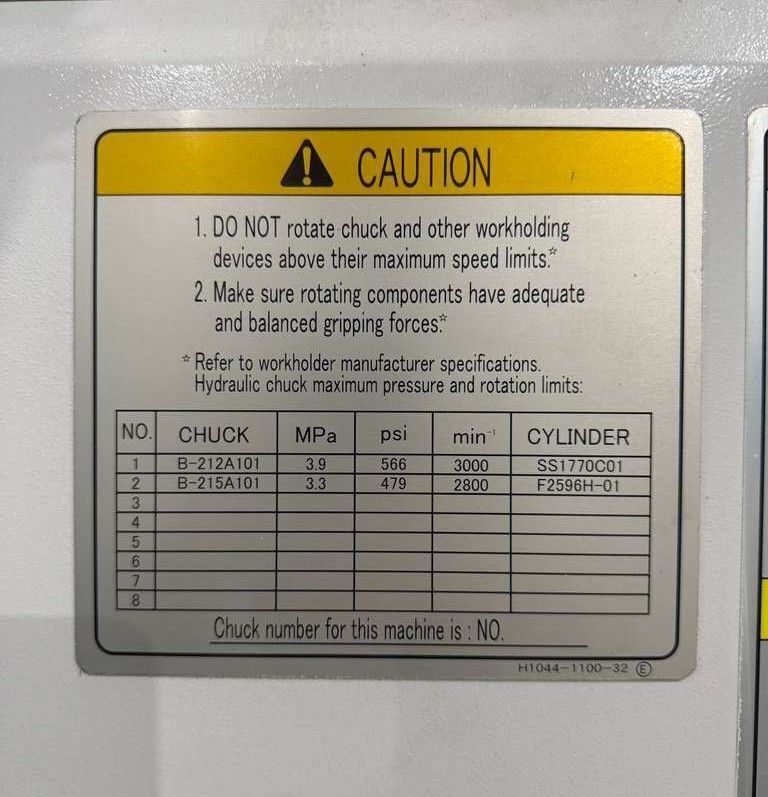

| 12″ 3-Jaw Kitagawa B-212 Hydraulic Chuck |

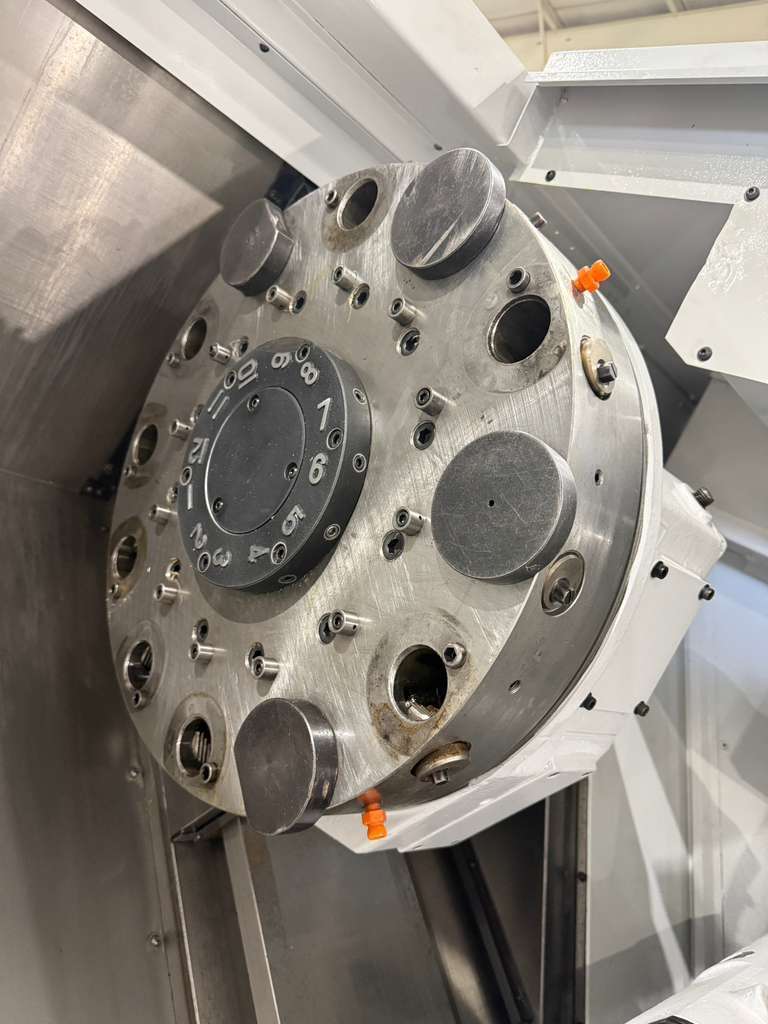

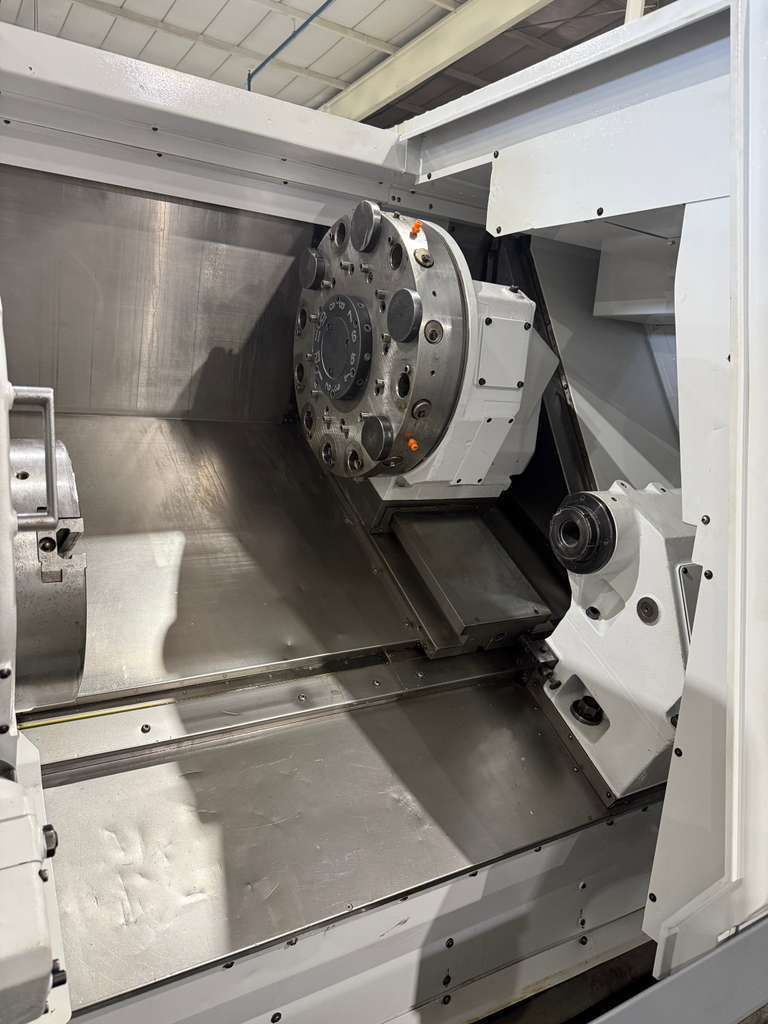

| 12-Station Live Tool Turret |
| Servo Controlled C Axis on Spindle |
| Tool Presetter |

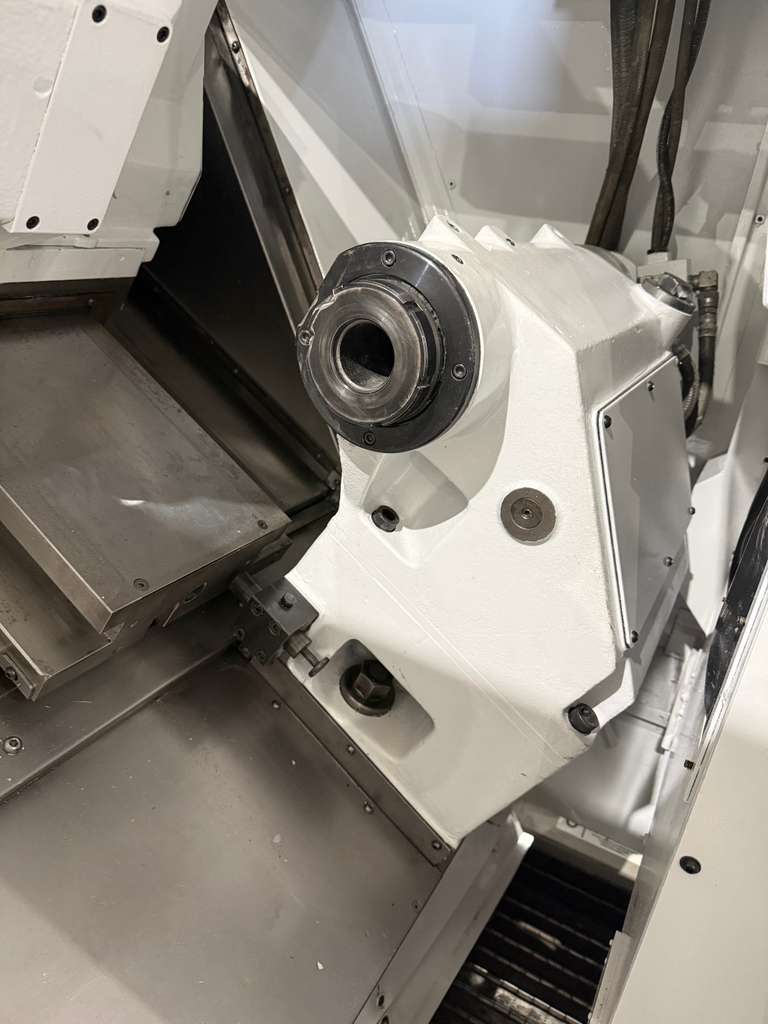

| Hydraulic Tailstock with Power Quill |

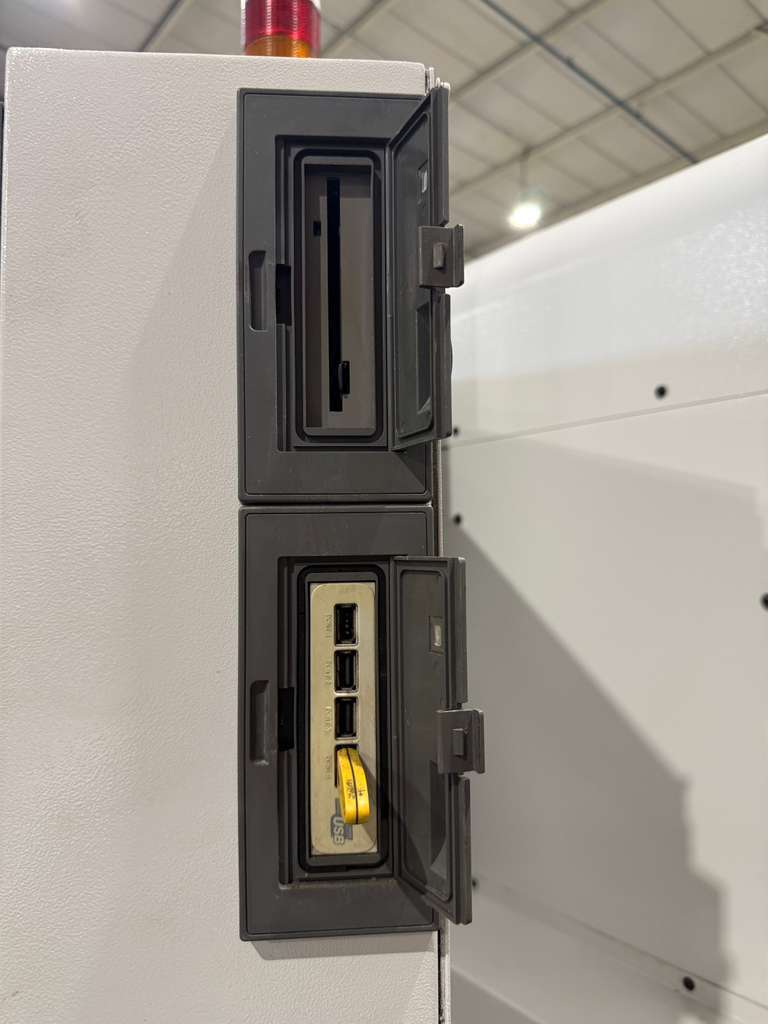

| Floppy Drive |

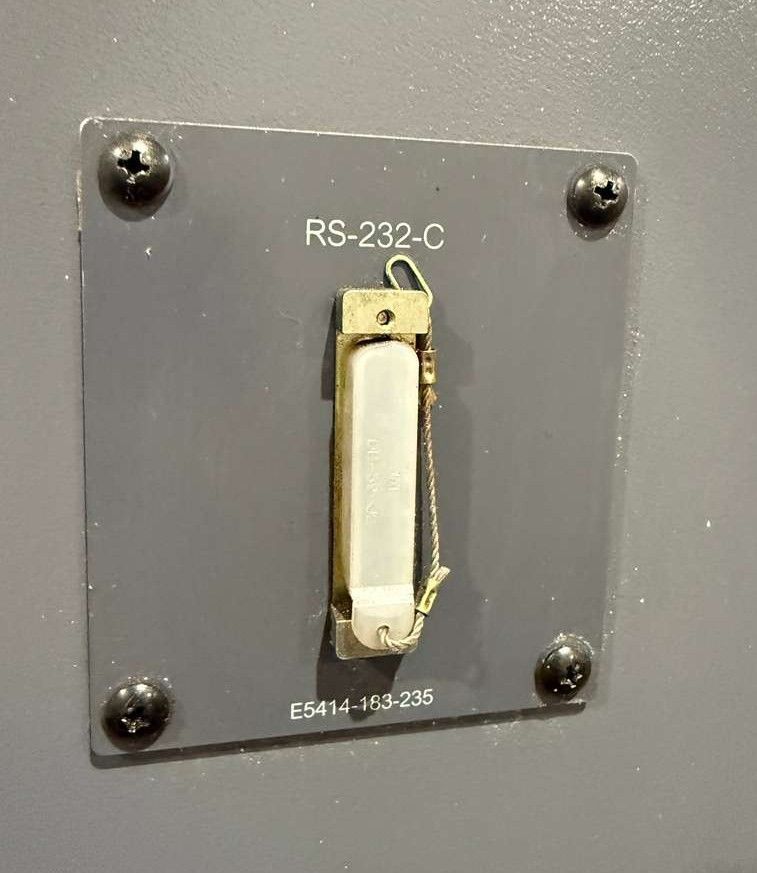

| USB Port & RS-232 Port |

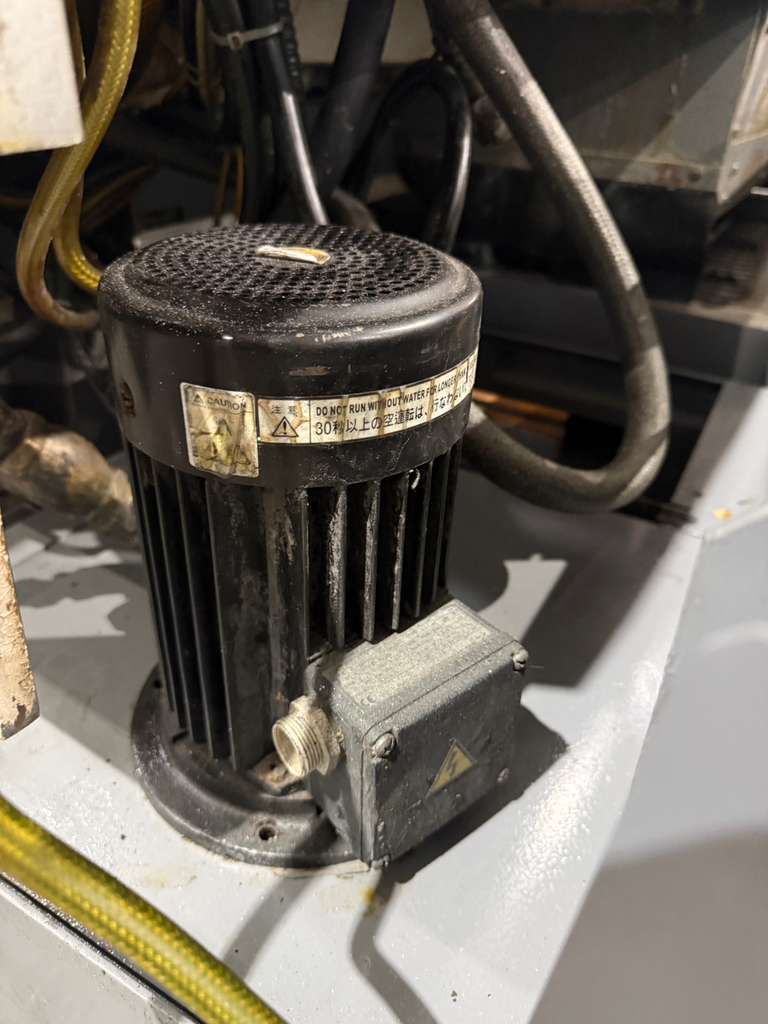

| Coolant System |

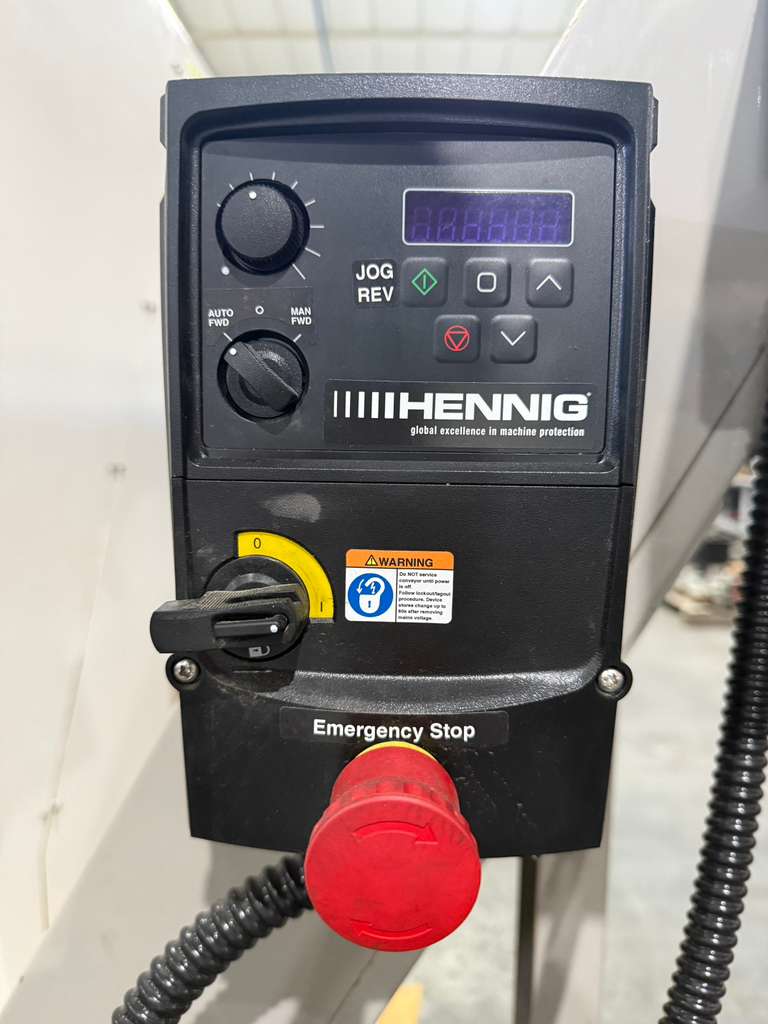

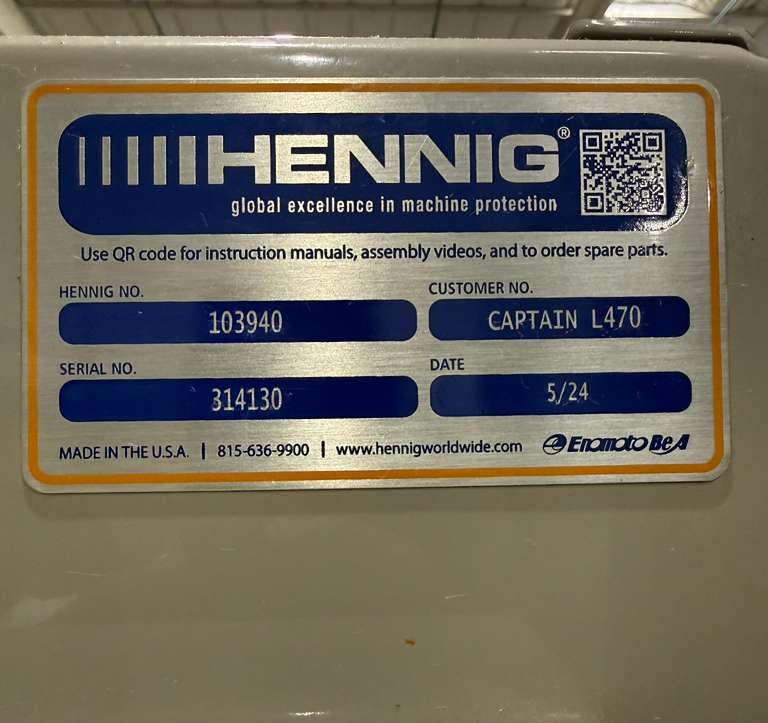

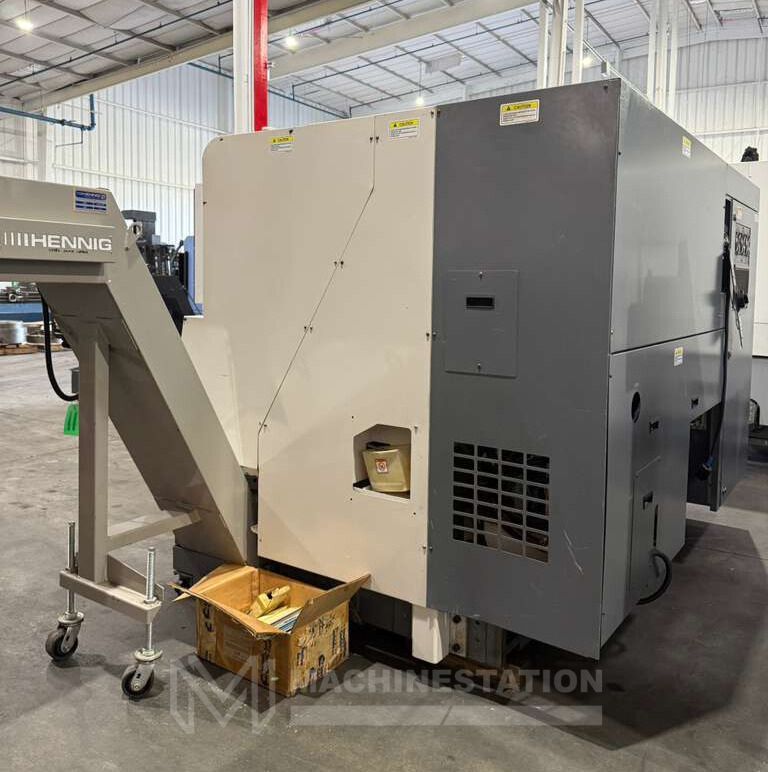

| Chip Conveyor |

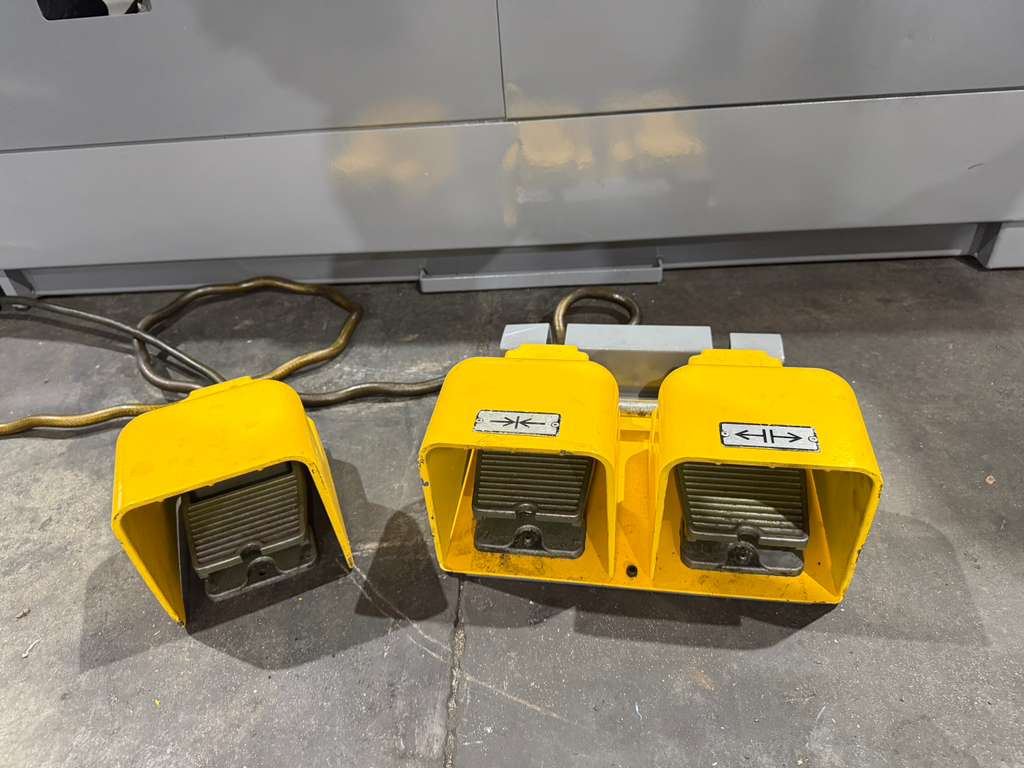

| Foot Swiches |
| Books & Manuals |
| Specifications: |
|---|
| Max Turning Diameter: 16.53″ |
| Max Turning Length: 25.59″ |
| Swing Over Slide: 18.89″ |
| Swing Over Bed: 24.40″ |
| Max Bar Capacity: 3.99″ |
| Travel: |
|---|
| X Axis Travel: 11.81″ |
| Z Axis Travel: 26.57″ |
| Rapid Traverse X Axis: 787 IPM |
| Rapid Traverse Z Axis: 984 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-11 |
| Spindle Bore: 4.33″ |
| Spindle Speed: 3,000 RPM |
| Spindle Motor: 30 HP |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Live Tool Speed: 3,000 RPM |
| Live Tool Motor: 7.5 HP |
| Turret Index Time: 1 Second |
| Tool Holders Type: VDI |
| Tailstock: |
|---|
| Tailstock Taper: MT-5 |
| Tailstock Quill Diameter: 3.94″ |
| Tailstock Quill Stroke: 5.90″ |
| General: |
|---|

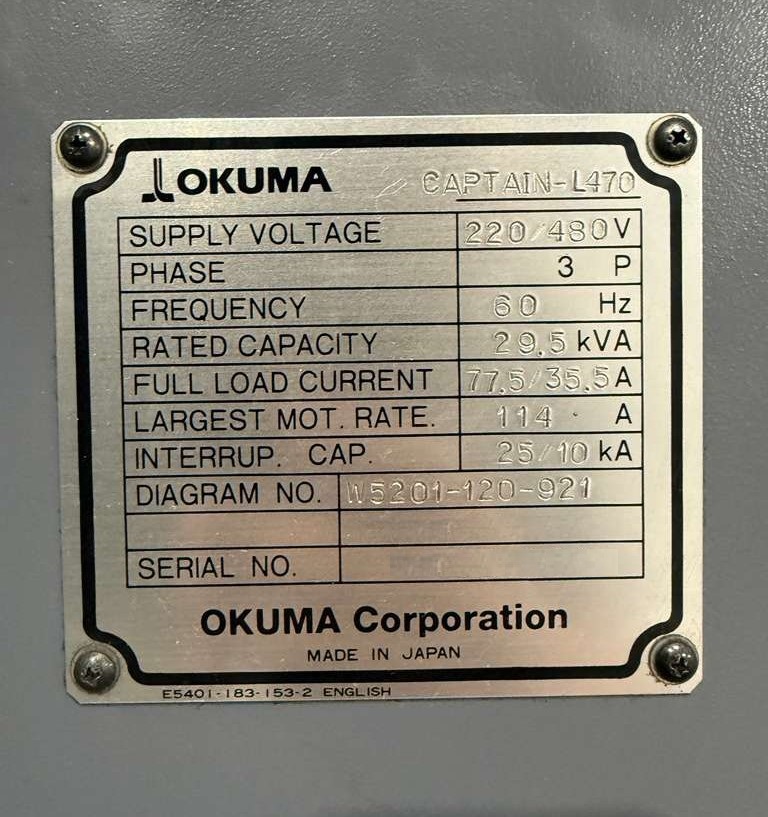

| Power Source: AC 220/480 V, Three Phase, 60 Hz |
| Power Requirement: 29.5 kva |
| Floor Space: 106″ x 74″ |
| Weight : 12,200 lbs Approx. |
