*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

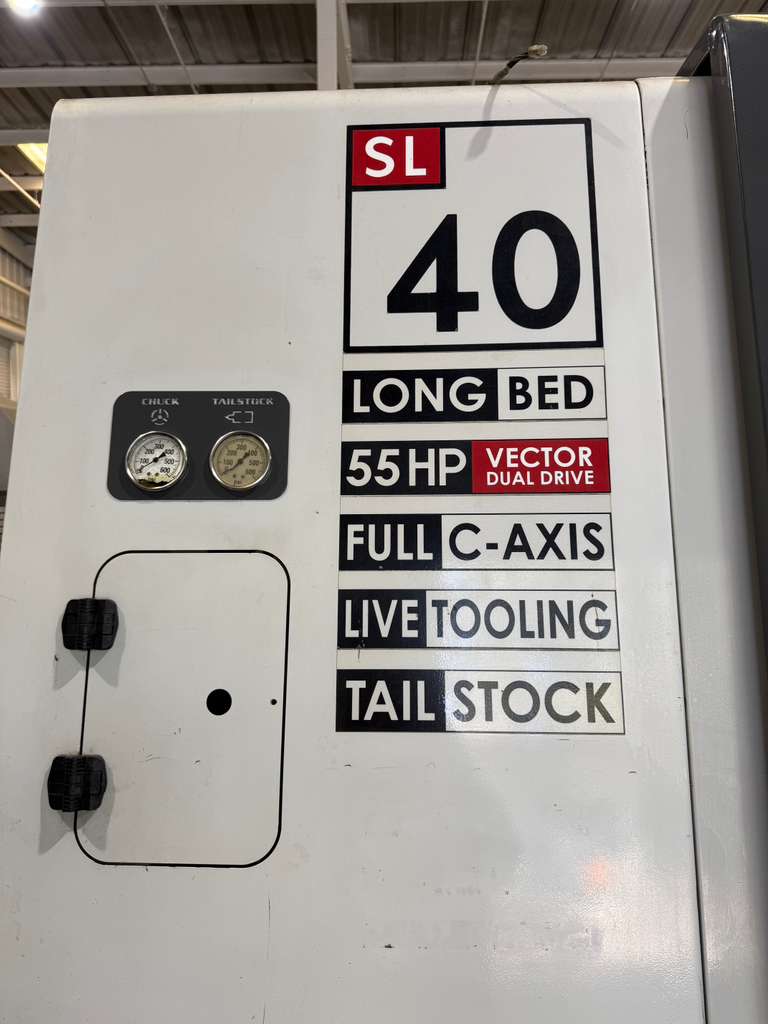

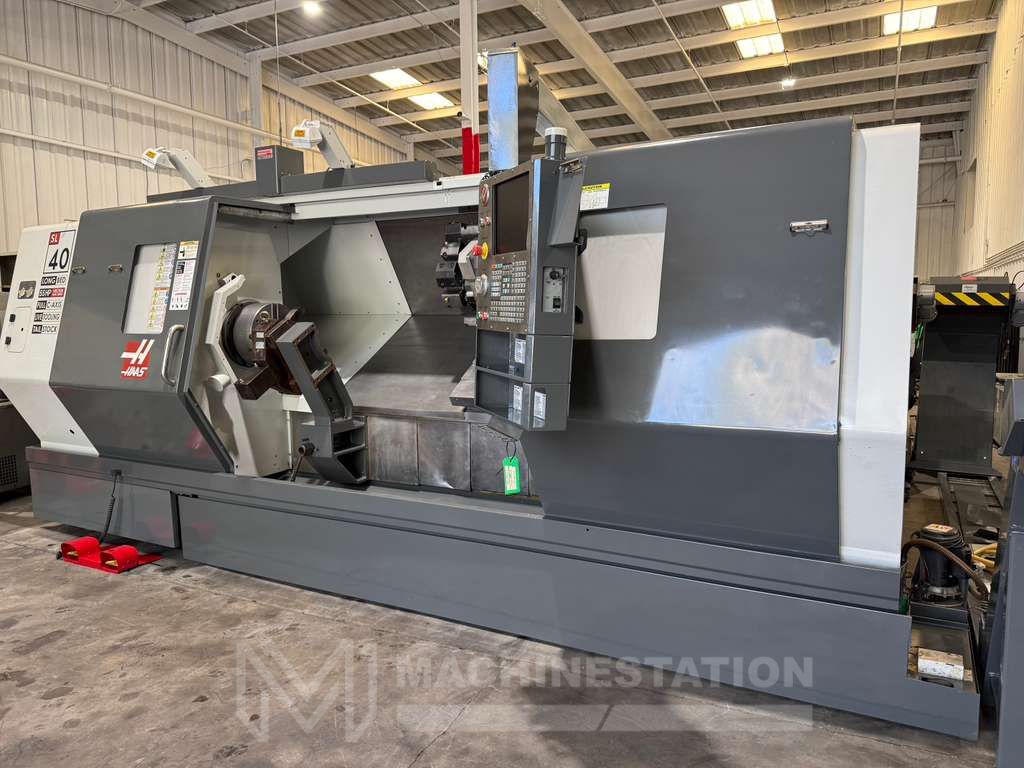

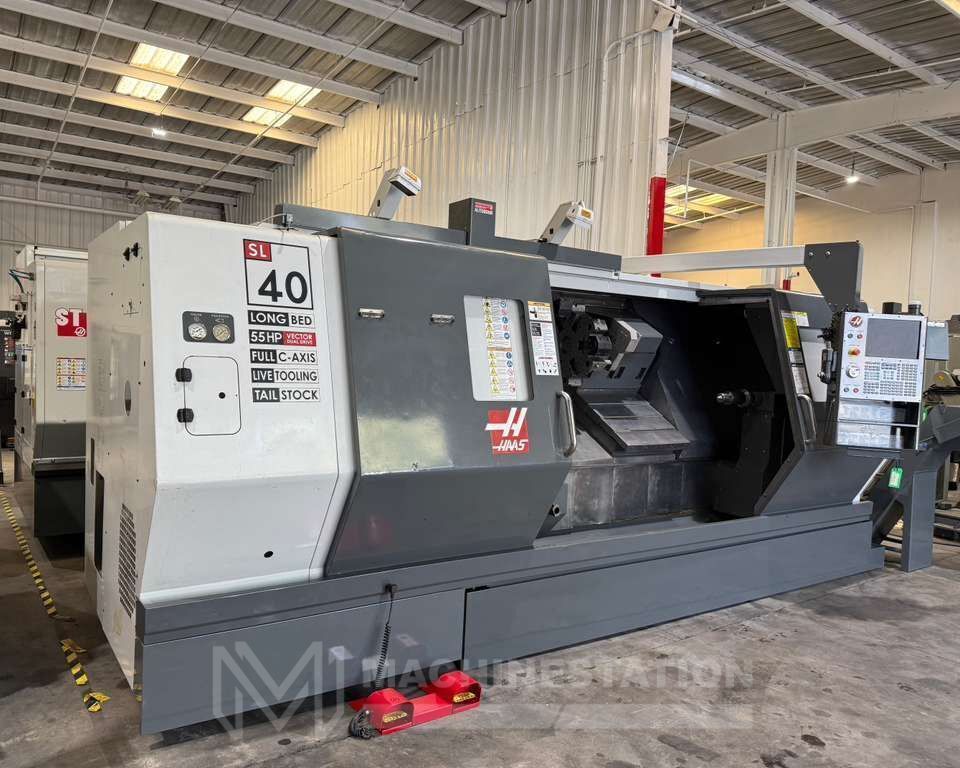

| Make: | Haas |
| Model: | SL-40L |
| Year: | 2004 |
| Condition: | Used – Good |
| Equipped With: |
|---|

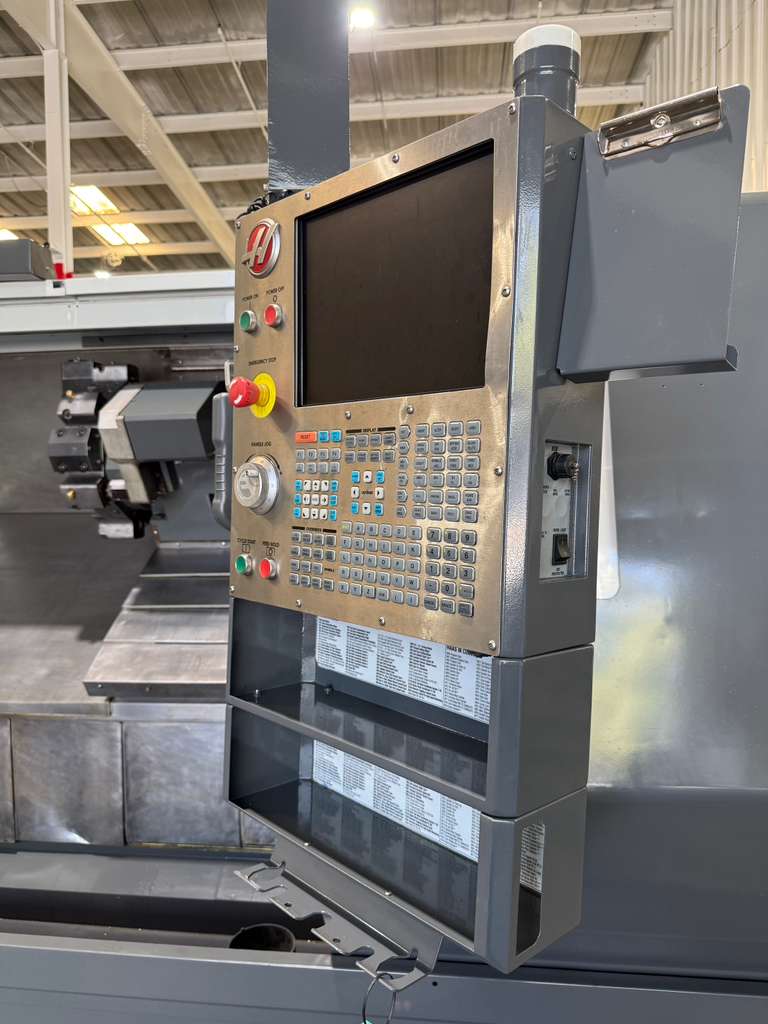

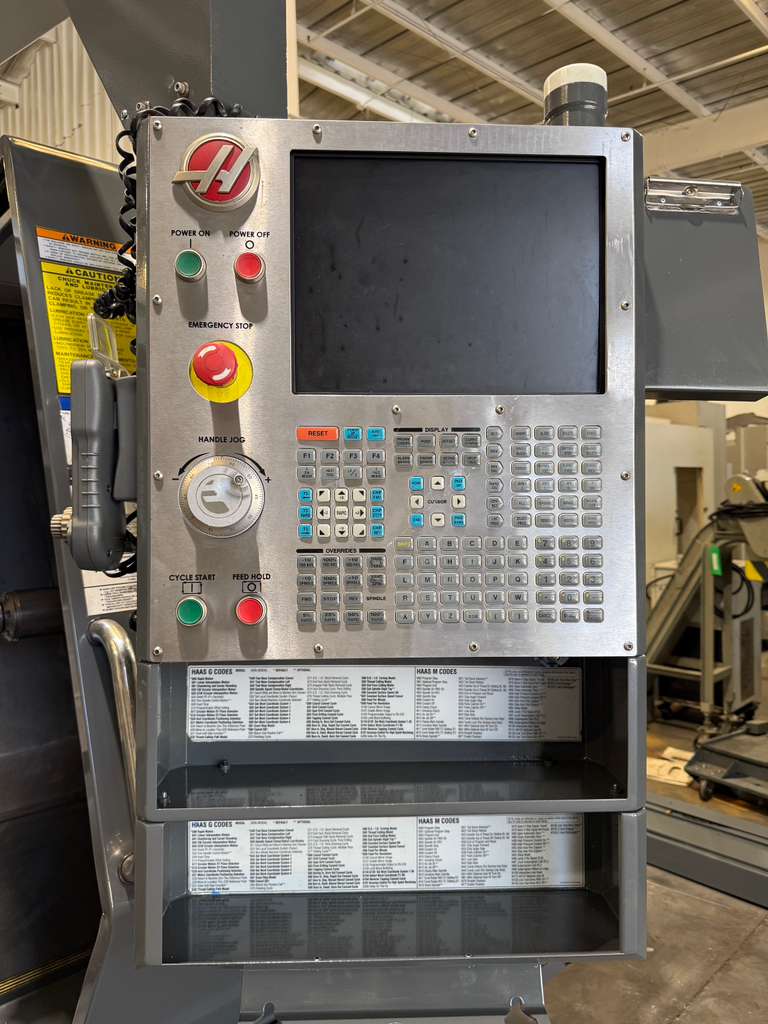

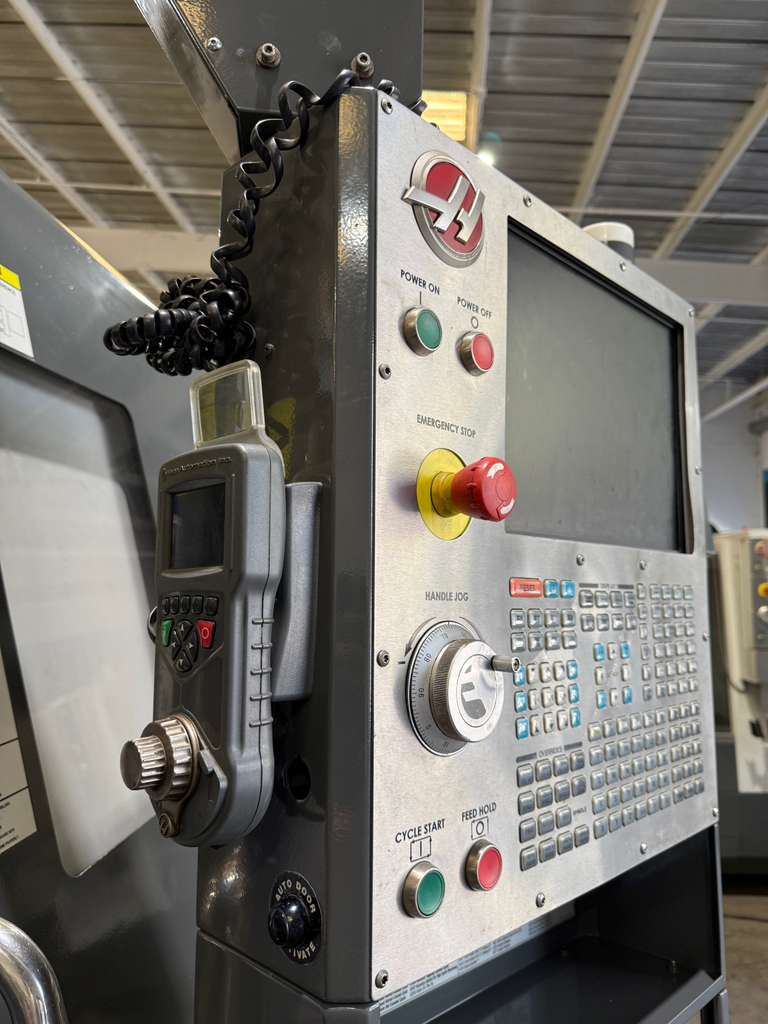

| Haas CNC Control |
| 80″ Long Bed |

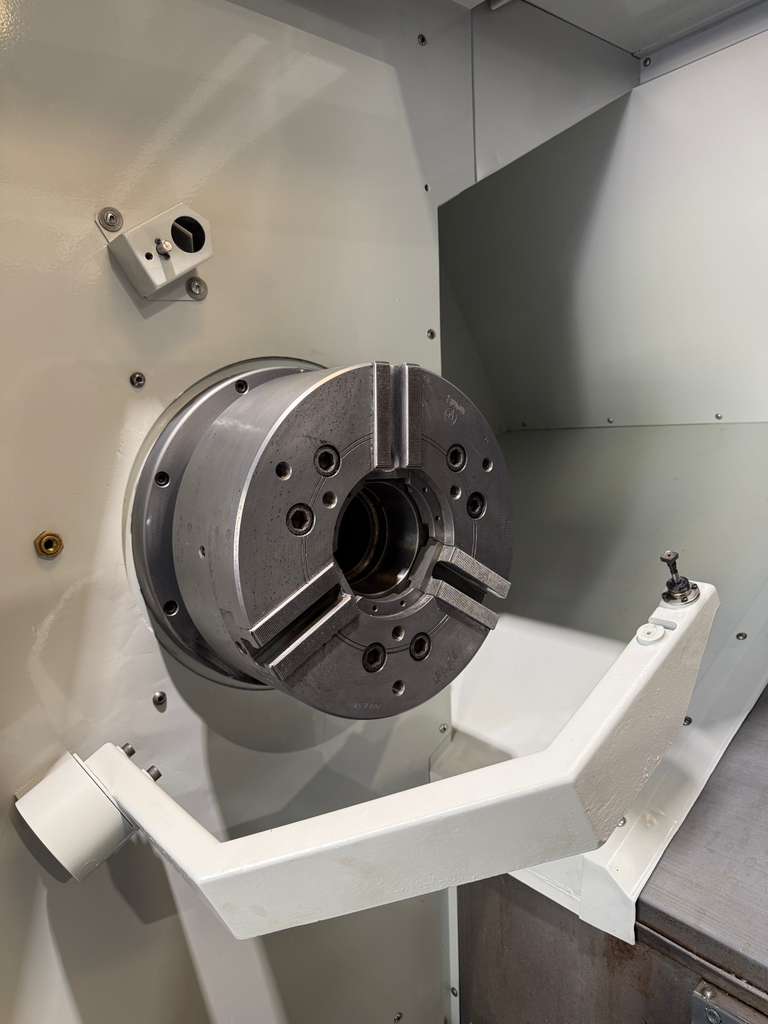

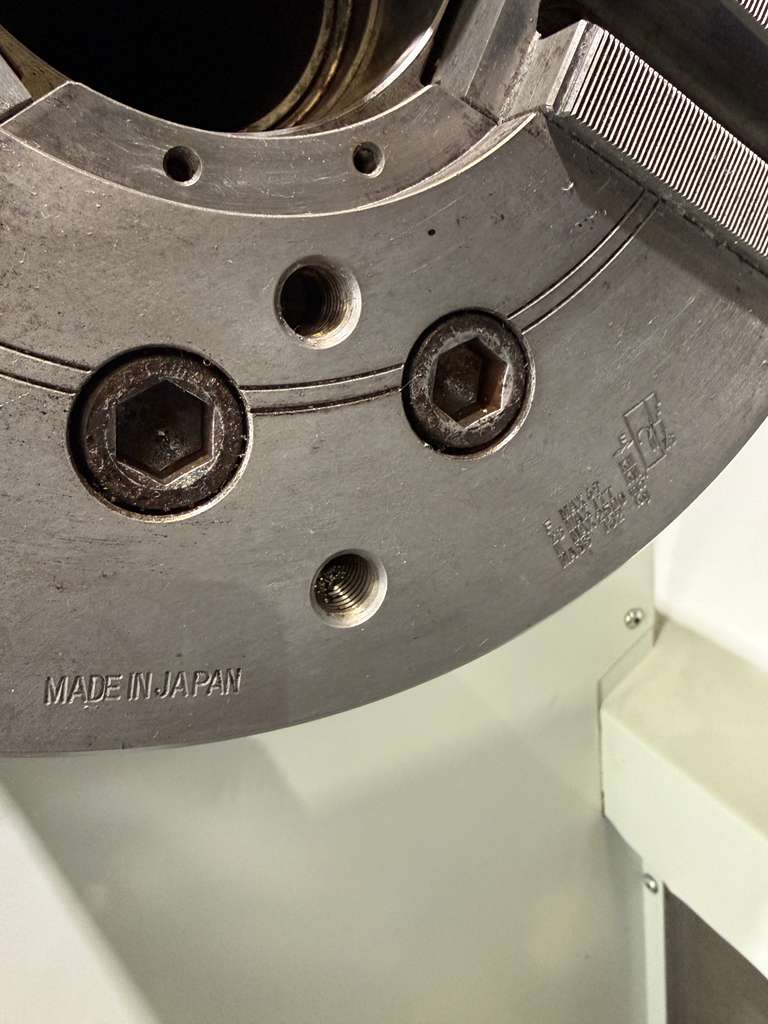

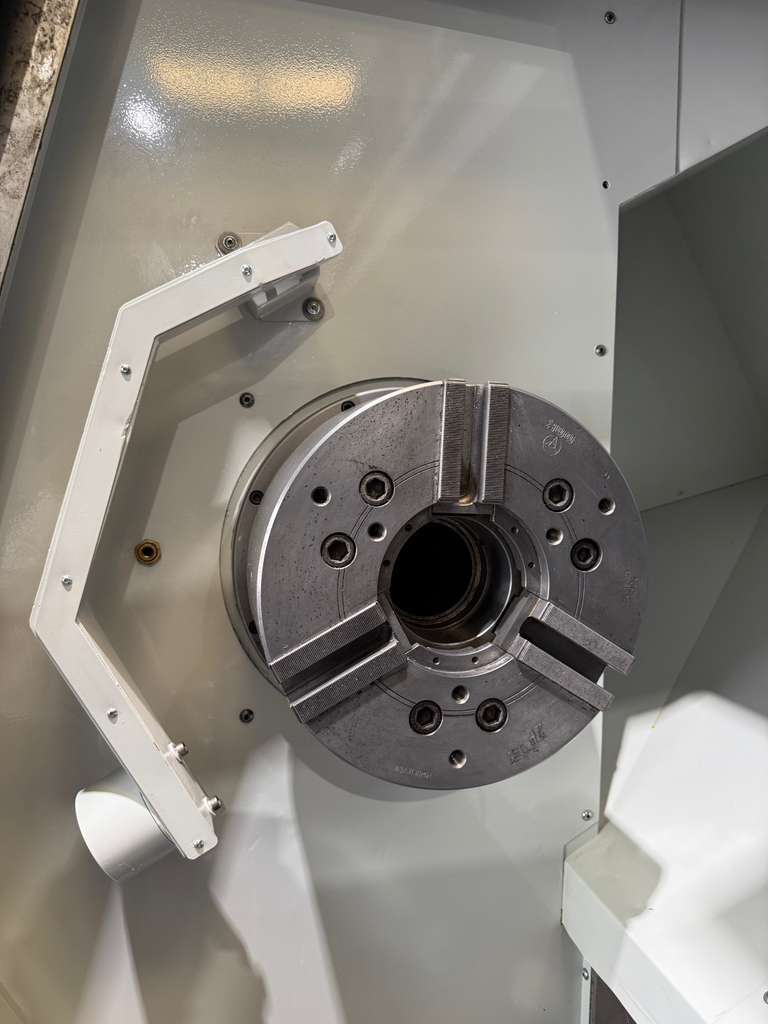

| 15″ 3-Jaw MMK Hydrualic Chuck |
| Servo Controlled Full C Axis On Spindle |

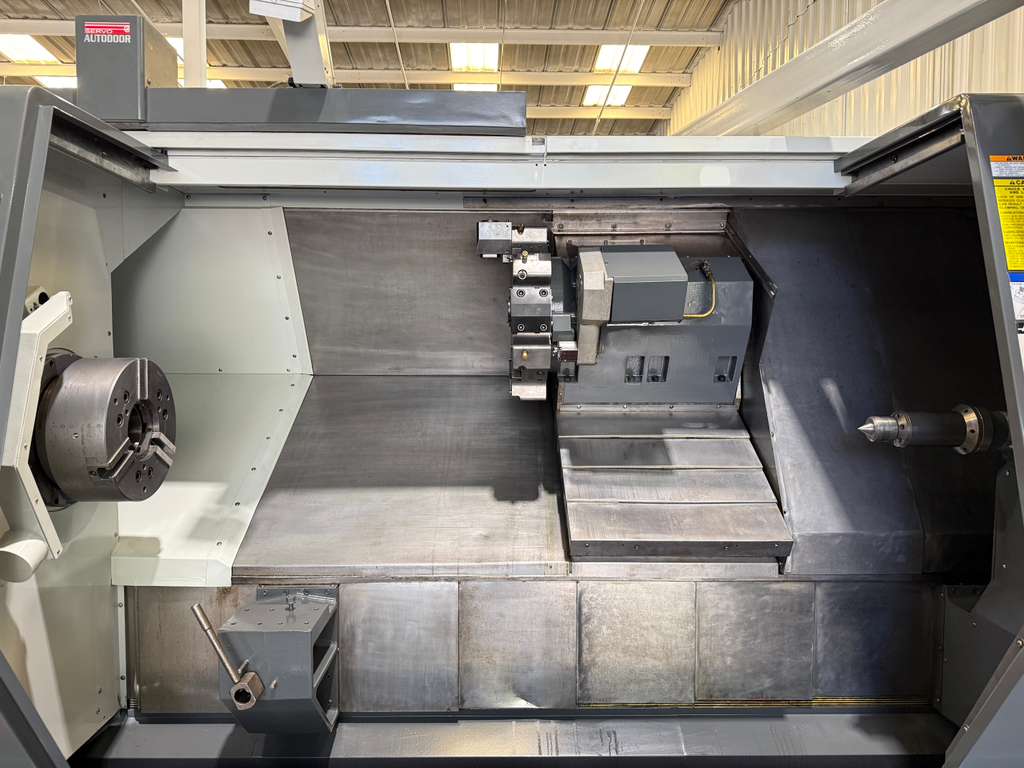

| 12 Station Live Tool Turret |

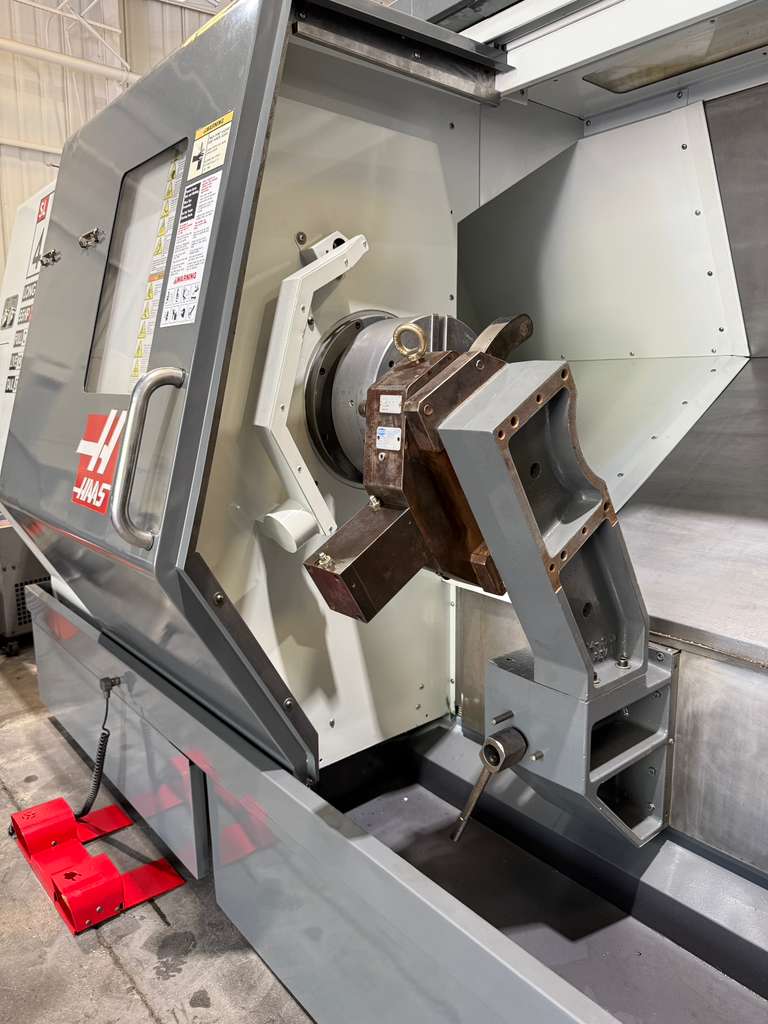

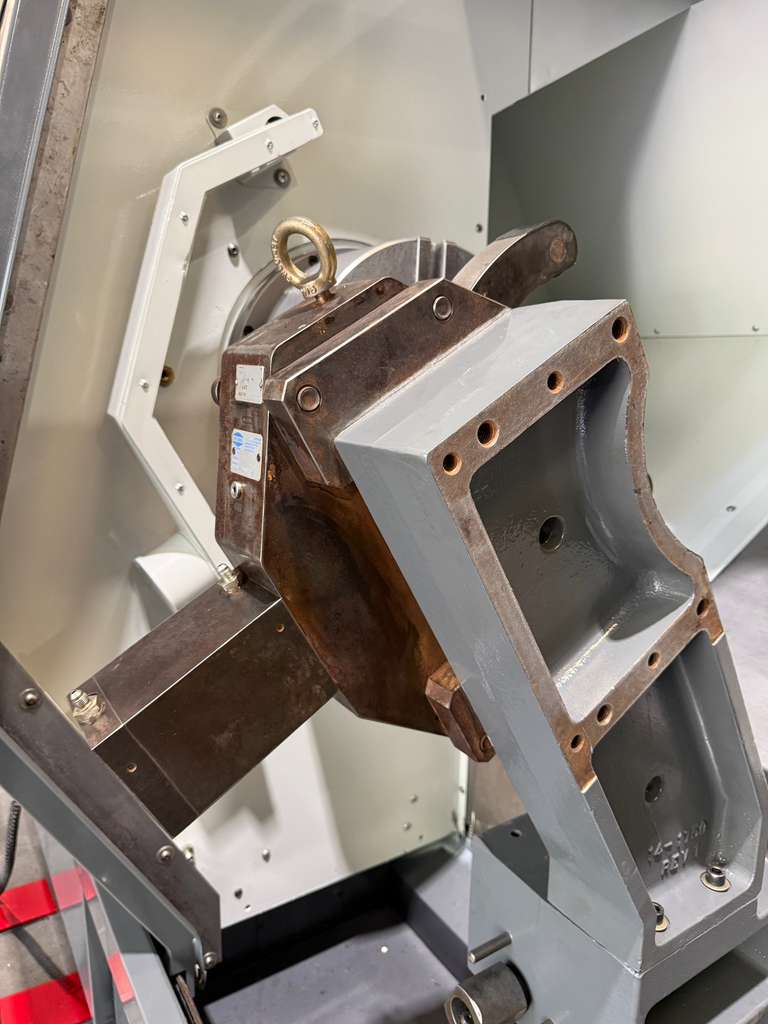

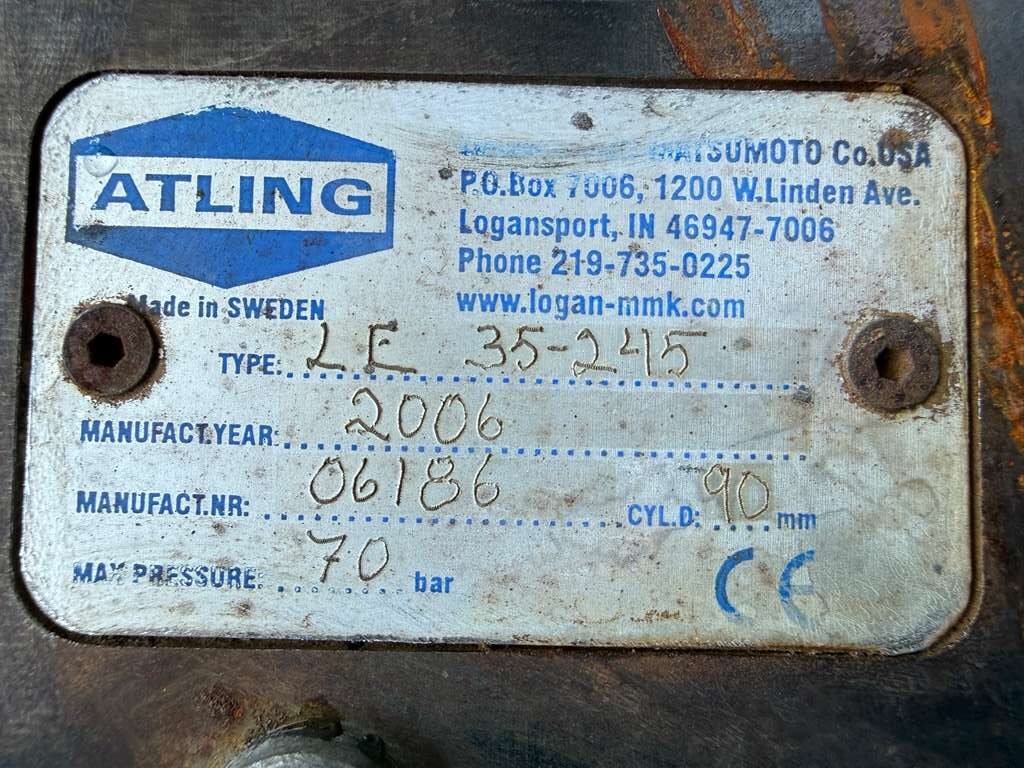

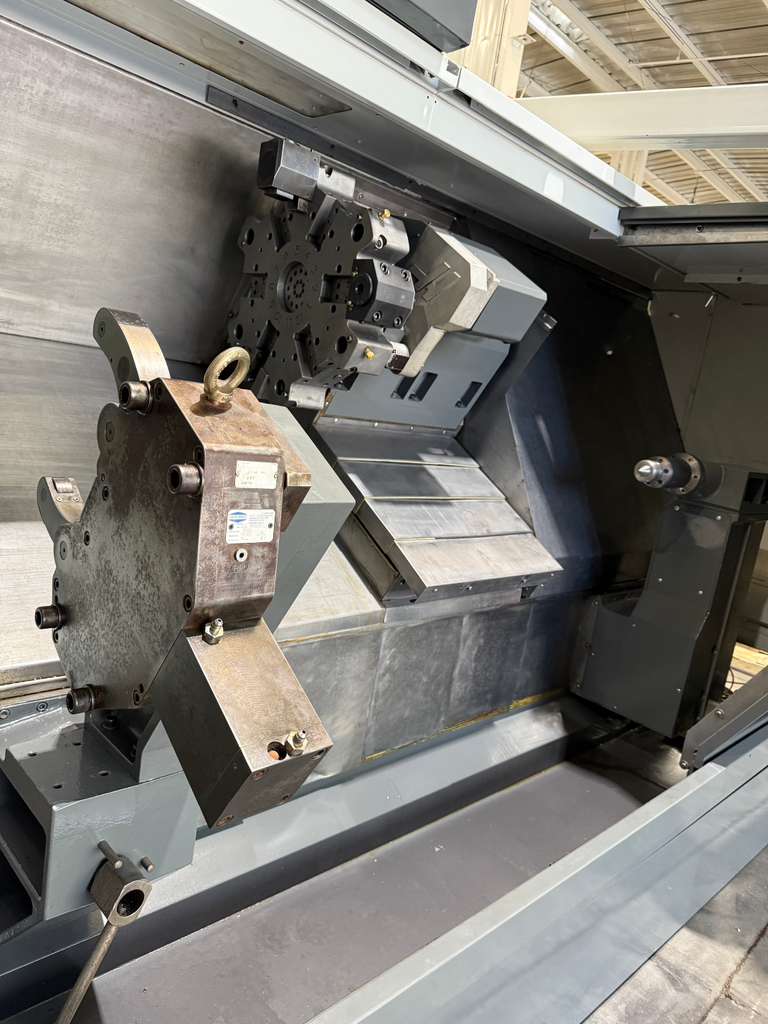

| 1.37″ – 9.64″ (Min – Max) Diameter Atling Steady Rest |
| 55 HP Vector Drive |
| A2-8 Spindle Nose |
| Tool Presetter |

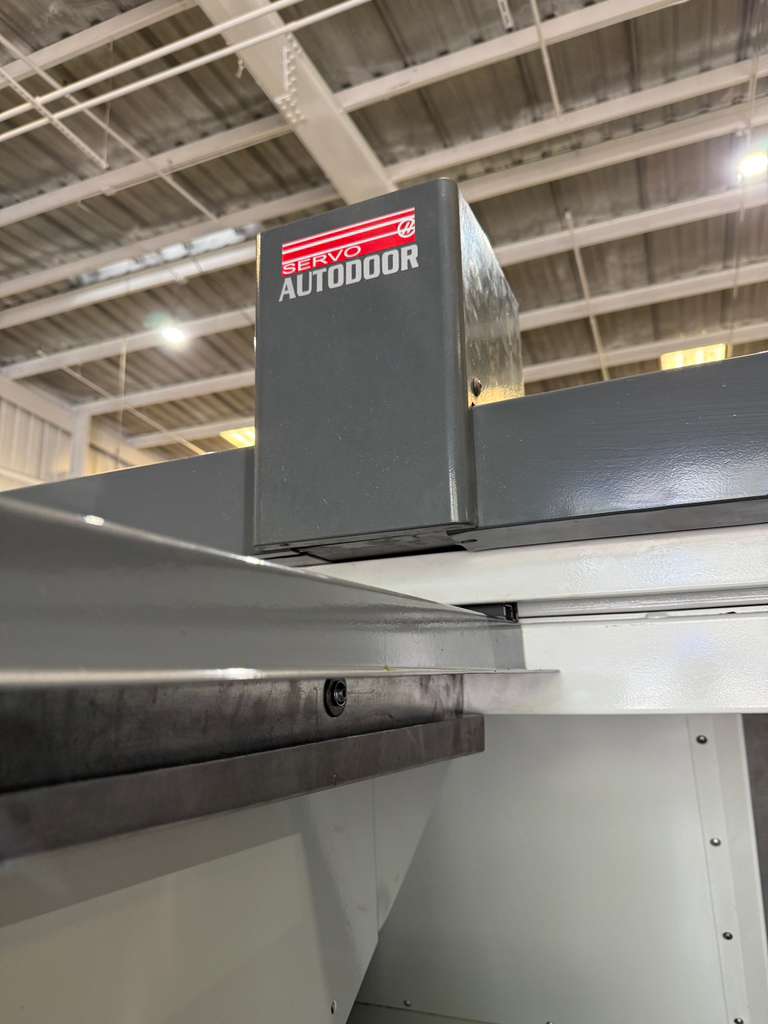

| Auto Door |

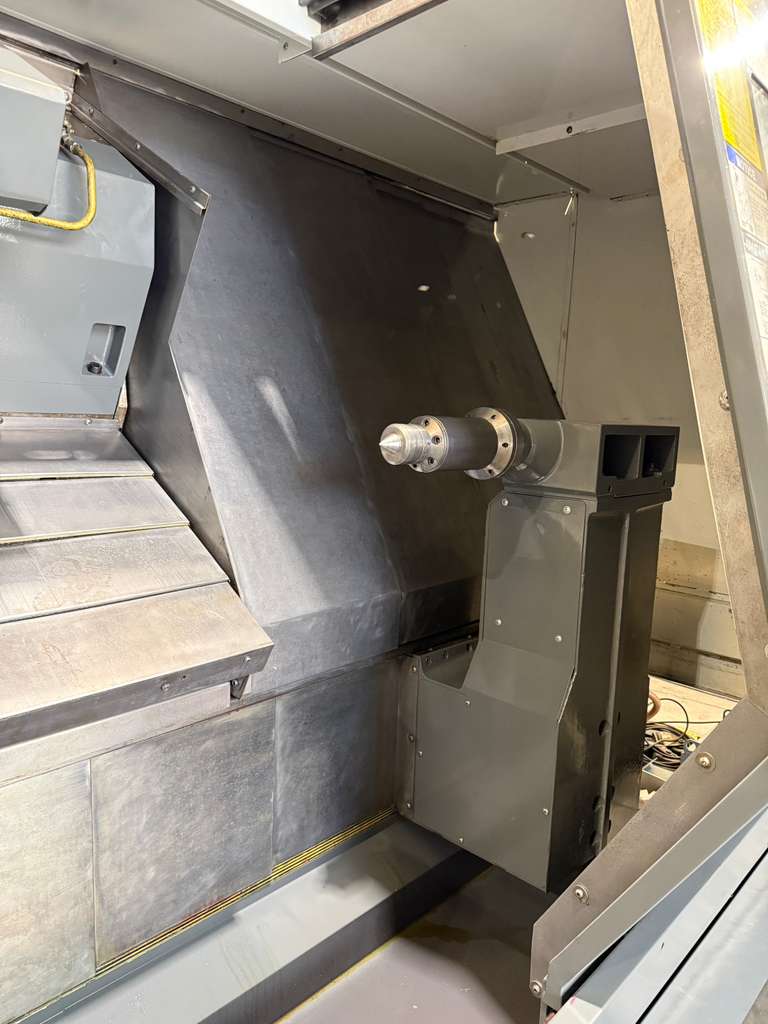

| Programmable Tailstock |
| Remote Jog Handle |
| Coolant System |

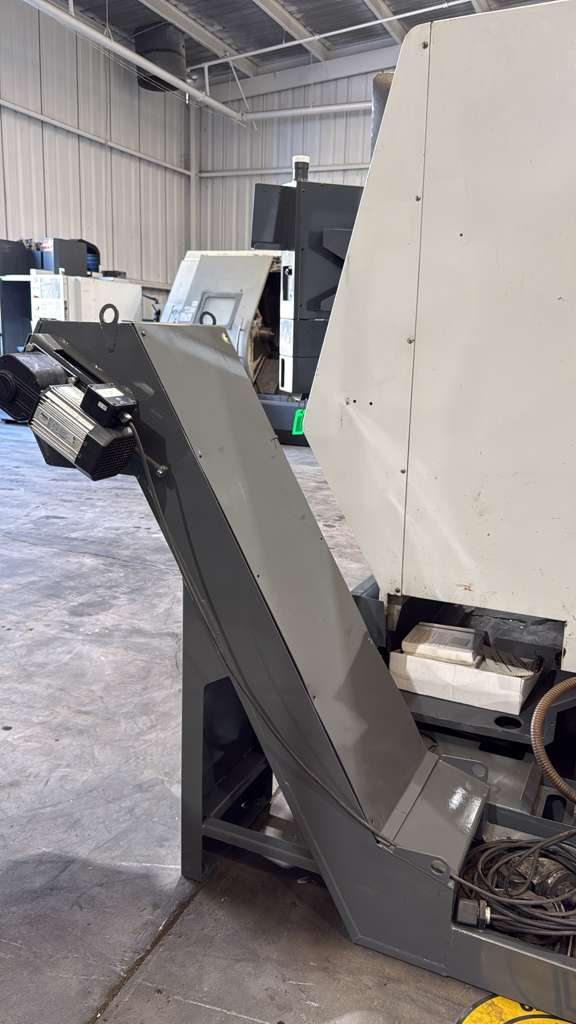

| Chip Conveyor |
| Automatic Lubrication system |

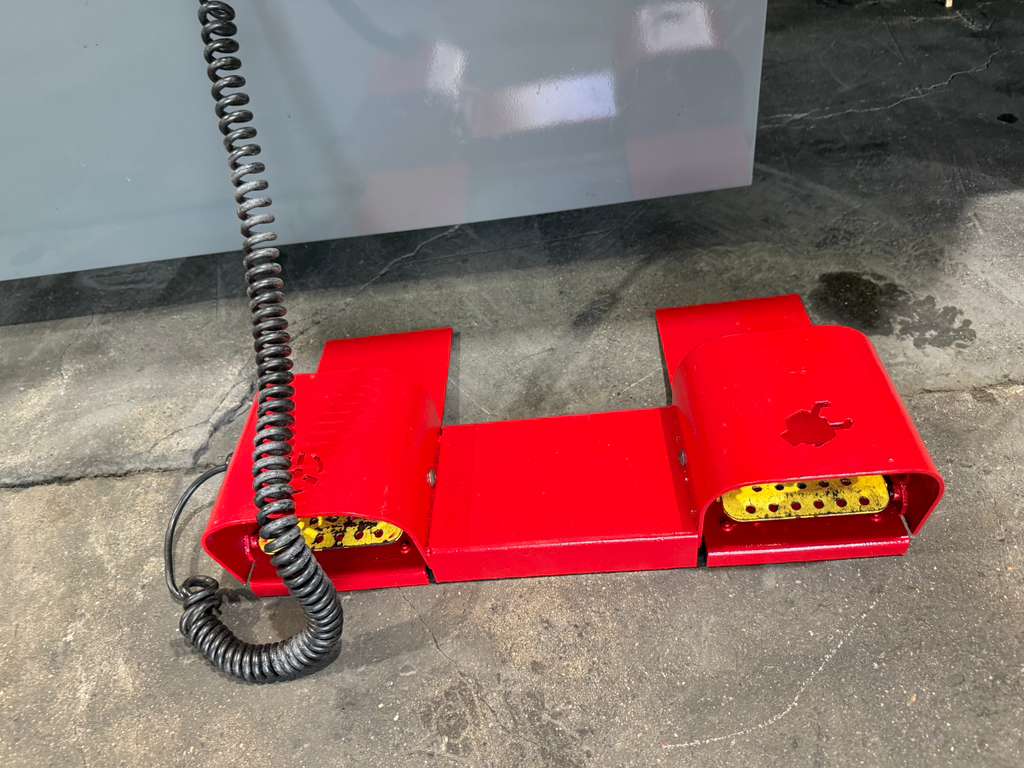

| Foot Switches |
| Capacity: |
|---|
| Max Turning Diameter : 27.5″ |
| Max Swing Over Bed : 35.5″ |
| Max Turning Length: 80.0″ |
| Max Bar Capacity : 4.0″ |
| Travels: |
|---|
| X Axis Travel : 17.0″ |
| Z1 Axis Travel : 80.0″ |
| Feedrate: |
|---|
| Rapid Traverse X Axis: 710 IPM |
| Rapid Traverse Z Axis: 320 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-8 |
| Spindle Bore: 4.62″ |
| Spindle Speed: 2400 RPM |
| Spindle Motor: 55 HP |

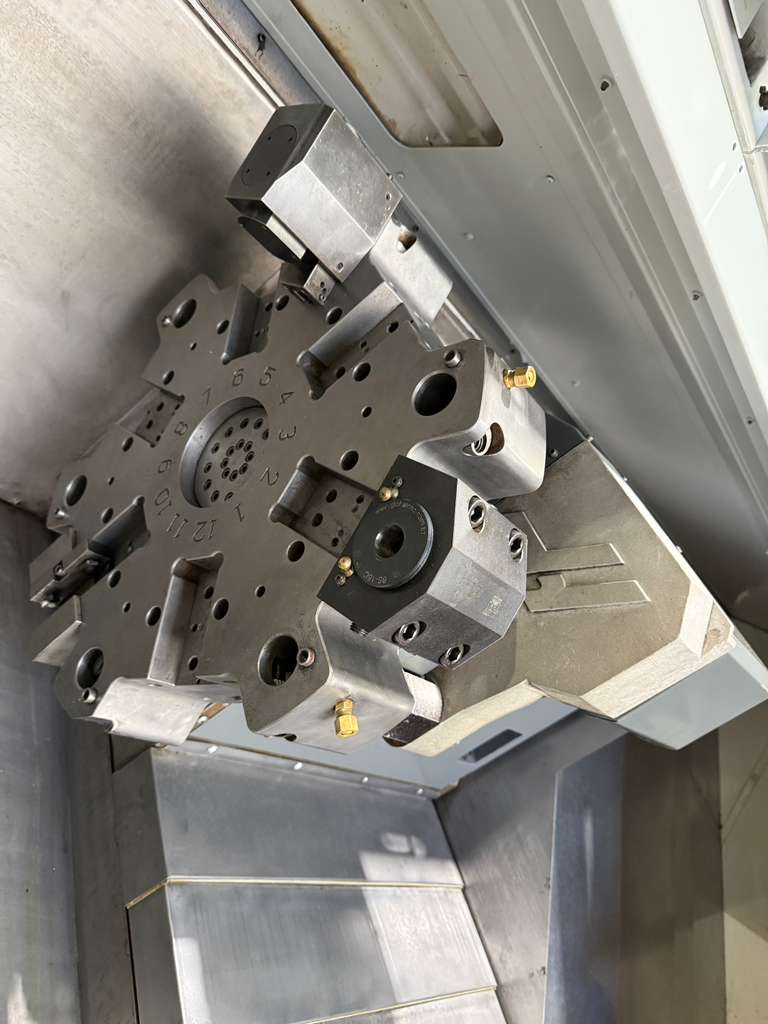

| Turret: |
|---|
| Turret Capacity: 12 Stations Live Tool |
| Turret Index Time: 1 Second |

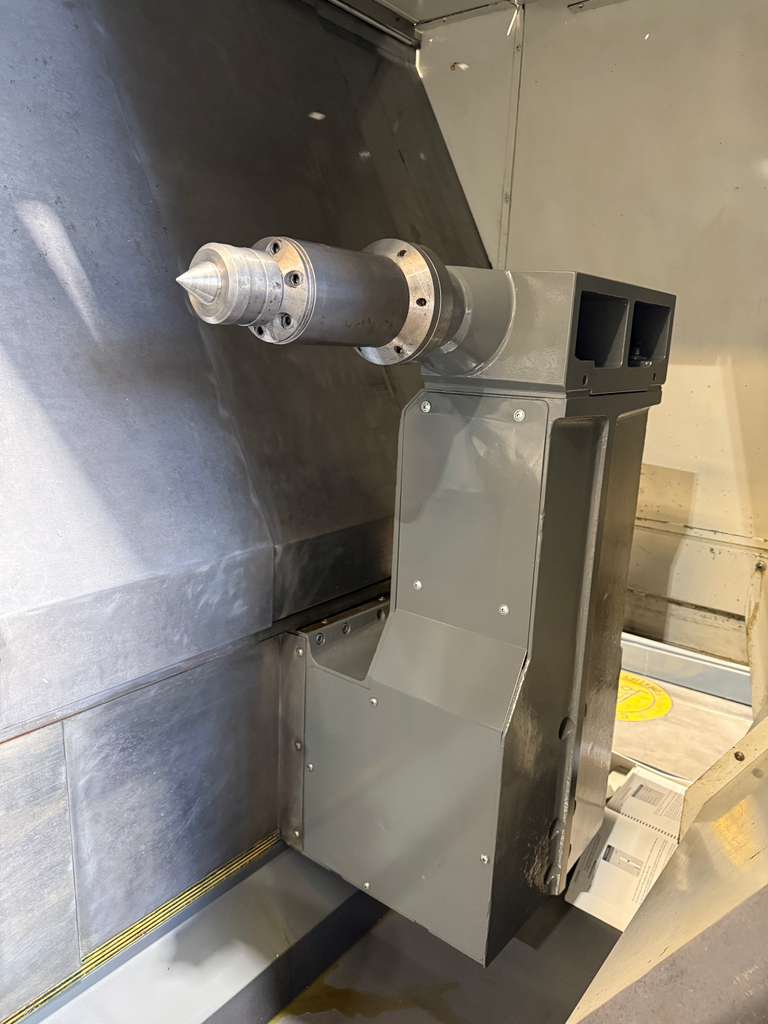

| Tailstock: |
|---|
| Tailstock Type: Programmable |
| Tailstock Taper: MT-5 |

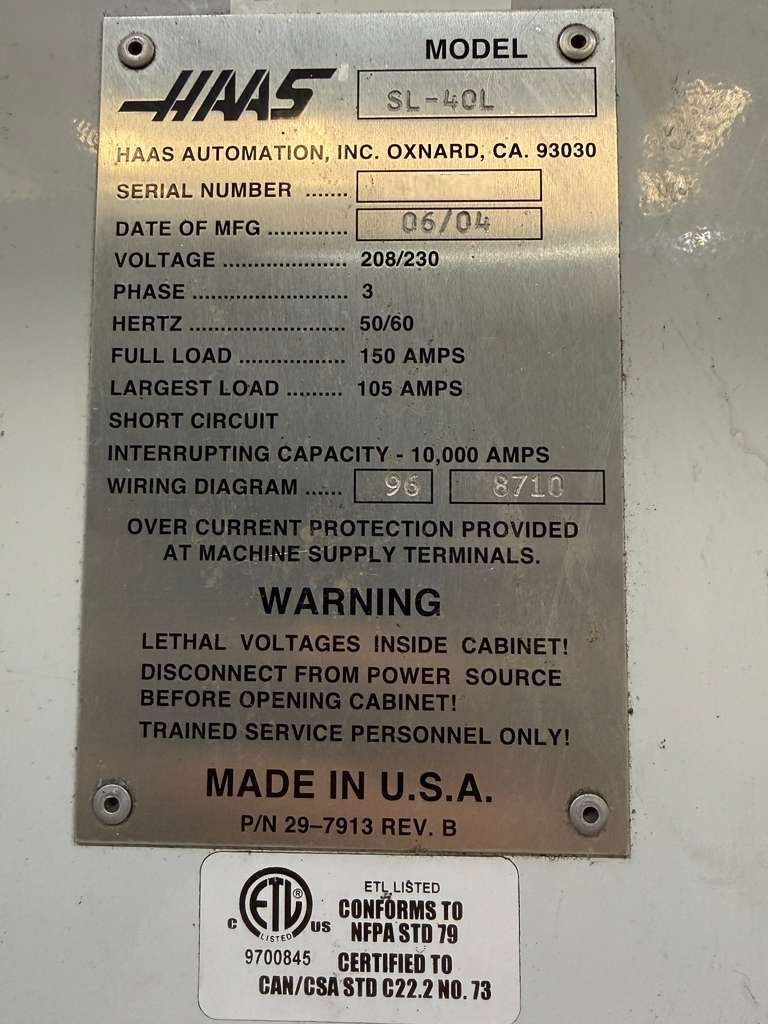

| General: |
|---|
| Power Source: AC 220v / 3-Phase / 60 Hz |
| Machine Dimensions: 254″ x 95″ x 105″ High |
| Machine Weight: 29,900 lbs Approx. |
