Okuma Crown 762S-BB Big Bore CNC Turning

Out of stock

Heavy Duty Big Bore Okuma Crown One Owner Machine on Our Floor now, Fully powered / tested & is in Great working condition. Equipped with Hydraulic Chuck, Tailstock, chip conveyor. “

Compare
SKU: 1574
OKUMA CROWN 762S-BB BIG BORE CNC TURNING
Make Okuma
Model No. Crown 762S-BB
Country of Origin: Japan

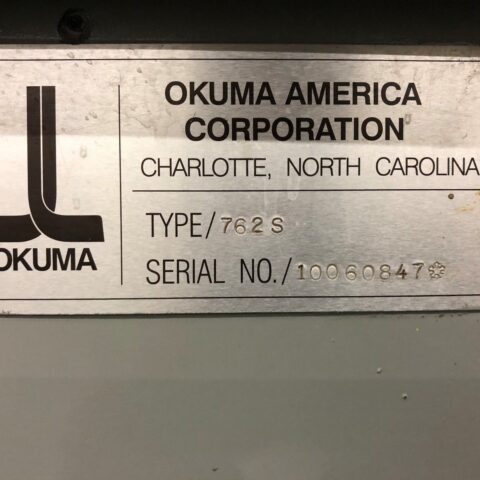

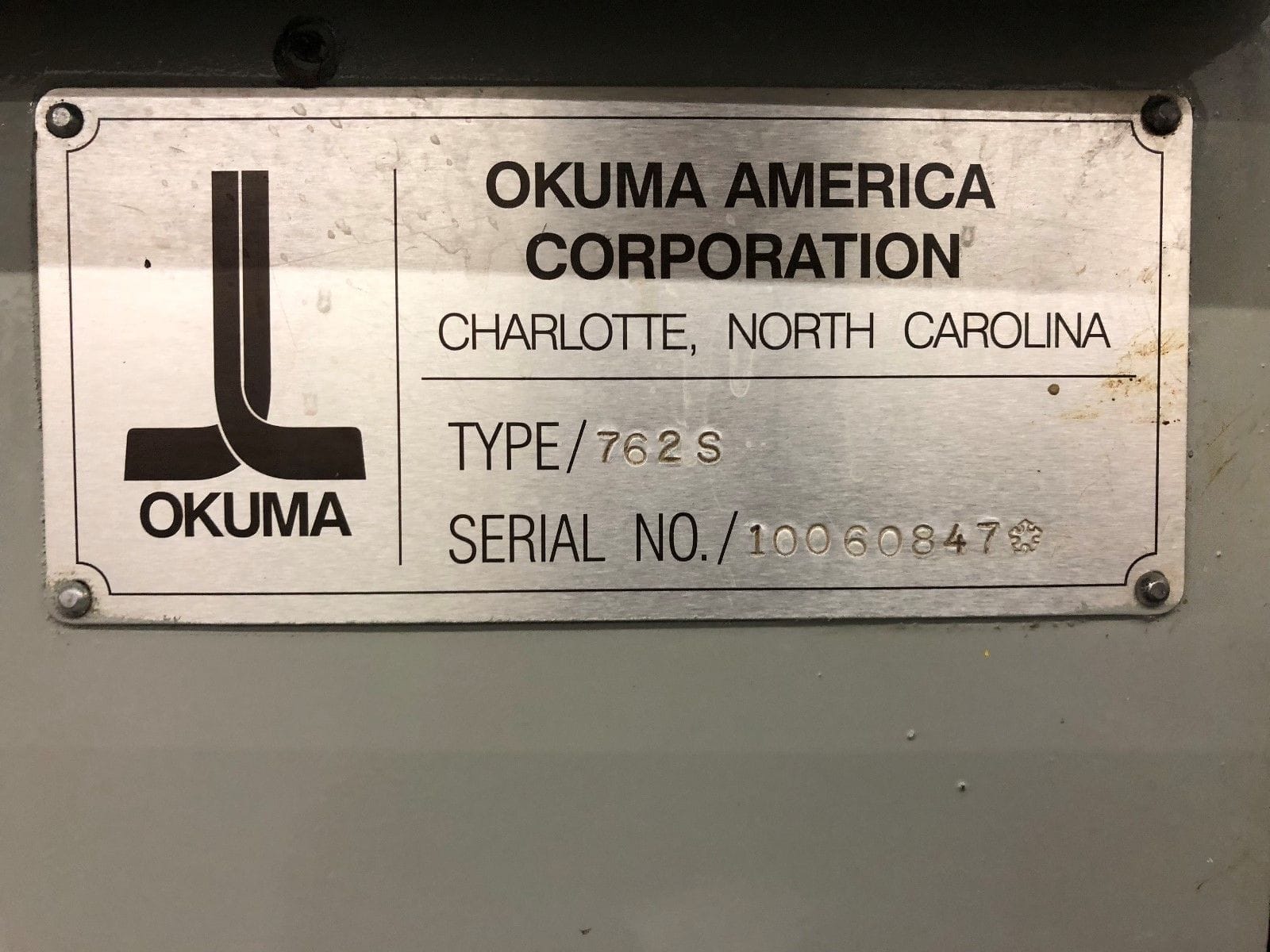

Serial #  0847
Condition Very Good

“Heavy Duty Big Bore Okuma Crown One Owner Machine on Our Floor now, Fully powered / tested & is in Great working condition. Equipped with Hydraulic Chuck, Tailstock, chip conveyor.“

  • OKUMA CROWN 762S-BB Equipped With:
  • Okuma OSP-700L CNC Control
  • IGF – Interactive Graphic Function

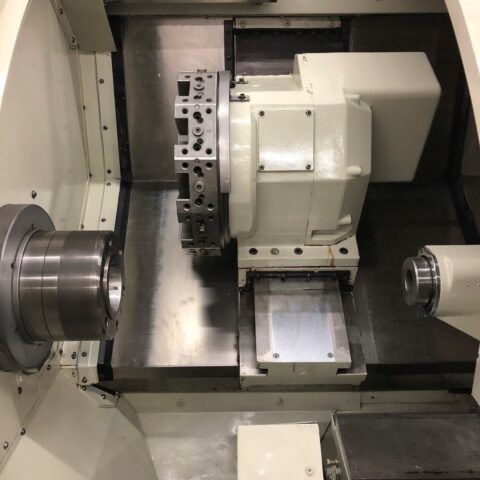

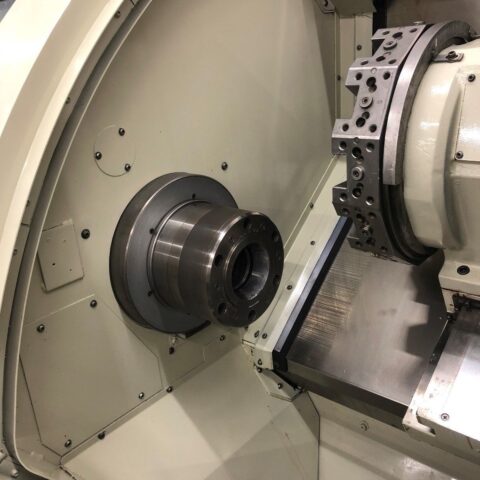

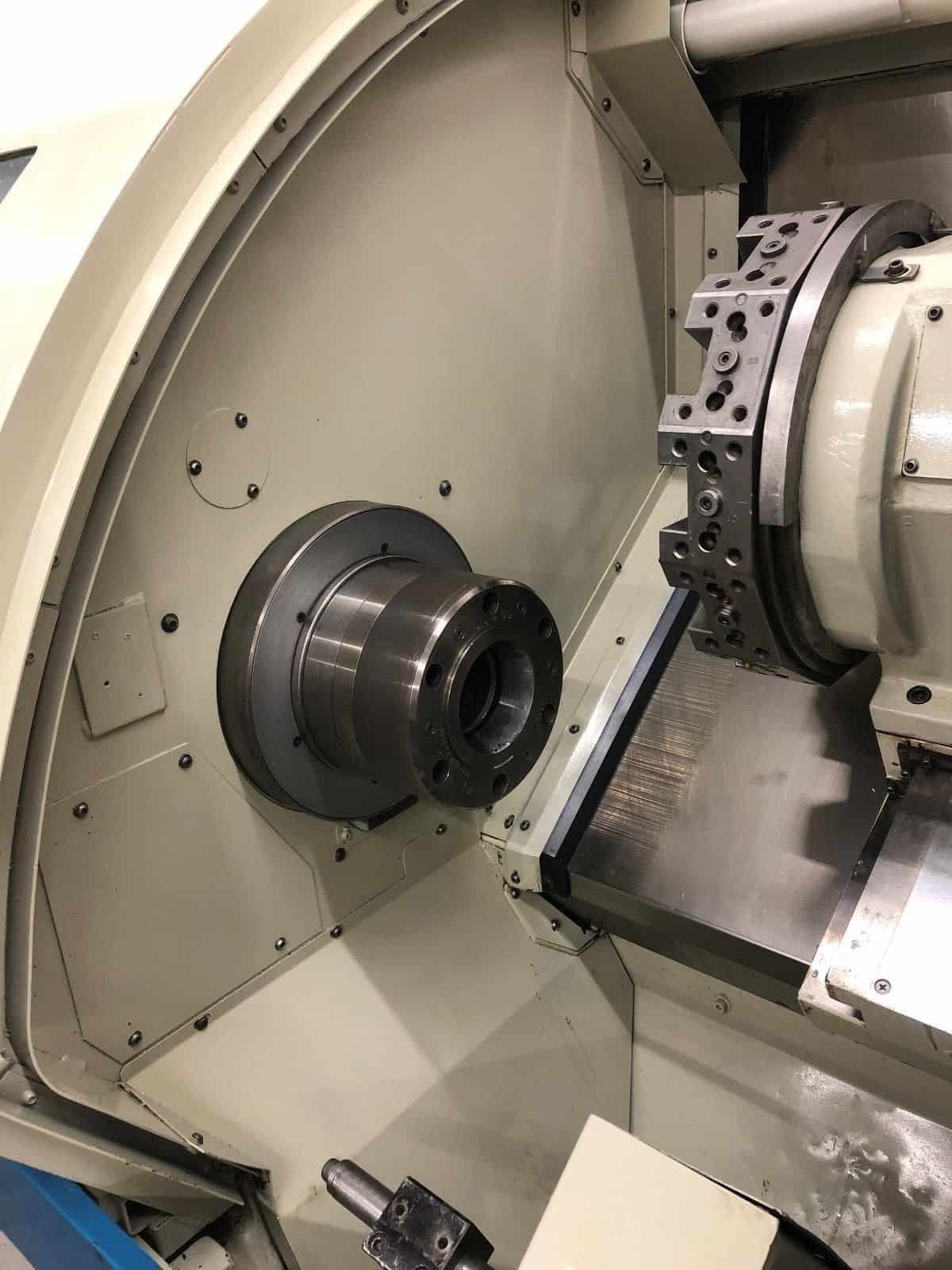

  • Microcentric CB65-D Hydraulic Collet Chuck

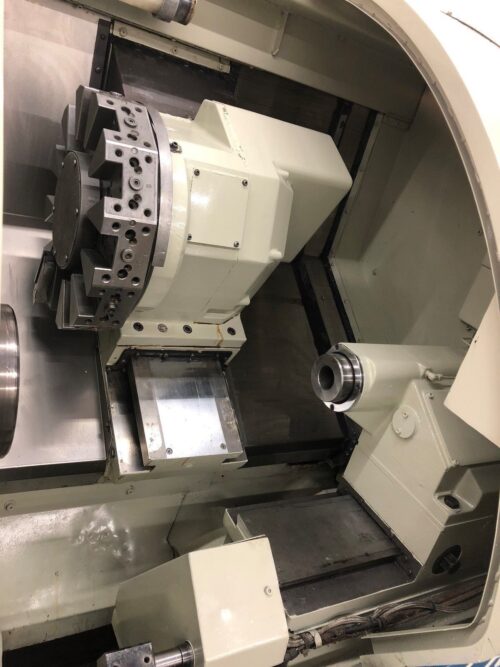

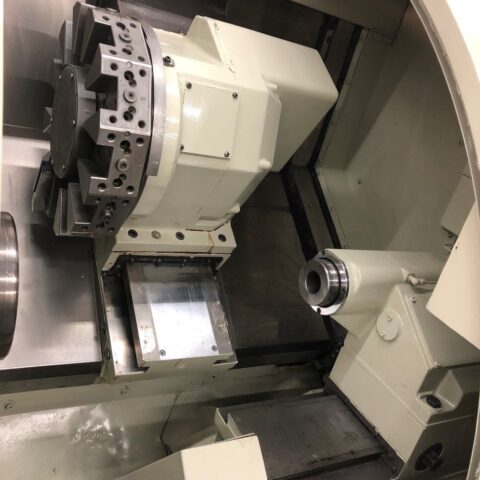

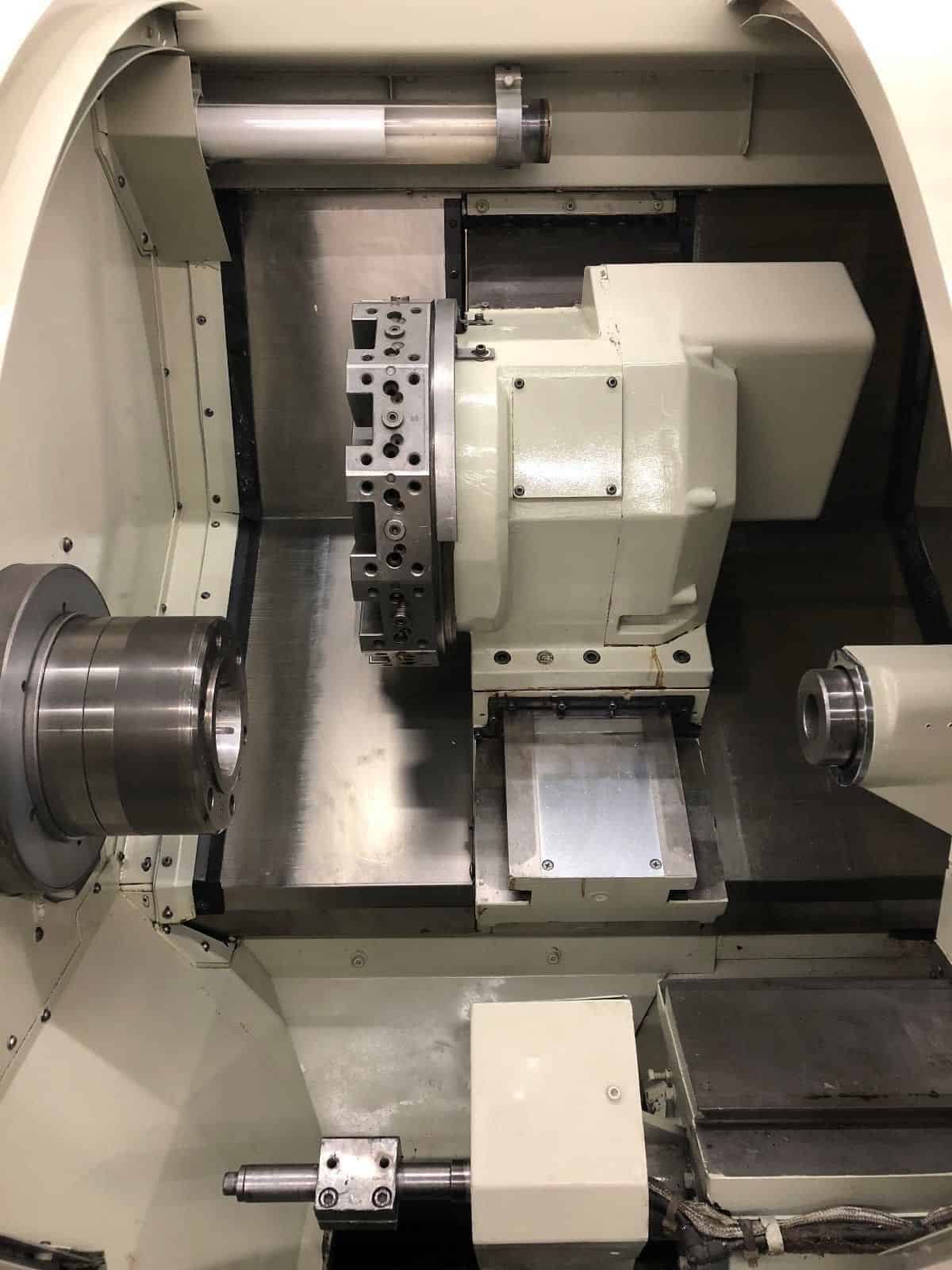

  • 12-Station Turret
  • Hydraulic Tailstock with Quill
  • Floppy Drive
  • Slant Bed Rigid Box Way Machine
  • Chip Conveyor
  • Coolant System.
  • Automatic Lubrication system
  • Foot Operated Control for Chuck & Tailstock
  • Coolant Tank
  • Comes with Chuck, Chip Conveyor, Levelling Pads, Manuals and Floppies.
  • General:

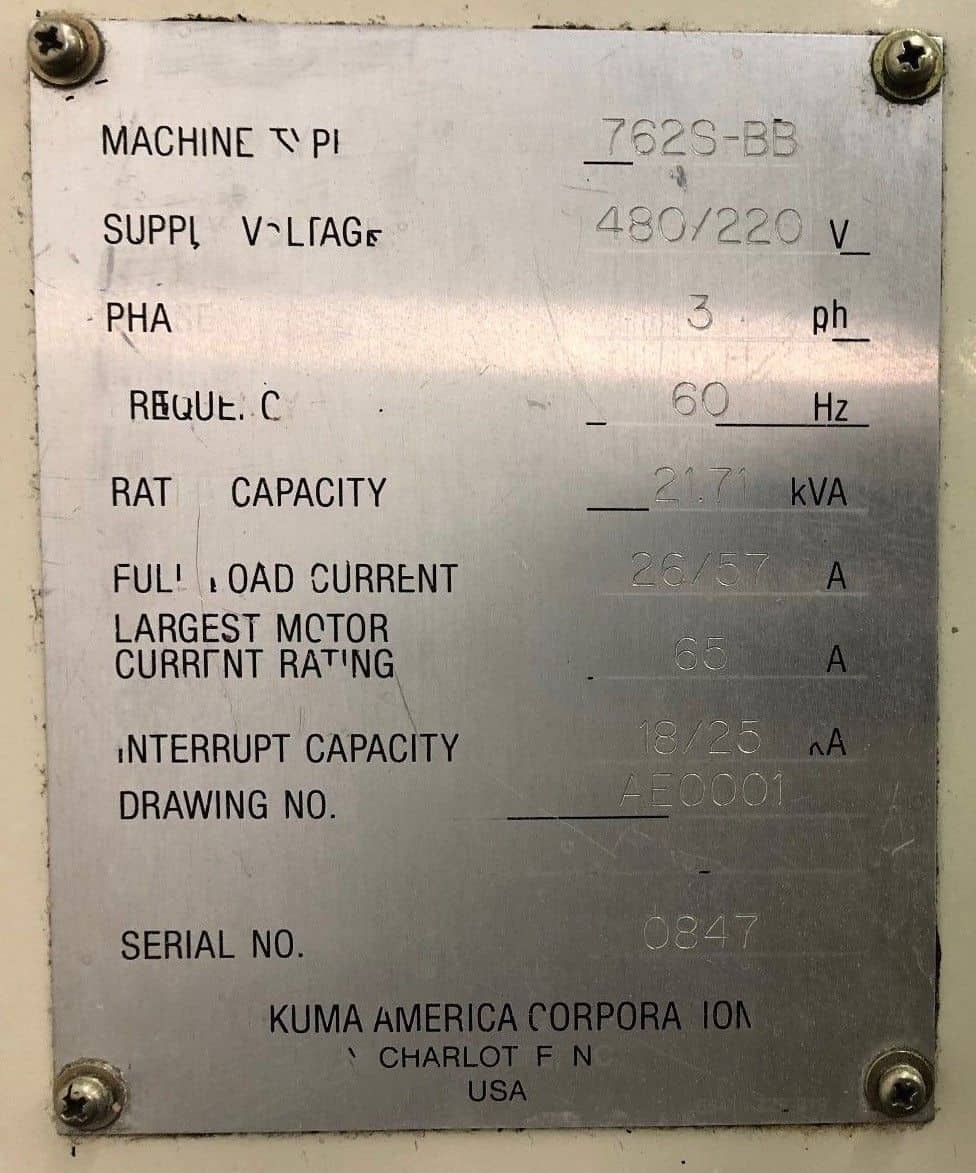

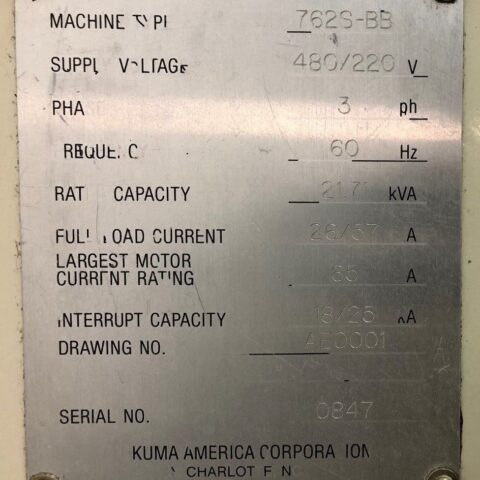

  • Power Source: AC 220 V, Three Phase, 60 Hz
  • Overall Dimensions: 104″ x 76″ x 72″ High
  • Overall Dimensions: 142″ x 76″ x 80″ High W/Chip Conveyor
  • Weight : 9900 lbs Approx.
  • OKUMA CROWN 762S-BB Specifications:
  • Max Turning Diameter: 10.63″
  • Max Turning Length: 19.68″
  • Max Bar Capacity: 3.05″
  • Swing Over Bed: 21.65″
  • Distance Between Centers: 22.29″
  • X Axis Travel: 7.28″
  • Z Axis Travel: 20.47″
  • Rapid Traverse X Axis: 590 IPM
  • Rapid Traverse Z Axis: 787 IPM
  • Spindle Nose: A2-8
  • Spindle Bore: 3.15″
  • Spindle Speed: 65-3500 RPM
  • Spindle Motor: 22 HP
  • Turret Capacity: 12 Stations
  • Turret Index Time: 1 Second
  • Tailstock Quill Dia.: 3.54″
  • Tailstock Quill Stroke: 4.72″
  • Tailstock Taper: MT-5

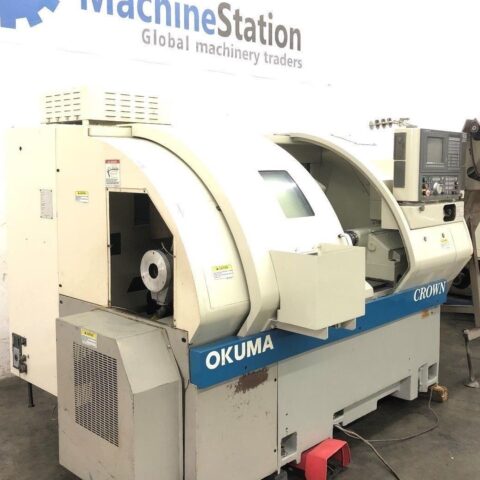

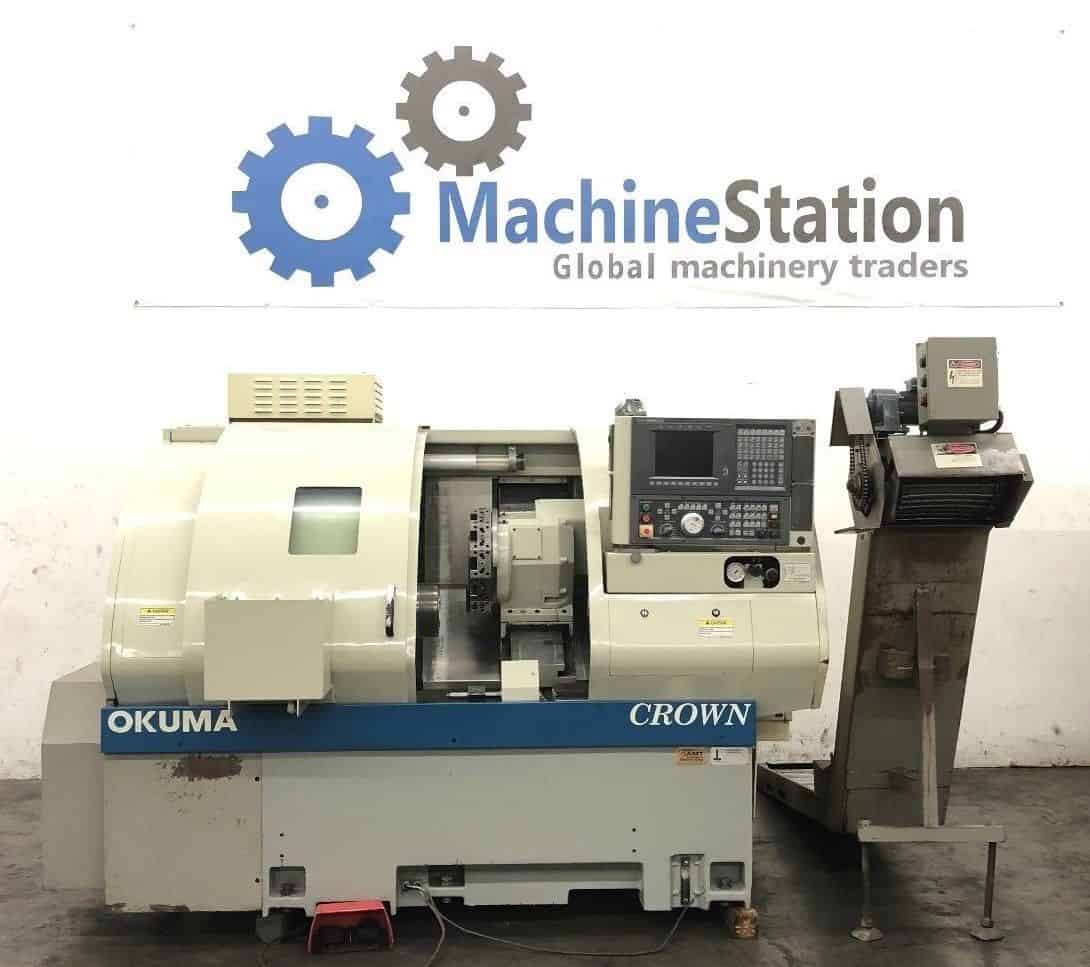

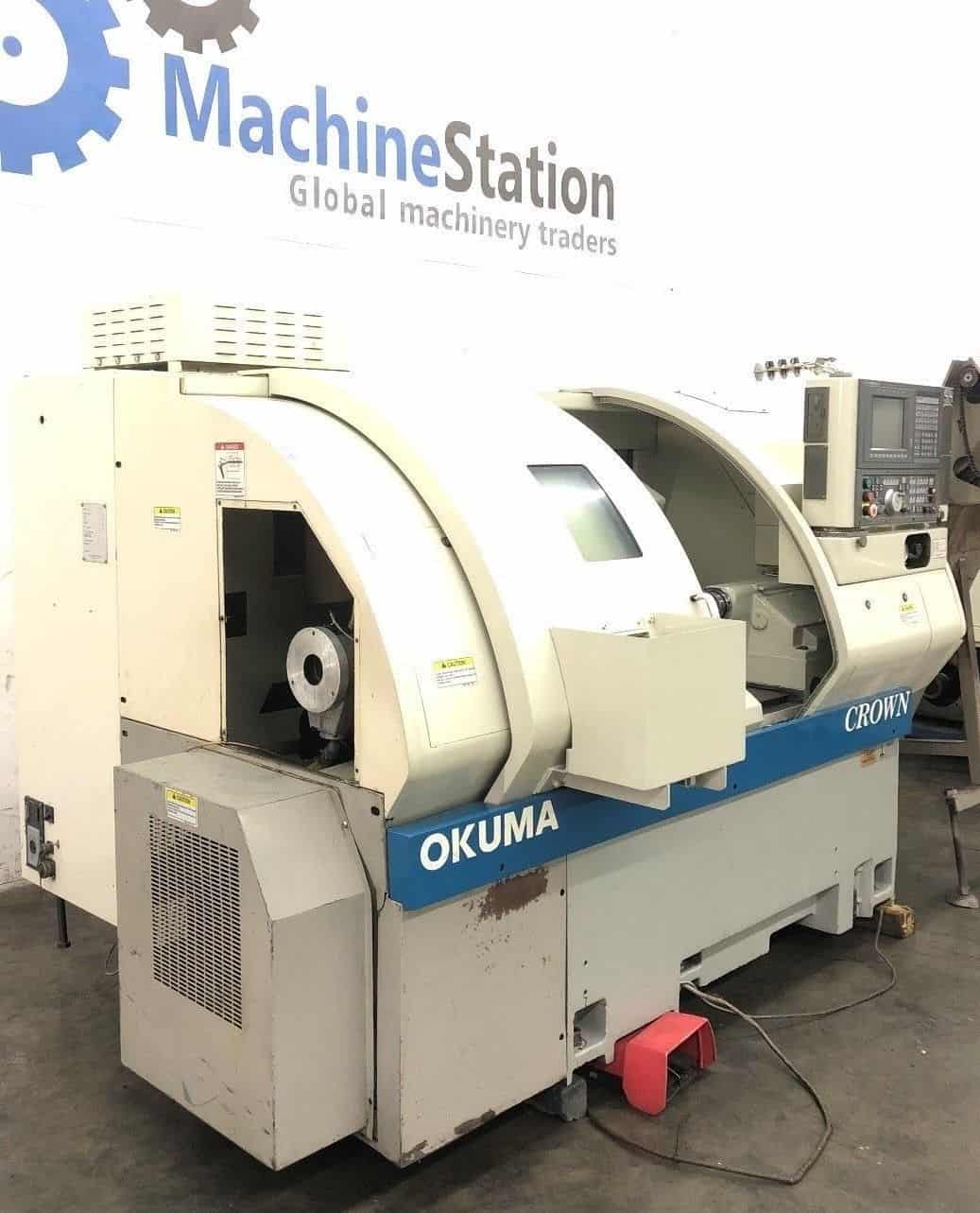

OKUMA CROWN 762S-BB Comes as shown in pictures.
