Sold

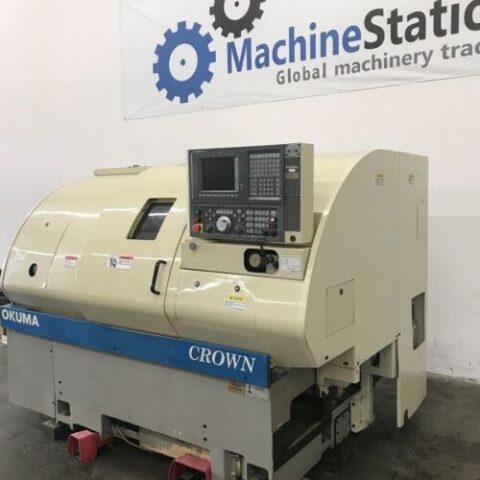

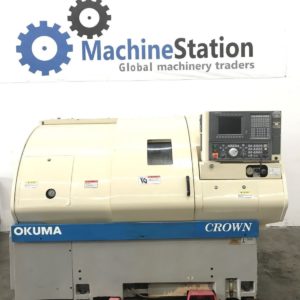

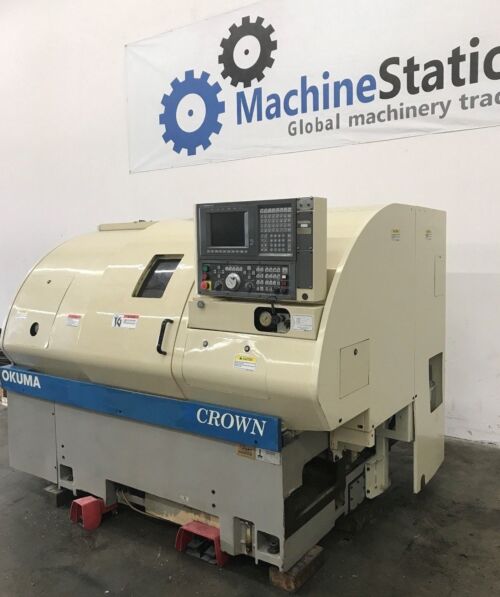

Okuma Crown 762S SB CNC Turning Center
Out of stock
| Make |
Okuma |
| Model No. |
Crown 762S-SB |
| Year of Manufacture: |
1998.11 |

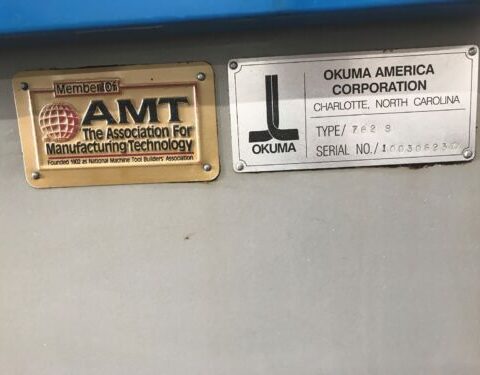

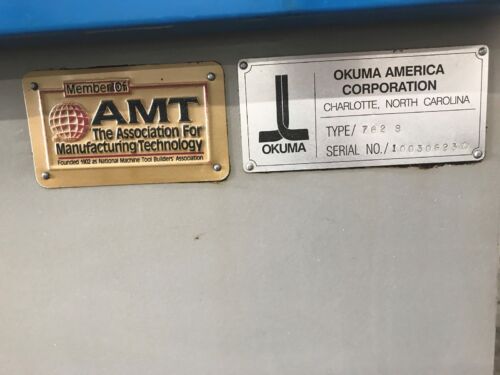

| Serial # |
00623 |
| Condition |
Very Good |
-
OKUMA CROWN 762S SB Equipped With:

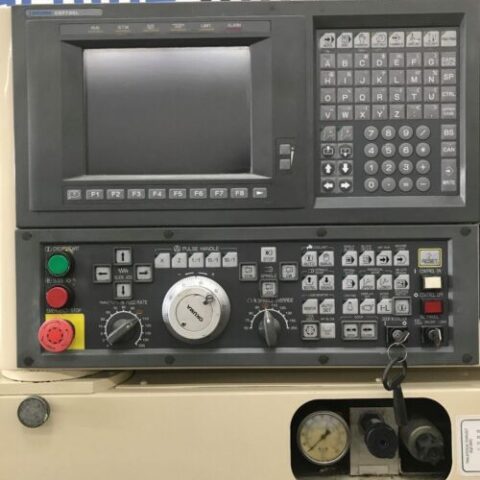

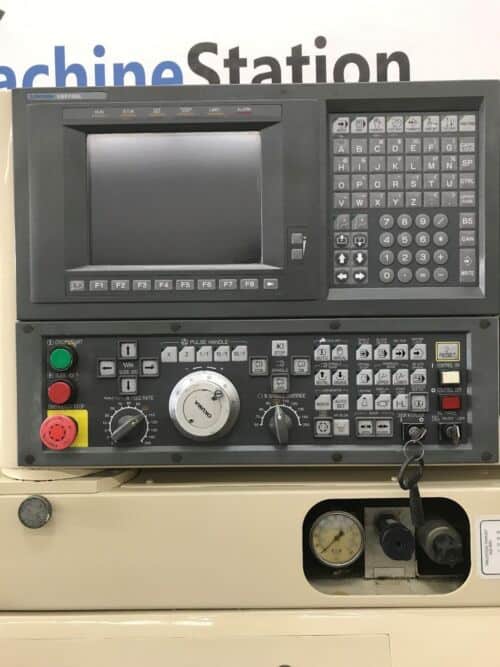

- Okuma OSP700L CNC Control
- 8″ Kitagawa Hydraulic Chuck
- Floppy Disk Drive
- Hydraulic Tailstock with Programmable Quill
- 12 Station Automatic Turret
- Coolant System & Tank
- Barfeed Interface
- RS-232 Interface
- Chip Conveyor
- All Original Manuals & Floppy Disks Available
-
General:

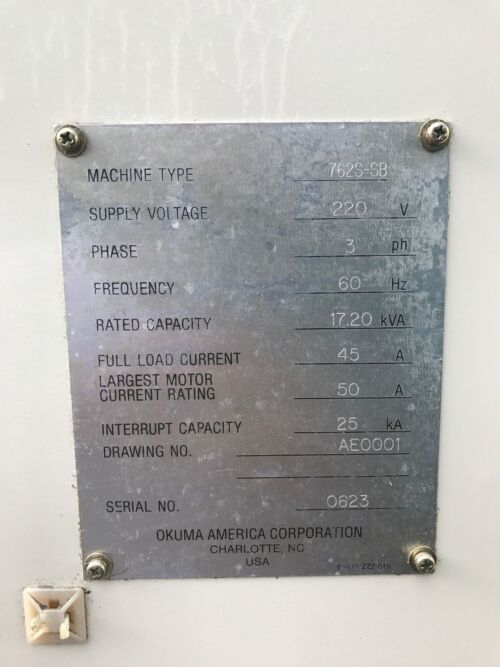

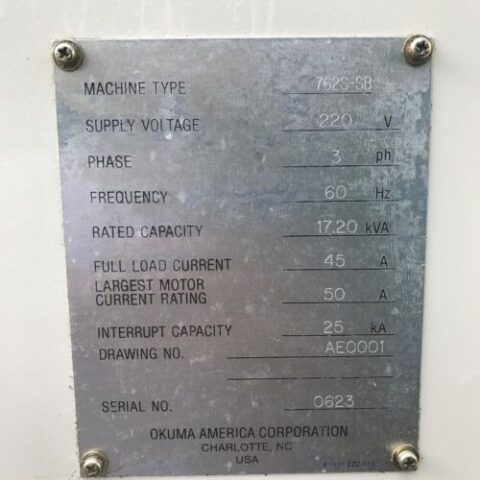

- Power: 220v / 3-Phase
- Overall Dimensions: 104” x 74″ x 72″ High
- Weight: 10,000 lbs
-
OKUMA CROWN 762S SB Specifications:
- Capacity:
- Max Turning Diameter: 10.63″
- Max Turning Length: 19.68″
- Distance Between Centers: 22.29″
- Max Bar Capacity: 2.05″
- Swing Over Bed: 21.65″
- Swing Over Cross Slide: 15.75″
- X Axis Travel: 7.28″
- Z Axis Travel: 20.47″
- Rapid Traverse X Axis: 590 IPM
- Rapid Traverse Z Axis: 787 IPM
- Spindle Nose: A2-6
- Spindle Bore: 2.44″
- Spindle Speed: 75 – 4200 RPM
- Spindle Motor: 20HP
- Turret Capacity: 12 Stations
- Turret Index Time: 1 Second
- Tailstock Taper: MT-5
- Tailstock Quill Dia.: 3.54″
- Tailstock Quill Travel: 4.72″
