Okuma ES L6 CNC Turning Center

Out of stock

Product Description

Okuma ES L6 CNC Turning

Make: Okuma
Model #: ES-L6
Condition: Excellent
Year: 2006

This machine has been fully powered / tested & is in Great working condition. check *VIDEO*

Okuma ES-L6 Features:

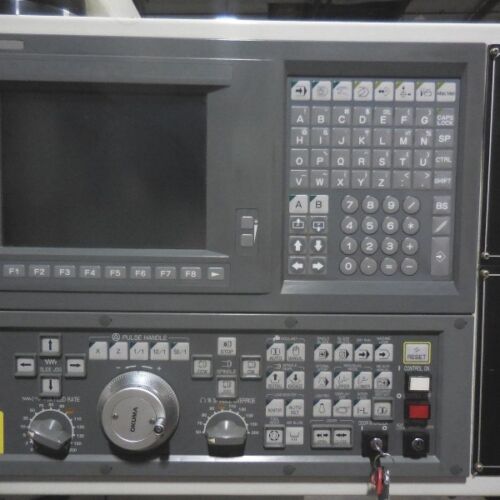

  • OSP U10L CNC Control, Color Monitor with Animation.

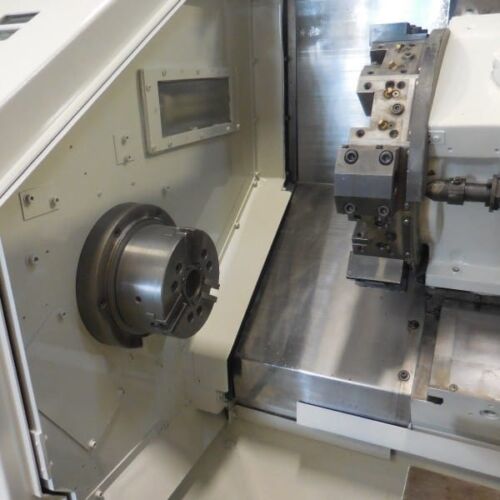

  • Kitagawa 6″ 3-Jaw Chuck.
  • Dead Tool Holders.
  • Hydraulic Tailstock.
  • Floppy drive.
  • RS-232 Port.
  • High Pressure Coolant Pump.
  • Oil Separator.
  • Coolant System.

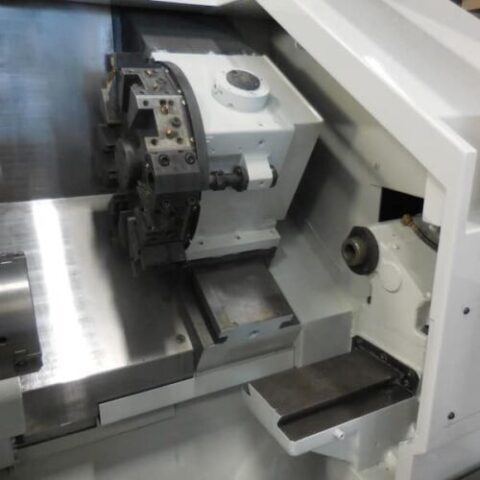

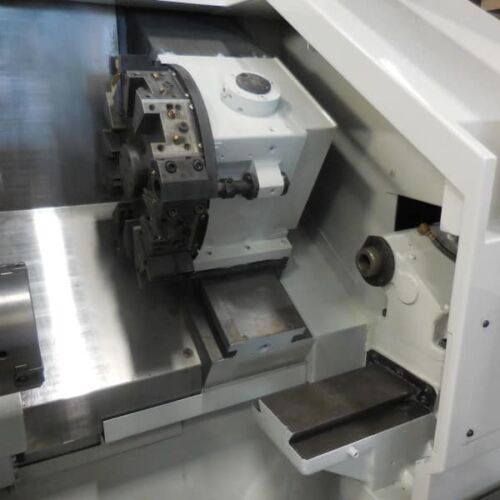

  • 12-Station ID/OD Turret.
  • Full Set of Manuals.

Okuma ES L6 Specifications:

Turning Diameter: 8.27″

Swing Over Bed: 17.72″

Turning Length: 11.02″

X-Axis Travel: 6.10″

Z-Axis Travel: 12.60″

Spindle Bore: 2.00″

Bar Working Diameter: 1.62″

Spindle Speeds: 6000 RPM

Spindle Motor: 10HP

Tailstock Quill Dia: 2.170″

Tailstock Stroke: 3.150″

Tailstock Quill : MT 4

Power Source: AC 200/220 V, Three Phase, 50/60 Hz

Weight : 6500 lbs Approx

Overall Dimensions: 76″ x 67″ x 70″ tall

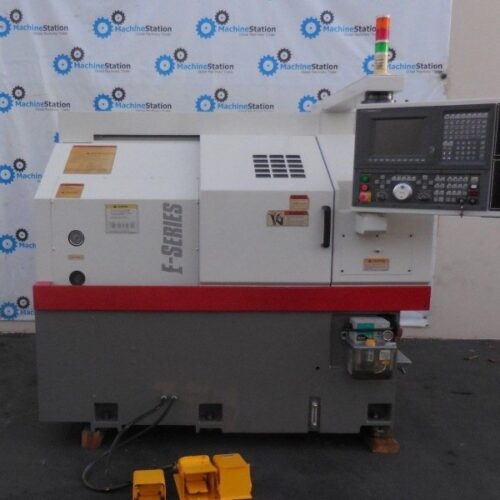

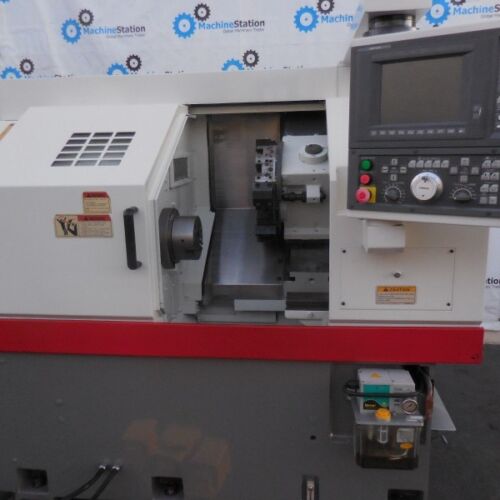

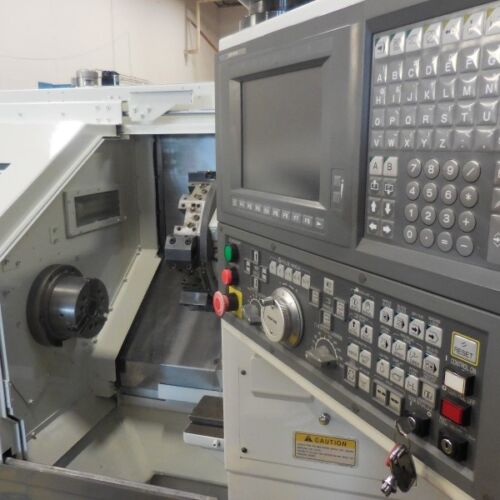

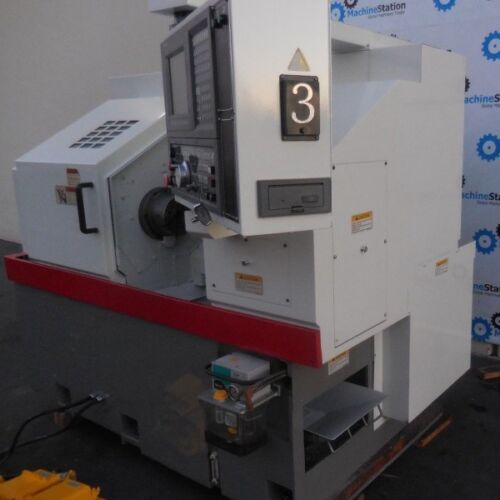

Okuma ES L6 Comes as shown in pictures.
