*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*

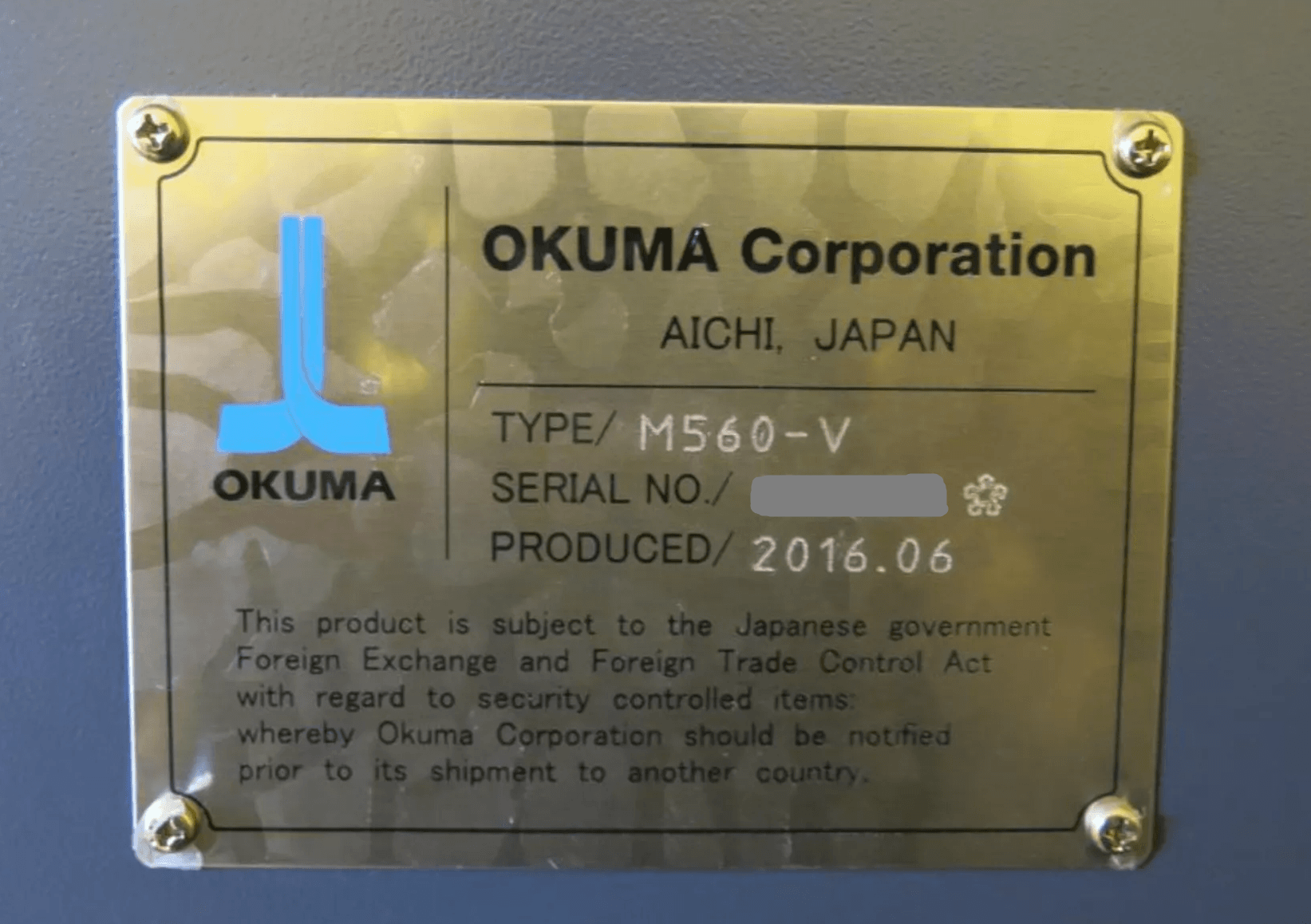

| Make: |
Okuma |
| Model: |
GENOS M560-V |
| Year of Manufacture: |
2016 |
| Condition: |
Used – Good |
| Machine Type: |
CNC Vertical Machining Center |

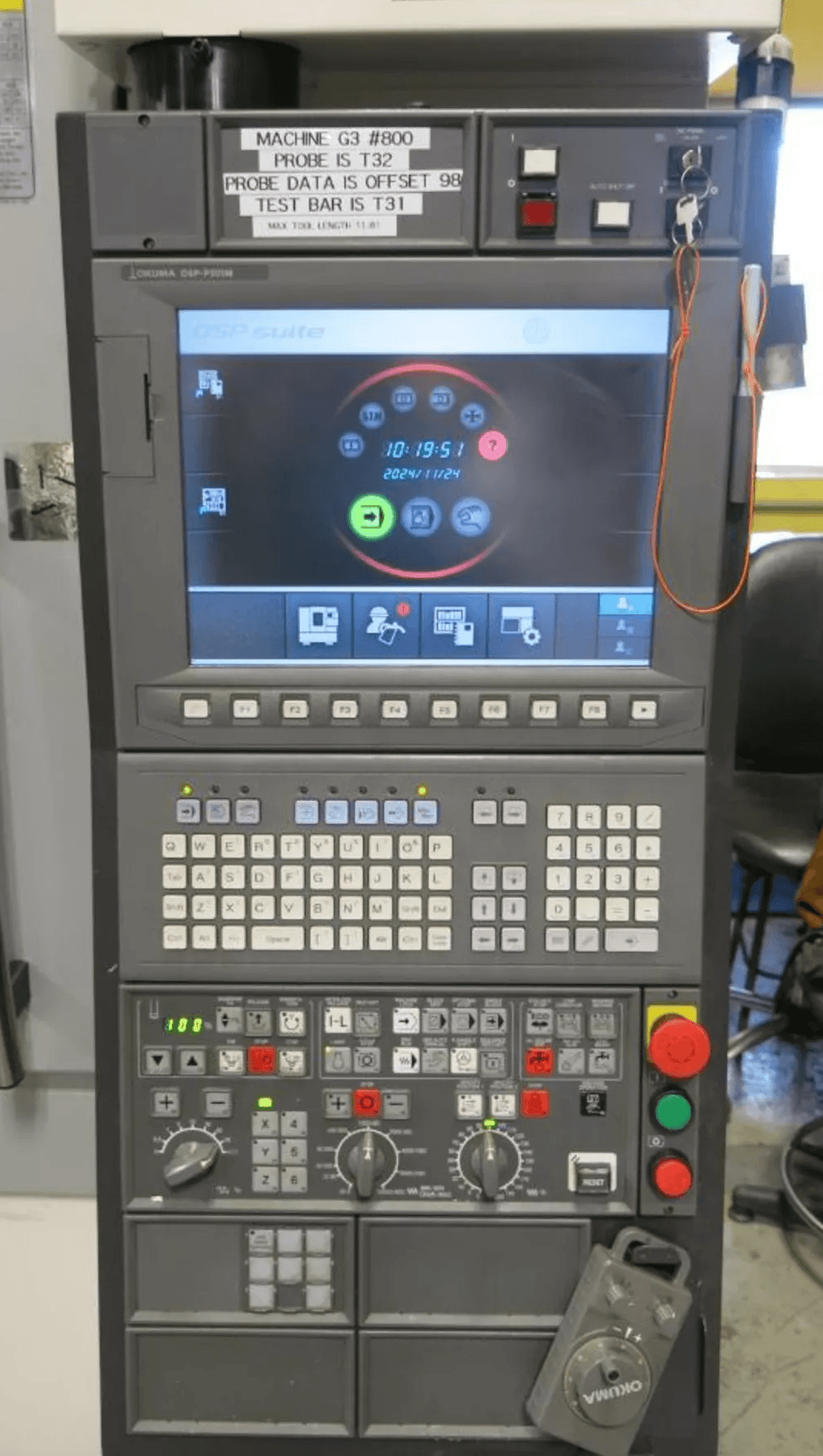

| CNC Control: |
Okuma OSP |
| Country of Origin: |
Japan |
| Equipped With: |

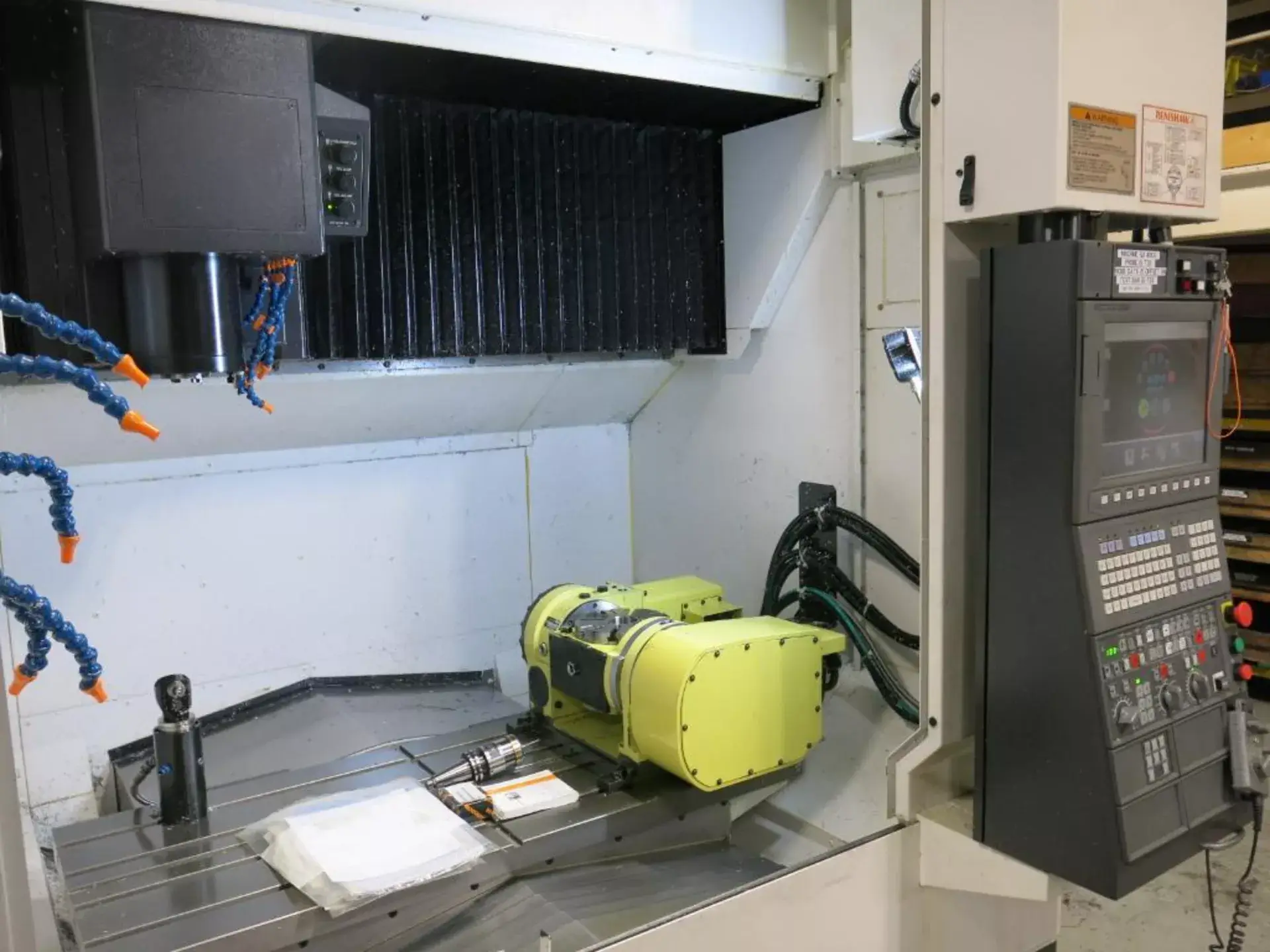

| OSP CNC Control |
| 5-Axis Ready (4th/5th Axis Capable) |
| CAT 40 Big Plus Spindle |
| 32-Station Automatic Tool Changer |
| 15,000 RPM High-Speed Spindle |
| Rigid Double Column (Bridge-Type) Construction |
| Through Spindle Coolant (if equipped) |
| Chip Conveyor (if equipped) |
| Renishaw Probe Ready / Installed (common option) |
| Thermo-Friendly Concept (Thermal Compensation) |
| USB / Ethernet Connectivity |
| Capacity: |
| Table Size: 51.2″ × 22.0″ (1,300 × 560 mm) |
| Max Table Load: 1,980 lbs (900 kg) |
| Travels: |
| X-Axis Travel: 41.3″ (1,050 mm) |
| Y-Axis Travel: 22.0″ (560 mm) |
| Z-Axis Travel: 18.1″ (460 mm) |
| Rapid Traverse (X/Y): 1,575 IPM (40 m/min) |
| Rapid Traverse (Z): 1,260 IPM (32 m/min) |
| Spindle: |
| Spindle Speed: 15,000 RPM |
| Spindle Motor: 30 HP (22 kW) |
| Spindle Taper: CAT 40 Big Plus |
| Tooling System: |
| Tool Capacity: 32 Tools |
| ATC Type: Arm Type Automatic Tool Changer |
| Max Tool Length: ~400 mm (approx.) |
| General: |
| Power Requirement: ~38.7 kVA |
| Machine Weight: ~17,000 lbs (8,000 kg) |
| Machine Type: Double Column VMC (High Rigidity Design) |
| Features: |
| Bridge-type construction for superior rigidity |
| 15,000 RPM high-speed machining capability |
| 5-axis ready for advanced part geometry |
| Thermo-Friendly Concept for accuracy and stability |
| CAT 40 Big Plus spindle for improved rigidity |
| Ideal for aerospace, automotive & precision parts |
| High-speed rapids for reduced cycle times |
| Excellent for aluminum, steel & titanium machining |
