*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Okuma & Howa |
| Model: | HL-20 |
| Year: | 2007 |
| Equipped With: |
|---|

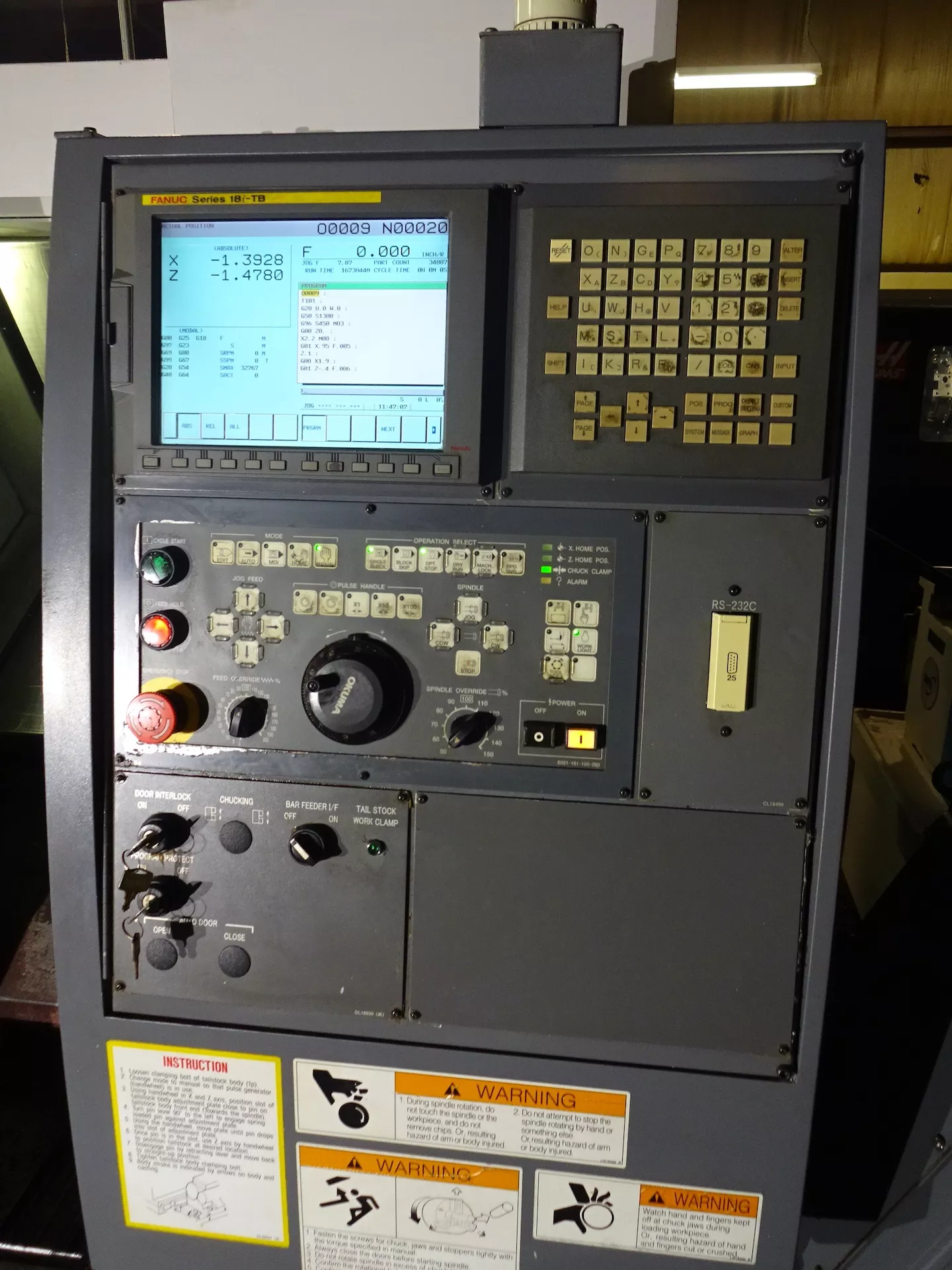

| Fanuc Series 18i-TB CNC Control |

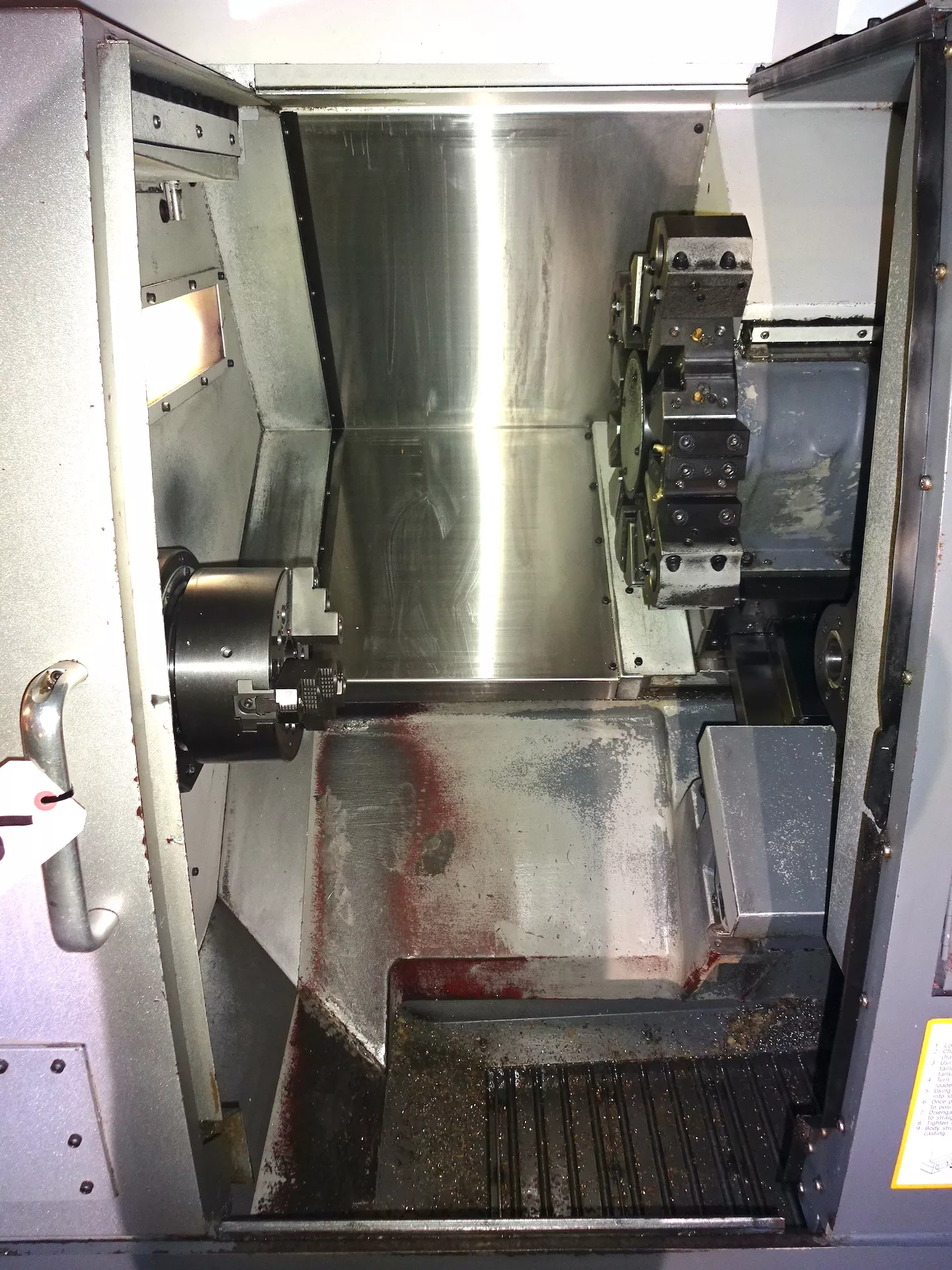

| 8″ 3-Jaw Hydraulic Chuck |
| 12-Station Automatic Turret |
| Hydraulic Tailstock |
| Chip Conveyor |
| Fully Enclosed Splash Guard |
| Automatic Lubrication System |
| Work Light |
| Capacity: |
|---|
| Chuck Size: 8″ |
| Max Swing Over Bed: 20.5″ |
| Max Turning Diameter: 11.00″ |
| Max Turning Length: 20.00″ |
| Bar Capacity: 2.05″ |
| Travels: |
|---|
| X-Axis Travel: 8.50″ |
| Z-Axis Travel: 22.00″ |
| Rapid Traverse (X-Axis): 945 IPM |
| Rapid Traverse (Z-Axis): 1,181 IPM |
| Spindle: |
|---|
| Spindle Speed: 4,500 RPM |
| Spindle Motor: 20 HP |
| Spindle Nose: A2-6 |
| Spindle Bore: 2.44″ |
| Turret: |
|---|
| Turret Type: Automatic Servo Turret |
| Number of Stations: 12 |
| Tool Shank Size: 1.00″ |
| Boring Bar Capacity: 1.57″ |
| Tailstock: |
|---|
| Tailstock Type: Hydraulic |
| Tailstock Quill Diameter: 2.76″ |
| Tailstock Quill Travel: 3.94″ |
| General: |
|---|
| Power Requirement: 220v/ 3 Phase/ 60 Hz |
| Machine Dimensions (Approx.): 108″ × 68″ × 74″ |
| Machine Weight (Approx.): 9,500 lbs |
