*All specifications are approximations and are subject to verification. Comes as shown in the images. Please call us if you have any questions before making a purchase. All sales are final.*

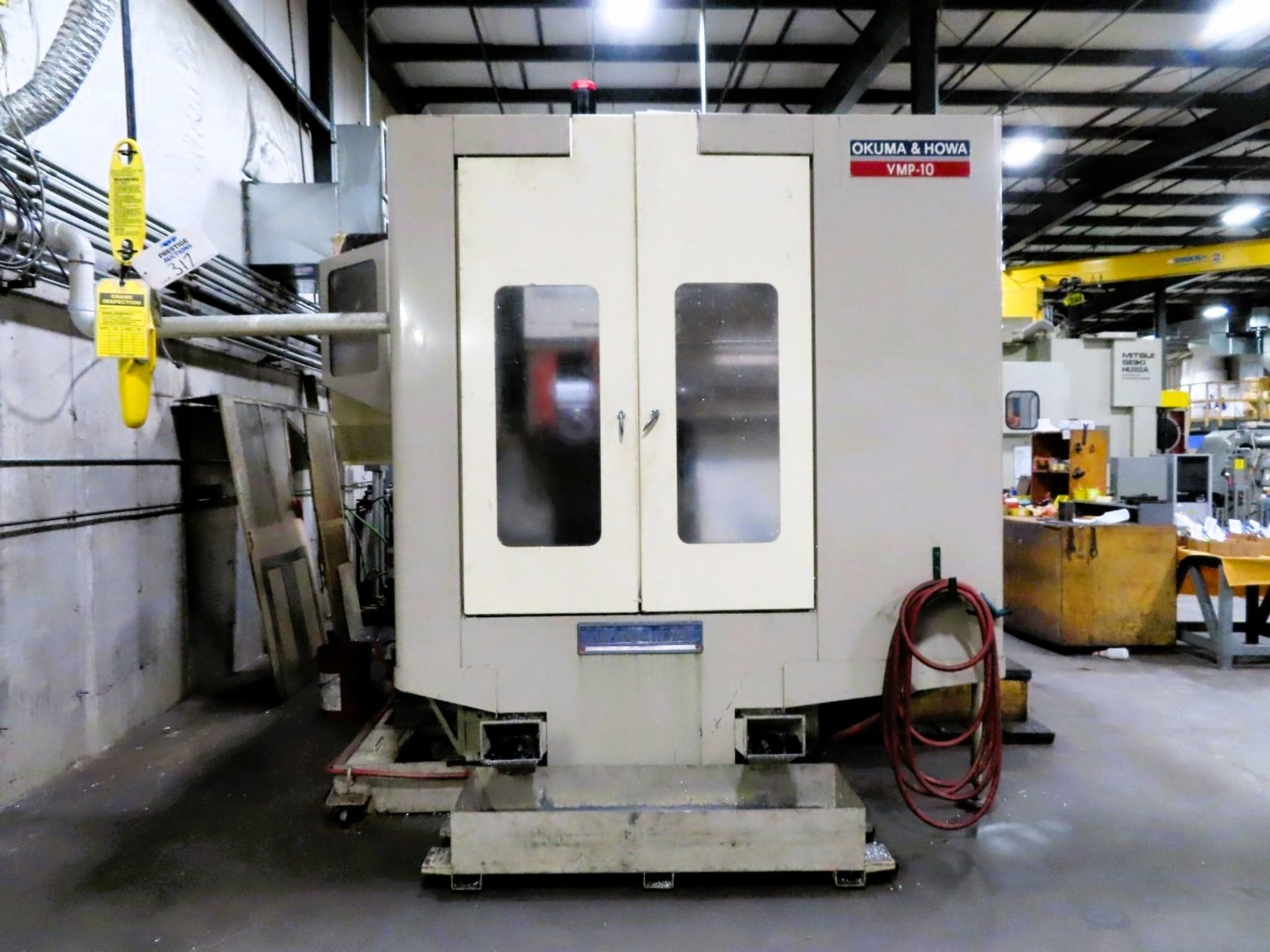

| Make: | Okuma & Howa |
| Model: | VMP-10 |
| Machine Type: | 5-Axis Double Column Vertical Machining Center |
| Year: | Unkown |
| Condition: | Used |

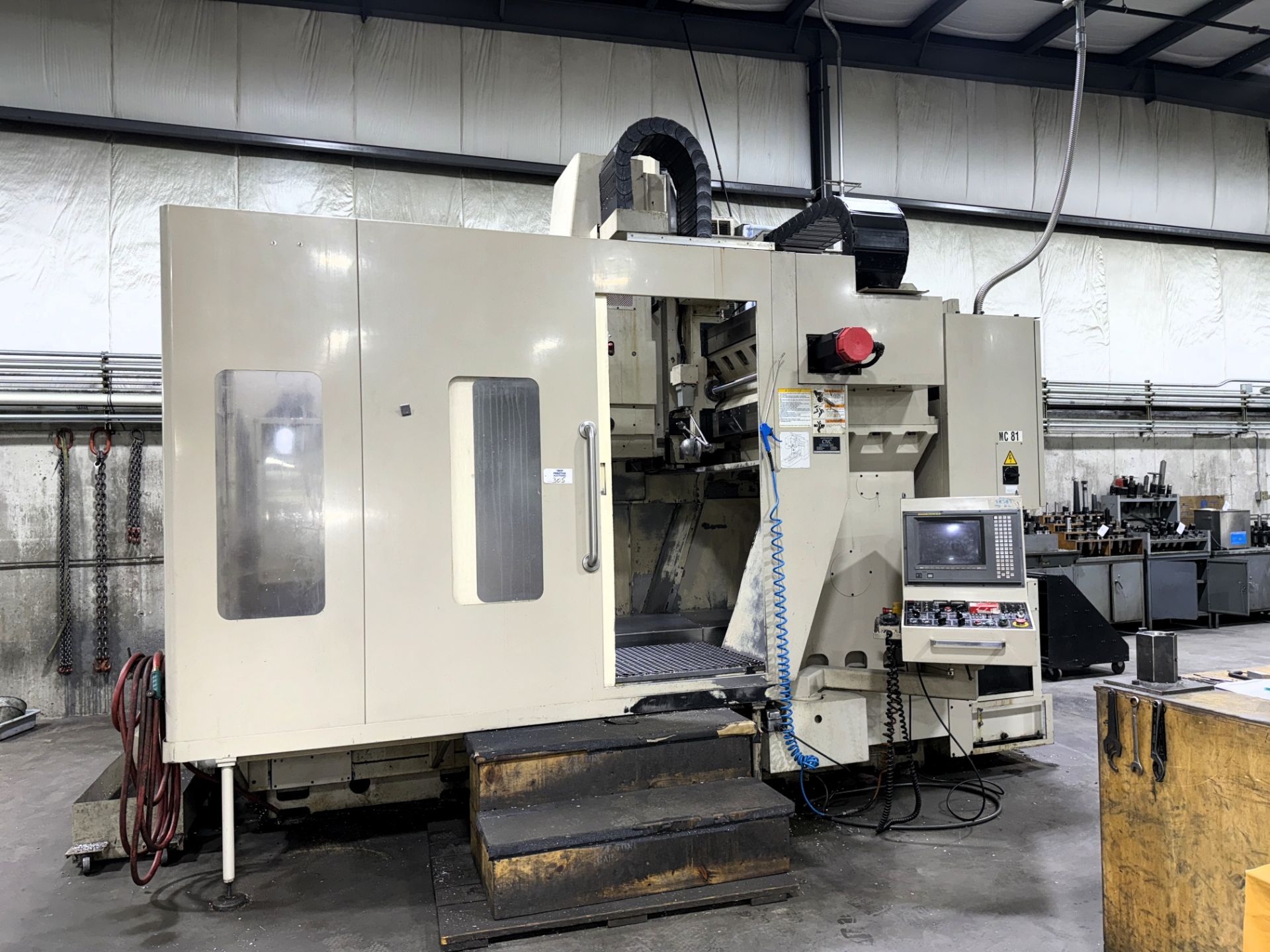

| Construction & Design: |
|---|
- Double-column (gantry-style) vertical machining center
- Heavy cast iron columns and crossbeam
- Box-way construction on linear axes
- True 5-axis configuration with tilting spindle head
- Fully enclosed machining area with sliding front doors
- Designed for large, complex, multi-face machining
|
| Axis Configuration: |
|---|
- Linear Axes: X, Y, Z
- Rotary Axes: 2-axis tilting spindle head
- Total Axes: 5 Simultaneous Axes
|
| Travels (Approximate): |
|---|
- X-Axis Travel: ~65.0″
- Y-Axis Travel: ~39.0″
- Z-Axis Travel: ~39.0″
|
| Spindle: |
|---|
- Spindle Orientation: Tilting Head (5-Axis Contouring)
- Spindle Taper: 50 Taper (BT50 / CAT50 Class)
- Spindle Drive: Geared Spindle
- Max Spindle Speed: ~4,000 RPM
|
| Automatic Tool Changer: |
|---|
- ATC Type: Side-Mounted Arm Type
- Tool Capacity: 30 Tools (Typical Configuration)
|

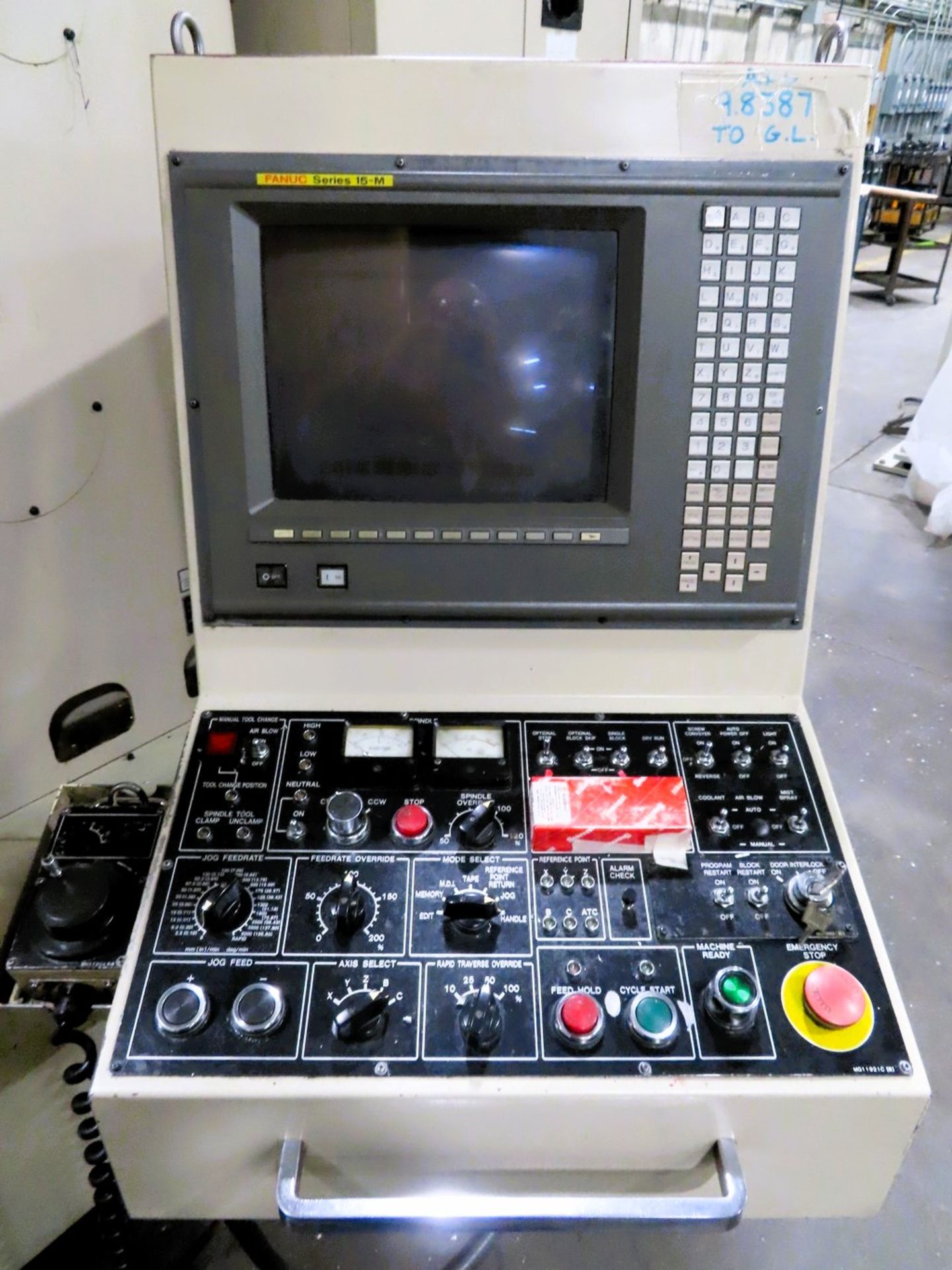

| CNC Control: |
|---|
- FANUC Series 15-M CNC Control
- CRT Display
- Full Hard-Key Operator Panel
- Manual Pulse Generator (MPG)
- 5-Axis Capable Configuration
|
| Feed, Motion & Ways: |
|---|
- Box ways on all linear axes
- Rapid Traverse Override: 10 / 25 / 50 / 100%
- Feedrate Override: Dial-Controlled
- Axis Selection via Selector Switch (X / Y / Z / Rotary)
|
| Coolant & Chip Handling: |
|---|
- Flood Coolant System
- Internal Coolant Nozzles
- Large Sloped Chip Pan
- External Chip Evacuation Area
|
| Safety & Operator Features: |
|---|
- Fully Enclosed Machining Area
- Interlocked Sliding Doors
- Emergency Stop
- Machine Ready Indicator
- Alarm Check System
- Interior Work Light
|
| Electrical & Accessories: |
|---|
- Separate Electrical Cabinet
- Overhead Cable Carriers
- Air Blow / Mist Functions
- Manual / Automatic Mode Selection
|
