*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

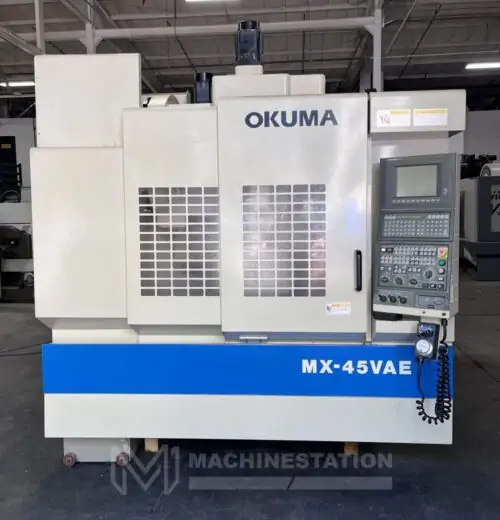

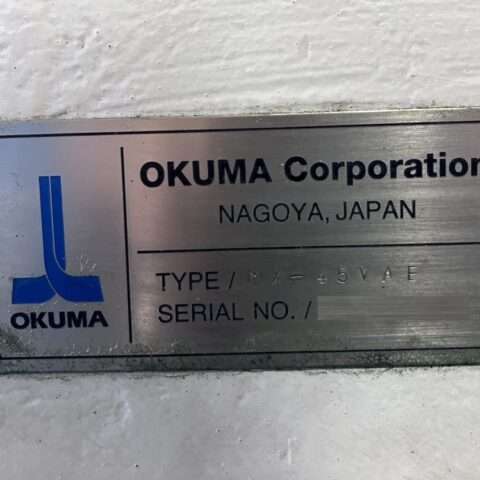

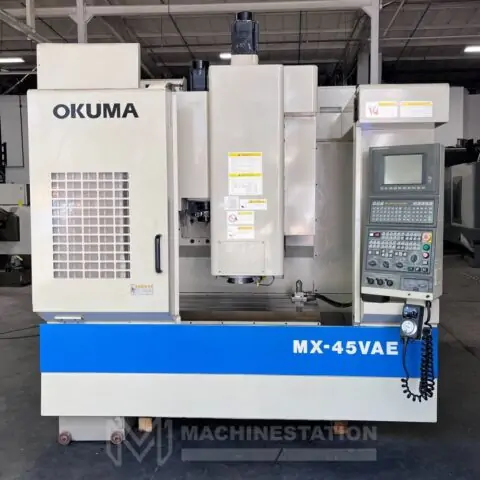

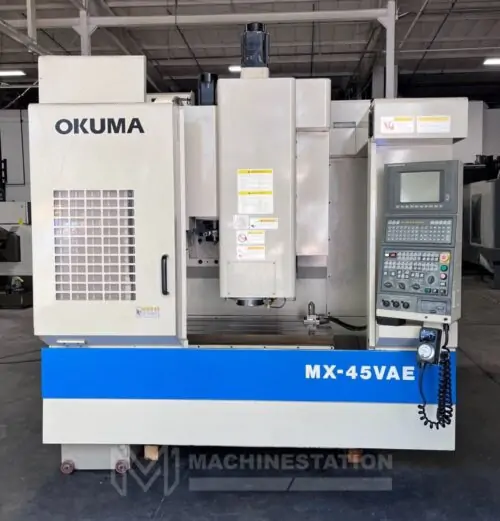

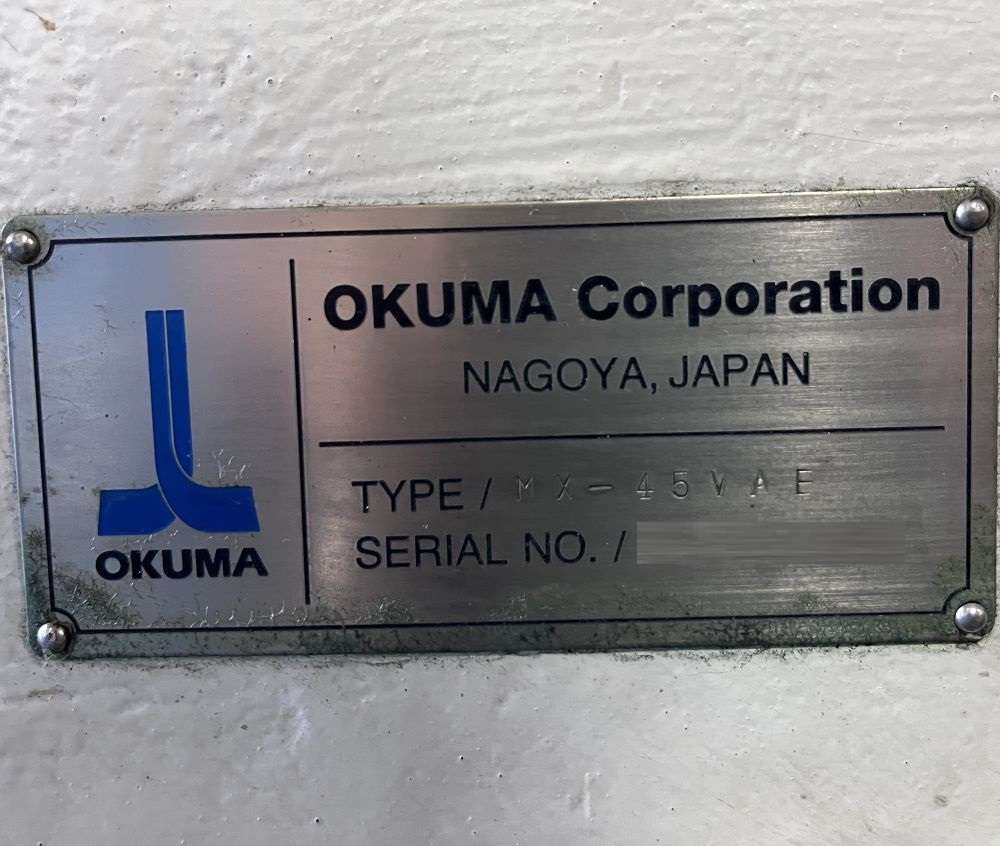

| Make: | Okuma |

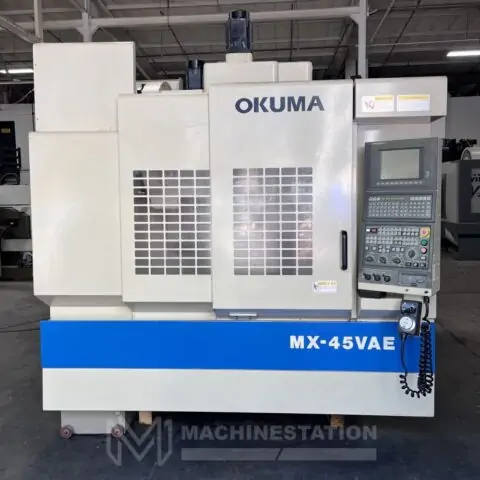

| Model: | MX-45VAE |
| Year: | 1997 |
| Condition: | Used – Good (Machine has Used For Only Prototype Parts) |
| Features: |
|---|

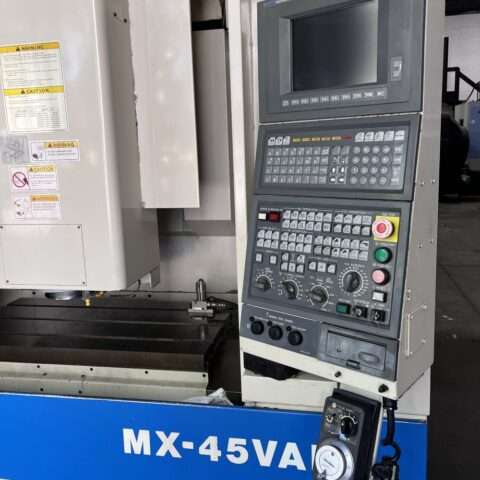

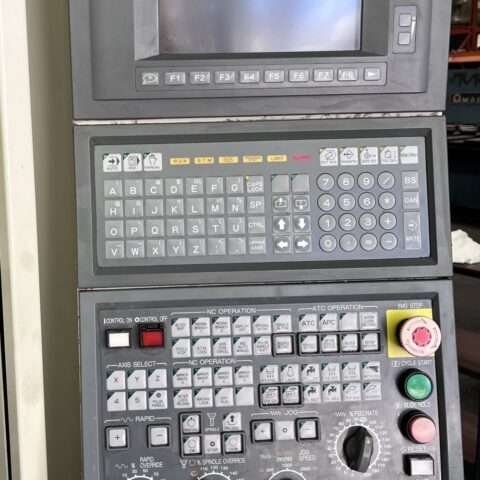

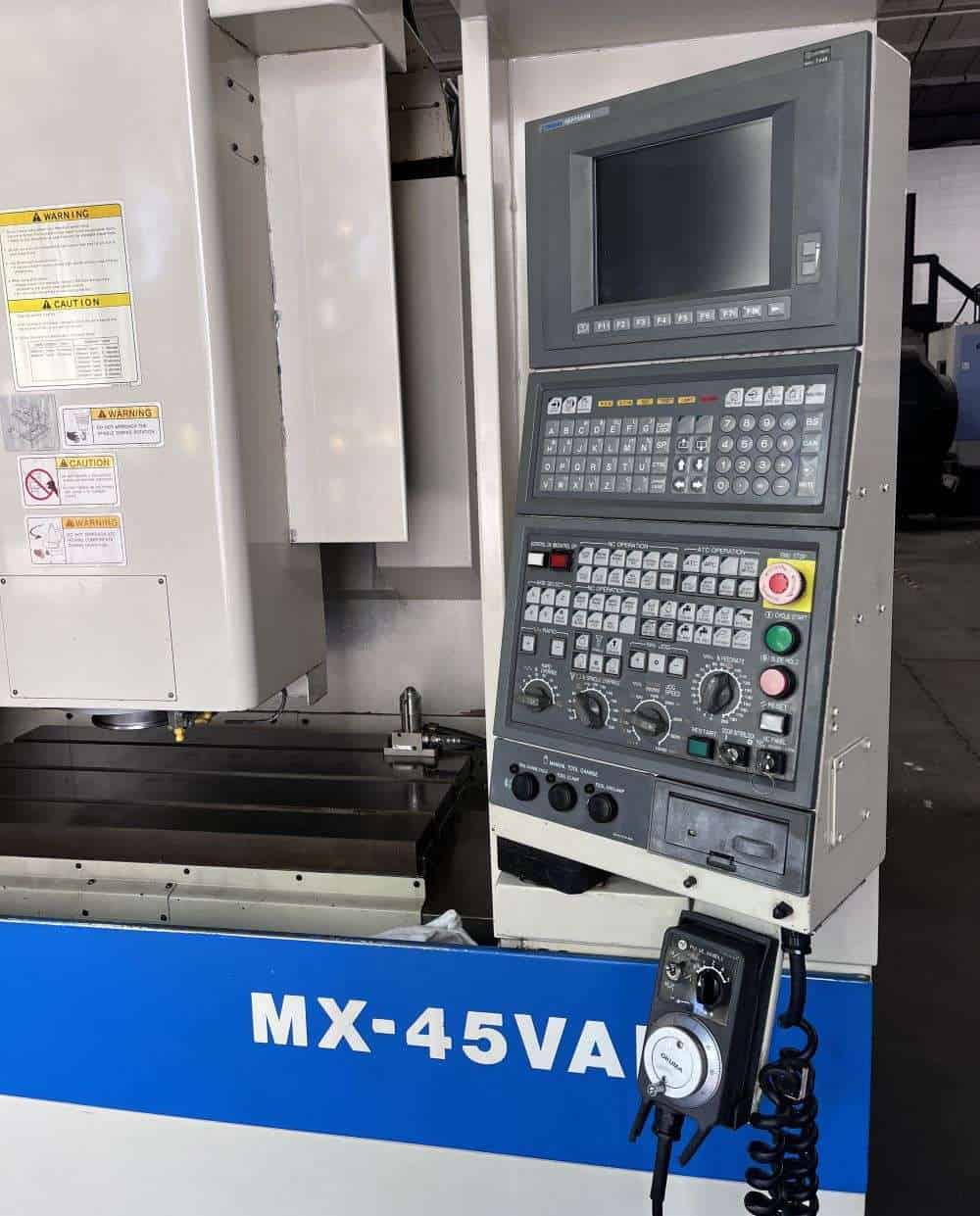

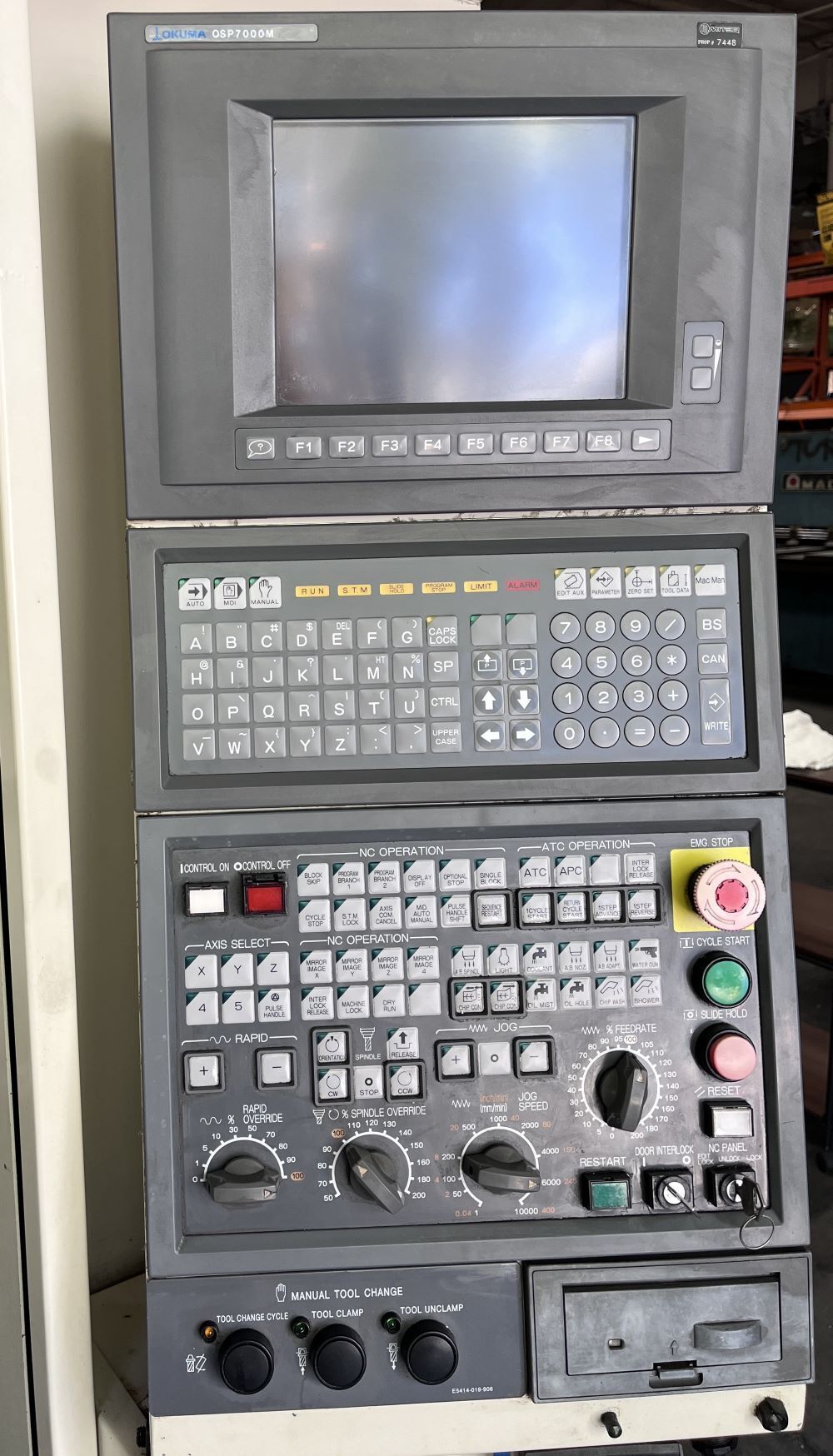

| Okuma OSP7000M Series CNC Control |
| Y Axis Travelling Column |

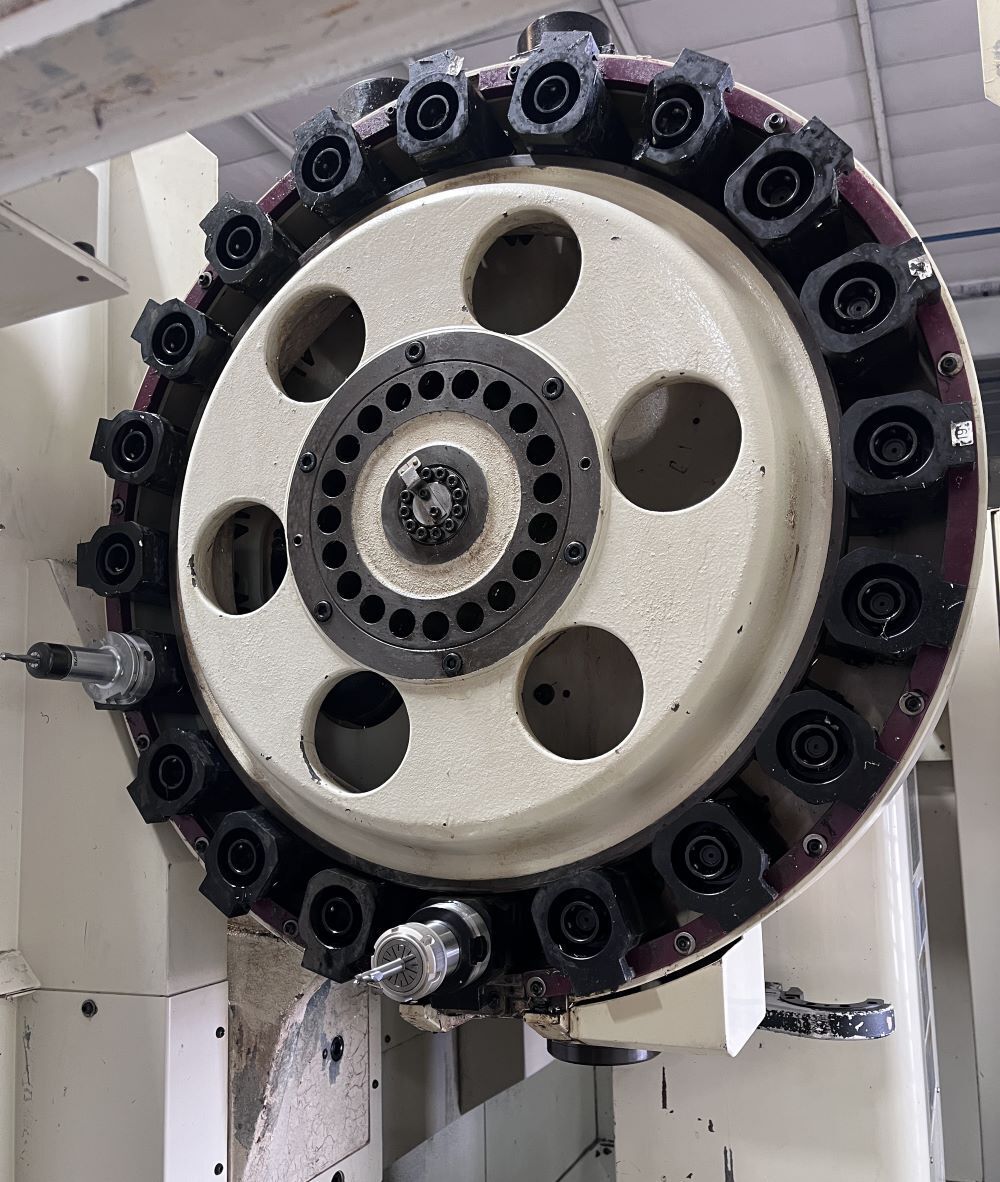

| 20 Station Automatic tool changer |
| 7,000 RPM Spindle |
| 40 Taper Spindle |

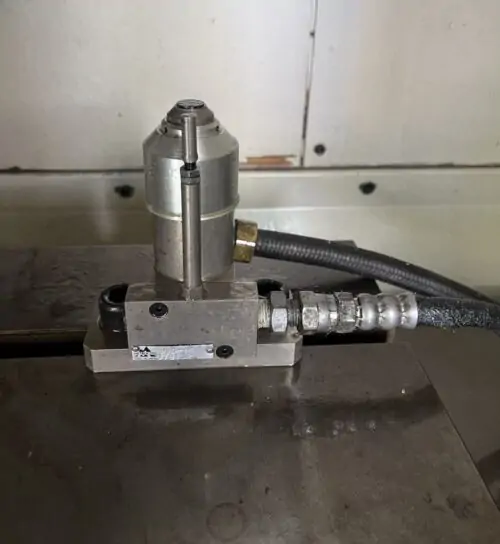

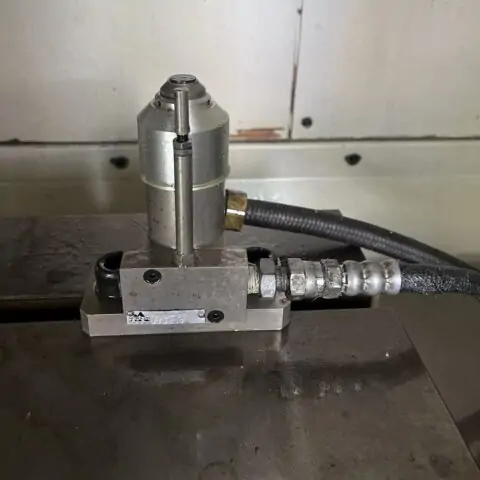

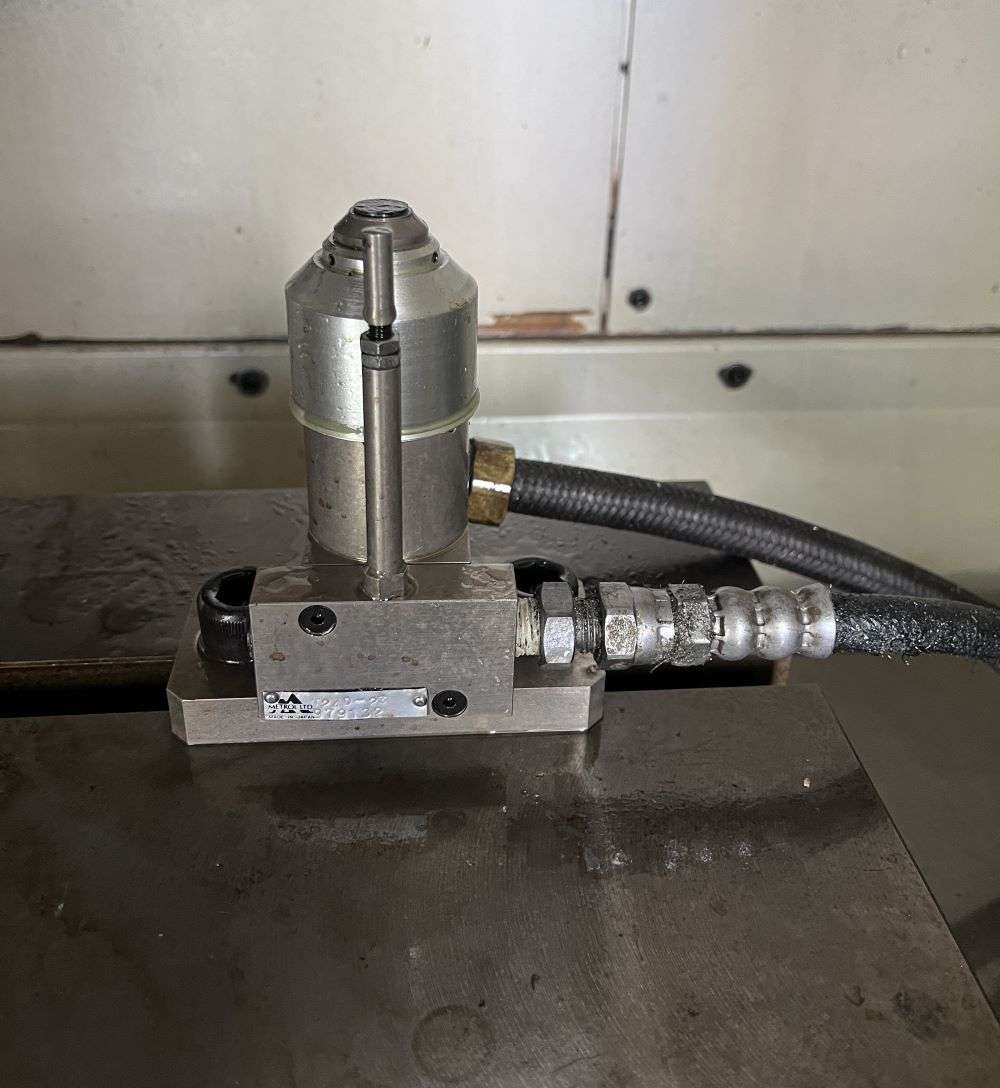

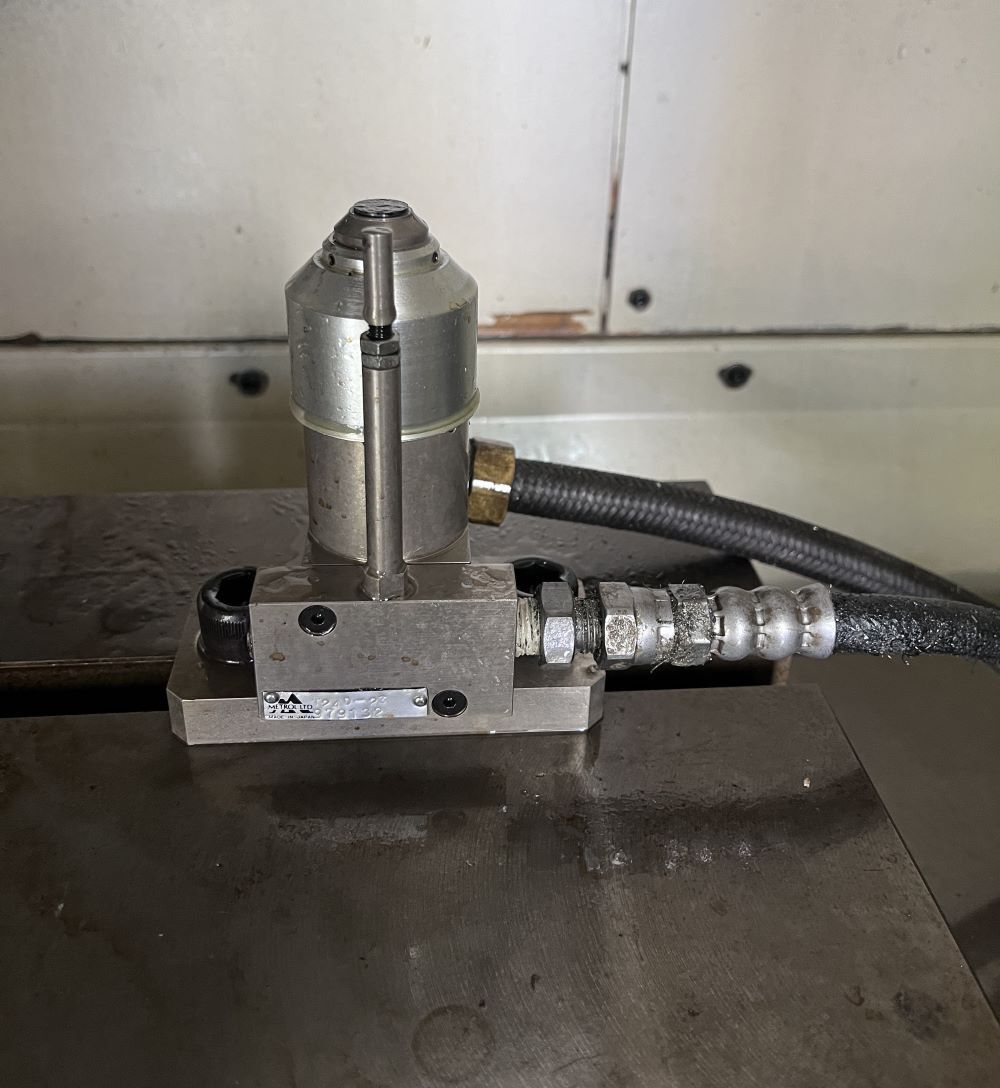

| Touch Probe |
| RS-232 Port |
| MPG Handwheel Control |
| Rigid Tapping |

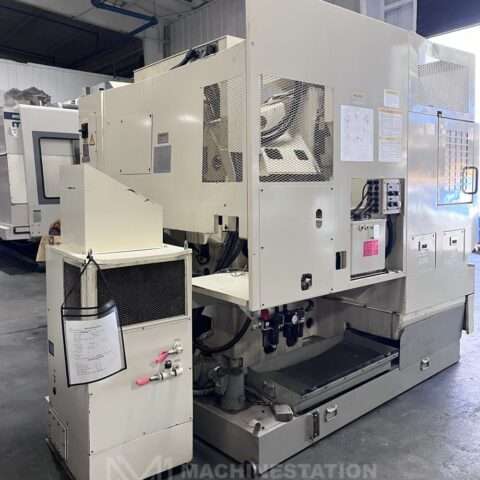

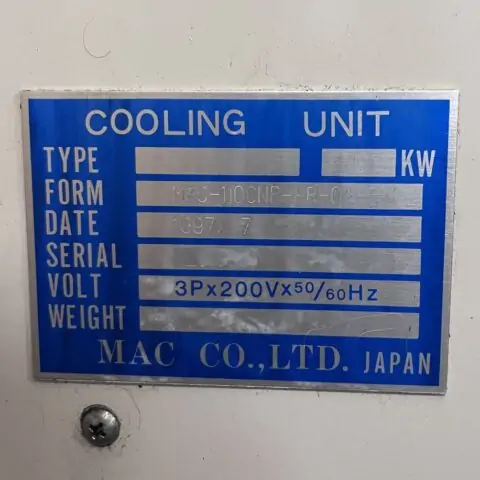

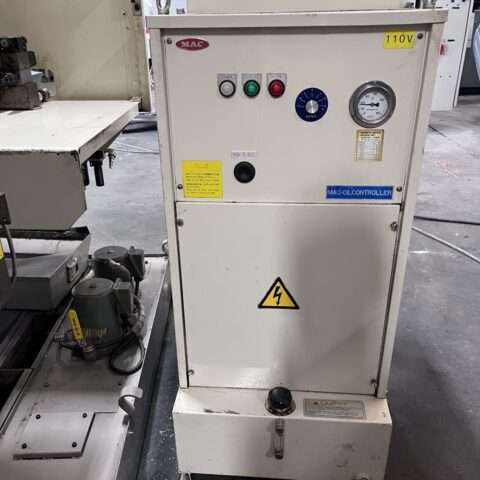

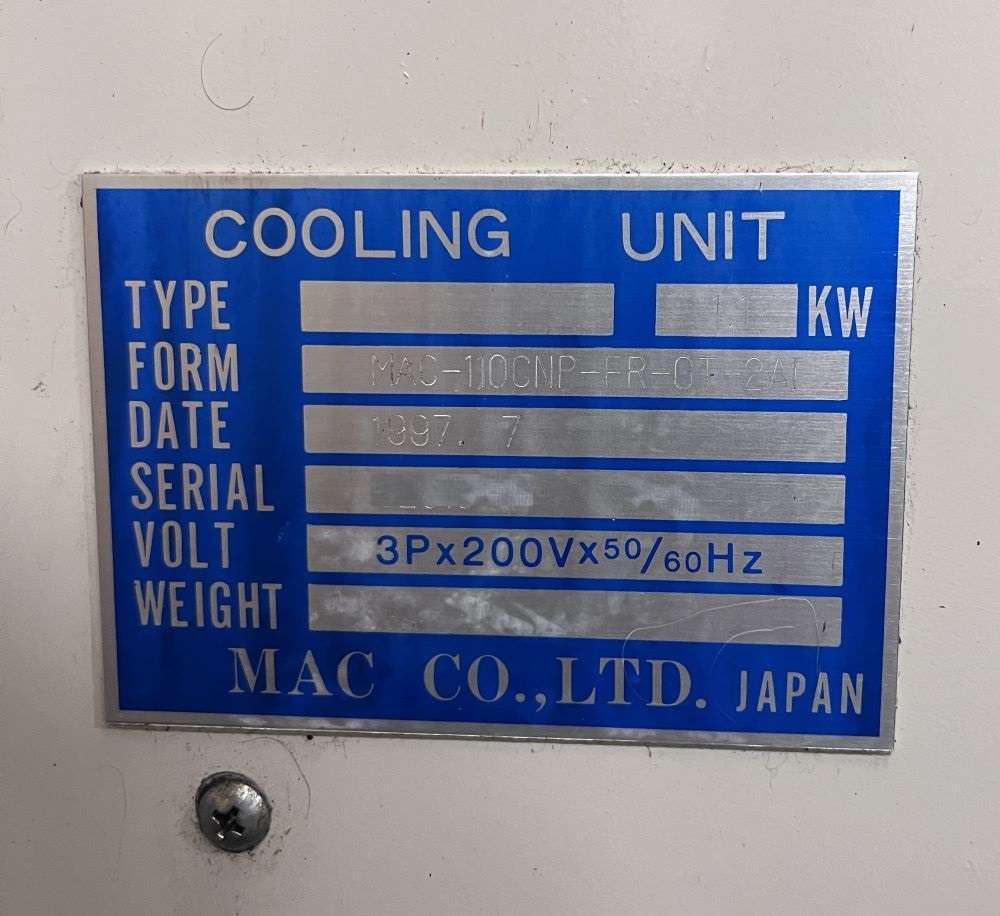

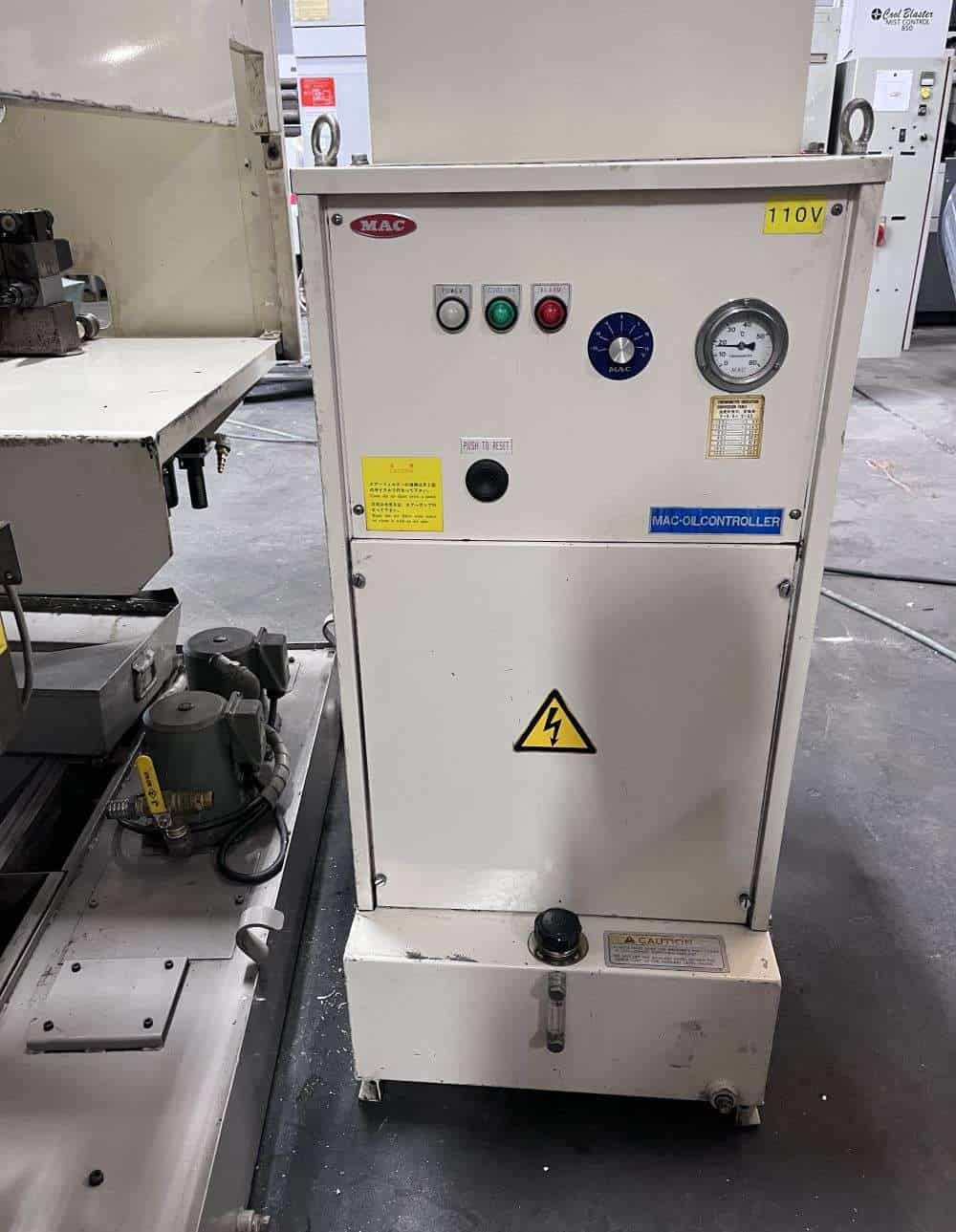

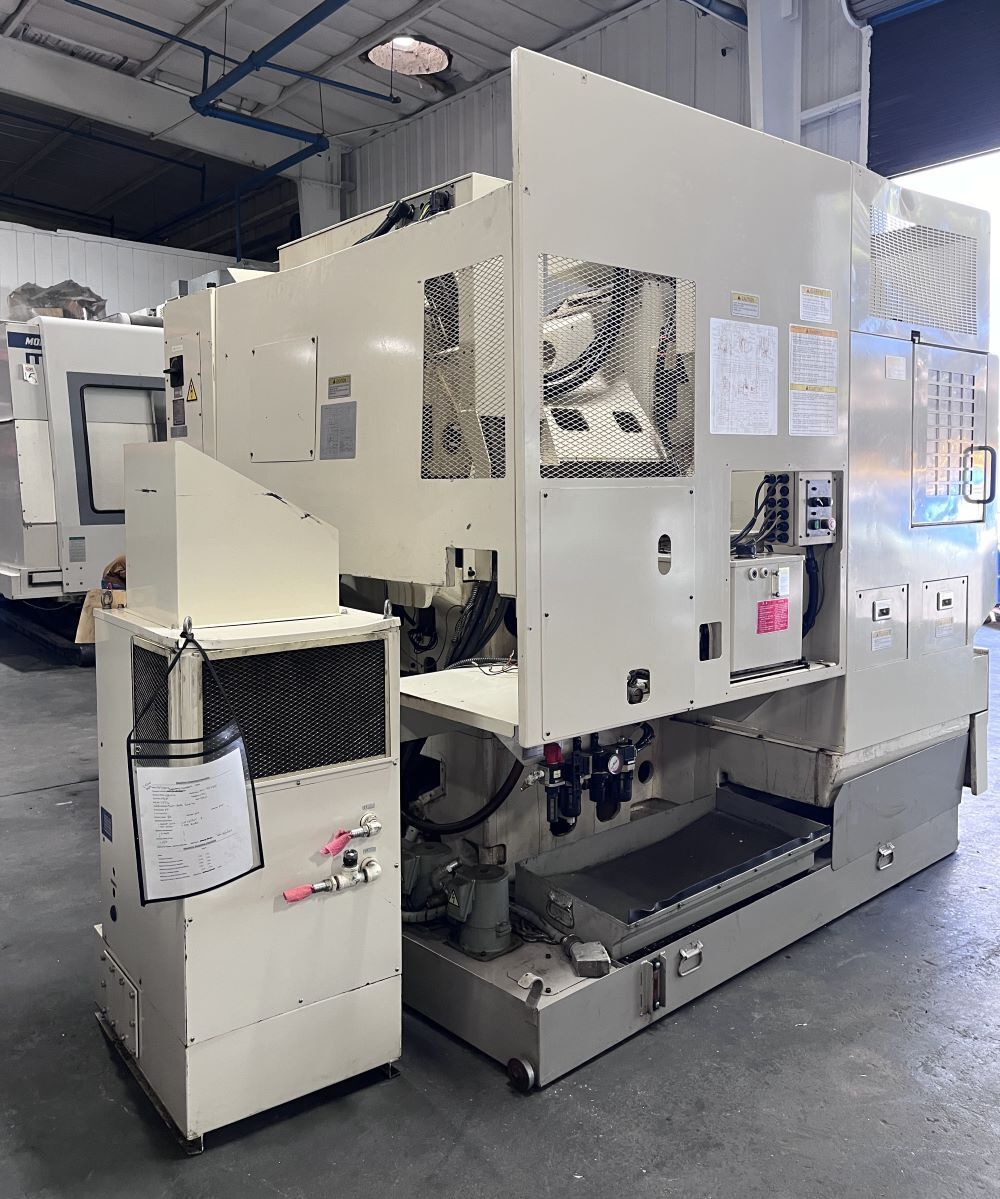

| Spindle Chiller Unit |
| Coolant Tank |

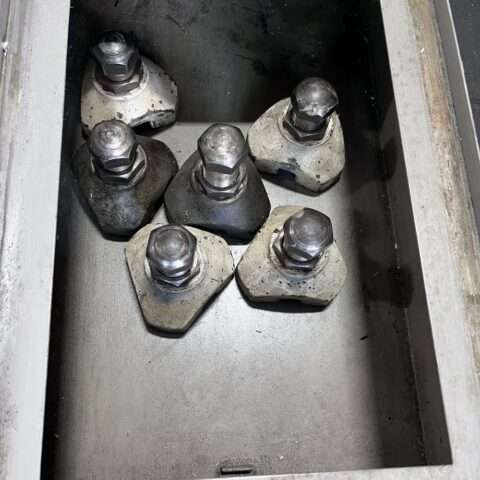

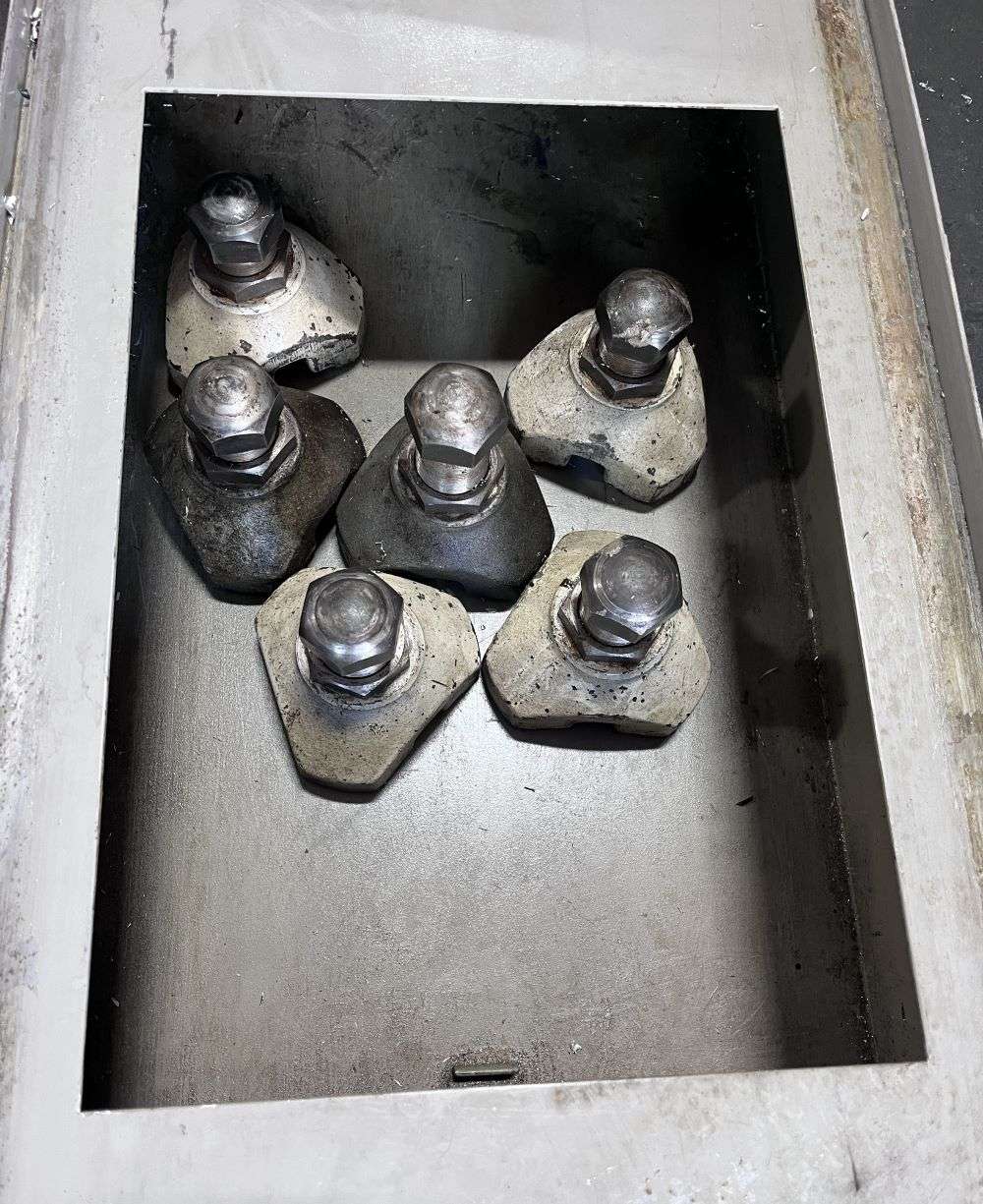

| Levelling Pads |

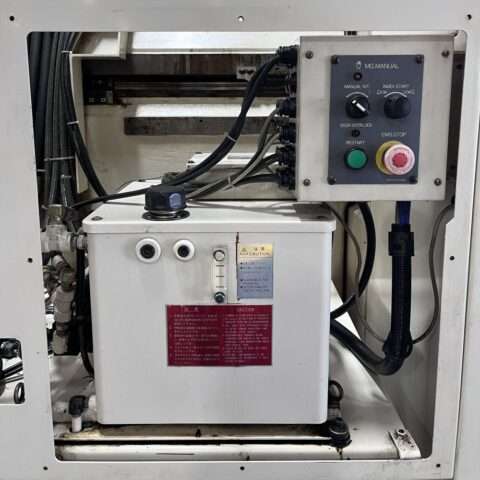

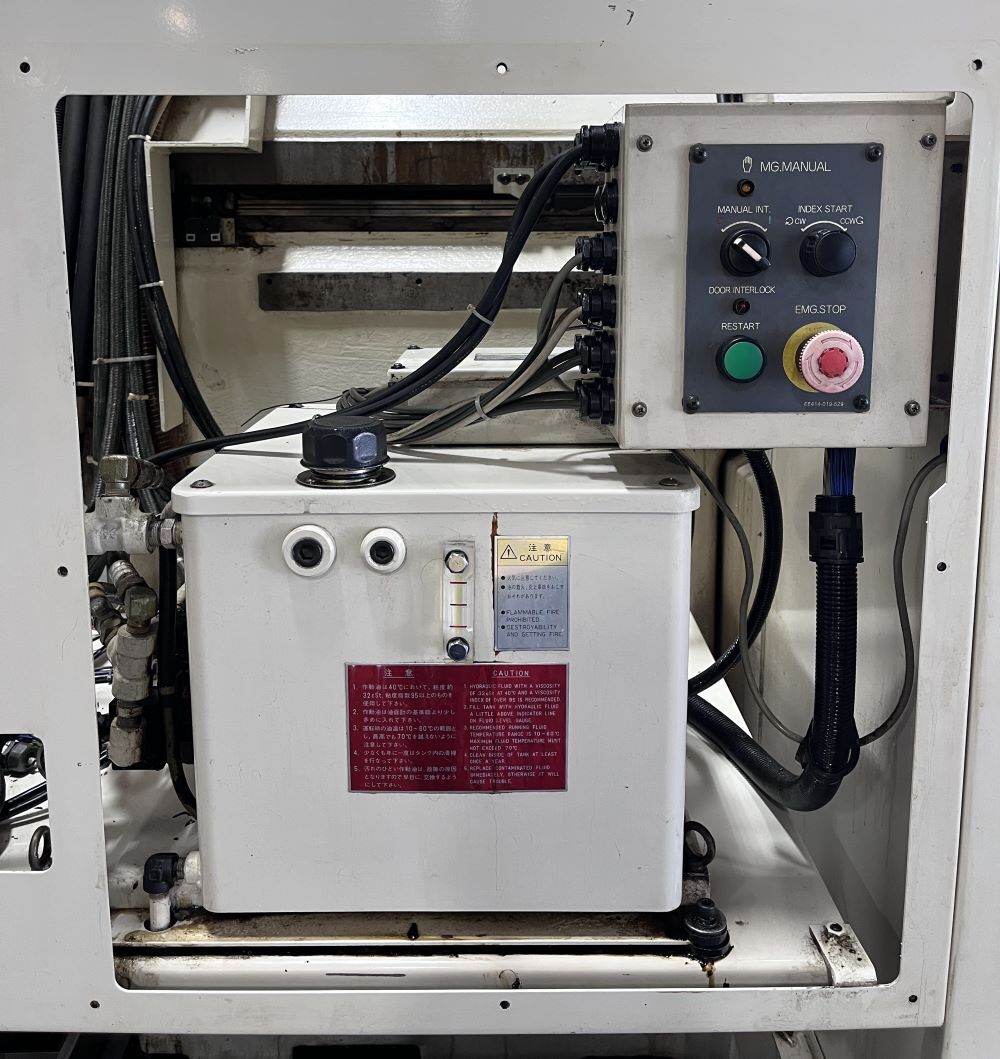

| Lubrication System |
| (2) Tool Holders |
| Machine Comes with Original Paint |
| Travels: |
|---|
| X-Axis: 30.00″ |
| Y-Axis: 18.11″ |
| Z-Axis: 17.72″ |
| Spindle Nose to Table (Min.- Max.): 6.29″ – 24.01″ |
| Rapid Traverse Rates X, Y Axis: 1181″ Per Minute |
| Rapid Traverse Rates Z Axis: 787″ Per Minute |
| Cutting Feed Rates: 394″ Per Minute |

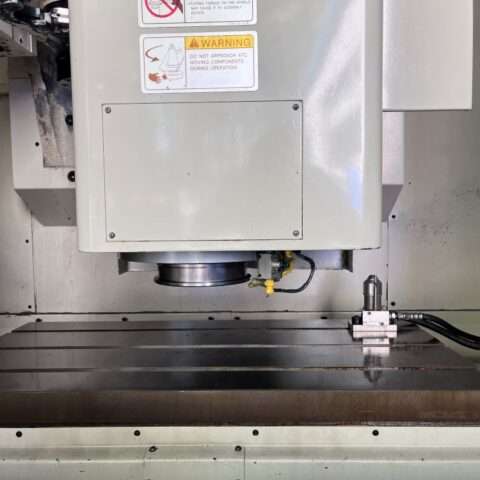

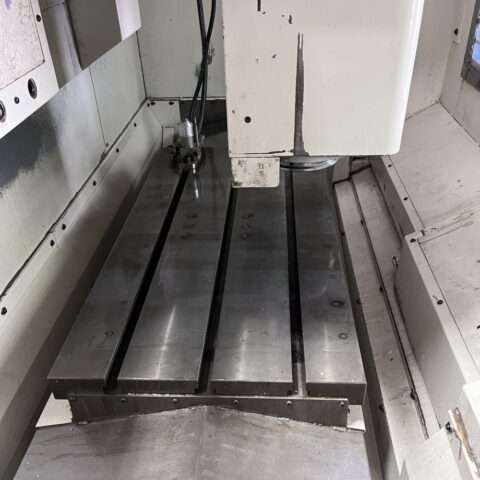

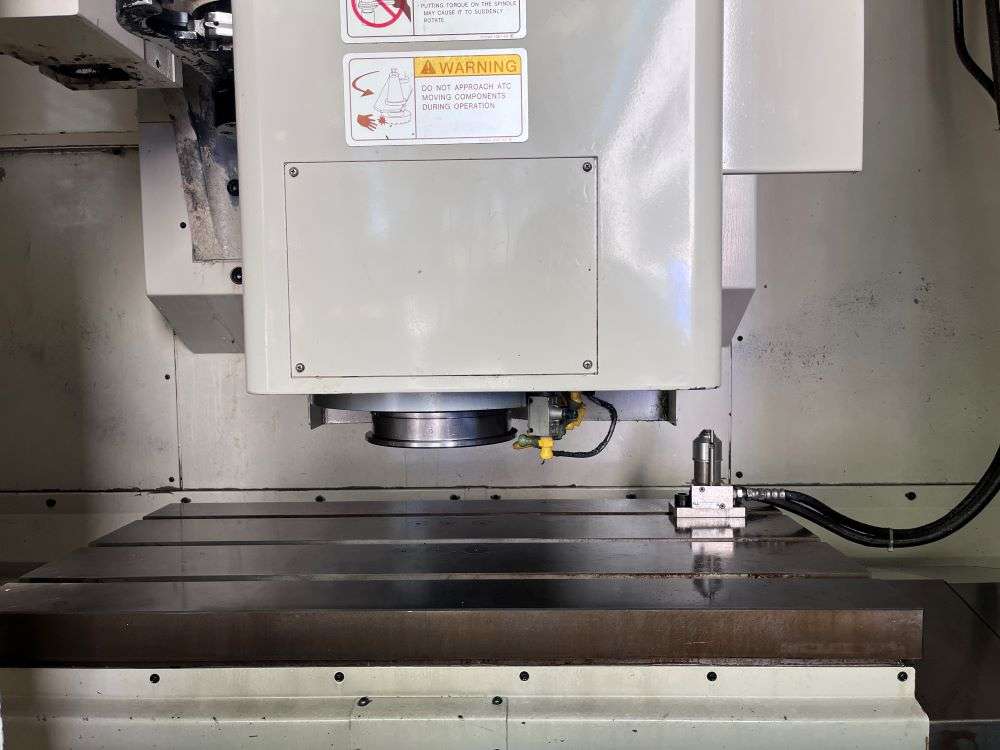

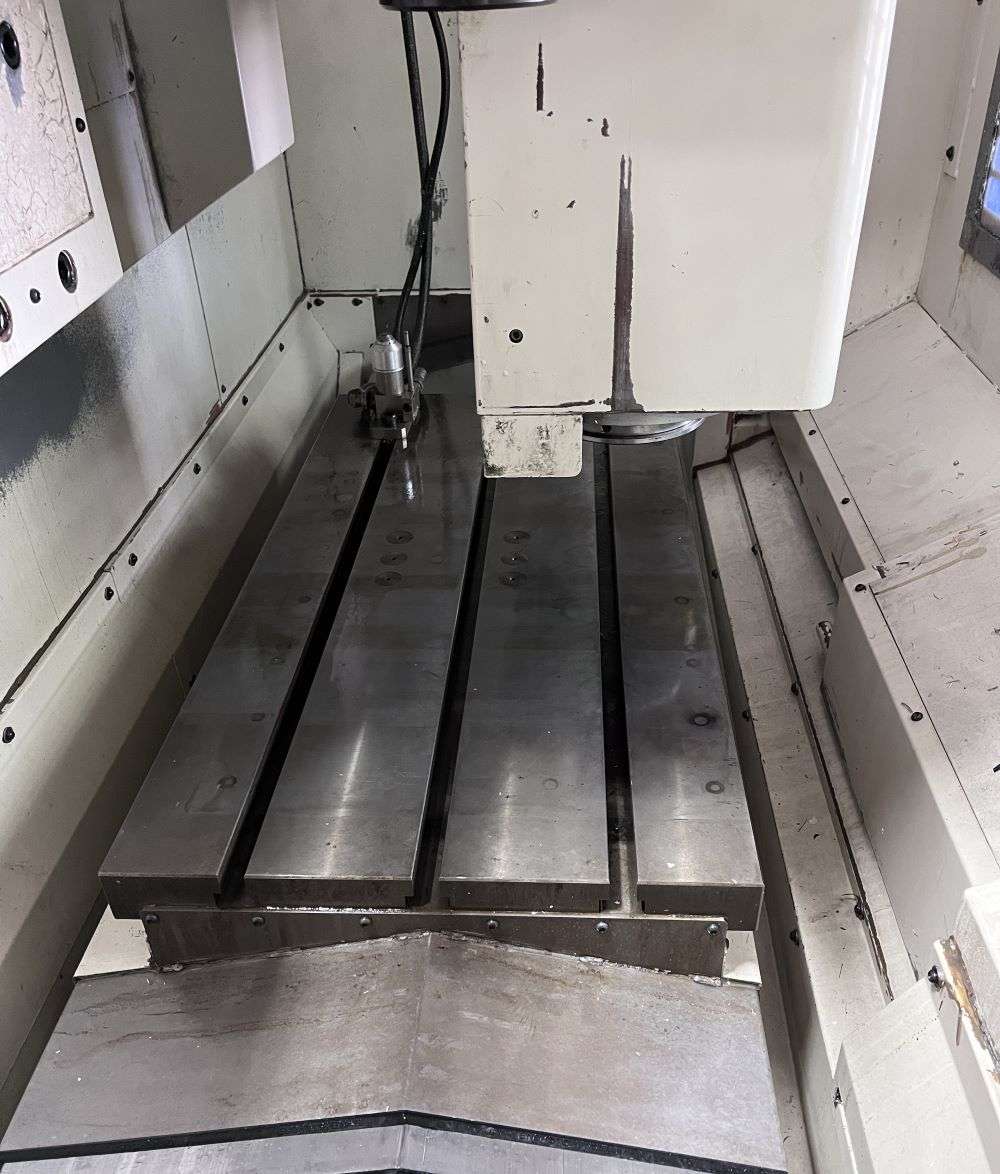

| Table: |
|---|
| Length: 39.37″ |
| Width: 18.11″ |
| Number of Std T-Slots: 3 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 1102 lbs |
| Spindle: |
|---|
| Spindle: Taper Size: CAT-40 |
| Speed Range: 7,000 RPM |
| Spindle Power: 15 HP |

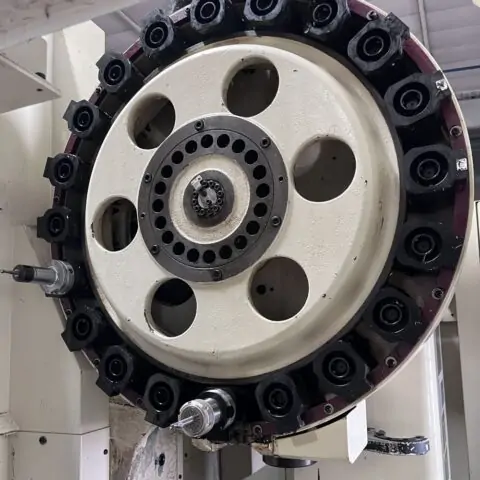

| Automatic Tool Changer: |
|---|
| Capacity: 20 Station Side Mounted |
| Tool Weight: 17.6 lbs |
| Max Tool Dia: 3.95″ |
| Max Tool Length: 9.84″ |
| General: |
|---|
| Air Required: 80 psi, 4 scfm |

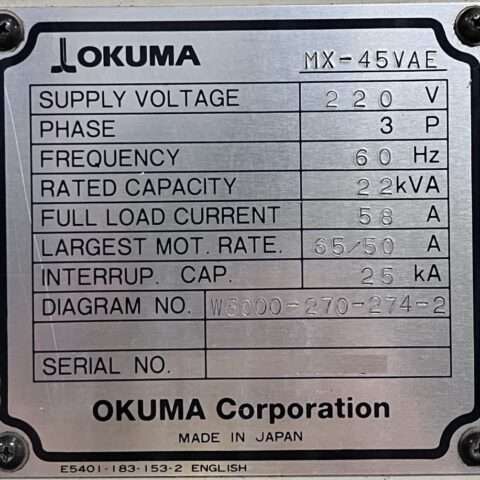

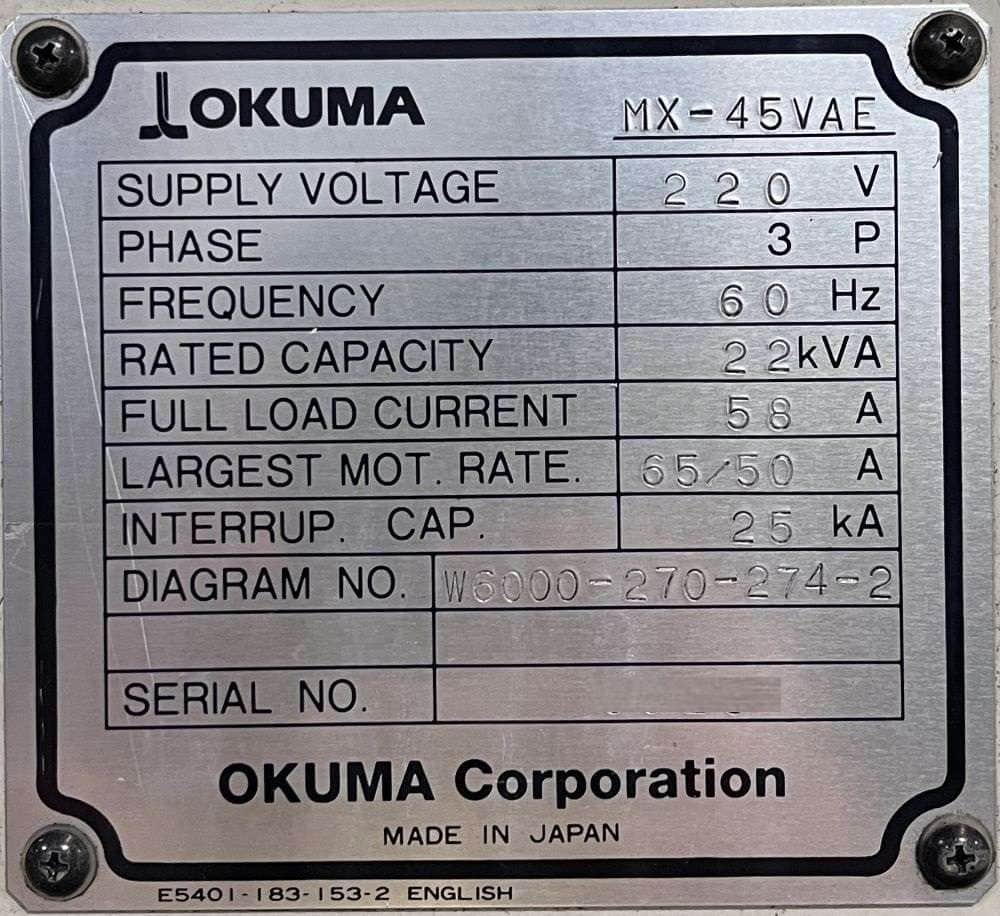

| Power: 220v / 3-Phase / 22 kva |
| Overall Dimensions: 90″ x 104″ x 106″ High |
| Weight: 12,125 lbs |
